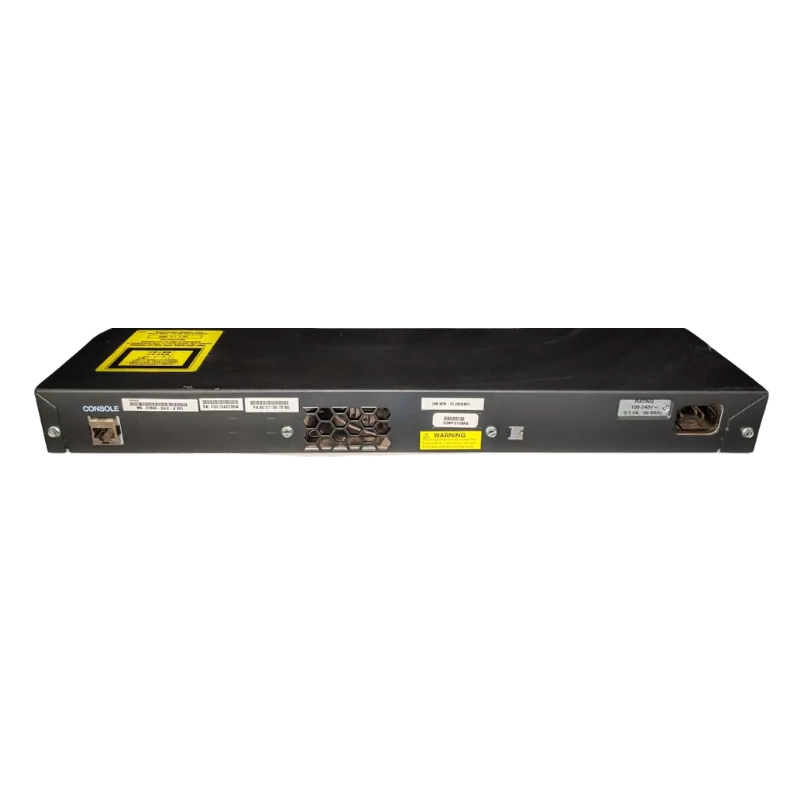

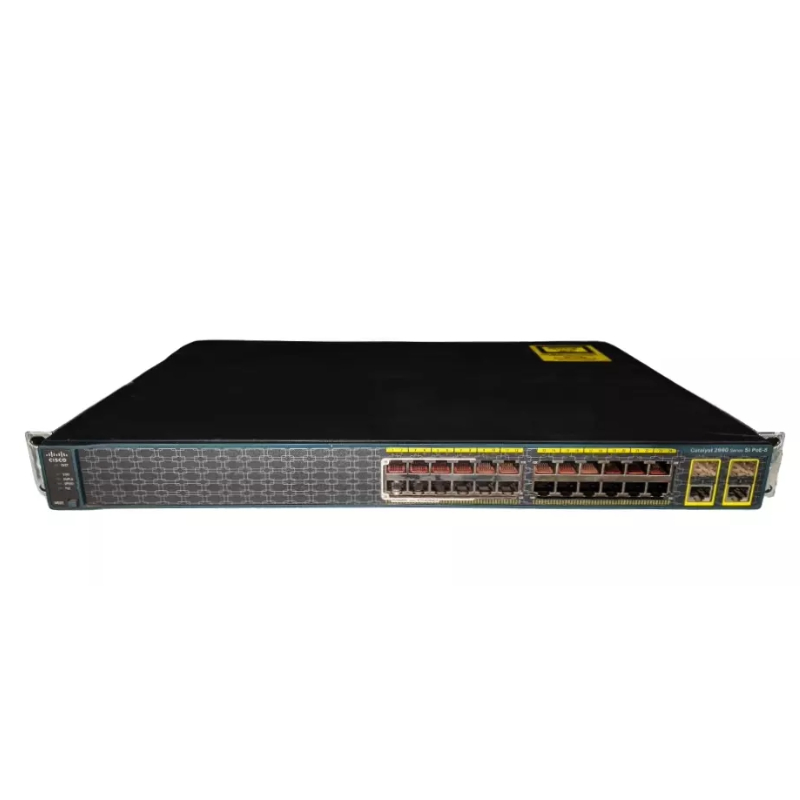

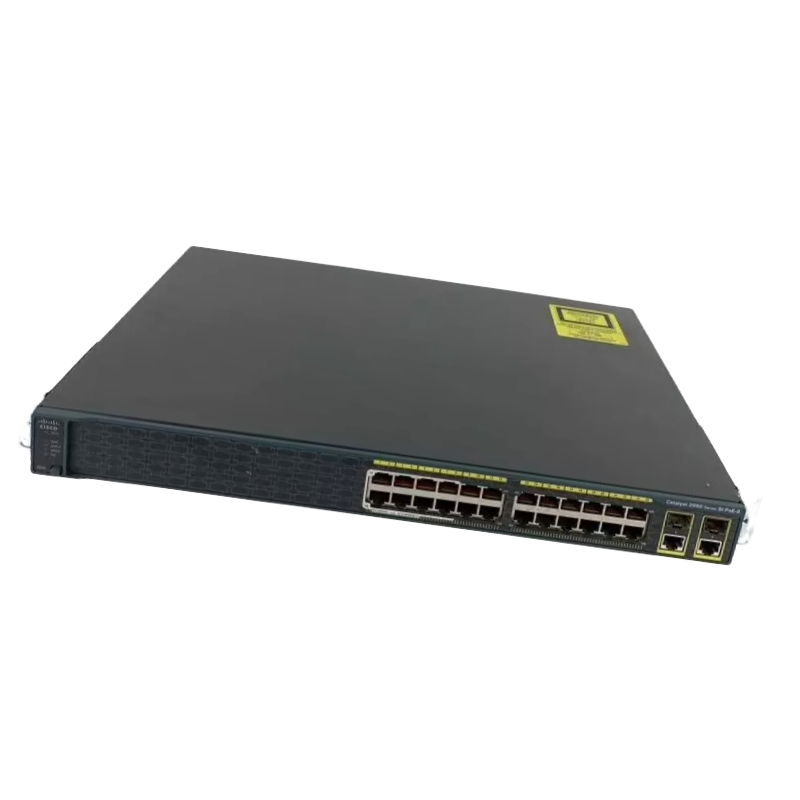

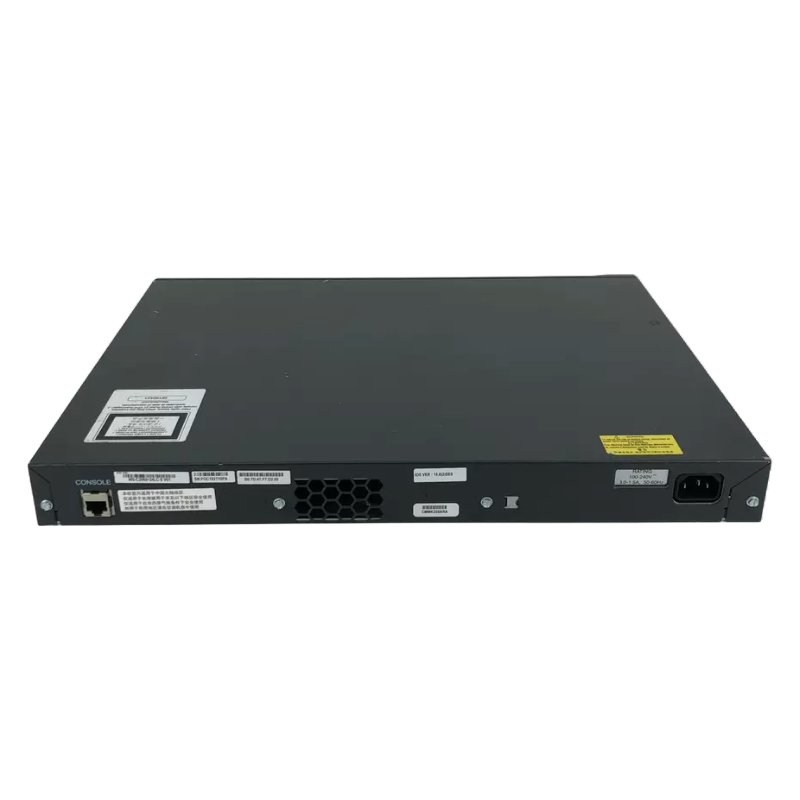

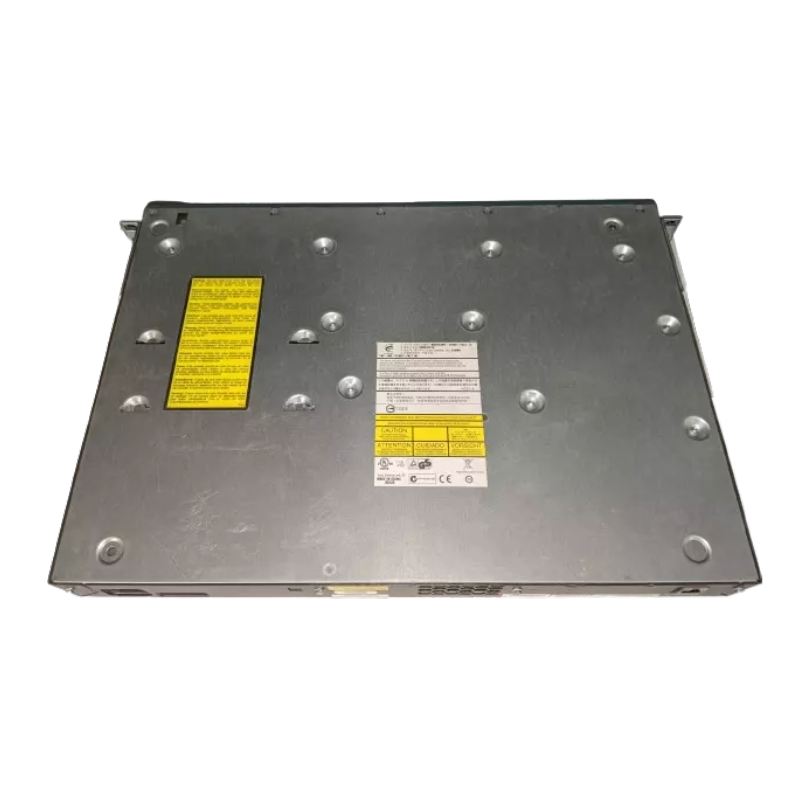

Cisco WS-C2960+24LC-S Managed Switch, Catalyst 2960-Plus, 24 Ports

General Specifications of Cisco WS-C2960+24LC-S Managed Switch

• Manufacturer: Cisco
• Model Number: WS-C2960+24LC-S
• Product Type: Managed Switch

Technical Overview of Cisco WS-C2960+24LC-S

• Enclosure Type: 1U Rack-Mountable
• Switch Type: Fast Ethernet
• Port Configuration: 24x 10/100 Ethernet + 2x Combo Gigabit SFP
• Power over Ethernet (PoE) Capability: Yes, with 123W PoE budget
• Jumbo Frame Support: Up to 9018 bytes

Advanced Features of Cisco WS-C2960+24LC-S

• Layer 2 Switching with advanced control for efficient network segmentation
• Auto-sensing and Auto-negotiation ensuring optimal performance across devices
• Power over Ethernet (PoE) supports multiple devices, delivering power directly via network cables
• VLAN Support: Allows efficient management of network traffic with virtual LANs
• IGMP Snooping: Optimizes multicast traffic within the network
• DHCP Support: Automatic IP addressing for connected devices
• Port Aggregation Protocol (PAGP) & Dynamic Trunking Protocol (DTP) for efficient port management and link aggregation
• Syslog and SNMP Support: Advanced logging and network management capabilities
• Quality of Service (QoS): Traffic prioritization for critical applications

Switch Performance Highlights

• Switching Capacity: 16 Gbps for high-performance data transfer
• Forwarding Performance: 6.5 million packets per second (64-byte size)

Capacity and VLAN Features

• Active VLANs: Supports up to 64 VLANs for efficient traffic segmentation

Remote Management and Monitoring Protocols

• SNMP Versions: Supports SNMP v1, v2c, and v3 for network monitoring
• RMON Monitoring: Offers RMON 1 and RMON 2 for enhanced network traffic analysis
• Telnet and HTTP: Remote management and access through web or command-line interfaces
• TFTP Support: Simplifies file transfers across the network

Power Supply Information

• Power Supply: AC 120/230V with 50/60 Hz frequency

Compliance and Standards

• IEEE 802.3 - Ethernet Standards
• IEEE 802.3u - Fast Ethernet Standards
• IEEE 802.1D - Spanning Tree Protocol (STP) Support
• IEEE 802.1Q - VLAN Tagging
• IEEE 802.3af - Power over Ethernet (PoE) Standard
• IEEE 802.1x - Network Access Control
• IEEE 802.1AB - Link Layer Discovery Protocol (LLDP)

Name: Catalyst 2960-Plus Ethernet

The Cisco WS-C2960+24LC-S Managed Switch is powered by the Catalyst 2960-Plus Ethernet, which is a cutting-edge technology that offers users numerous benefits and important features. This advanced Ethernet solution has been specifically designed to provide high performance, reliability, and security for businesses of all sizes.

High Performance

The Catalyst 2960-Plus Ethernet ensures high performance by delivering fast data transfer rates and low latency. With its Gigabit Ethernet ports, this switch enables users to transmit large amounts of data quickly and efficiently, resulting in improved productivity and reduced network congestion. Whether you need to transfer large files, stream high-definition videos, or run bandwidth-intensive applications, the Catalyst 2960-Plus Ethernet can handle it all with ease.

Additionally, this advanced technology supports advanced QoS (Quality of Service) features, allowing users to prioritize network traffic based on their specific needs. This ensures that critical applications receive the necessary bandwidth, guaranteeing a smooth and uninterrupted user experience.

Reliability and Redundancy

The Cisco WS-C2960+24LC-S Managed Switch with the Catalyst 2960-Plus Ethernet offers exceptional reliability and redundancy. It incorporates features such as redundant power supplies and dual redundant uplink modules, which ensure continuous operation even in the event of a power or hardware failure.

Furthermore, the Catalyst 2960-Plus Ethernet supports Cisco's Resilient Ethernet Protocol (REP), which allows for fast convergence and seamless failover in case of link failures. This means that your network will remain up and running without disruption, minimizing downtime and ensuring business continuity.

Enhanced Security

Security is a top priority for any network infrastructure, and the Catalyst 2960-Plus Ethernet delivers robust security features to protect your data and network from unauthorized access or attacks. It supports advanced security protocols such as 802.1X authentication, MAC address-based access control lists (ACLs), and port security.

By implementing these security measures, the Catalyst 2960-Plus Ethernet ensures that only authorized devices and users have access to your network, preventing potential threats and unauthorized access. This helps safeguard your sensitive data, intellectual property, and confidential information from unauthorized access or data breaches.

802.1X Authentication

802.1X authentication is a powerful security feature supported by the Catalyst 2960-Plus Ethernet. It provides port-based access control, requiring users and devices to authenticate before being granted access to the network. This ensures that only authorized users can connect to your network, reducing the risk of unauthorized access and potential security breaches.

MAC Address-Based Access Control Lists (ACLs)

The Catalyst 2960-Plus Ethernet allows you to configure MAC address-based Access Control Lists (ACLs) to further enhance network security. With MAC address-based ACLs, you can define specific rules that permit or deny access based on the MAC addresses of devices. This provides an additional layer of security by allowing you to control which devices can connect to your network.

Port Security

Port security is another essential feature offered by the Catalyst 2960-Plus Ethernet. It enables you to restrict access to individual switch ports based on MAC addresses. By configuring port security, you can ensure that only authorized devices are allowed to connect to specific switch ports, preventing unauthorized devices from gaining access to your network.

Benefits for Users

The Catalyst 2960-Plus Ethernet offers a range of benefits for users, making it an ideal choice for businesses seeking high performance, reliability, and security. Some of the key benefits include:

• Improved Productivity: With its high-performance capabilities, the Catalyst 2960-Plus Ethernet allows users to transfer data quickly and efficiently, resulting in improved productivity and reduced network congestion.
• Business Continuity: The reliability and redundancy features of the Catalyst 2960-Plus Ethernet ensure continuous operation, even in the event of power or hardware failures. This minimizes downtime and ensures business continuity.
• Enhanced Security: By supporting advanced security protocols such as 802.1X authentication, MAC address-based ACLs, and port security, the Catalyst 2960-Plus Ethernet helps protect your network from unauthorized access and potential security breaches.
• Scalability: The Cisco WS-C2960+24LC-S Managed Switch with the Catalyst 2960-Plus Ethernet is highly scalable, allowing businesses to expand their network infrastructure as their needs grow. This ensures that your network can accommodate future growth and evolving business requirements.

Ports: 24

The Cisco WS-C2960+24LC-S Managed Switch features 24 ports, providing ample connectivity options for your network devices. Each of these ports is capable of delivering high-speed data transfer rates, making it suitable for demanding network environments.

Increased Connectivity

The 24 ports offered by this switch allow you to connect a wide range of devices such as computers, servers, printers, IP phones, access points, and more. This flexibility enables you to build a robust and scalable network infrastructure that can support your current needs and accommodate future growth.

Having 24 ports also eliminates the need for additional switches or hubs, simplifying your network architecture and reducing overall costs. With fewer devices to manage, it becomes easier to monitor and maintain your network, saving valuable time and resources.

Flexibility and Versatility

The 24 ports on the Cisco WS-C2960+24LC-S Managed Switch offer flexibility and versatility, allowing you to configure your network to suit your specific requirements. With these ports, you can create VLANs (Virtual Local Area Networks) to segregate network traffic, prioritize certain applications or devices, and control access to resources.

VLANs

VLANs provide numerous benefits such as improved network performance, enhanced security, and simplified network management. With the 24 ports on this switch, you can create multiple VLANs to segment your network based on departments, projects, or any other logical grouping. This allows you to control traffic flow, isolate sensitive data, and optimize bandwidth allocation.

Quality of Service (QoS)

The Cisco WS-C2960+24LC-S Managed Switch supports advanced QoS (Quality of Service) features that allow you to prioritize network traffic based on your specific needs. By assigning different priorities to different types of traffic, such as voice or video, you can ensure that critical applications receive the necessary bandwidth for optimal performance. This ensures a seamless user experience and reduces the risk of network congestion.

Benefits for Users

The 24 ports offered by the Cisco WS-C2960+24LC-S Managed Switch provide users with several benefits, including:

• Increased Connectivity: The 24 ports allow for ample connectivity options, enabling you to connect a wide range of devices and build a robust network infrastructure.
• Flexibility and Versatility: With the ability to create VLANs and prioritize network traffic using QoS, the 24 ports offer flexibility and versatility, allowing you to customize your network according to your specific requirements.
• Simplified Network Management: The 24 ports eliminate the need for additional switches or hubs, simplifying your network architecture and making it easier to monitor and maintain.
