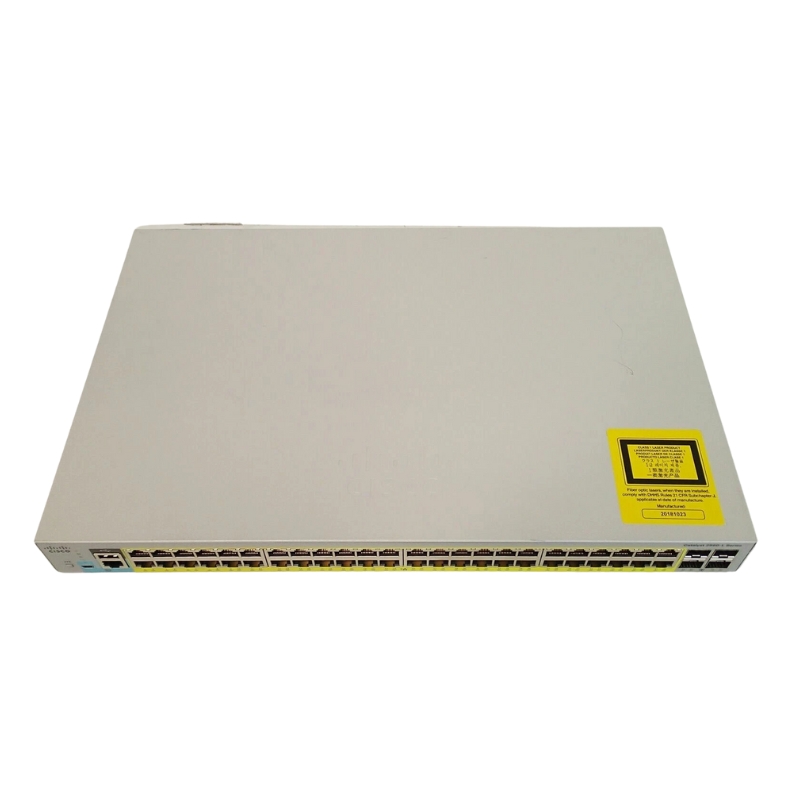

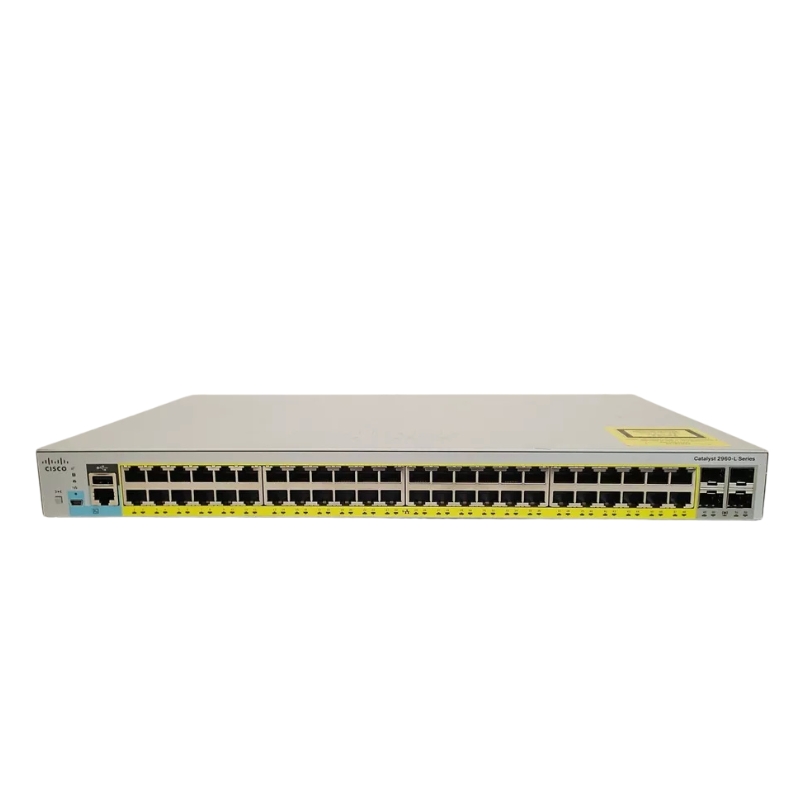

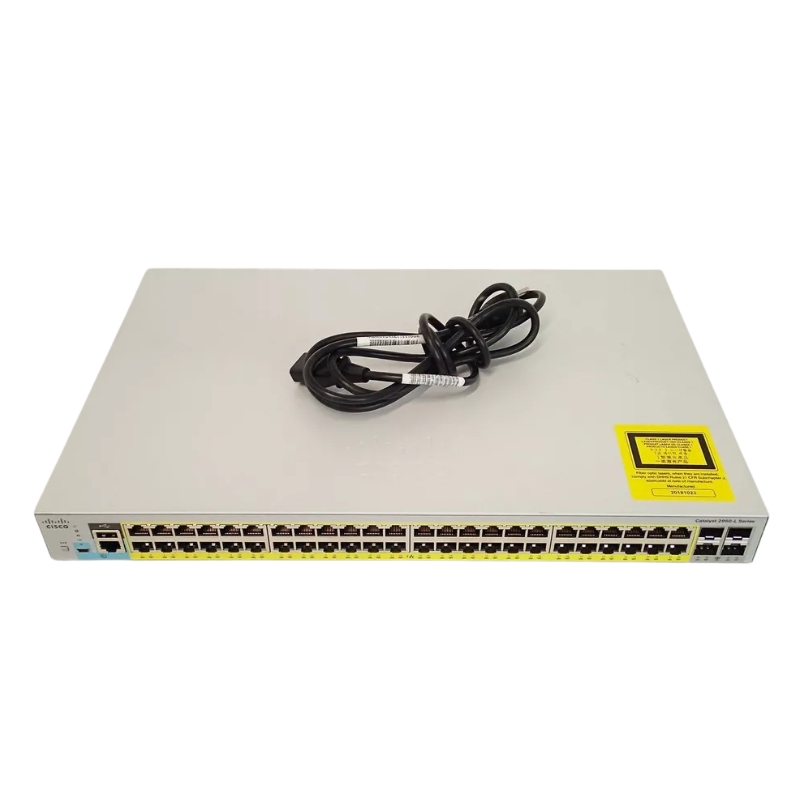

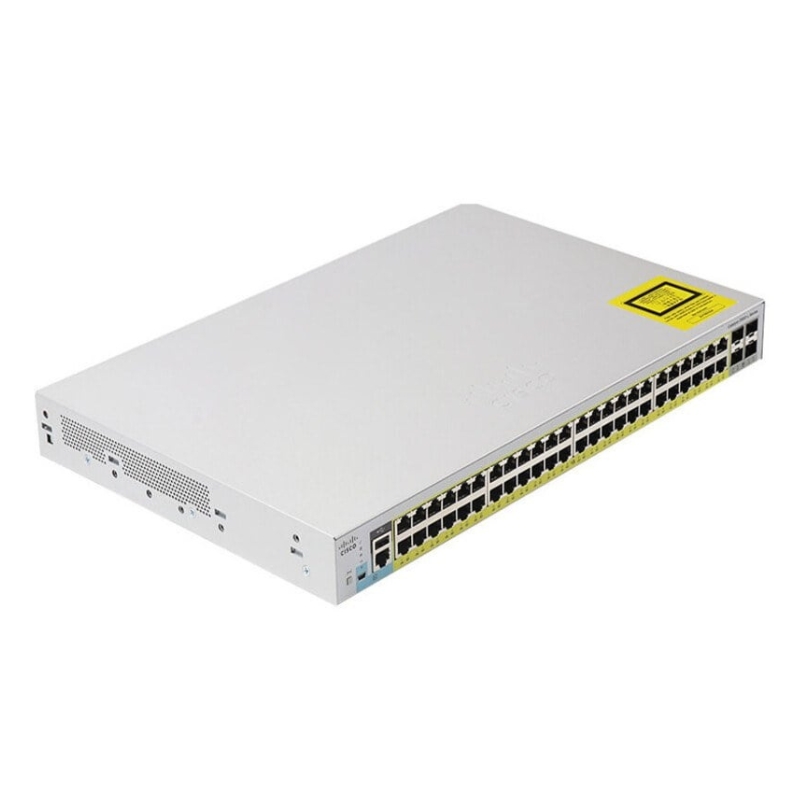

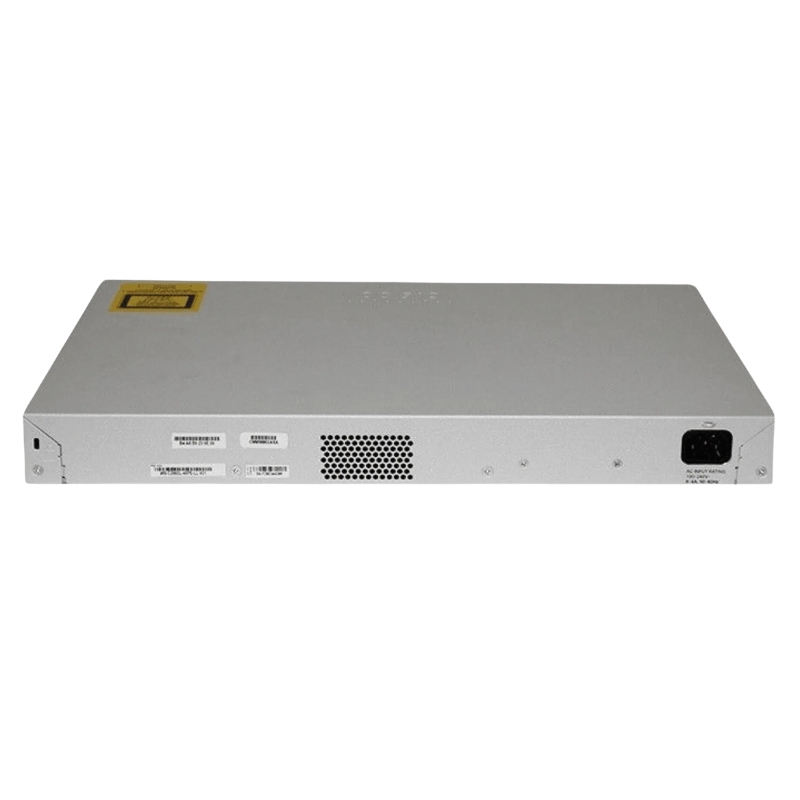

Cisco WS-C2960L-48TQ-LL Layer 4 Manageable 48-Ports Switch

Cisco WS-C2960L-48TQ-LL Overview

General Product Details

• Manufacturer: Cisco
• Model Number: WS-C2960L-48TQ-LL
• Product Type: Ethernet Switch

Console Ports and Interfaces

• RJ45 Ethernet Port: 1
• USB Mini-B Port: 1
• 10/100/1000 Ethernet Ports: 48
• USB-A Port: 1 (for storage and Bluetooth console)
• Forwarding Bandwidth: 88 Gbps

Uplink Options

• 10G SFP Ports: 4
• SFP Ports: 4

Switch Features

• Operating System: IOS LAN Lite
• Fanless Design: Yes

Performance Specifications

• Forwarding Bandwidth: 99 Gbps
• Switching Bandwidth: 176 Gbps
• Forwarding Rate (64-byte L3 Packets): 77.38 Mpps
• Unicast MAC Addresses: 8K
• Maximum Active VLANs: 64
• Available VLAN IDs: 4094
• Maximum STP Instances: 64
• Maximum SPAN Sessions: 1
• MTU-L3 Packet Size: 9198 bytes
• Jumbo Ethernet Frame Size: 10,240 bytes

Reliability

• MTBF (Data): 1,370,769 hours
• MTBF (PoE): 437,970 hours

Memory and Processor

• CPU: ARMv7, 800 MHz
• DRAM: 512 MB
• Flash Memory: 256 MB

Environmental Specifications

Operating Conditions

• Temperature Range (Up to 5,000 ft): 23ºF to 113ºF (–5ºC to 45ºC)
• Temperature Range (Up to 10,000 ft): 23ºF to 104ºF (–5ºC to 40ºC)
• Altitude: 10,000 ft (3000m)
• Relative Humidity: 5% to 90% at 40ºC

Storage Conditions

• Temperature Range: –13º to 158ºF (–25º to 70ºC)
• Altitude: 15,000 ft (4500m)
• Relative Humidity: 5% to 95% at 65ºC
• Minimum Ambient Temperature for Cold Start: 0°C (32°F)

Electrical Specifications

• Voltage (Autoranging): 110 to 220V AC
• Frequency: 50 to 60 Hz
• Current: 0.29A to 0.48A
• Power Rating (Maximum Consumption): 0.09 kVA
• Power Consumption:
  • 0% Traffic: 29.7 Watts
  • 10% Traffic: 41.1 Watts
  • 100% Traffic: 41.1 Watts
  • Weighted Average: 37.3 Watts

Safety and Compliance

• Safety Certifications: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
• EMC Emissions: 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
• EMC Immunity: EN55024, CISPR24, EN300386, KN24
• Environmental Compliance: RoHS, Directive 2011/65/EU
• Telco Certification: Common Language Equipment Identifier (CLEI) code
• U.S. Government Certifications: USGv6, IPv6 Ready Logo

Connectors and Interfaces

• Ethernet Interfaces:
  • 10BASE-T Ports: RJ-45 connectors, Category 3, 4, or 5 UTP cabling
  • 100BASE-TX Ports: RJ-45 connectors, Category 5 UTP cabling
  • 1000BASE-T Ports: RJ-45 connectors, Category 5 UTP cabling
  • 1000BASE-T SFP-Based Ports: RJ-45 connectors, Category 5 UTP cabling

Number Of Ports

The Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch is equipped with a total of 48 ports, making it an ideal choice for businesses that require high-density connectivity. Whether you have a small office or a large enterprise, the abundance of ports on this switch ensures that you can connect multiple devices without any limitations.

Benefits of 48 Ports

Having 48 ports on the Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch offers several significant benefits for users:

1. Scalability

The abundance of ports allows for seamless scalability, enabling your network to grow as your business expands. With 48 ports at your disposal, you can easily connect additional devices such as computers, printers, servers, and IP phones without worrying about running out of available ports. This scalability ensures that your network infrastructure can keep up with the increasing demands of your organization.

2. Simplified Network Configuration

By providing a large number of ports, this switch eliminates the need for additional networking equipment such as switches or hubs to accommodate multiple devices. This simplifies the overall network configuration and reduces the complexity of managing various devices. With only one switch handling all the connections, you can streamline your network setup and minimize potential points of failure.

3. Enhanced Performance

The Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch ensures optimal performance by distributing the network traffic effectively across its 48 ports. This feature prevents network congestion and bottlenecks, resulting in improved overall network speed and responsiveness. With enhanced performance, your employees can experience faster data transfers and smoother communication, leading to increased productivity within your organization.

Importance of 48 Ports

The 48 ports on the Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch are of utmost importance for businesses for several reasons:

1. Flexibility

Having a large number of ports provides the flexibility to connect various devices, regardless of their type or connectivity requirements. Whether you need to connect computers, printers, VoIP phones, or even wireless access points, the 48 ports give you the freedom to create a versatile and adaptable network infrastructure that suits your specific needs. This flexibility ensures that your network can accommodate future technological advancements and changing business requirements.

2. Cost-Effectiveness

The Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch eliminates the need for investing in additional networking equipment, reducing overall costs. With 48 ports available, you can connect multiple devices directly to the switch, avoiding the expense of purchasing additional switches or hubs. This cost-effectiveness is particularly beneficial for small businesses or organizations with limited budgets, as it allows them to create a robust network infrastructure without breaking the bank.

3. Centralized Management

With all your devices connected to a single switch, the management and administration of your network become much simpler and centralized. You can configure and monitor all connected devices from a single interface, allowing for easier troubleshooting, security enforcement, and network optimization. Centralized management enhances efficiency and reduces administrative overhead by providing a comprehensive overview of your network's status and performance.

Conclusion

The Cisco WS-C2960L-48TQ-LL Layer 4 Manageable Switch with its 48 ports offers numerous benefits and importance for businesses of all sizes. The scalability, simplified network configuration, enhanced performance, flexibility, cost-effectiveness, and centralized management provided by the 48 ports ensure that your network can support your organization's current and future needs. By investing in this switch, you can create a robust and efficient network infrastructure that promotes productivity and growth.
