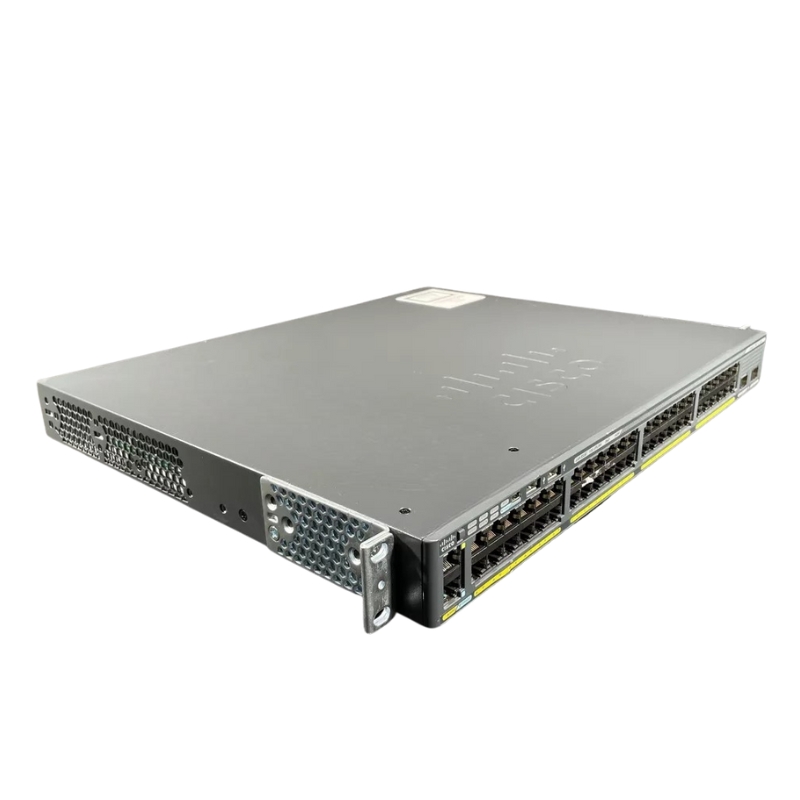

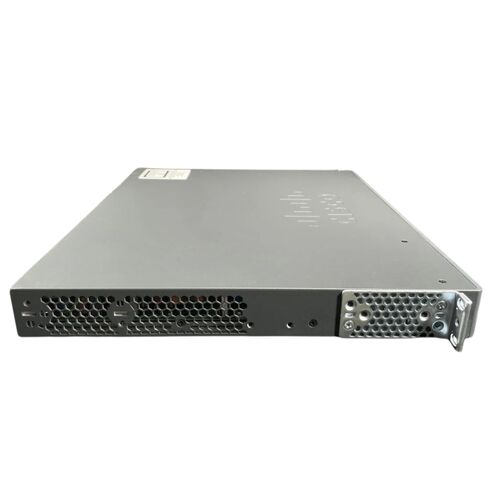

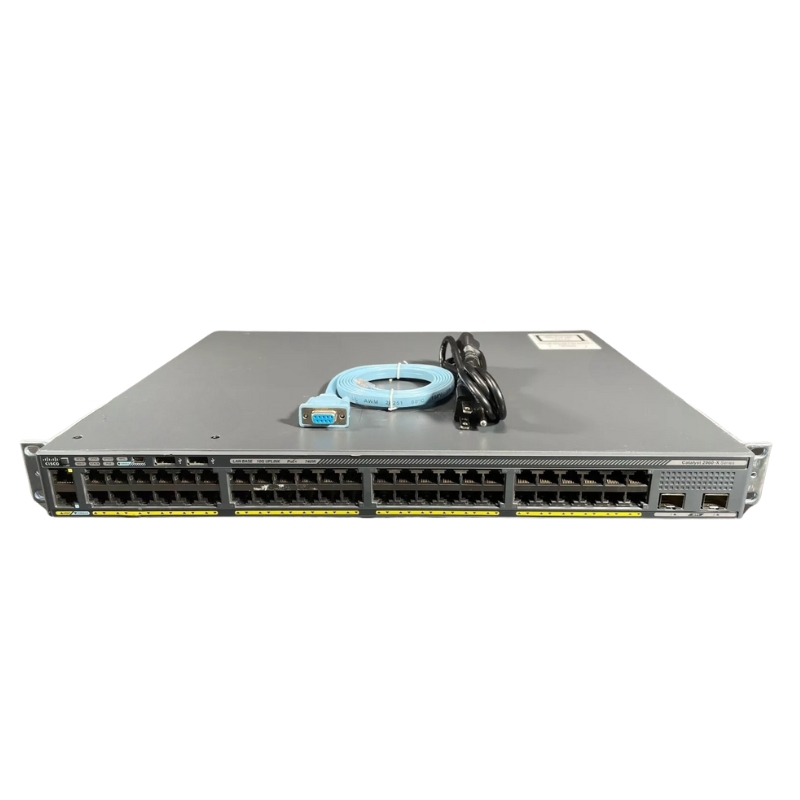

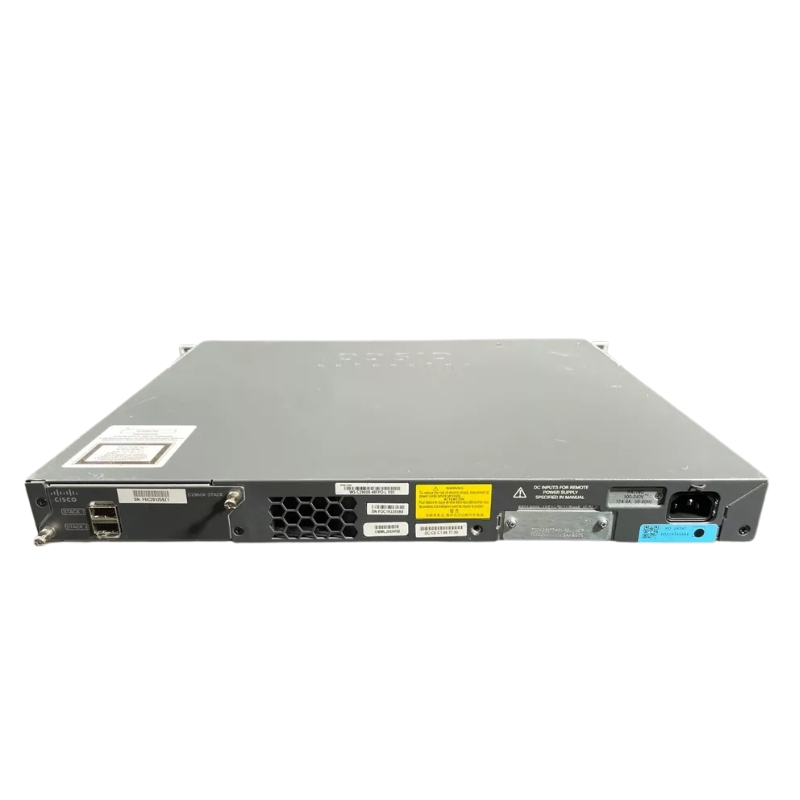

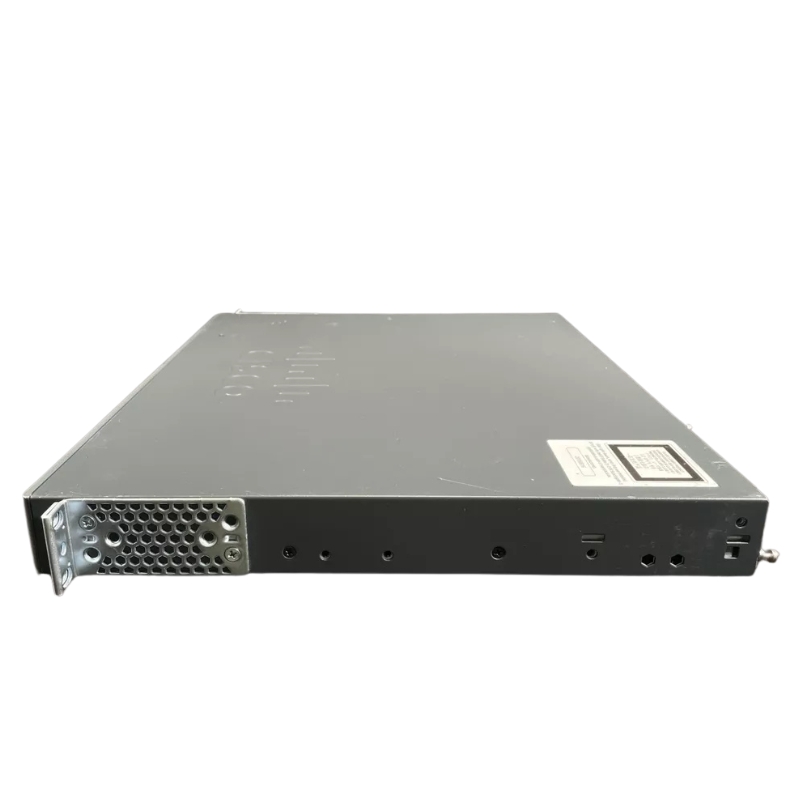

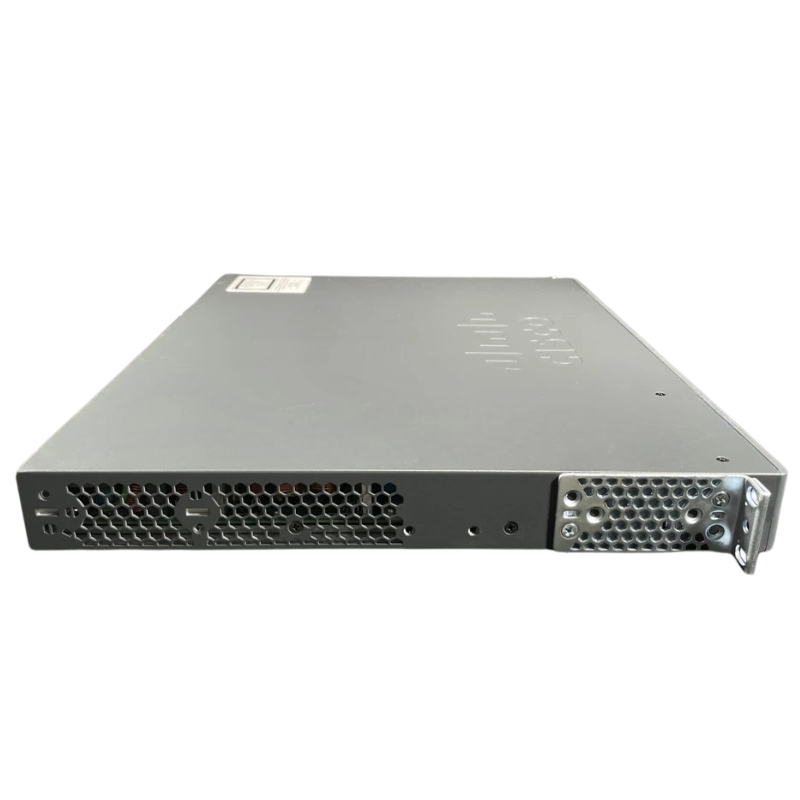

WS-C2960X-48LPD-L Cisco Catalyst 2960-X 48 Ports Managed Switch

Cisco WS-C2960X-48LPD-L Catalyst 2960-X Ethernet Switch

The Cisco Catalyst 2960-X Cisco WS-C2960X-48LPD-L Managed Switch is equipped with a remarkable 48 ports, making it an ideal choice for businesses and organizations that require a high-density network switch solution. With this extensive number of ports, users have the flexibility to connect multiple devices, such as computers, printers, servers, and IP phones, simultaneously.

General Specifications

• Manufacturer: Cisco
• Model Number: WS-C2960X-48LPD-L
• Device Type: Stackable Managed Switch
• Ports: 48 x 10/100/1000 Mbps with PoE+ support, 2 x SFP+ uplinks

Chassis and Form Factor

• Enclosure Type: Desktop and 1U Rack-mountable
• Compact Design: Optimized for space-constrained environments
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet compliant

PoE+ Support

• Delivers up to 370 W PoE budget
• Compatible with VoIP phones, IP cameras, and wireless access points
• Supports auto-negotiation for optimal device power allocation

High-Speed Data Handling

• Switching Capacity: 216 Gbps for full-duplex operation
• Forwarding Rate: 130.9 Mpps for high-performance traffic
• Supports up to 1023 VLANs for advanced segmentation
• Jumbo Frame Support: 9216 bytes for efficient large-packet processing

Advanced Layer 2 Switching Features

• VLAN Support with Dynamic Trunking Protocol (DTP)
• Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)
• Auto-MDI/MDI-X for simplified connectivity
• Broadcast, Multicast, and Unicast Storm Control
• IGMP Snooping and Multicast VLAN Registration (MVR)

Security and Access Control

• Dynamic ARP Inspection (DAI) and Uni-directional Link Detection (UDLD)
• Access Control Lists (ACLs) for enhanced traffic management
• RADIUS authentication support
• DHCP Snooping for trusted network management

Flexible Monitoring Options

• CLI, Telnet, SSH, and HTTP management
• SNMP v1, v2c, and v3 support for network monitoring
• Remote Switch Port Analyzer (RSPAN) for traffic analysis
• Trivial File Transfer Protocol (TFTP) support for configuration backups

Quality of Service and Traffic Optimization

• Shaped Round Robin (SRR) and Strict Priority Queuing (SPQ)
• Class of Service (CoS) for priority-based traffic handling
• Link Aggregation Control Protocol (LACP) for optimized bandwidth utilization

IEEE Standards Supported

• IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad
• IEEE 802.1d, 802.1w, 802.1s spanning tree protocols
• IEEE 802.1q VLAN tagging
• IEEE 802.1p priority queuing
• IEEE 802.3af and 802.3at PoE standards
• IEEE 802.3az energy efficiency and IEEE 802.1x port security
• LLDP support through IEEE 802.1ab

Power and Reliability

• Input Voltage: AC 120/230 V, 50/60 Hz
• Redundant power options for uninterrupted operation
• Designed for 24/7 business-critical network environments

Cisco WS-C2960X-48LPD-L Catalyst 48-Port Switch

The Cisco WS-C2960X-48LPD-L Catalyst 2960-X is an advanced managed Ethernet switch engineered for modern enterprise networking environments. Part of the Catalyst 2960-X series, this 48-port switch delivers high-performance connectivity, enhanced scalability, and energy-efficient operations. It is designed to support medium to large-sized organizations that require a reliable network backbone with extensive Layer 2 and limited Layer 3 capabilities.

High-Density Ethernet Connectivity

The WS-C2960X-48LPD-L model provides 48 Gigabit Ethernet ports, facilitating seamless connectivity for a large number of end devices. These ports are optimized to handle intensive data traffic from computers, IP phones, wireless access points, and networked peripherals. The high port density of this switch enables centralized management of network resources and minimizes network bottlenecks, making it ideal for dense office environments and campus networks.

Power over Ethernet (PoE) Capabilities

One of the key features of the Cisco WS-C2960X-48LPD-L is its support for Power over Ethernet (PoE). This functionality allows the switch to provide electrical power to connected devices such as IP cameras, VoIP phones, and wireless access points directly over the Ethernet cabling. The PoE feature simplifies network deployment by eliminating the need for separate power sources for each device, which reduces installation costs and supports cleaner, more efficient network infrastructure.

Energy Efficiency and Cost Savings

Cisco has incorporated energy-efficient technologies into the 2960-X series, including the WS-C2960X-48LPD-L. Features like Energy Efficient Ethernet (EEE) and Cisco’s innovative power management allow the switch to dynamically adjust power consumption based on port activity. This reduces operational expenses while maintaining high network performance. Additionally, intelligent fans and low-power components contribute to quieter and more environmentally friendly operations.

Robust Network Security

Security is a critical aspect of enterprise networking, and the WS-C2960X-48LPD-L addresses this with multiple layers of protection. The switch supports 802.1X authentication, Access Control Lists (ACLs), and Dynamic ARP Inspection (DAI) to prevent unauthorized access and network attacks. Cisco TrustSec technology further enhances network segmentation, enabling secure communications across different departments and user groups. These security features ensure that sensitive business data is protected from potential intrusions.

Advanced Layer 2 and Layer 3 Features

The Catalyst 2960-X series provides sophisticated Layer 2 switching capabilities with limited Layer 3 routing support. The WS-C2960X-48LPD-L supports VLAN segmentation, Spanning Tree Protocol (STP), Rapid STP, and Multiple Spanning Tree (MST) to maintain stable and loop-free network topology. On the Layer 3 side, the switch offers static routing, IPv4 and IPv6 support, and routing interfaces for small-scale network routing requirements. This combination of features allows administrators to efficiently manage traffic and optimize network performance.

Scalability and Network Expansion

The WS-C2960X-48LPD-L switch is designed to grow with enterprise demands. With stacking capabilities using Cisco FlexStack-Plus technology, multiple switches can be interconnected and operated as a single logical unit. This simplifies network expansion and management while ensuring high availability and redundancy. Stacking enhances overall network resilience and reduces administrative overhead, making it suitable for growing organizations.

Enhanced Quality of Service (QoS)

Quality of Service (QoS) mechanisms in the WS-C2960X-48LPD-L allow prioritization of critical traffic such as voice and video applications. By assigning different levels of priority to network packets, the switch ensures that essential communications receive the necessary bandwidth and minimal latency. This feature is crucial for organizations running VoIP, video conferencing, and other real-time applications that require consistent network performance.

Reliability and Resiliency

The Catalyst 2960-X 48-port switch is built with redundancy and reliability in mind. It supports dual redundant power supplies and features non-stop forwarding capabilities to maintain continuous operation during hardware failures. The switch’s robust architecture ensures stable and uninterrupted connectivity, making it an ideal choice for mission-critical enterprise applications where network downtime is not an option.

Deployment Flexibility

The WS-C2960X-48LPD-L supports flexible deployment scenarios to meet the needs of diverse network environments. It can be mounted in standard 19-inch racks or placed on desktops, making it suitable for data centers, wiring closets, or branch offices. Its compact design, quiet operation, and low power consumption make it a practical choice for environments where space and noise are considerations.

Integration with Cisco Ecosystem

Cisco’s WS-C2960X-48LPD-L integrates seamlessly with other Cisco networking devices and software. The switch is compatible with Cisco’s advanced network management solutions, security systems, and wireless infrastructure. This integration allows enterprises to build cohesive, automated, and secure networks that can scale efficiently and adapt to evolving business requirements.

Future-Proof Networking

The Catalyst 2960-X series, including the WS-C2960X-48LPD-L, is designed to support future network technologies and applications. With IPv6 readiness, software-defined networking (SDN) capabilities, and support for emerging standards, this switch ensures that enterprises can evolve their networks without the need for frequent hardware upgrades. Its long lifecycle and robust feature set provide a strategic investment for organizations seeking dependable and adaptable networking solutions.

Technical Specifications

The WS-C2960X-48LPD-L features 48 Gigabit Ethernet ports with PoE+ support, two dual-purpose uplink ports for fiber or copper connectivity, and a forwarding capacity capable of handling substantial data throughput. Its Layer 2 and limited Layer 3 capabilities, combined with energy-efficient design, secure architecture, and comprehensive management tools, make it an essential component for enterprise network infrastructure.

Applications in Enterprise Networking

Enterprises leverage the WS-C2960X-48LPD-L for campus networks, branch office connectivity, IP telephony, and wireless infrastructure support. Its ability to handle high-density connectivity, provide reliable PoE for devices, and maintain robust security standards makes it suitable for a wide range of operational scenarios. Businesses benefit from its scalability, ensuring that network growth does not compromise performance or reliability.
