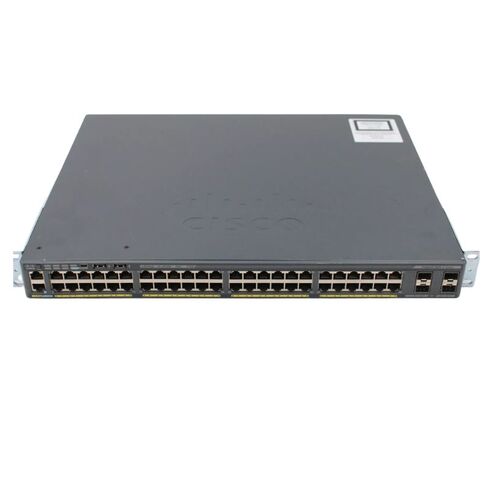

Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch, 48 Ports

Ports

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. With this extensive port capacity, users can easily connect multiple devices to the switch, including computers, servers, printers, and other networking equipment.

Overview of Cisco WS-C2960XR-48FPS-I

General Product Information

• Manufacturer: Cisco
• Model: WS-C2960XR-48FPS-I
• Product Line: Catalyst
• Series: 2960-XR
• Type: Ethernet Switch

Technical Specifications

Network Port Details

• Total Ports: 48
• Token Ring Port: Absent
• LRE Port: Absent
• Bypass: Not Available
• Modular Design: No
• Management Port: Available
• USB Port: Available
• PoE (RJ-45) Ports: 24
• PoE+ (RJ-45) Ports: 24
• Expansion Slots: 4 x Gigabit Ethernet Slots
• Gigabit Ethernet Ports: 48

Performance and Media Support

• Supported Media Type: Twisted Pair
• Twisted Pair Standard: Category 5
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Features and Capabilities

Switch Features

• Access Control List (ACL) Support
• ARP Support, Auto-Negotiation
• Auto-Uplink (MDI/MDI-X)
• Broadcast Storm Control
• Cisco EnergyWise Technology
• Cisco Fast EtherChannel, Cisco FlexStack Plus
• Class of Service (CoS)
• DHCP Snooping, Dynamic ARP Inspection (DAI)
• Dynamic Trunking Protocol (DTP) Support
• Energy Efficient Ethernet
• Hot Standby Router Protocol (HSRP)
• IGMP Snooping, Intrusion Detection System (IDS)
• IPv4 & IPv6 Support
• Jumbo Frames Support
• Layer 2 Switching, Layer 3 Load Balancing
• Link Aggregation Control Protocol (LACP)
• MAC Address Notification
• MLD Snooping
• Multicast Storm Control
• Multicast VLAN Registration (MVR)
• Multiple Spanning Tree Protocol (MSTP) Support
• NetFlow
• Per-VLAN Rapid Spanning Tree (PVRST)
• PoE+ Support
• Port Aggregation Protocol (PAgP)
• Power over Ethernet (PoE)
• Quality of Service (QoS)
• RADIUS Support
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Rapid Spanning Tree Protocol (RSTP) Support
• Remote Switch Port Analyzer (RSPAN)
• Shaped Round Robin (SRR)
• SSH Support
• Strict Priority Queuing (SPQ)
• Trivial File Transfer Protocol (TFTP) Support
• Uni-Directional Link Detection (UDLD)
• Unicast Storm Control
• VLAN Support

Expansion Options

• Total Expansion Slots: 4
• Expansion Slot Type: SFP
• SFP Slots: 4

Networking and Communication

• Layer Supported: 3

Memory Specifications

• Standard Memory: 512 MB
• Memory Technology: DRAM
• Flash Memory: 128 MB

Reliability and Environmental Factors

• Mean Time Between Failures (MTBF): 230,860 Hours
• Operating Temperature: Up to 5000 ft (1500 m): 23ºF to 113ºF (-5ºC to 45ºC)
• Short-term Exception Temperature: Sea Level: 23ºF to 131ºF (-5ºC to 55ºC)
• Storage Temperature: Up to 15,000 feet (4573 m): -13º to 158ºF (-25ºC to 70ºC)
• Operating Altitude: Up to 10,000 ft (3000 m)
• Storage Altitude: Up to 13,000 ft (4000 m)
• Operating Relative Humidity: 10% to 95% non-condensing
• Storage Relative Humidity: 10% to 95% non-condensing

Compliance and Standards

• IEEE 802.1ab (LLDP)
• IEEE 802.1AX
• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ad (LACP)
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3ah
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z

Increased Connectivity

Having 48 ports means that users can connect a large number of devices directly to the switch, eliminating the need for additional networking equipment such as hubs or switches. This not only simplifies the network infrastructure but also reduces costs associated with purchasing and managing additional devices.

Flexibility and Scalability

The abundance of ports on the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch provides users with the flexibility to expand their network as their business grows. Whether it's adding new workstations or accommodating a higher number of devices, this switch has the capacity to handle increasing demands without compromising performance.

Enhanced Productivity

With 48 ports available, users can ensure that each device on the network has a dedicated connection, eliminating bottlenecks and congestion. This translates into faster data transfer speeds and improved overall network performance. Users can experience seamless connectivity, allowing them to focus on their tasks without worrying about network slowdowns or interruptions.

Efficient Network Management

Managing a large number of devices becomes more efficient with 48 ports at your disposal. Users can easily organize and categorize devices based on their specific requirements. This makes it easier to monitor and troubleshoot network issues, as well as implement security measures such as VLANs or access control lists (ACLs) for better network segmentation.

Streamlined Network Architecture

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch's 48 ports contribute to a simplified and streamlined network architecture. With a single switch capable of accommodating multiple devices, users can reduce the number of devices required, leading to a more organized and efficient network design. This not only saves physical space but also reduces power consumption and cabling requirements.

Future-Proof Investment

Investing in a switch with 48 ports ensures that your network infrastructure is ready for future expansion. As technology evolves and more devices become network-dependent, having ample port capacity will prevent the need for immediate upgrades or replacements. This saves both time and costs, allowing businesses to focus on their core operations.

Power

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch is equipped with Power over Ethernet Plus (PoE+) capability, providing significant benefits and convenience for users. With PoE+, users can power compatible devices such as IP phones, wireless access points, and surveillance cameras directly through the Ethernet cables, eliminating the need for separate power supplies or outlets.

Simplified Deployment

PoE+ eliminates the need for additional power outlets near each device, streamlining the deployment process. Users can conveniently place devices in various locations without worrying about power availability or restrictions. This flexibility allows for easier installation and reduces the time and effort required for setting up network devices.

Cost Savings

By utilizing PoE+, users can eliminate the cost of installing separate power infrastructure for devices like IP phones or wireless access points. This not only saves on installation costs but also reduces ongoing energy expenses. Additionally, centralized power management enables better energy efficiency by allowing users to monitor and control power consumption on a per-port basis.

Improved Reliability

With PoE+, network devices receive power directly from the switch, ensuring a reliable power source. This eliminates the risk of power interruptions caused by individual power supplies or outlets. Users can have confidence in the uninterrupted operation of critical devices such as IP phones, ensuring continuous communication and productivity.

Flexibility for Remote Locations

PoE+ capability is particularly beneficial for remote locations where power outlets may be limited or difficult to access. Users can deploy network devices in areas where running separate power cables would be impractical or costly. This allows for greater flexibility in network design and ensures consistent connectivity throughout the organization.

Reduced Cable Clutter

PoE+ eliminates the need for additional power cables, reducing cable clutter and simplifying cable management. This not only improves the aesthetics of the network environment but also enhances airflow and cooling within network cabinets or equipment rooms. The result is a cleaner and more organized workspace, minimizing the risk of accidental cable disconnections or damage.

Scalability for Future Expansion

With PoE+ support, users can easily add or relocate devices without worrying about power availability. This scalability allows businesses to adapt to changing needs, such as expanding wireless coverage or adding new IP phones, without the constraints of power infrastructure. PoE+ ensures that the network remains flexible and capable of supporting future growth.

Features

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch offers a comprehensive range of features that contribute to its versatility and performance. Notably, it supports Layer 2 switching, Layer 3 routing, and IPv6, providing users with advanced capabilities to optimize their network infrastructure.

Layer 2 Switching

Layer 2 switching enables efficient traffic forwarding within a local area network (LAN) by using MAC addresses. The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch ensures fast and reliable data delivery between devices connected to the same network segment. This feature is essential for achieving high-performance and low-latency communication within the LAN.

Layer 3 Routing

Layer 3 routing allows the switch to route traffic between different networks using IP addresses. This capability enables the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch to connect multiple VLANs or subnets and facilitate intercommunication. Layer 3 routing improves network efficiency, enhances security, and allows for better network segmentation and management.

IPv6 Support

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch offers full support for IPv6, the latest version of the Internet Protocol. IPv6 provides a larger address space, improved security features, and enhanced network autoconfiguration capabilities. By supporting IPv6, this switch ensures compatibility with future technologies and prepares the network for the transition to IPv6.

Scalability and Future-Proofing

The Layer 2 switching, Layer 3 routing, and IPv6 support of the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch make it a scalable and future-proof solution. These features enable businesses to adapt to evolving networking requirements and technologies without the need for immediate hardware upgrades. The switch can handle expanding network needs, ensuring long-term investment protection.

Improved Network Performance

Layer 2 switching and Layer 3 routing enhance network performance by efficiently transmitting data packets and reducing latency. With these advanced features, users can experience faster data transfer speeds, improved response times, and smoother communication between devices. IPv6 support ensures seamless connectivity even in environments where IPv6 addresses are used.

Enhanced Network Security

Layer 2 switching and Layer 3 routing contribute to network security by allowing for the implementation of access control lists (ACLs) and VLANs. ACLs enable users to define specific rules for traffic filtering and access control, preventing unauthorized access or malicious activities. VLANs provide network segmentation, isolating sensitive data or devices from other parts of the network.

Management

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch offers versatile management options, including web-based management and a command-line interface (CLI). These management features allow users to efficiently configure, monitor, and troubleshoot the switch, ensuring optimal performance and network stability.

Web-Based Management

The web-based management interface provides a user-friendly graphical interface for configuring and monitoring the switch. Users can conveniently access the switch's settings and features through a web browser, eliminating the need for specialized software or technical expertise. Web-based management simplifies network administration tasks and enhances overall usability.

Command-Line Interface (CLI)

The command-line interface (CLI) provides advanced users with a powerful tool for configuring and managing the switch. With the CLI, users can execute commands directly on the switch, allowing for precise control and customization. The CLI is particularly useful for experienced network administrators who prefer command-based configuration or require automation through scripting.

Efficient Configuration

Both web-based management and CLI options enable efficient configuration of the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch. Users can easily set up VLANs, assign IP addresses, configure security features, and manage QoS settings. The intuitive interfaces and comprehensive configuration options ensure that users can tailor the switch to their specific network requirements without complexity.

Comprehensive Monitoring

Web-based management and CLI provide extensive monitoring capabilities for the switch. Users can monitor port status, network traffic, device connectivity, and performance metrics in real-time. This allows for proactive detection of issues or anomalies, enabling prompt troubleshooting and ensuring optimal network performance.

Troubleshooting and Diagnostics

Both web-based management and CLI offer robust troubleshooting and diagnostic features. Users can access detailed logs, error messages, and system information, aiding in identifying and resolving network issues. The ability to perform diagnostic tests, such as loopback or cable diagnostics, further streamlines the troubleshooting process and minimizes downtime.

Automation and Scripting

For advanced users, the CLI allows for automation and scripting capabilities, enabling the implementation of complex configuration tasks or repetitive operations. Users can create scripts to automate routine tasks or integrate the switch with existing network management systems. This saves time and enhances efficiency in managing the network infrastructure.

Security

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch prioritizes security with various features, including ACL support and port security. These security measures contribute to safeguarding the network infrastructure and protecting sensitive data from unauthorized access or malicious activities.

ACL Support

Access control lists (ACLs) allow users to define rules and policies for traffic filtering and access control. With ACL support, users can enforce granular control over network traffic, preventing unauthorized access, filtering specific protocols or ports, or applying Quality of Service (QoS) policies. ACLs help protect the network from potential threats and maintain network integrity.

Port Security

Port security allows users to secure individual switch ports by limiting the number of MAC addresses allowed to connect to a port. This feature prevents unauthorized devices from accessing the network and protects against MAC address spoofing or unauthorized device replacement. Port security ensures that only authorized devices can connect to the network, enhancing overall network security.

Enhanced Data Protection

By implementing ACLs and port security, the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch enhances data protection by reducing the risk of unauthorized access or data breaches. These security features contribute to compliance with industry regulations and protect sensitive information from potential threats or unauthorized disclosure.

Network Segmentation and Isolation

ACL support and port security facilitate network segmentation and isolation, allowing users to divide the network into separate segments or VLANs. This provides an additional layer of security by isolating sensitive devices or data from other parts of the network. Network segmentation helps contain potential security breaches and prevents unauthorized access to critical resources.

Protection against Denial-of-Service Attacks

ACLs can be configured to protect against denial-of-service (DoS) attacks or traffic flooding. Users can define rules to limit the rate of specific types of traffic or block suspicious traffic patterns. By preventing excessive traffic or malicious activities, ACLs help maintain network availability, ensuring uninterrupted access to network resources.

Secure Device Management

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch ensures secure device management by supporting encrypted management protocols such as Secure Shell (SSH) or Secure Sockets Layer (SSL). These protocols encrypt management traffic, protecting sensitive information such as passwords or configuration data from unauthorized interception. Secure device management enhances overall network security and prevents unauthorized access to switch settings.

Performance

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch offers impressive performance capabilities, highlighted by its 216 Gbps switching capacity. This high-performance switch ensures fast and reliable data transmission, enabling efficient communication and seamless connectivity throughout the network.

High-Speed Data Transfer

With a switching capacity of 216 Gbps, the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch can handle large amounts of data with ease. Users can enjoy high-speed data transfer between devices connected to the switch, ensuring fast file transfers, smooth multimedia streaming, and responsive network applications.

Enhanced Network Agility

The switch's high switching capacity allows for efficient handling of network traffic, reducing latency and ensuring optimal network performance. Users can experience minimal delays and fast response times, enhancing productivity and user satisfaction. The switch's performance capabilities enable organizations to support demanding applications and accommodate increasing network demands.

Reliable and Scalable Networking

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch's high switching capacity contributes to the reliability and scalability of the network infrastructure. With ample performance headroom, the switch can accommodate future growth and handle additional devices or data-intensive applications without compromising performance. This scalability ensures that the switch can meet evolving networking needs.

Support for Bandwidth-Intensive Applications

The switch's high-performance capabilities make it suitable for bandwidth-intensive applications such as video conferencing, multimedia streaming, or data-intensive backups. These applications require fast and reliable data transmission to maintain quality and minimize disruptions. The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch ensures smooth operation and optimal performance for such applications.

Efficient Network Load Balancing

The high switching capacity of the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch enables efficient network load balancing. By distributing network traffic across multiple ports, the switch optimizes resource utilization, prevents congestion, and ensures that no single port becomes a bottleneck. Efficient load balancing enhances overall network performance and minimizes packet loss or latency.

Future-Proof Investment

Investing in a high-performance switch like the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch ensures that your network infrastructure is prepared for future growth and technological advancements. The switch's impressive performance capabilities provide a solid foundation for supporting evolving networking requirements, ensuring a long-term return on investment.

Warranty

The Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch comes with a limited lifetime warranty, demonstrating Cisco's commitment to product quality and customer satisfaction. This warranty provides peace of mind and ensures that users can rely on the switch for long-term network stability and performance.

Long-Term Protection

The limited lifetime warranty offers protection against manufacturing defects or hardware failures, giving users confidence in the reliability of the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch. In the event of a covered issue, Cisco will repair or replace the switch, minimizing downtime and potential disruptions to the network.

Investment Protection

The limited lifetime warranty ensures that your investment in the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch is protected. Users can rely on the switch's performance and durability over its lifetime without incurring additional costs for repairs or replacements. This warranty demonstrates Cisco's commitment to providing high-quality networking solutions.

Access to Technical Support

Alongside the limited lifetime warranty, users also gain access to Cisco's technical support resources. This includes online documentation, troubleshooting guides, software updates, and access to Cisco's knowledgeable support team. The availability of technical support ensures that users can easily resolve any issues or questions they may encounter during the lifespan of the switch.

Peace of Mind

The limited lifetime warranty offers peace of mind for users, knowing that their investment in the Cisco WS-C2960XR-48FPS-I Gigabit Ethernet Switch is backed by a reputable manufacturer. Users can focus on their core business operations without worrying about unexpected hardware failures or additional costs for replacement equipment.
