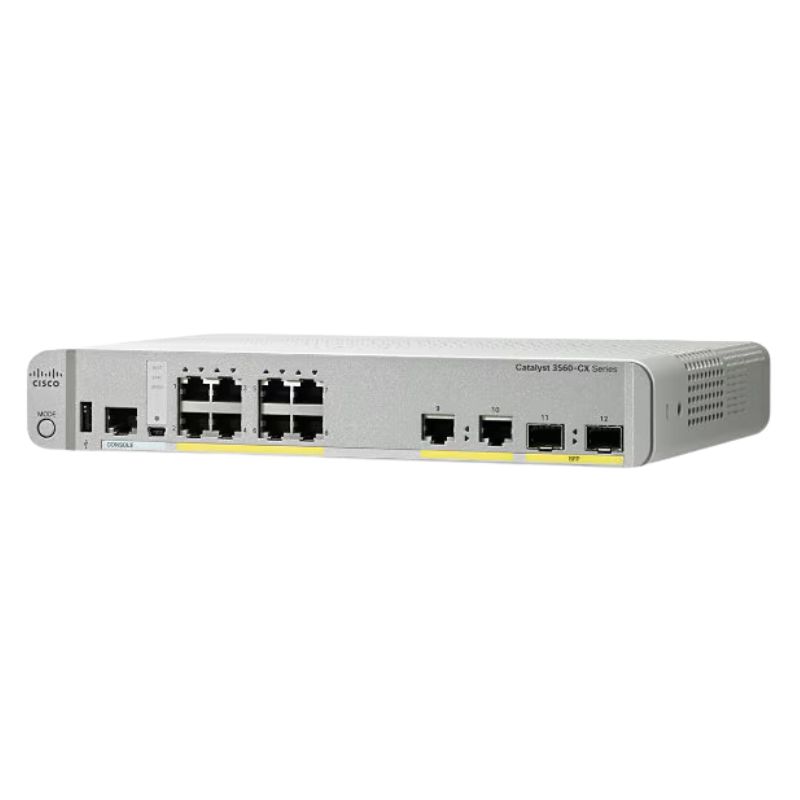

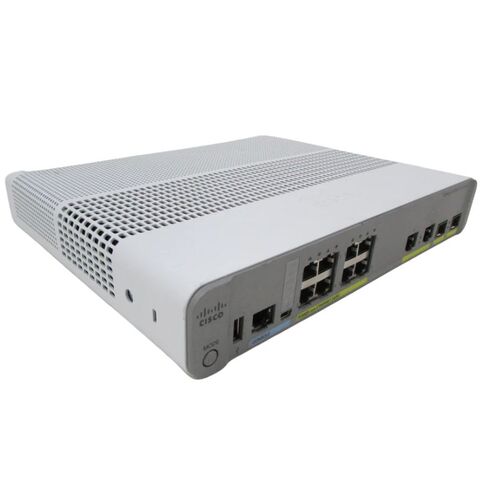

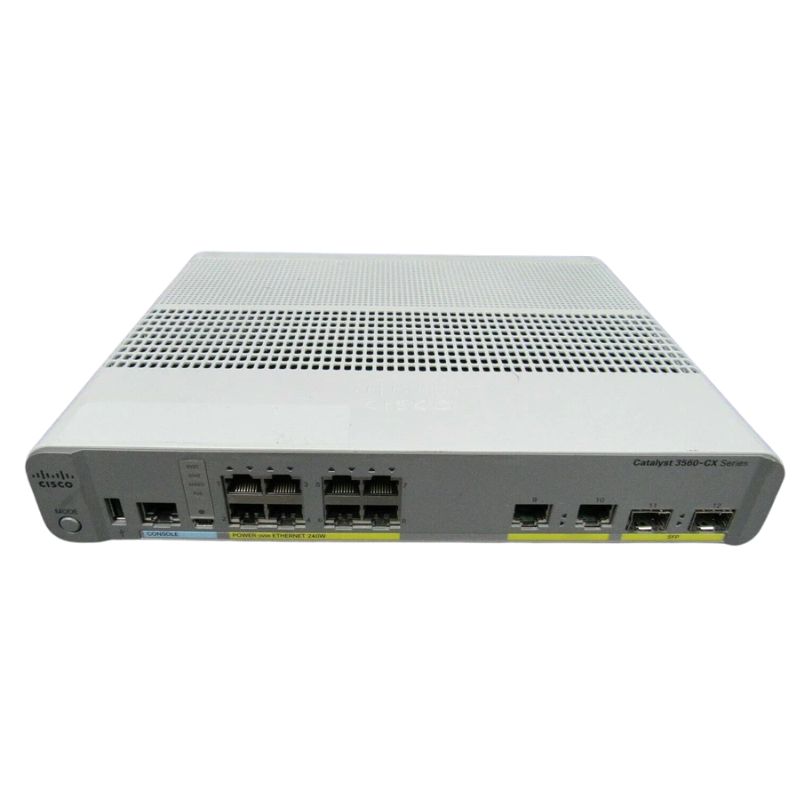

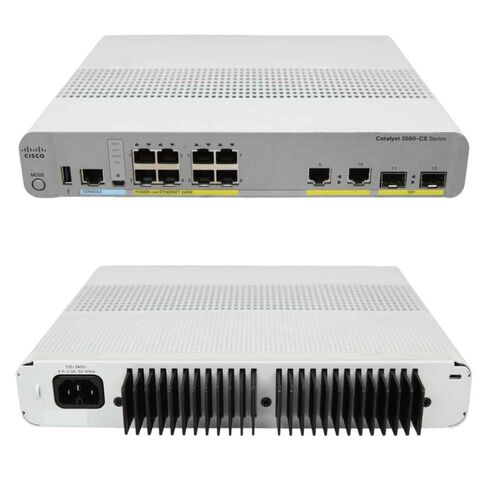

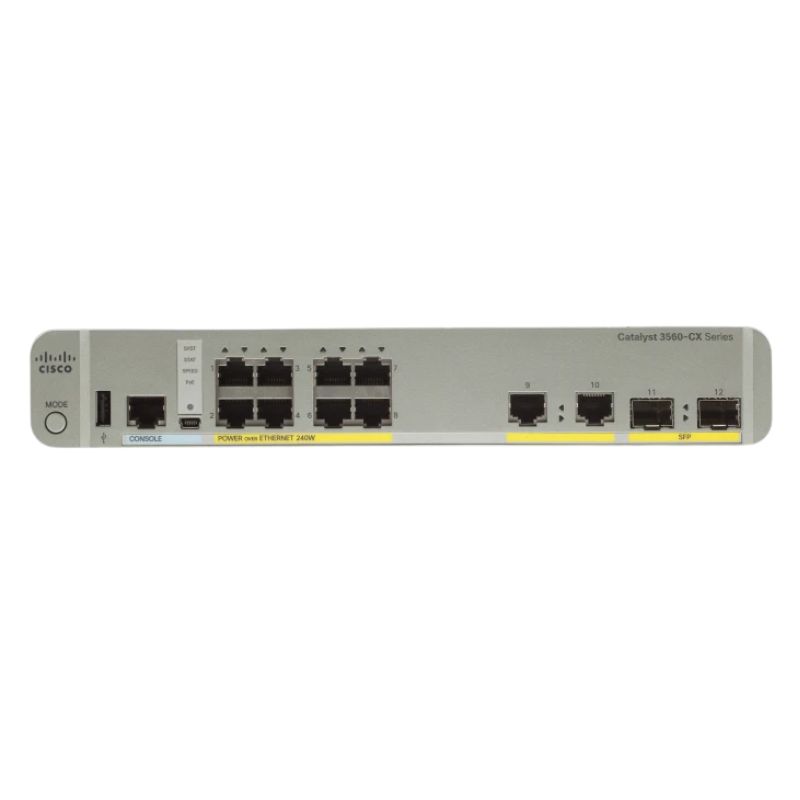

Cisco WS-C3560CX-8PC-S Layer 3 Ethernet SFP Managed Switch with 8 Ports

Ports

The Cisco WS-C3560CX-8PC-S Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports offer several benefits and play a crucial role in enhancing connectivity and productivity. Let's explore the importance of this feature in more detail.

Cisco WS-C3560CX-8PC-S Overview

Manufacturer Details

• Brand: Cisco
• Model Number: WS-C3560CX-8PC-S
• Series: Catalyst 3560-CX
• Switch Type: Layer 3

Network Interfaces and Ports

• Total Network Ports: 8
• Uplink Port: Yes
• Modular: No
• Stack Port: No
• Expansion Slots:
  • 2 x Gigabit Ethernet Uplink
  • 2 x Gigabit Ethernet Expansion Slot
  • 8 x Gigabit Ethernet Network

Performance and Media Support

• Media Type: Optical Fiber Supported
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

I/O Expansion Details

• Total Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slot: No
• Number of SFP Slots: 2

Layer and Management Features

• Supported Layer: 3
• Manageable: Yes

Power Specifications

• PoE (RJ-45) Port: Yes
• Power Source: Power Supply

Environmental and Certification Details

• Eco-Friendly: Yes
• Environmental Certification: RoHS-6

Management Protocols

• Routing Protocols: RIP-1, RIP-2, Static IP Routing
• Remote Management: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP

Key Features

• Dynamic Host Configuration Protocol (DHCP) Support
• Power over Ethernet (PoE)
• Auto-Negotiation
• Trunking Capabilities
• Multiprotocol Label Switching (MPLS) Support
• Virtual Local Area Network (VLAN) Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Traffic Shaping
• Manageable Interface
• Dynamic Trunking Protocol (DTP) Support
• Port Aggregation Protocol (PAgP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• DHCP Server
• Virtual Route Forwarding-Lite (VRF-Lite)
• Multicast Listener Discovery (MLD) Snooping
• Dynamic ARP Inspection (DAI)
• Time Domain Reflectometry (TDR)

Standards Compliance

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s

Environmental Conditions

• Minimum Operating Temperature: 23 °F
• Maximum Operating Temperature: 113 °F
• Operating Humidity Range: 5 – 95% (Non-Condensing)
• Minimum Storage Temperature: -13 °F
• Maximum Storage Temperature: 158 °F
• Storage Humidity Range: 5 – 95% (Non-Condensing)

Increased Connectivity

With 8 ports, the Cisco WS-C3560CX-8PC-S provides users with the ability to connect multiple devices simultaneously. This is particularly useful in office environments where employees require access to various network resources, such as printers, servers, and storage devices. The increased connectivity offered by these ports ensures that users can easily share information and collaborate efficiently.

Flexibility in Network Expansion

The 8 ports on this managed switch allow for easy network expansion as your business grows. Whether you need to add new workstations or connect additional devices, having multiple ports gives you the flexibility to scale your network infrastructure without any hassle. This scalability ensures that your investment in the Cisco WS-C3560CX-8PC-S is future-proof, saving you from the need to invest in a new switch when your network requirements increase.

Efficient Data Transfer

The 8 ports on this switch support high-speed data transfer rates, enabling seamless communication between devices on the network. Whether you are transferring large files or streaming multimedia content, the increased bandwidth provided by these ports ensures that your network operates at peak performance. This efficiency translates into improved productivity and reduced latency, enhancing the overall user experience.

Enhanced Network Security

Each port on the Cisco WS-C3560CX-8PC-S features advanced security features that help protect your network from unauthorized access and potential threats. These security measures include port security, which allows you to control access to specific ports based on MAC addresses, preventing unauthorized devices from connecting to your network. Additionally, the switch supports IEEE 802.1X authentication, providing an extra layer of security by requiring users to authenticate before accessing the network.

Layer

The Cisco WS-C3560CX-8PC-S Managed Switch operates at Layer 3 of the OSI model, offering users a range of benefits that are crucial for efficient network management. Let's delve into the importance of this Layer 3 functionality and how it enhances network performance.

Enhanced Routing Capabilities

Operating at Layer 3, this switch can perform routing functions, allowing for efficient traffic management across your network. With Layer 3 capabilities, you can create virtual LANs (VLANs) and implement inter-VLAN routing. This enables you to segment your network based on different departments or user groups, improving overall network performance and security.

Improved Scalability

Layer 3 switches have the ability to handle large amounts of network traffic, making them suitable for growing businesses. The Cisco WS-C3560CX-8PC-S can handle increasing data loads without compromising performance, ensuring that your network remains reliable and responsive even as your organization expands. This scalability is essential in today's fast-paced business environment, where data volumes continue to grow exponentially.

Advanced Quality of Service (QoS)

Layer 3 switches like the Cisco WS-C3560CX-8PC-S offer advanced QoS capabilities, enabling you to prioritize network traffic based on specific criteria. This ensures that critical applications and services receive sufficient bandwidth and are not affected by lower-priority traffic. By effectively managing bandwidth allocation, you can optimize network performance and deliver a consistent user experience.

Enhanced Network Resiliency

Operating at Layer 3 provides the Cisco WS-C3560CX-8PC-S with the ability to implement redundancy and failover mechanisms. This helps ensure network availability in case of link or device failures. With Layer 3 redundancy protocols such as Virtual Router Redundancy Protocol (VRRP) or Hot Standby Router Protocol (HSRP), the switch can seamlessly redirect traffic to backup links or devices, minimizing downtime and maximizing network resiliency.

Interface

The Cisco WS-C3560CX-8PC-S Managed Switch features Ethernet SFP interfaces, offering users a versatile and high-performance connectivity solution. Let's explore the benefits and importance of this interface feature in detail.

Flexible Connectivity Options

The Ethernet SFP interface allows for flexible connectivity options, enabling you to connect a wide range of devices to your network. SFP (Small Form-factor Pluggable) transceivers support various types of optical and copper cables, giving you the flexibility to choose the most suitable interface for your specific requirements. Whether you need to connect devices over short distances or extend your network over long distances, the Ethernet SFP interface provides the necessary versatility.

High-Speed Data Transfer

The Ethernet SFP interface supports high-speed data transfer rates, ensuring that your network operates at optimal performance levels. This is particularly important for bandwidth-intensive applications such as video conferencing, data backups, and multimedia streaming. With the ability to handle large volumes of data, this interface enables smooth and efficient communication between devices on your network.

Scalability and Future-Proofing

Ethernet SFP interfaces offer scalability and future-proofing benefits for your network infrastructure. These interfaces allow you to easily upgrade your switch's connectivity capabilities without replacing the entire unit. By simply swapping out SFP modules, you can adapt to changing network requirements and take advantage of emerging technologies without significant investments. This scalability ensures that your network remains flexible and ready for future growth.

Distance Extension

One of the key advantages of Ethernet SFP interfaces is their ability to extend network connectivity over long distances. This is particularly useful in scenarios where devices are located far apart or in different buildings. By using appropriate SFP transceivers and optical fiber cables, you can establish reliable connections over extended distances, eliminating the limitations of traditional Ethernet cables. This distance extension capability opens up new possibilities for network design and deployment.

In conclusion, the Cisco WS-C3560CX-8PC-S Managed Switch offers a range of powerful features that enhance connectivity, network management, and performance. With 8 ports, Layer 3 functionality, and Ethernet SFP interfaces, this switch provides users with the flexibility, scalability, and reliability required for modern business networks. Whether you need to connect multiple devices, optimize network traffic flow, or extend connectivity over long distances, this managed switch delivers the performance and capabilities necessary for efficient network operations.
