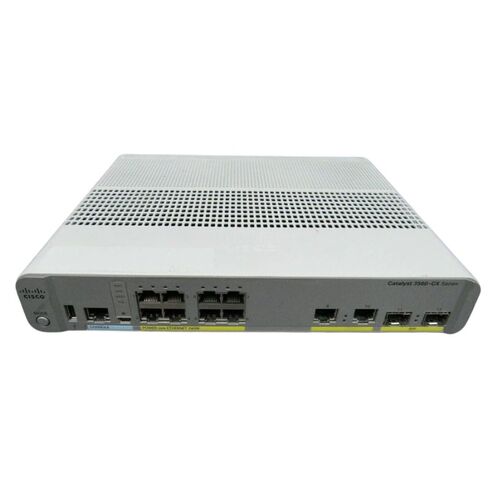

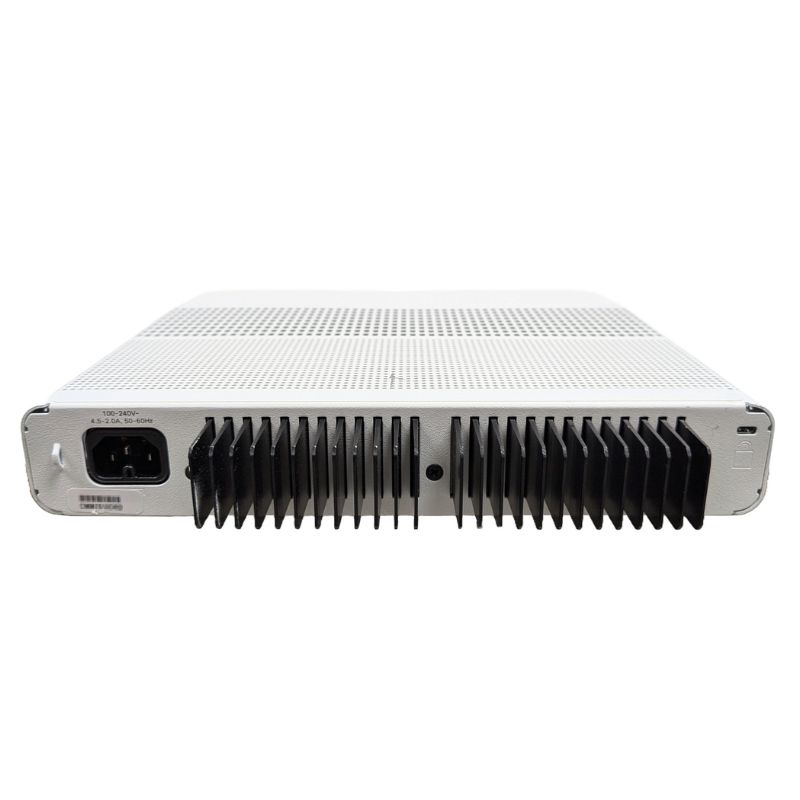

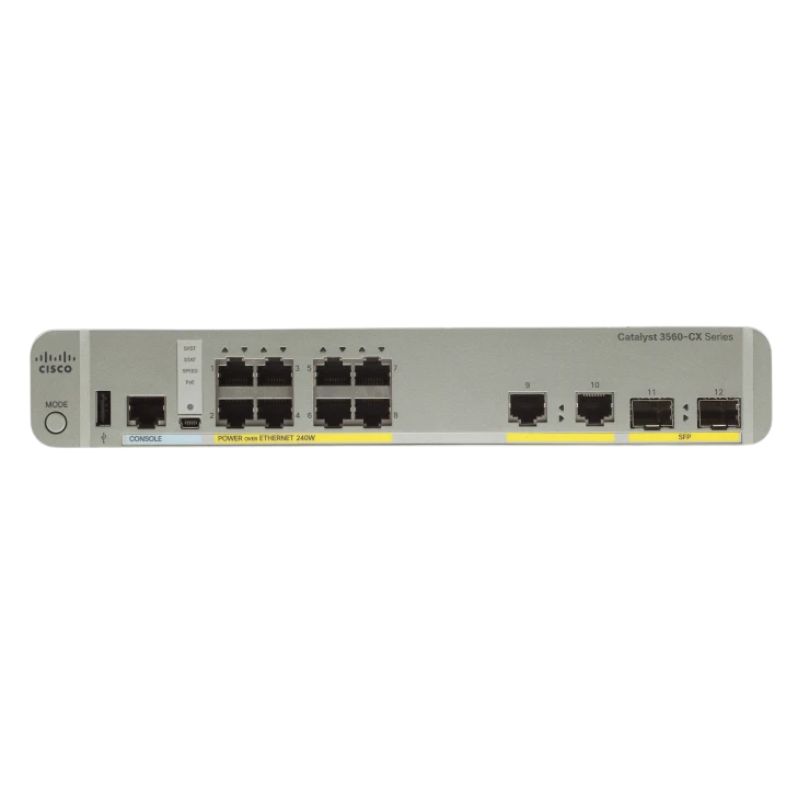

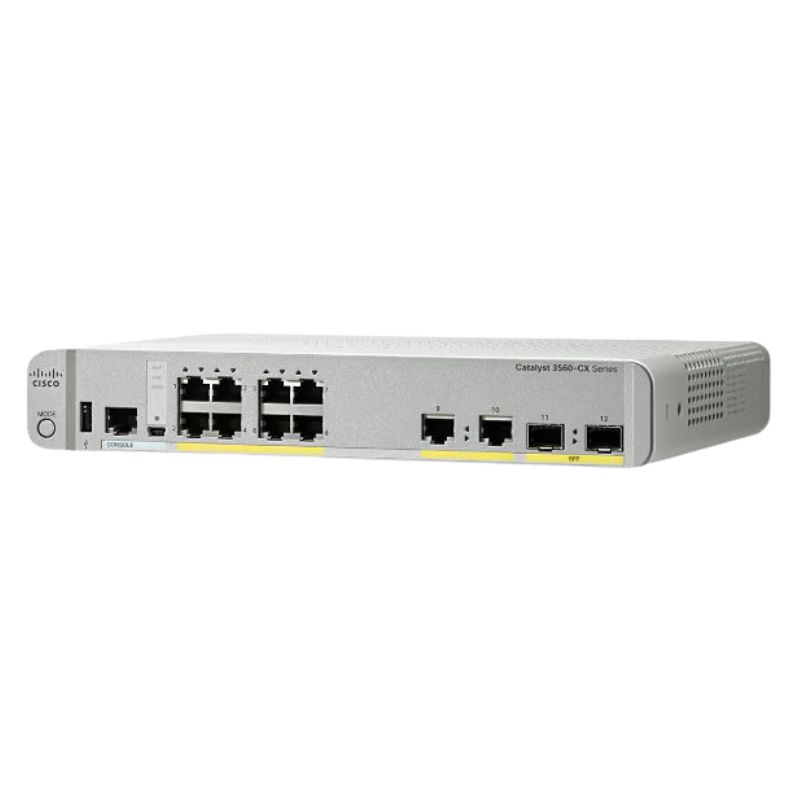

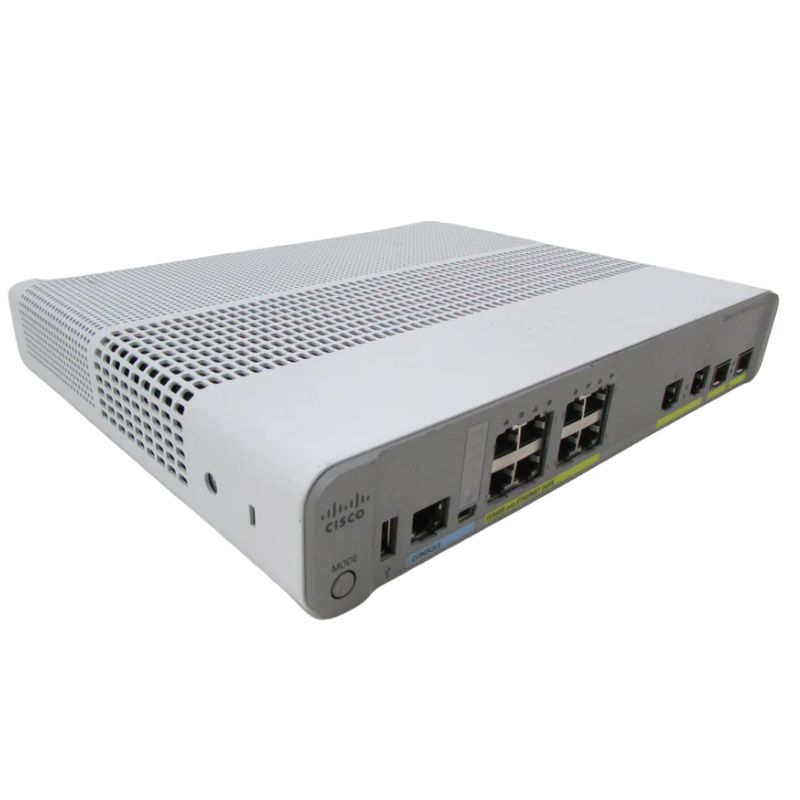

Cisco WS-C3560CX-8TC-S 8-Port Managed Switch Catalyst Rack Mountable

Ports

The Cisco WS-C3560CX-8TC-S Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports offer numerous benefits and play a crucial role in enhancing the connectivity and productivity of your network.

Overview of Cisco WS-C3560CX-8TC-S

The Cisco WS-C3560CX-8TC-S is a versatile managed switch designed for various network environments. Here’s an in-depth look at its specifications and capabilities.

Product Details

• Manufacturer: Cisco
• Model Number: WS-C3560CX-8TC-S
• Device Type: Managed Switch

Technical Specifications

Ports and Expansion Slots

• Total Ports: 8
• Network Ports (RJ-45): 10
• Uplink Ports: 2 x Gigabit Ethernet
• Network Ports: 8 x Gigabit Ethernet
• Expansion Slots: 2 x Gigabit Ethernet

Form Factor

• Mounting Options: Desktop, Rack-mountable, DIN rail mountable, Wall-mountable
• Modular: No
• Stack Port: No
• USB Ports: No

Performance and Media Types

• Supported Media: Optical Fiber, Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Standards: 1000Base-X, 10/100/1000Base-T

Environmental Conditions

Operating Temperature

• Minimum: 23°F
• Maximum: 113°F

Storage Temperature

• Minimum: -13°F
• Maximum: 158°F

Humidity

• Operating Range: 5 – 95% (non-condensing)
• Storage Range: 5 – 95% (non-condensing)

Networking Features

• Connectivity: Wired
• Advanced Switching: Layer 3
• Jumbo Frame Support: Up to 9018 bytes
• Power Over Ethernet (PoE): No

Status Indicators

• Link/activity
• Port duplex mode
• Port status
• Port transmission speed
• System status

Management and Protocols

• Manageable: Yes
• Protocols: DHCP, RIP-1, RIP-2, Static IP Routing
• Remote Management: CLI, HTTP, SNMP (v1, v2c, v3), Telnet, TFTP

Quality of Service (QoS)

• Access Control List (ACL) support
• Class of Service (CoS)
• DiffServ support
• Energy Efficient Ethernet
• Port Aggregation Protocol (PAgP)
• Shaped Round Robin (SRR)
• Spanning Tree Protocol (STP) support
• VLAN support

Power Specifications

• Power Source: Power Supply
• Input Voltage: 120 V AC, 230 V AC
• Power Consumption: 16.6 Watt (Operational)
• Frequency Required: 50/60 Hz
• Power Provided: 300 Watt

Additional Information

Compliance and Standards

• 80 PLUS Silver
• RoHS
• Various International Standards (e.g., EN 60950-1, UL 60950-1)

Miscellaneous Features

• Rack Mounting Kit: Optional
• MTBF (Mean Time Between Failures): 756,260 hours
• Color Category: Gray

Improved Network Flexibility

With 8 ports, this managed switch provides ample connectivity options for various devices, such as computers, printers, servers, and IP phones. Having multiple ports ensures that you can connect all your essential devices to the network without the need for additional switches or complicated setups. This flexibility allows you to expand your network easily and accommodate future growth.

Efficient Network Traffic Management

The Cisco WS-C3560CX-8TC-S Managed Switch utilizes advanced traffic management features that optimize the flow of data across your network. With 8 ports, you can segment your network into different VLANs (Virtual Local Area Networks) to separate traffic and improve performance. This enables you to prioritize critical applications and ensure smooth data transmission, even during peak usage periods.

Enhanced Network Security

Having multiple ports on the Cisco WS-C3560CX-8TC-S Managed Switch allows you to implement security measures at different levels of your network infrastructure. By utilizing features such as Access Control Lists (ACLs) and port-based authentication, you can control access to specific ports and devices, safeguarding sensitive data from unauthorized access.

Increased Bandwidth Capacity

Each port on the Cisco WS-C3560CX-8TC-S Managed Switch supports Gigabit Ethernet, providing high-speed data transfer capabilities. This allows for faster file transfers, smoother video streaming, and improved overall network performance. With 8 Gigabit Ethernet ports, you can ensure that all connected devices receive the necessary bandwidth to operate efficiently, even in bandwidth-intensive applications.

Simplified Network Management

Managing a network with multiple devices becomes significantly easier with the Cisco WS-C3560CX-8TC-S Managed Switch. The switch offers comprehensive management options, including a web-based interface and command-line interface (CLI), allowing you to monitor and configure your network settings effortlessly. The 8 ports make it convenient to organize and control network traffic, ensuring optimal performance and reducing the time spent on troubleshooting and maintenance.

Uplink Speed

The Cisco WS-C3560CX-8TC-S Managed Switch features an uplink speed of 1 GBPS, providing users with high-speed connectivity options for linking their switch to other networking devices. This feature offers numerous advantages and is particularly beneficial for businesses that rely on fast and reliable data transmission.

Seamless Data Transfer

With an uplink speed of 1 GBPS, the Cisco WS-C3560CX-8TC-S Managed Switch ensures that data can flow seamlessly between interconnected switches or network devices. This high-speed connection eliminates bottlenecks and reduces latency, resulting in faster data transfer rates and improved network performance. Whether you are transferring large files, streaming multimedia content, or running bandwidth-intensive applications, the 1 GBPS uplink speed ensures a smooth and uninterrupted experience.

Improved Network Reliability

The 1 GBPS uplink speed on the Cisco WS-C3560CX-8TC-S Managed Switch enhances the reliability of your network infrastructure. This high-speed connection minimizes the risk of data congestion and packet loss, ensuring that critical information reaches its destination without delays or interruptions. By maintaining a stable and reliable network connection, you can prevent downtime and maintain productivity in your business operations.

Scalability for Future Growth

The 1 GBPS uplink speed provides ample bandwidth for expanding your network infrastructure in the future. As your business grows and demands for higher data transfer rates increase, the Cisco WS-C3560CX-8TC-S Managed Switch can accommodate these requirements without the need for costly upgrades or replacements. This scalability ensures that your network remains capable of handling increased traffic and data volumes, allowing you to adapt to evolving business needs seamlessly.

Compatibility with High-Speed Internet

Many businesses today rely on high-speed internet connections to support their operations. The 1 GBPS uplink speed on the Cisco WS-C3560CX-8TC-S Managed Switch is compatible with most high-speed internet service providers, ensuring that you can take full advantage of your internet connection without any speed limitations imposed by your network infrastructure. This compatibility enables you to make the most of cloud-based applications, video conferencing, and other bandwidth-intensive online services.

Enhanced Network Performance

The 1 GBPS uplink speed significantly enhances overall network performance by providing a fast and reliable connection between switches or network devices. By eliminating data bottlenecks and reducing latency, this feature ensures that your network operates at its full potential. Improved network performance translates into faster response times, increased productivity, and a better user experience for everyone connected to the network.

Uplink Type

The Cisco WS-C3560CX-8TC-S Managed Switch features an uplink type of SFP (Small Form-Factor Pluggable), offering users a versatile and flexible solution for connecting their switch to other networking devices. The SFP uplink type provides numerous benefits and is particularly advantageous in scenarios where different media types or longer distances need to be supported.

Media Flexibility

The SFP uplink type allows you to choose from a wide range of SFP transceivers, enabling connectivity over various media types, such as copper or fiber optic cables. This flexibility is particularly useful when dealing with different networking environments or when connecting to devices that require specific media types. Whether you need to establish a long-distance connection or connect to a device with a specific media interface, the SFP uplink type ensures compatibility and seamless integration.

Extended Reach

The SFP uplink type on the Cisco WS-C3560CX-8TC-S Managed Switch supports long-distance connections, making it an excellent choice for businesses with multiple locations or expansive office spaces. By utilizing SFP transceivers designed for extended reach, you can connect switches or network devices that are located far apart without sacrificing performance. This feature eliminates the need for additional equipment or complex configurations, simplifying network expansion and reducing costs.

Future-Proof Solution

The SFP uplink type offers a future-proof solution for your network infrastructure. As technology evolves and new media types emerge, the SFP interface ensures that your switch remains compatible with future upgrades and advancements. You can easily swap out SFP transceivers to accommodate changing requirements without the need for costly equipment replacements. This flexibility allows you to adapt your network to evolving technologies and ensures that your investment in the Cisco WS-C3560CX-8TC-S Managed Switch remains valuable in the long run.

High-Speed Data Transmission

The SFP uplink type supports high-speed data transmission, allowing for fast and efficient communication between switches or network devices. Whether you need to transfer large files, stream high-definition video, or run bandwidth-intensive applications, the SFP interface ensures that data can be transmitted at optimal speeds without any degradation in performance. This high-speed capability enables you to take full advantage of your network's potential and ensures smooth and reliable data transfer across your entire infrastructure.

Interoperability

The SFP uplink type offers excellent interoperability with various networking equipment and devices. Whether you need to connect to switches from different manufacturers or integrate with third-party networking hardware, the SFP interface provides compatibility and seamless integration. This interoperability allows for greater flexibility in designing and expanding your network infrastructure, ensuring that you can choose the best solutions for your specific needs.

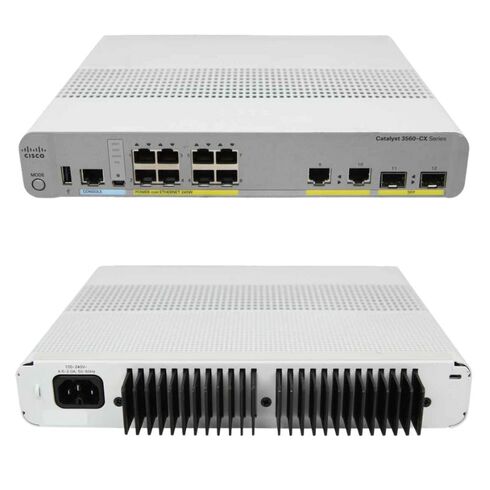

Mount Type

The Cisco WS-C3560CX-8TC-S Managed Switch features a rack mountable design, providing users with a convenient and space-saving solution for deploying their network switches. The rack mountable feature offers numerous benefits and is particularly advantageous for businesses that require efficient utilization of their server room or data center space.

Optimized Space Utilization

The rack mountable design of the Cisco WS-C3560CX-8TC-S Managed Switch allows you to install it in a standard equipment rack, maximizing the use of available space in your server room or data center. By mounting the switch vertically in a rack, you can consolidate your network equipment into a smaller footprint, freeing up valuable floor space for other purposes. This optimized space utilization is especially crucial in environments where space is limited or expensive.

Improved Cable Management

The rack mountable design provides better cable management options compared to traditional desktop switches. By mounting the Cisco WS-C3560CX-8TC-S Managed Switch in a rack, you can organize and route cables more efficiently, minimizing cable clutter and reducing the risk of cable damage or accidental disconnections. This improved cable management simplifies troubleshooting and maintenance tasks, making it easier to identify and resolve any connectivity issues that may arise.

Enhanced Cooling Efficiency

Rack mountable switches offer improved cooling efficiency compared to desktop switches. By mounting the Cisco WS-C3560CX-8TC-S Managed Switch in a rack alongside other networking equipment, you can take advantage of the rack's built-in cooling features, such as airflow management and cooling fans. This enhanced cooling capability helps dissipate heat generated by the switch more effectively, ensuring optimal performance and prolonging the lifespan of your network equipment.

Secure Equipment Storage

The rack mountable design of the Cisco WS-C3560CX-8TC-S Managed Switch provides a secure and centralized location for storing your network equipment. By housing your switches in a locked server room or data center, you can prevent unauthorized access and protect your valuable hardware from theft or tampering. This secure storage solution is crucial for businesses that handle sensitive information or have strict security requirements.

Scalability and Expandability

The rack mountable design offers scalability and expandability options for your network infrastructure. As your business grows and demands for additional network switches increase, you can easily add more rack mountable switches to your existing setup without the need for complex configurations or additional floor space. This scalability ensures that your network remains capable of supporting your evolving business needs and can adapt to future growth requirements effortlessly.
