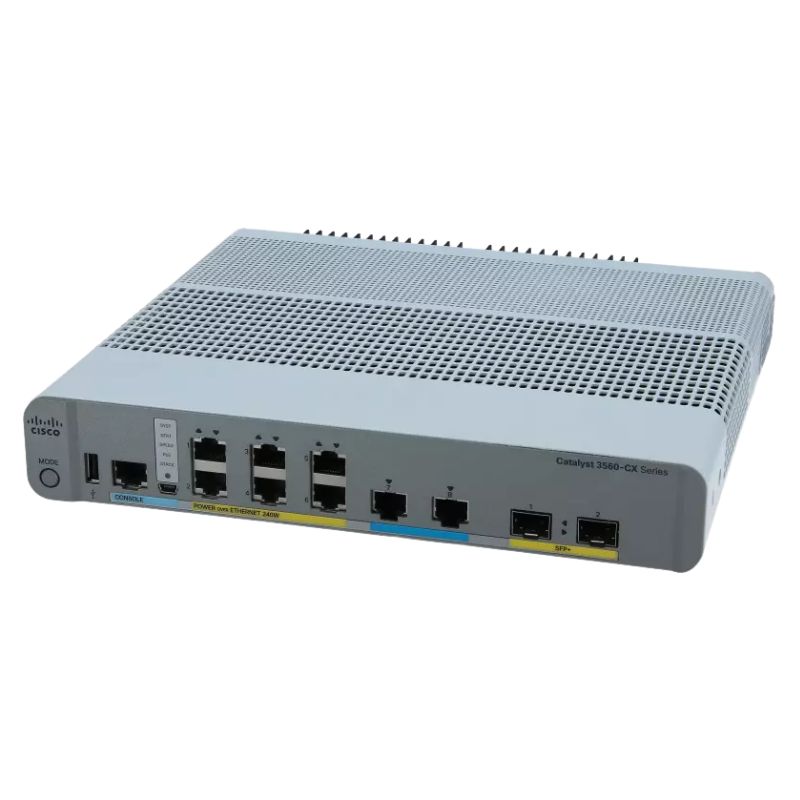

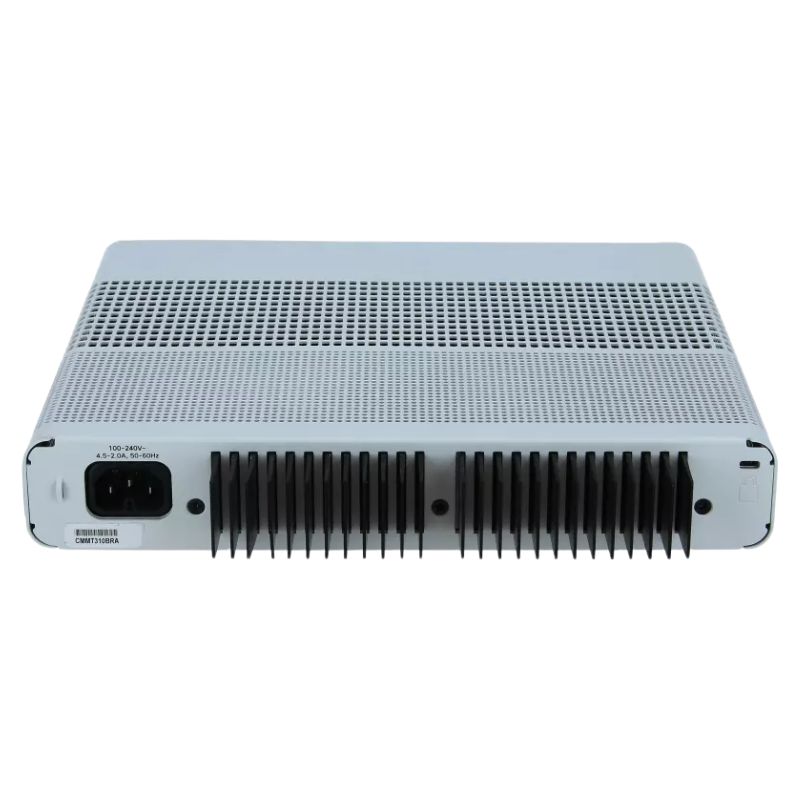

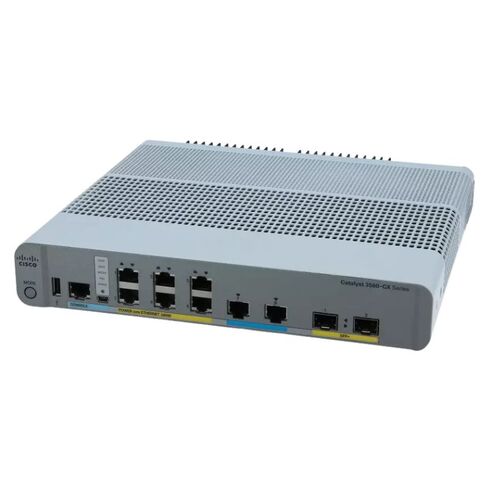

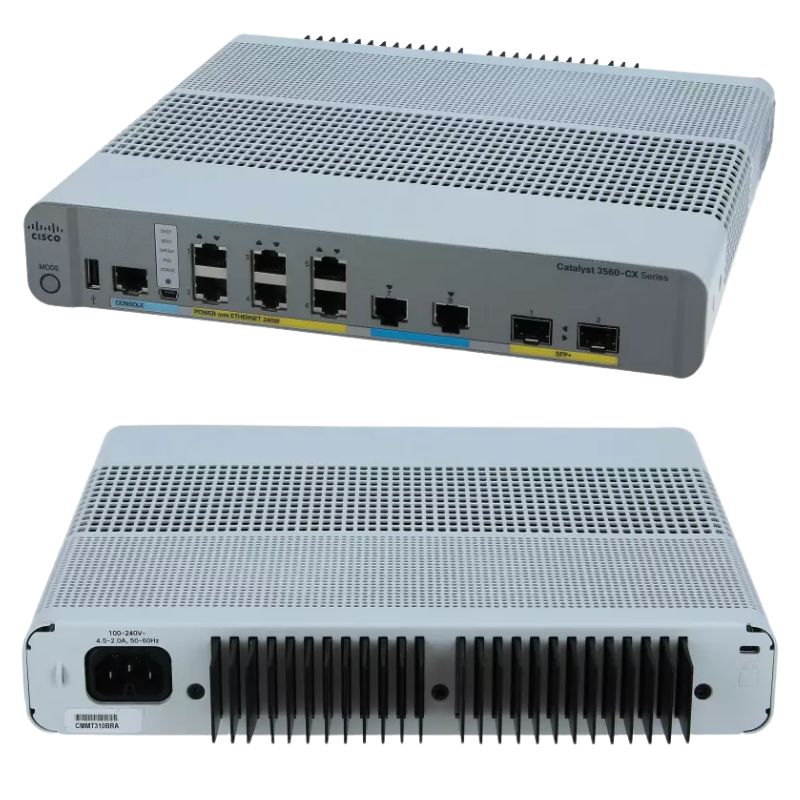

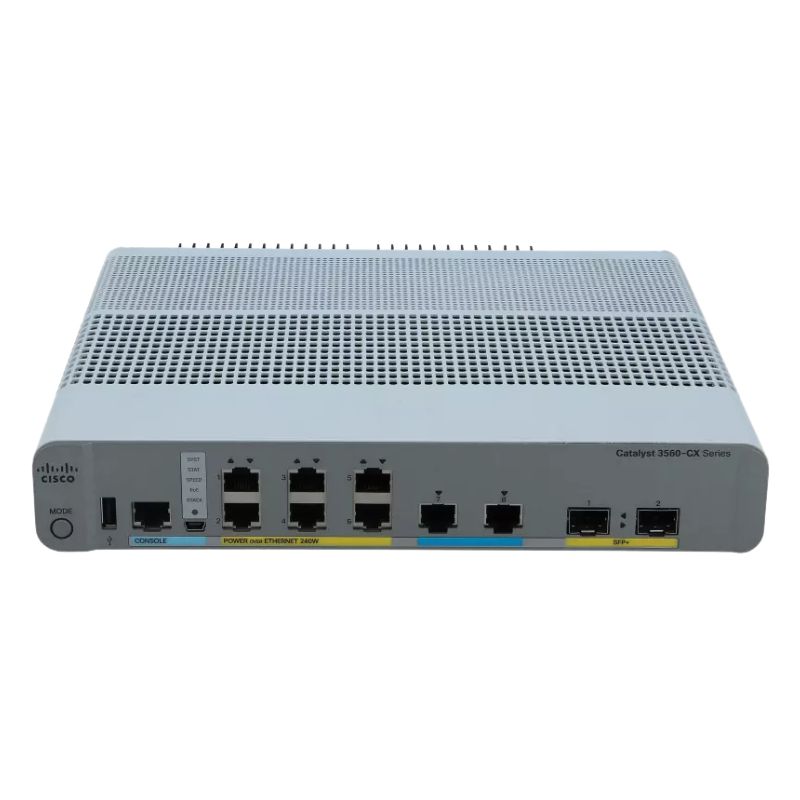

Cisco WS-C3560CX-8XPD-S Managed Switch SFP+ 10GbE

Ports

The Cisco WS-C3560CX-8XPD-S Managed Switch is equipped with 8 ports, making it an excellent choice for small to medium-sized businesses. These ports provide users with a wide range of benefits and play a crucial role in ensuring seamless connectivity within the network infrastructure.

Product Overview

Device Specifications

• Type: Managed Switch
• Ports: 8 x 10/100/1000 (PoE+) and 2 x Combo 10 Gigabit SFP+
• Power over Ethernet (PoE): PoE+
• PoE Budget: 240 Watts

Performance Details

• Forwarding Capacity: 46 Gbps
• Packet Forwarding Rate: 68.4 Mpps (for 64-byte packets)
• Jumbo Frame Support: Up to 9198 Bytes

Network Capabilities

• Virtual Interfaces (VLANs): Up to 1023
• Routing Protocols: RIP-1, RIP-2, Static IP Routing

Management and Configuration

• Remote Management Protocols: SNMP v1, SNMP v2c, SNMP v3, RMON v1, RMON v2, Telnet, HTTP, TFTP, CLI

Advanced Features

• Full Duplex: Supported
• DHCP and BootP Support: Included
• ARP and VLAN Support: Available
• Syslog and DiffServ Support: Enabled
• IPv6 Compatibility: Yes
• Spanning Tree Protocol (STP): Supported
• Access Control List (ACL) Support: Yes
• Quality of Service (QoS): Implemented
• Energy Efficient Ethernet: Yes
• Fanless Operation: Yes

Compliance Standards

• Standards: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3ah, 802.1ae, 802.1ab (LLDP), 802.3az

Power Requirements

• Input Voltage: AC 120/230 V (50/60 Hz)

Increased Flexibility and Scalability

Having 8 ports on the Cisco WS-C3560CX-8XPD-S allows businesses to connect multiple devices simultaneously. This feature offers increased flexibility and scalability, making it easier for organizations to expand their network as their needs grow. With more ports available, businesses can effortlessly connect additional devices such as computers, servers, printers, IP phones, and more.

Enhanced Productivity

The 8 ports on this managed switch contribute to enhanced productivity within the workplace. By providing multiple connection points, users can enjoy uninterrupted access to resources, resulting in improved efficiency and smoother workflow. Employees can connect their devices directly to the switch without the need for additional hardware or complex configurations, saving time and effort.

Improved Network Performance

The Cisco WS-C3560CX-8XPD-S's 8 ports are designed to deliver exceptional network performance. Each port supports high-speed data transfer rates, ensuring that data flows smoothly across the network. This is particularly beneficial for bandwidth-intensive applications such as video conferencing, file transfers, and multimedia streaming. With the ability to handle heavy network traffic, businesses can maintain optimal performance and provide seamless connectivity to their users.

Enhanced Network Security

Another advantage of having 8 ports on this managed switch is the ability to implement advanced security measures. Each port can be configured individually with security protocols such as Access Control Lists (ACLs) and port security to control access and prevent unauthorized use. This ensures that sensitive data remains protected and that only authorized users can connect to the network. By offering enhanced network security, the Cisco WS-C3560CX-8XPD-S helps businesses mitigate potential risks and safeguard their valuable information.

Cost-Efficient Solution

The 8 ports on the Cisco WS-C3560CX-8XPD-S make it a cost-efficient solution for businesses. Instead of investing in multiple switches to accommodate their networking needs, organizations can consolidate their infrastructure with a single device. This reduces upfront costs, simplifies network management, and lowers ongoing operational expenses. The switch's 8 ports provide ample connectivity options, making it an economical choice for businesses seeking a reliable networking solution.

Future-Proof Investment

Investing in a managed switch with 8 ports like the Cisco WS-C3560CX-8XPD-S ensures that businesses are prepared for future growth. As technology advances and the demand for network connectivity increases, having more ports available allows organizations to seamlessly integrate new devices and expand their network infrastructure without the need for additional hardware upgrades. This future-proof investment provides businesses with a scalable solution that can adapt to their evolving needs over time.

Interface

The Cisco WS-C3560CX-8XPD-S Managed Switch features an Interface with SFP+ 10GbE capability, offering users a high-performance networking experience. This interface provides numerous benefits and holds great importance for businesses requiring fast and reliable connectivity.

High Data Transfer Rates

The SFP+ 10GbE interface on the Cisco WS-C3560CX-8XPD-S enables lightning-fast data transfer rates. With a speed of 10 Gigabits per second (Gb/s), users can enjoy significantly faster file transfers, data backup, and access to network resources. This high-speed connectivity is especially beneficial for bandwidth-intensive applications that require real-time data processing, such as video editing or handling large datasets. By leveraging the SFP+ 10GbE interface, businesses can improve their overall productivity and reduce network congestion.

Seamless Connectivity for Virtualization

Virtualization has become a cornerstone of modern IT infrastructure. The SFP+ 10GbE interface on the Cisco WS-C3560CX-8XPD-S is perfectly suited for virtualized environments. It provides seamless connectivity between virtual machines (VMs) and enables fast communication between different virtualized servers. This allows businesses to efficiently allocate resources, streamline operations, and maintain optimal performance in virtualized environments. Whether it's running multiple VMs or deploying resource-intensive applications, the SFP+ 10GbE interface ensures smooth and responsive network connectivity.

Future-Proof Networking

The SFP+ 10GbE interface is a future-proof networking solution for businesses. As data demands continue to grow, having a high-speed interface like this ensures that businesses can handle increasing network traffic without bottlenecks. It provides a solid foundation for businesses looking to adopt emerging technologies or expand their operations. With the SFP+ 10GbE interface, organizations can confidently embrace new applications, support higher bandwidth requirements, and stay ahead of the curve.

Enhanced Reliability and Redundancy

The Cisco WS-C3560CX-8XPD-S's SFP+ 10GbE interface offers enhanced reliability and redundancy features. By utilizing link aggregation techniques such as EtherChannel, businesses can combine multiple ports into a single logical connection, increasing bandwidth and providing failover capabilities. In the event of a port or link failure, traffic seamlessly switches to another active link, ensuring uninterrupted connectivity. This redundant setup enhances network reliability and minimizes downtime, critical factors for businesses that rely heavily on continuous network access.

In conclusion, the Cisco WS-C3560CX-8XPD-S Managed Switch's Ports feature, with its 8 ports, offers increased flexibility, enhanced productivity, improved network performance, enhanced security, cost-efficiency, and future-proof investment. On the other hand, the Interface feature with SFP+ 10GbE provides high data transfer rates, seamless connectivity for virtualization, future-proof networking, and enhanced reliability and redundancy. These features make the Cisco WS-C3560CX-8XPD-S an excellent choice for businesses seeking a powerful and reliable managed switch for their networking needs.
