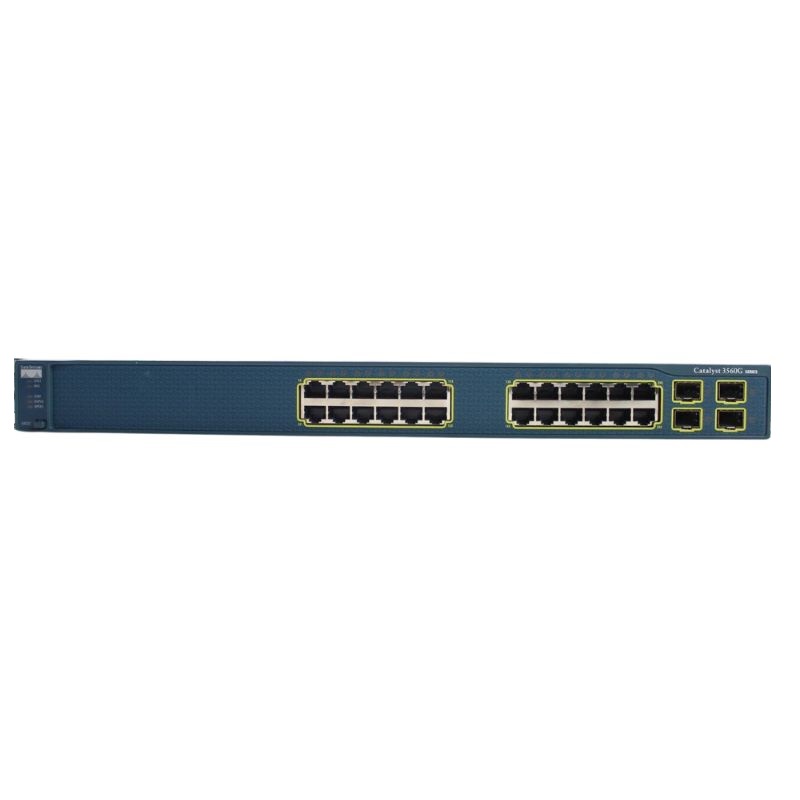

WS-C3560G-24TS-S Cisco 24-Port Layer 3 Ethernet Switch

Cisco WS-C3560G-24TS-S Catalyst 3560 Series Ethernet Switch

The Cisco WS-C3560G-24TS-S is a robust 24-port Layer 3 Ethernet switch from the renowned Catalyst 3560 Series, designed to deliver high-performance networking for enterprise and medium-sized business environments. Combining advanced routing capabilities, versatile connectivity, and reliability, this switch ensures seamless network operations and scalable infrastructure.

Key Specifications and Features

• Manufacturer: Cisco
• Model Number: WS-C3560G-24TS-S
• Product Series: Catalyst 3560
• Product Type: Layer 3 Ethernet Switch

Port Configuration and Connectivity

• Total Network Ports: 24 Ethernet ports for reliable wired connections
• Gigabit Ethernet Slots: 4 expansion slots for enhanced uplinks
• Supported Media Types: Twisted pair cabling
• Network Compatibility: Supports 10Base-T, 100Base-TX, and 1000Base-T standards

High-Performance Networking

• Gigabit Ethernet Support: Enables rapid data transfer across the network
• Mean Time Between Failures (MTBF): Approximately 230,700 hours, ensuring continuous operation

Expansion and Scalability Options

• Total Expansion Slots: 4 slots available for additional modules
• Expansion Slot Type: Small Form-Factor Pluggable (SFP) for flexible fiber connectivity
• SFP Slots: 4 dedicated slots for high-speed uplinks and extended reach

Advanced Networking Capabilities

• Layer 3 Routing: Full Layer 3 support for routing between VLANs and network segments
• Management: Fully manageable with extensive configuration and monitoring options
• Protocol Support: Compatible with various industry-standard network protocols

Memory and Storage Specifications

• RAM: 128 MB, enabling smooth processing of network operations
• Flash Memory: 32 MB for firmware and configuration storage

Reliability and Durability

• High-quality Cisco hardware construction
• Long operational lifespan supported by MTBF estimates
• Redundant features to minimize network downtime

Cisco WS-C3560G-24TS-S 24 Ports Ethernet Switch

The Cisco WS-C3560G-24TS-S Catalyst 3560 Series 24 Ports Ethernet Switch represents a robust and scalable solution for enterprise-grade networking environments. Designed to deliver high performance and reliable connectivity, this switch integrates advanced Layer 2 switching features with optional Layer 3 capabilities, providing seamless network expansion for growing businesses. The Catalyst 3560 Series is engineered for organizations that demand uninterrupted data flow, enhanced security, and simplified network management.

Advanced Connectivity Features

The WS-C3560G-24TS-S comes equipped with 24 Gigabit Ethernet ports, ensuring high-speed data transfer across all connected devices. Additionally, the switch offers two Small Form-Factor Pluggable (SFP) uplink ports that enable flexible connectivity to fiber networks. This combination of copper and fiber uplink ports allows enterprises to build scalable, future-proof networks with minimal disruption. The Catalyst 3560 Series supports full-duplex communication on all ports, reducing network congestion and improving overall performance.

Enhanced Layer 2 Switching Capabilities

At its core, the WS-C3560G-24TS-S is a high-performing Layer 2 switch that supports essential functionalities such as VLAN segmentation, port aggregation, and Spanning Tree Protocol enhancements. VLANs enable network administrators to logically segment network traffic, enhancing security and reducing broadcast domains. The switch also supports Link Aggregation Control Protocol (LACP), which allows multiple physical ports to operate as a single logical link for increased bandwidth and redundancy. Rapid Spanning Tree Protocol (RSTP) ensures network stability by preventing loops while maintaining fast convergence times in dynamic environments.

Layer 3 Routing Capabilities

While primarily a Layer 2 switch, the WS-C3560G-24TS-S can be upgraded to support Layer 3 routing functionalities through the IP Base or IP Services feature set. These routing features include static routing, Routing Information Protocol (RIP), Open Shortest Path First (OSPF), and Enhanced Interior Gateway Routing Protocol (EIGRP). By incorporating Layer 3 routing capabilities, the Catalyst 3560 Series allows enterprises to manage inter-VLAN routing and optimize traffic paths efficiently, reducing latency and enhancing the user experience.

Security and Network Protection

Security is a critical consideration in modern networks, and the WS-C3560G-24TS-S addresses this with an extensive array of protective features. Access Control Lists (ACLs) can be applied at both the port and VLAN levels to restrict unauthorized access. The switch supports IEEE 802.1X authentication, ensuring that only authorized users and devices gain network access. Additionally, features like Dynamic ARP Inspection (DAI) and IP Source Guard provide protection against spoofing attacks, while port security limits the number of MAC addresses per port, preventing unauthorized devices from connecting to the network.

Quality of Service (QoS) Features

To ensure optimal performance for critical applications, the WS-C3560G-24TS-S incorporates advanced Quality of Service mechanisms. The switch supports traffic prioritization based on Layer 2, Layer 3, and Layer 4 parameters, allowing administrators to prioritize voice, video, and other latency-sensitive applications. Enhanced queuing mechanisms, including Weighted Fair Queuing (WFQ) and Low Latency Queuing (LLQ), ensure that high-priority traffic receives the necessary bandwidth while minimizing packet loss and delays. This capability is particularly beneficial for VoIP deployments, video conferencing, and real-time data applications.

Energy Efficiency and Environmental Benefits

Cisco has integrated Energy Efficient Ethernet (EEE) technologies into the Catalyst 3560 Series, allowing the WS-C3560G-24TS-S to reduce power consumption without compromising network performance. Idle ports automatically enter low-power states when not in use, and dynamic power allocation ensures that energy is distributed efficiently across active devices. The switch also meets stringent environmental standards, providing quieter operation and reduced heat output, which contributes to a lower total cost of ownership and supports greener data center initiatives.

Scalability and Network Expansion

The 24-port configuration of the WS-C3560G-24TS-S is ideal for medium-sized networks, but the switch also allows for seamless expansion as organizational requirements grow. Its stacking capabilities enable multiple Catalyst 3560 Series switches to operate as a single logical unit, simplifying management and providing increased port density without additional complexity. This stacking flexibility ensures that enterprises can scale their network infrastructure gradually while maintaining consistent performance and centralized control.

Stacking Advantages and Management

Stacking with Cisco StackWise technology allows the WS-C3560G-24TS-S to provide enhanced redundancy, simplified configuration, and unified management. Administrators can manage multiple switches as a single entity, which significantly reduces operational overhead. In the event of a failure, StackWise provides automatic failover capabilities, ensuring that critical services remain operational. This feature is crucial for businesses that require high availability and minimal network downtime.

Reliability and Redundancy Features

Reliability is a hallmark of the WS-C3560G-24TS-S, with features designed to minimize downtime and ensure consistent operation. Redundant power supply options are available to maintain network continuity in case of a power failure. The switch also supports Hot Swappable modules, allowing network components to be replaced without disrupting ongoing operations. Additionally, the Catalyst 3560 Series includes robust hardware design and high MTBF (Mean Time Between Failures) metrics, making it suitable for critical business environments that cannot tolerate interruptions.

Use Cases and Deployment Scenarios

The WS-C3560G-24TS-S is versatile and well-suited for a range of networking scenarios. In corporate environments, it serves as a reliable access-layer switch, providing high-speed connectivity for desktop computers, IP phones, and wireless access points. In campus networks, it can be deployed as a distribution switch, aggregating traffic from multiple access-layer switches and facilitating efficient inter-VLAN routing. Additionally, the switch is suitable for small data centers and branch offices where compact form factor, high performance, and Layer 3 capabilities are essential. Its combination of features ensures that organizations can deploy it across diverse network topologies with confidence.

Integration with Cisco Ecosystem

One of the strengths of the WS-C3560G-24TS-S is its seamless integration with the broader Cisco ecosystem. The switch supports Cisco Unified Communications solutions, allowing VoIP, video conferencing, and collaboration tools to operate reliably. Integration with Cisco Identity Services Engine (ISE) provides centralized policy management and enhanced security across the network. The switch also complements Cisco wireless solutions, ensuring that wired and wireless networks function cohesively and maintain consistent quality of service across all devices.

Future-Proof Networking Investment

Investing in the WS-C3560G-24TS-S provides a future-proof solution for growing enterprises. With support for advanced routing, security features, and energy-efficient technologies, the Catalyst 3560 Series switch is designed to accommodate evolving network demands. Firmware updates and feature set upgrades allow organizations to extend the lifecycle of their investment, ensuring that the switch continues to deliver high performance and reliability as technology standards evolve. By choosing this model, businesses can confidently expand their network infrastructure without frequent hardware replacements.

Technical Specifications of Cisco WS-C3560G-24TS-S

The WS-C3560G-24TS-S is engineered with high-performance hardware components that deliver superior reliability and efficiency. It includes a switching capacity of 32 Gbps and forwarding rates that support full utilization of all 24 Gigabit Ethernet ports. The switch’s memory configuration includes 128 MB of DRAM and 64 MB of flash memory, providing ample storage for configurations, images, and logs. Operating temperature and environmental tolerances ensure stable operation in standard enterprise conditions, while the compact rack-mountable form factor allows deployment in various network setups.

Comprehensive Network Protocol Support

The Catalyst 3560 Series supports an extensive array of networking protocols, including IPv4, IPv6, SNMPv3, and IEEE standards for switching and routing. Protocol support ensures interoperability with heterogeneous networking environments, allowing seamless communication between devices from different vendors. Enhanced multicast routing features, such as Protocol Independent Multicast (PIM) and Internet Group Management Protocol (IGMP) snooping, optimize network efficiency for multimedia applications and streaming services. These capabilities make the WS-C3560G-24TS-S a reliable choice for enterprises seeking flexible and robust network protocol support.

Physical Design and Installation

The WS-C3560G-24TS-S features a compact 1U rack-mountable design, making it suitable for constrained spaces in server rooms and network closets. Its modular design allows for easy maintenance and future upgrades. The front panel provides clear LED indicators for port status, link activity, and power, enabling quick troubleshooting and monitoring. Rear-access fans provide efficient airflow, maintaining optimal operating temperatures and preventing hardware degradation over time.
