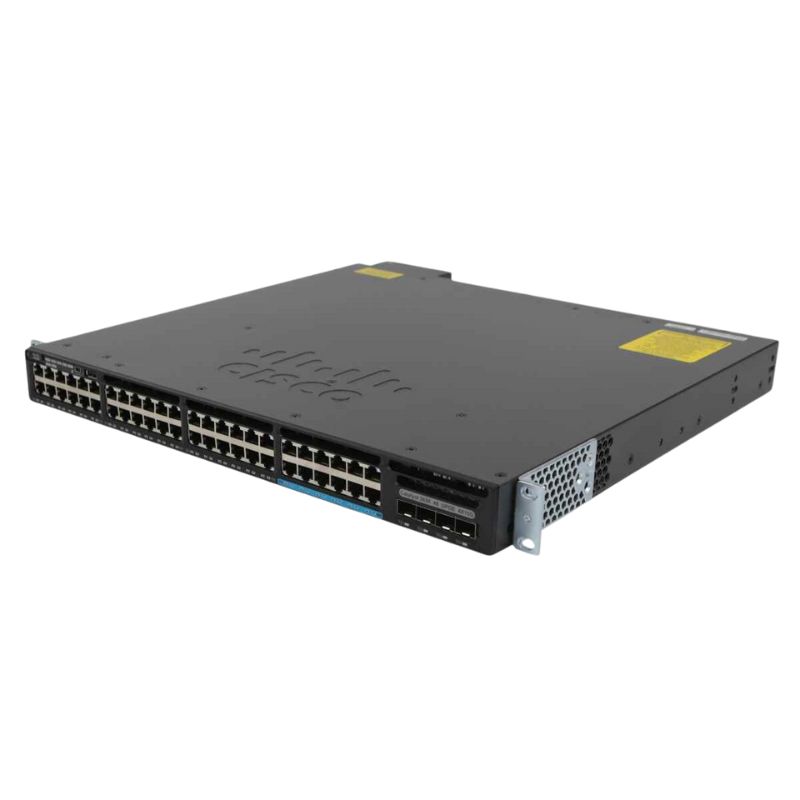

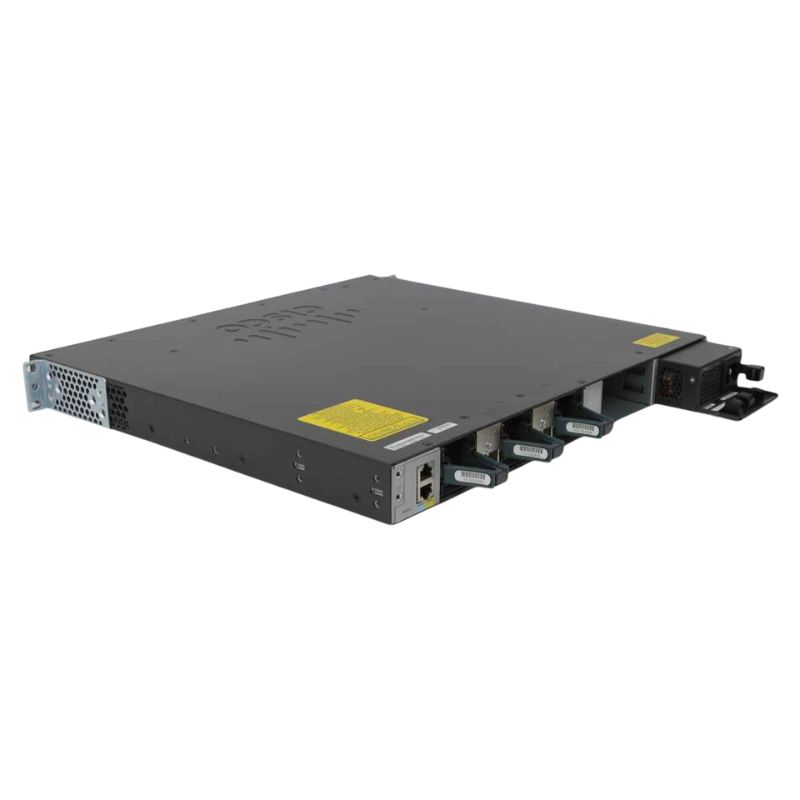

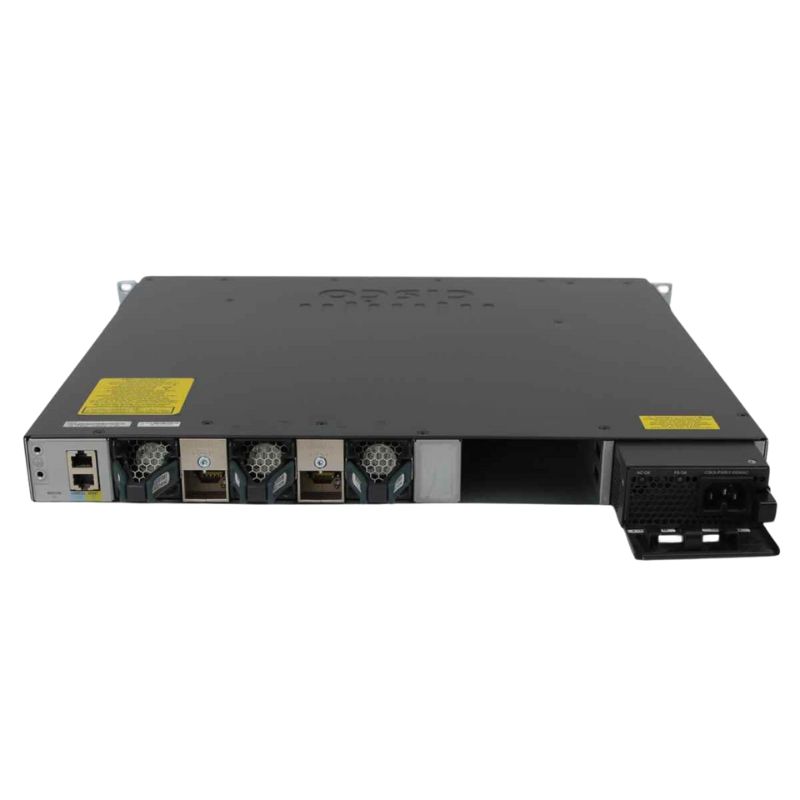

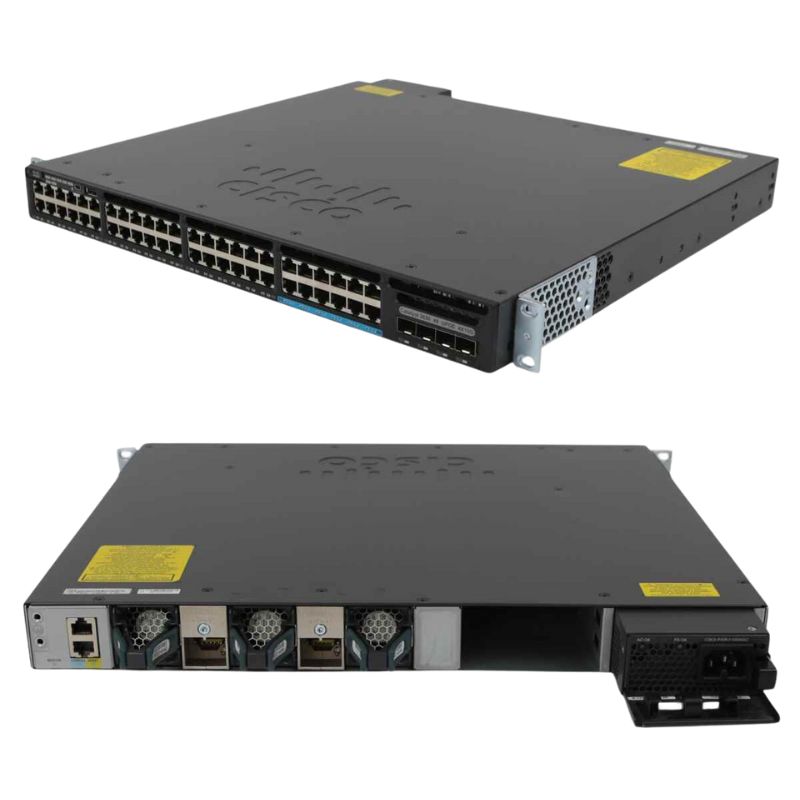

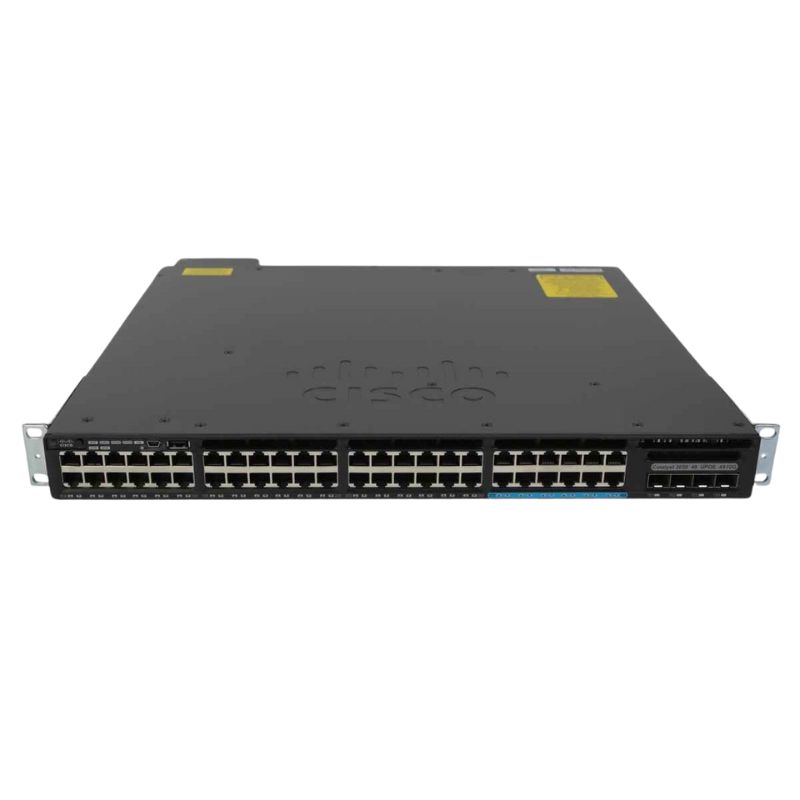

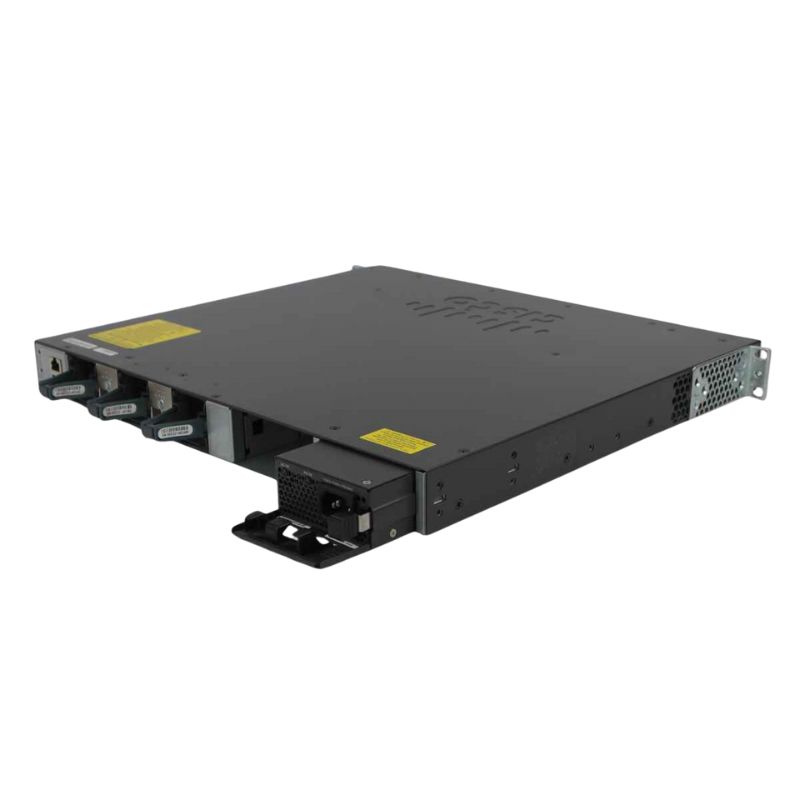

Cisco WS-C3650-12X48UQ-S Catalyst 3650 48-Port Switch

Cisco Catalyst WS-C3650-12X48UQ-S Switch

Brand and Product Information

• Manufacturer: Cisco Systems, Inc.
• Series: Catalyst 3650
• Model: WS-C3650-12X48UQ-S
• Part Numbers: WS-C3650-12X48UQ-S, WS-C3650-12X48UQ-S=

Port Configuration

Ethernet and Uplink Ports

• Ethernet Ports: 48 ports (36x Gigabit Ethernet, 12x Multigigabit RJ-45)
• Uplink Ports: 4x 10 Gigabit Ethernet SFP+ for high-speed uplinks

Management Ports

• 1x Console RJ-45
• 1x Gigabit Ethernet RJ-45
• 1x USB Type-A
• 1x Mini-USB Type-A

Power and PoE Features

Power Supply

• Primary Power Supply: 1x PWR-C1-1100WAC, 1100W AC
• Supports dual power supplies for redundancy (compatible with PWR-C1-715WAC, PWR-C2-640WDC, and others)

Power over Ethernet (PoE)

• PoE Budget: 660W for connected devices
• PoE+ and UPOE Capable: Yes, supports Universal Power over Ethernet

Performance and Network Capacity

Switching and Forwarding

• Switching Capacity: 392 Gbps
• Forwarding Rate: 291.66 Mpps (Million packets per second)

MAC Address Table

• Supports up to 32,000 MAC addresses for optimal network performance

Stacking Capabilities

Stacking Technology

• Utilizes Cisco StackWise-160 technology for seamless stacking of up to 9 switches
• Includes 2x StackWise-160 connectors for high-performance stacking

Stacking Cable Options

• Compatible with STACK-T2-50CM, STACK-T2-1M, and STACK-T2-3M cables (not included)

Software and Management

Operating System

• Pre-installed Software: Cisco IOS with IP Base feature set, providing Layer 3 switching

Manageability

• Supports up to 1000 switched virtual interfaces (SVIs)
• VLANs Supported: 4094

Wireless Integration

Wireless Support

• Supports up to 25 wireless access points per switch/stack
• Manages up to 1000 wireless clients per switch/stack
• Compatible with: Cisco Aironet 3700, 3600, 3500, 2600, 1600, 1260, 1140, and 1040 series access points

Wireless Bandwidth

• Total Wireless Bandwidth: Up to 40 Gbps per switch

Memory and Storage

Memory

• DRAM: 4 GB
• Flash Storage: 4 GB

Routing and Forwarding

• Supports up to 24,000 IPv4 routes
• Total of 208 routed ports per stack

Physical Specifications

Dimensions and Weight

• Length: 19.13 inches
• Width: 17.50 inches
• Height: 1.73 inches (1U rack-mountable)
• Weight: 17.20 lbs

Rack Mounting

• Includes 1-RU rack mounts for easy installation

Cooling System and Fan Modules

Cooling System

• Airflow Direction: Port-side intake for efficient cooling
• Comes with 3x FAN-T1 modules

Ports

The Cisco WS-C3650-12X48UQ-S Switch is equipped with an impressive number of 48 ports. This extensive port density is a crucial feature that sets this switch apart from others in its class.

Enhanced Connectivity

The 48 ports on the Cisco WS-C3650-12X48UQ-S Switch allow for enhanced connectivity options for users. With this many ports available, you can effortlessly connect numerous devices to the switch, such as computers, servers, printers, and other network-enabled devices.

Scalability

The abundance of ports greatly enhances the scalability of your network infrastructure. Whether you have a small business or a large enterprise, having 48 ports ensures that you have enough capacity to connect all your devices without any limitations. This scalability allows for future growth and expansion without the need for additional switches or complex network reconfigurations.

Diverse Applications

The wide range of applications that can be accommodated by the Cisco WS-C3650-12X48UQ-S Switch's 48 ports is another significant advantage. This switch is ideal for environments where multiple devices need to be connected, such as offices, data centers, educational institutions, and healthcare facilities. It provides the flexibility to support various network requirements across different industries.

Efficient Data Transfer

With 48 ports, the Cisco WS-C3650-12X48UQ-S Switch ensures efficient data transfer throughout your network. Each port offers high-speed connectivity, allowing for fast and reliable data transmission between connected devices. Whether you are transferring large files or streaming multimedia content, the ample ports ensure smooth and uninterrupted data flow.

Improved Network Performance

The increased number of ports on this switch contributes to improved network performance. By distributing the network traffic across multiple ports, you can avoid bottlenecks and congestion, resulting in faster data transfer speeds and reduced latency. This is especially beneficial in high-demand environments where multiple users are simultaneously accessing the network resources.

Manageable

The Cisco WS-C3650-12X48UQ-S Switch is designed to be highly manageable, offering users extensive control and configuration options.

Centralized Management

With its manageable feature, this switch allows for centralized management of your network. You can easily monitor and control all connected devices from a single interface, simplifying network administration tasks. This centralized approach saves time and effort, as you can efficiently configure settings, apply security policies, and troubleshoot issues without the need to individually access each device.

Streamlined Operations

The manageability of the Cisco WS-C3650-12X48UQ-S Switch streamlines network operations. Through a user-friendly management interface, you can quickly configure VLANs, set up Quality of Service (QoS) policies, and implement access control measures. This level of control ensures that your network operates smoothly and efficiently, meeting the specific requirements of your organization.

Enhanced Security

Effective network security is essential for any organization. The manageability feature of this switch enables robust security measures to be implemented easily. You can apply access controls, create virtual private networks (VPNs), and deploy advanced security protocols to safeguard your network from unauthorized access and potential threats. By having complete control over your network's security settings, you can ensure the confidentiality, integrity, and availability of your data.

Remote Management

One of the notable benefits of the manageable feature is the ability to remotely manage the Cisco WS-C3650-12X48UQ-S Switch. Through secure remote access, you can monitor and configure your network from anywhere in the world. This remote management capability is particularly advantageous for organizations with multiple locations or for network administrators who need to manage their network while on the go.

Efficient Troubleshooting

The manageability of this switch greatly simplifies troubleshooting tasks. With comprehensive management tools and diagnostic capabilities, you can quickly identify and address network issues. The ability to remotely access and analyze network data allows for efficient troubleshooting, minimizing downtime and ensuring seamless operations.

In conclusion, the Cisco WS-C3650-12X48UQ-S Switch's 48 ports offer enhanced connectivity, scalability, diverse applications, efficient data transfer, and improved network performance. Its manageable feature provides centralized management, streamlined operations, enhanced security, remote management capabilities, and efficient troubleshooting. These features make this switch an excellent choice for organizations looking to build a robust and highly manageable network infrastructure.
