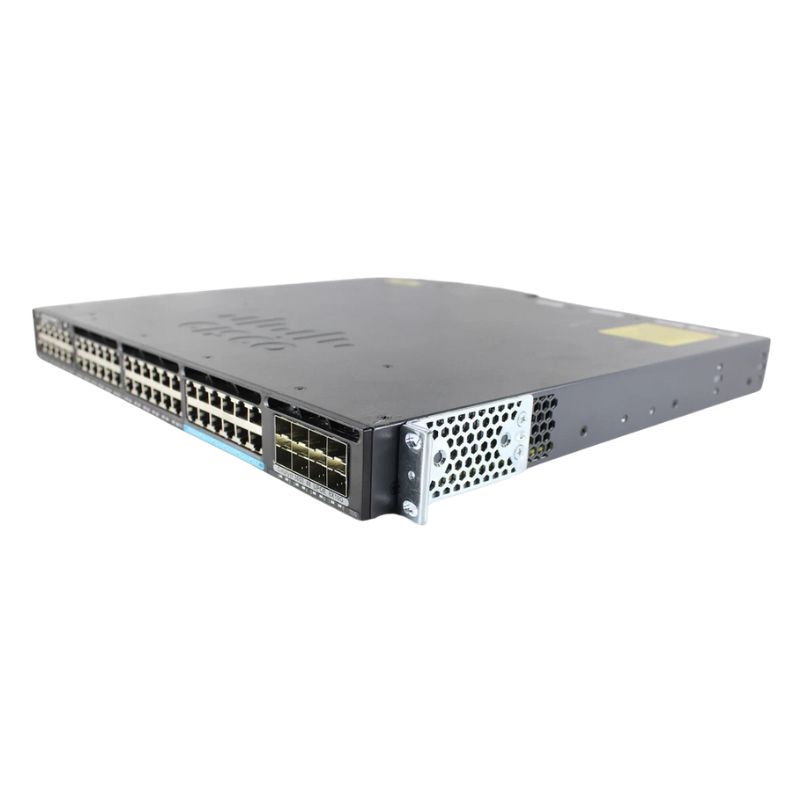

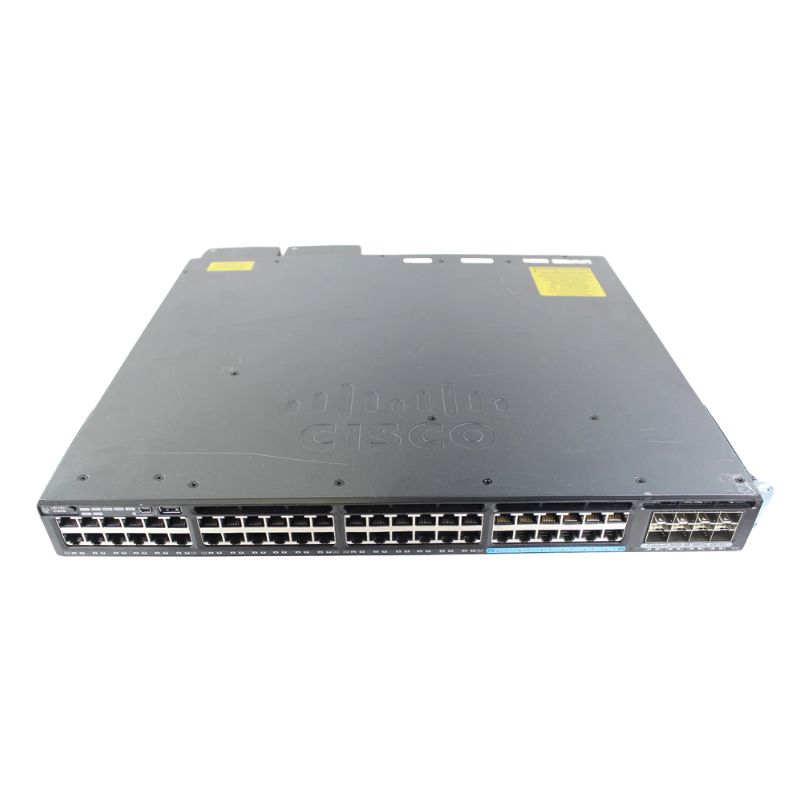

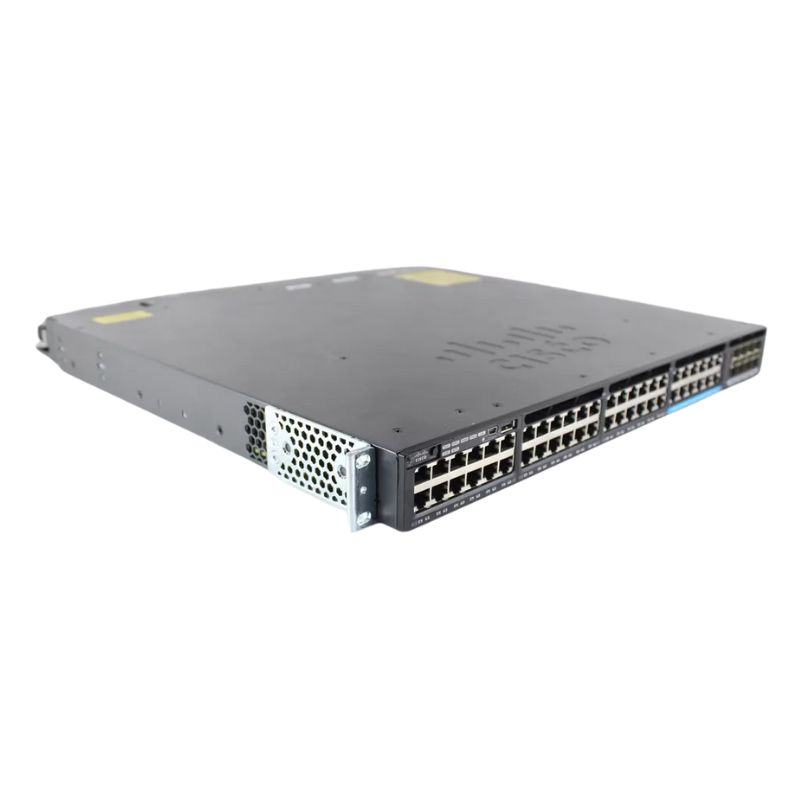

Cisco WS-C3650-12X48UR-S Catalyst 3650 Ethernet Switch

Ports

High-Density 48-Port Configuration

The Cisco WS-C3650-12X48UR-S Ethernet Switch is equipped with an impressive 48-port configuration, making it an ideal choice for businesses and organizations that require a high-density network solution. With 48 ports available, users can connect a wide range of devices, including computers, servers, printers, and IP phones, all from a single switch. This high-density configuration eliminates the need for additional switches, simplifying network management and reducing costs.

Manufacturer Details

• Manufacturer: Cisco
• Part Number (SKU): WS-C3650-12X48UR-S

Product Line and Model

• Product Line: Catalyst
• Series: 3650
• Model: 3650-12X48UR-E
• Type: Ethernet Switch

Key Features

• 48-port Ethernet switch with dedicated uplink port
• Modular and stackable design for flexible network expansion
• Interfaces include 12 x 10 Gigabit Ethernet, 36 x Gigabit Ethernet, and 8 x 10 Gigabit Ethernet uplink ports
• Layer 3 switching capabilities for advanced routing
• 8 expansion slots for SFP+ modules

Media & Performance Specifications

• Supported Media Types: Optical Fiber, Twisted Pair
• Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
• Network Standards: 10/100/1000Base-TX, 10GBase-T, 10GBase-X

Network & Communication

Layer Supported: 3

Management & Protocols

• Manageable: Yes
• Routing Protocols: RIP-1, RIP-2, static IP routing, RIPng
• MAC Address Table Capacity: 32,000 entries
• Jumbo Frame Support: Up to 9198 bytes
• Authentication Methods: Kerberos, SSH, RADIUS, TACACS+

Power Specifications

• Power Source: Power Supply
• Redundant Power Supply: Supported
• Power Provided: 1100 Watts
• Voltage Required: AC 120/230 V (50 – 60 Hz)

Memory and Connectivity

• RAM: 4 GB
• Flash Memory: 4 GB
• Interfaces:
  • 36 x 1000Base-T RJ-45 UPOE
  • 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
  • 8 x 10GBase-X SFP+
• Expansion Slots: 1 total / 1 free (Stacking Module slot)

Environmental Parameters

• Operating Temperature: 23 °F to 113 °F
• Humidity Range (Operating): 5 – 96% (non-condensing)
• Storage Temperature: -40 °F to 158 °F

Additional Features

• Full duplex capability for improved data transmission
• Layer 2 switching functionality
• Supports DHCP and VLAN configurations
• IPv6 compatible for modern networking needs

Miscellaneous

• Rack Mounting Kit: Included
• Mean Time Between Failures (MTBF): 201,680 hours
• Compliance Standards: RoHS, UL 60950-1 Second Edition, FCC Part 15 A

Increased Scalability and Flexibility

The 48-port configuration of the Cisco WS-C3650-12X48UR-S Ethernet Switch offers increased scalability and flexibility for growing networks. As businesses expand and add more devices to their network infrastructure, having enough ports to accommodate these devices becomes crucial. With 48 ports, this switch provides ample room for future expansion, allowing businesses to easily connect new devices without the need for additional hardware investments.

Optimized Network Performance

Having a large number of ports allows for optimized network performance. Each port on the Cisco WS-C3650-12X48UR-S Ethernet Switch supports Gigabit Ethernet connectivity, providing high-speed data transfer rates for seamless communication between devices. Whether it's transferring large files or streaming multimedia content, the 48-port configuration ensures that data can flow smoothly without bottlenecks or latency issues.

Enhanced Network Security

The 48-port configuration of this switch also enhances network security. With each port capable of supporting advanced security features such as VLANs (Virtual Local Area Networks) and Access Control Lists (ACLs), businesses can implement granular control over network traffic and ensure that sensitive information remains protected. By segmenting the network into different VLANs, organizations can isolate critical systems from less secure ones, preventing unauthorized access and potential security breaches.

Improved Network Management

Managing a large network with numerous devices can be challenging without proper organization. The 48-port configuration of the Cisco WS-C3650-12X48UR-S Ethernet Switch simplifies network management by providing a centralized hub for all connected devices. Administrators can easily monitor and control network traffic, troubleshoot connectivity issues, and apply configurations to specific ports as needed. This level of control enhances overall network efficiency and reduces the time required to address network-related problems.

Cost-Effective Solution

The 48-port configuration offered by the Cisco WS-C3650-12X48UR-S Ethernet Switch presents a cost-effective solution for businesses. By consolidating multiple devices onto a single switch, organizations can save on hardware costs, cabling expenses, and power consumption. Additionally, with future scalability in mind, businesses can avoid unnecessary expenditures by investing in a switch that can accommodate their long-term growth plans.

Designed for Business Continuity

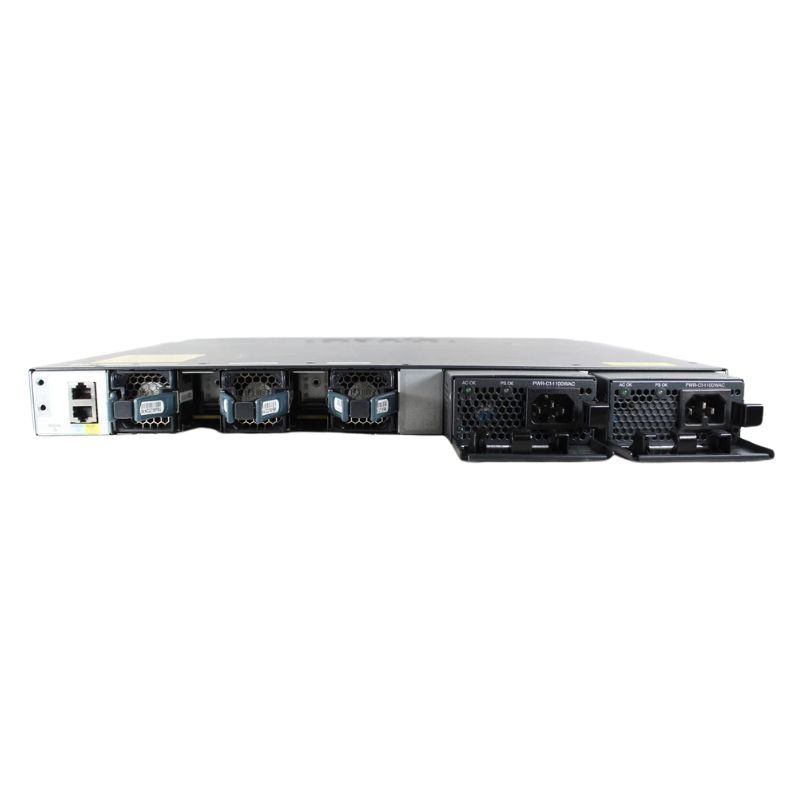

In today's fast-paced business environment, uninterrupted network connectivity is vital to ensure smooth operations. The 48-port configuration of this switch incorporates redundant power supplies and modular fans, adding an extra layer of reliability to the network infrastructure. In the event of a power supply failure or fan malfunction, the switch automatically switches over to backup components, minimizing downtime and ensuring business continuity.

Compatibility and Interoperability

The Cisco WS-C3650-12X48UR-S Ethernet Switch with its 48-port configuration is designed to seamlessly integrate with existing network infrastructures. It supports various protocols, including Ethernet, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet, ensuring compatibility with a wide range of devices and technologies. Whether it's connecting legacy equipment or next-generation devices, this switch provides the necessary interfaces and capabilities for smooth interoperability.

In summary, the 48-port configuration of the Cisco WS-C3650-12X48UR-S Ethernet Switch offers numerous benefits for users. From increased scalability and flexibility to optimized network performance and enhanced security, this switch provides a reliable and cost-effective solution for businesses of all sizes. With its comprehensive management features and compatibility with existing infrastructures, it ensures seamless integration and supports uninterrupted network connectivity, making it an excellent choice for organizations seeking a high-density network solution.
