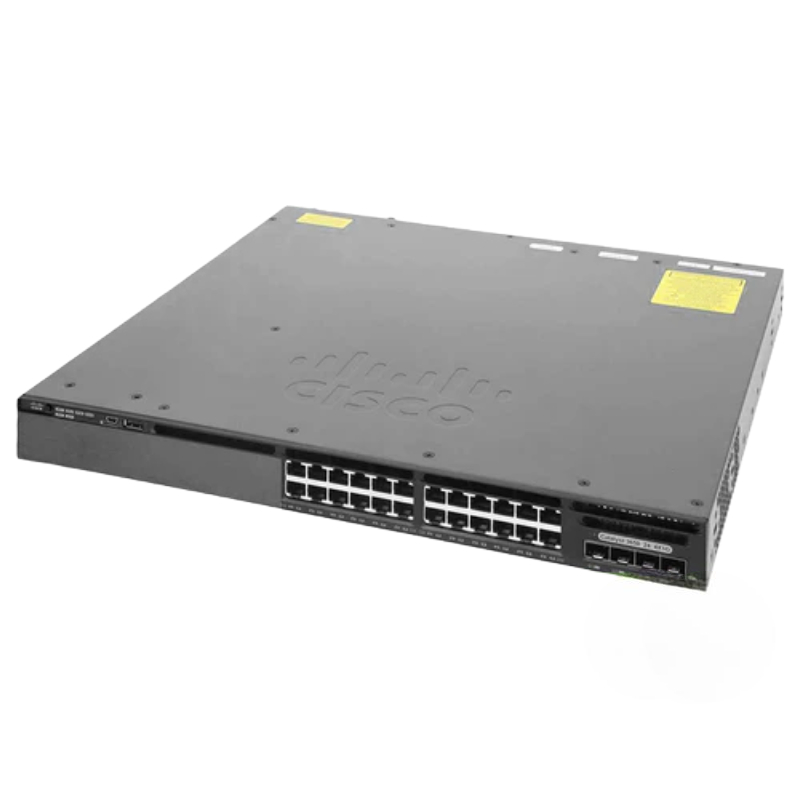

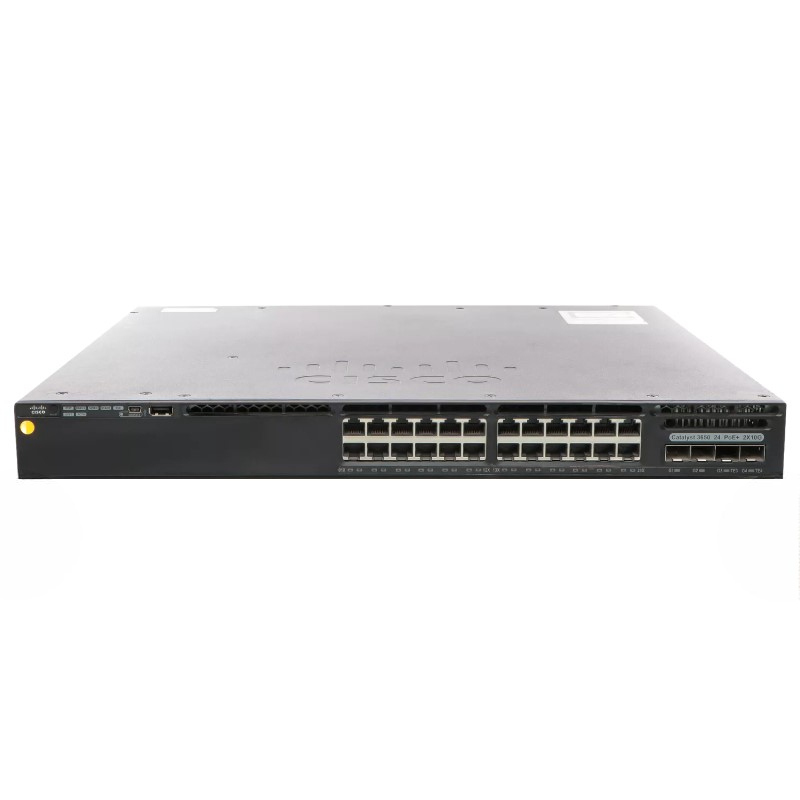

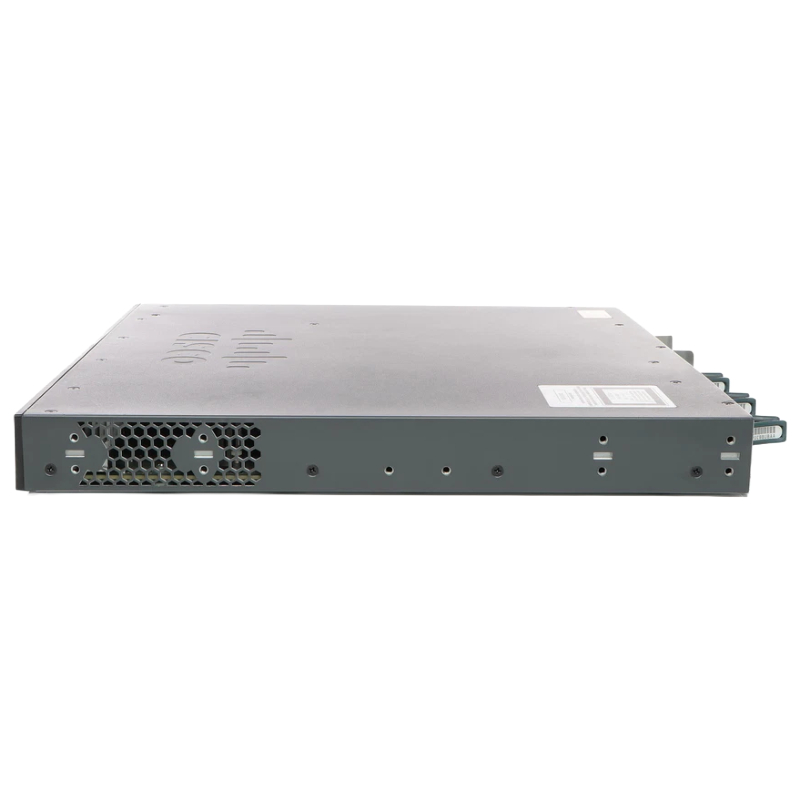

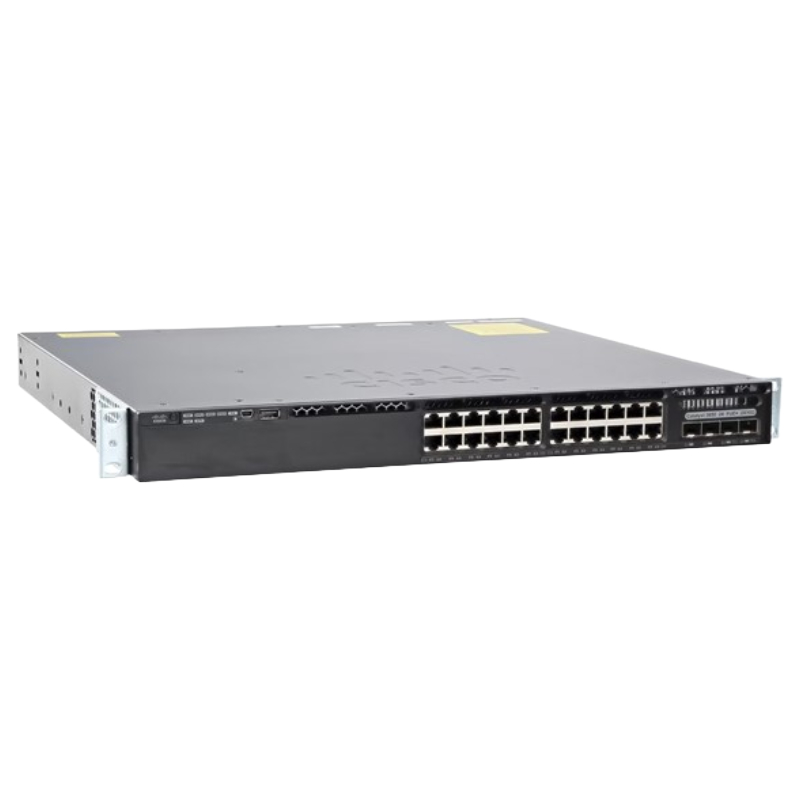

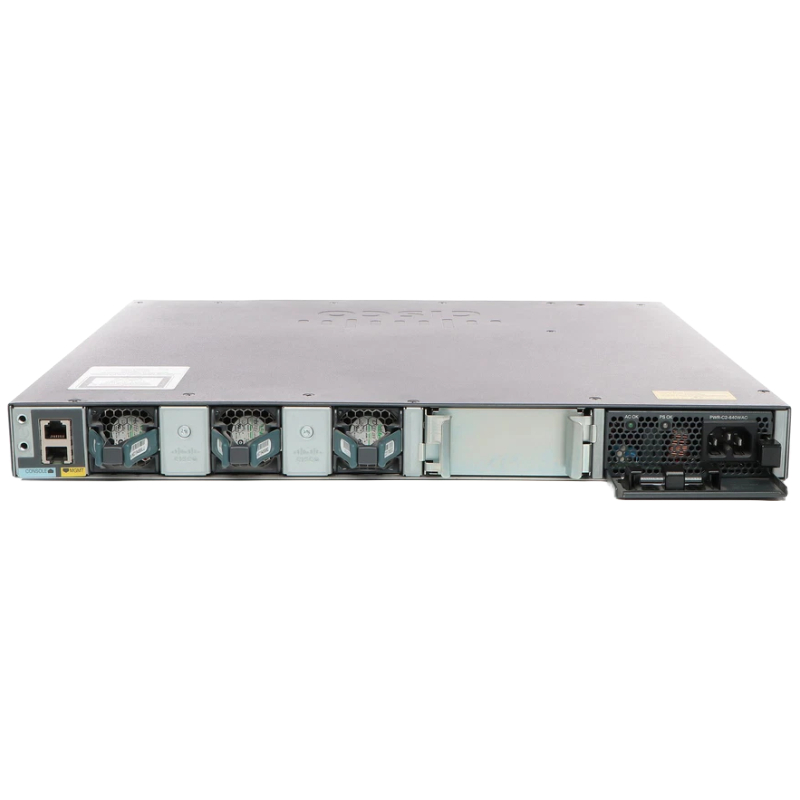

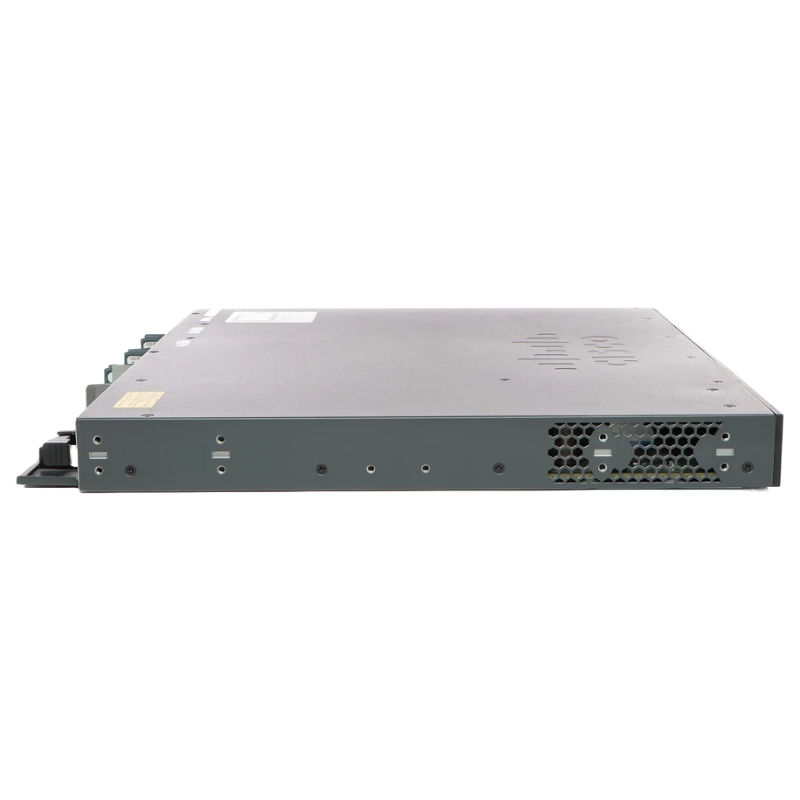

Cisco WS-C3650-24PD-E 24 Ports Managed Switch

Cisco WS-C3650-24PD-E Layer 3 Switch Overview

• Manufacturer: Cisco
• Part Number: WS-C3650-24PD-E
• Product Line: Catalyst
• Series: 3560-X
• Type: Layer 3 Switch

Technical Specifications

Network Ports

• Total Ports: 24
• Token Ring Port: Not Available
• LRE Port: Not Available
• Bypass: Not Supported
• Management Port: Included
• PoE+ Ports: 24 (RJ-45)

Performance Metrics

• Switching Capacity: 88 Gbps
• Forwarding Rate: 65.47 Mpps

I/O Expansion

• Expansion Slots: 2
• Slot Type: SFP+
• SFP+ Slots: 2

Networking and Memory

Layer Support

• Supported Layer: Layer 3

Memory Configuration

• Standard Memory: 4 GB DRAM
• Flash Memory: 2 GB

Capacity and Routing

Routing Capabilities

• IPv4 Routes: 24,000
• Netflow Entries: 24,000
• Virtual Interfaces (VLANs): 4,000
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table: 32,000 Entries
• Jumbo Frame Support: 9,198 Bytes

Supported Routing Protocols

• BGP-4
• IS-IS
• RIP-1
• RIP-2
• PIM-SM
• Static IP Routing
• PIM-DM
• EIGRP for IPv6
• OSPFv3
• PIM-SSM
• Policy-Based Routing (PBR)
• RIPng

Management and Features

Remote Management Protocols

• SNMP 1
• RMON 1, 2, 3, 9
• Telnet
• SNMP 3
• SNMP 2c
• SSH
• CLI

Key Features

• Layer 2 Switching
• ARP Support
• Trunking
• VLAN Support
• IGMP Snooping
• IPv6 Compatibility
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• DHCP Snooping
• Port Aggregation Protocol (PAgP)
• Access Control Lists (ACLs)
• Quality of Service (QoS)
• RADIUS Support
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Uni-directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Link Aggregation Control Protocol (LACP)
• Remote Switch Port Analyzer (RSPAN)
• Energy Efficient Ethernet
• Flexible Netflow (FnF)

Standards Compliance

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.1ab (LLDP)
• IEEE 802.3at

Power Specifications

• AC Voltage: 120/230 V (50/60 Hz)
• Optional Power Redundancy: Available

Ports

24 Ethernet Ports

The Cisco WS-C3650-24PD-E Managed Switch is equipped with 24 Ethernet ports, offering users a high level of connectivity and flexibility. These ports enable users to connect multiple devices to the switch and establish fast and reliable network connections.

Increased Productivity

With 24 Ethernet ports, this managed switch allows users to connect a wide range of devices simultaneously. Whether you need to connect computers, printers, VoIP phones, or other network-enabled devices, the ample number of ports ensures that you can do so without any limitations. This increased connectivity translates into improved productivity for your organization.

Scalability

The 24 Ethernet ports on the Cisco WS-C3650-24PD-E Managed Switch provide the scalability needed to accommodate the growing demands of your network. As your business expands and more devices are added to the network, having a sufficient number of ports becomes crucial. With 24 ports at your disposal, you can easily connect new devices without the need for additional switches or complicated network reconfigurations.

VLAN Support

Each of the 24 Ethernet ports on this managed switch supports Virtual Local Area Network (VLAN) functionality. VLANs allow you to segment your network into smaller, isolated networks, enhancing security and improving network performance. With VLAN support on all 24 ports, you have the flexibility to create separate networks for different departments or user groups within your organization.

PoE+ Ports

The Cisco WS-C3650-24PD-E Managed Switch features 24 Power over Ethernet Plus (PoE+) ports, providing both data connectivity and power supply to compatible devices. These PoE+ ports offer numerous benefits for users:

Simplified Deployment

With PoE+ ports, you can easily deploy network-enabled devices such as IP phones, wireless access points, and surveillance cameras without the need for separate power cables. This simplifies the installation process, reduces cable clutter, and allows for more flexible device placement.

Cost Savings

By utilizing PoE+ ports, you can eliminate the need for additional power outlets near each device. This saves on electrical installation costs and reduces ongoing energy consumption. Additionally, PoE+ allows for centralized power management, enabling you to schedule power cycles or remotely reset devices, further reducing maintenance costs.

Flexibility

The 24 PoE+ ports on this managed switch provide the flexibility to support a wide range of powered devices. Whether you need to connect IP phones in an office environment, wireless access points in a campus setting, or security cameras in a surveillance system, these ports offer the necessary power delivery to meet your requirements.

Intelligent Power Allocation

The Cisco WS-C3650-24PD-E Managed Switch incorporates intelligent power allocation capabilities. It automatically detects the power requirements of connected devices and allocates power accordingly. This ensures that each device receives the appropriate power supply without overloading the switch or risking damage to connected devices.

Power Management

With the ability to manage power allocation on individual ports, this managed switch enables efficient power management. You have the flexibility to prioritize critical devices or limit power to non-essential ones, optimizing your network's power consumption.

In conclusion, the Cisco WS-C3650-24PD-E Managed Switch's 24 Ethernet ports and PoE+ functionality provide users with significant benefits and importance. The ample number of Ethernet ports allows for increased productivity, scalability, and VLAN support. The inclusion of PoE+ ports simplifies deployment, offers cost savings, and provides flexibility in powering various network-enabled devices. With intelligent power allocation and power management capabilities, this managed switch ensures efficient and effective operation of your network.
