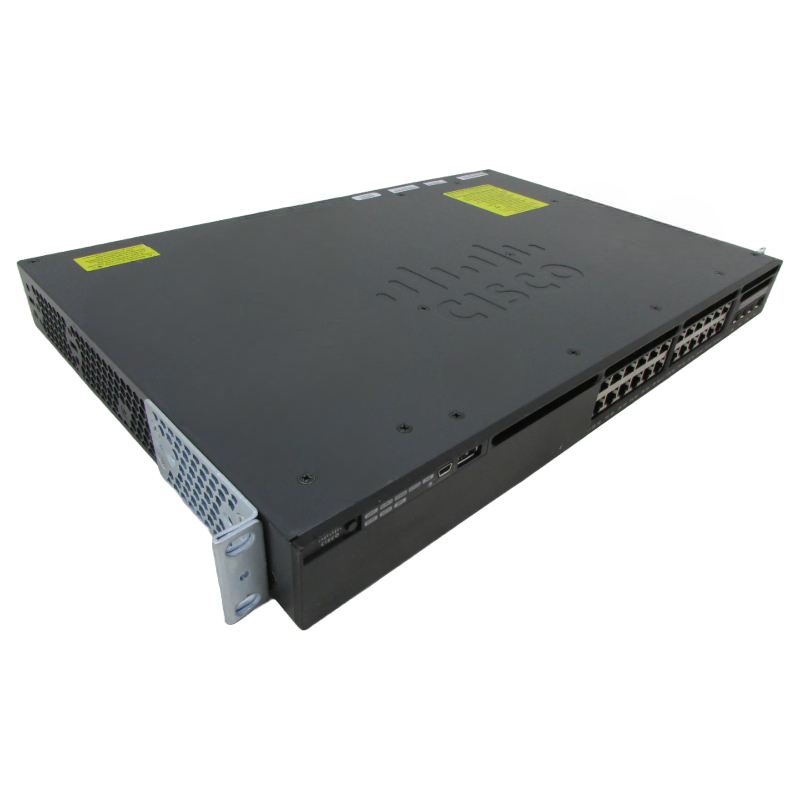

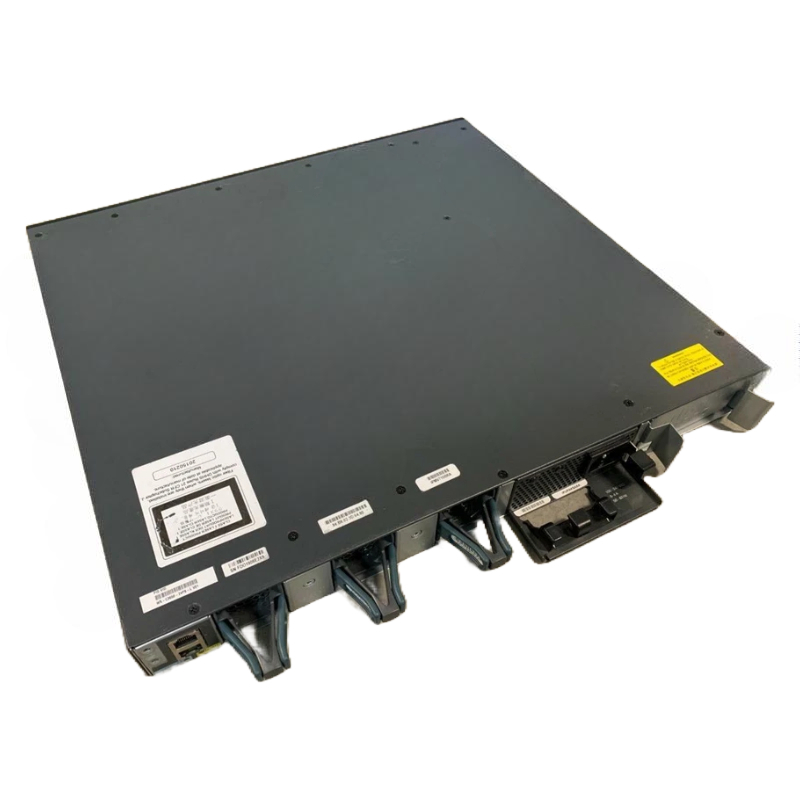

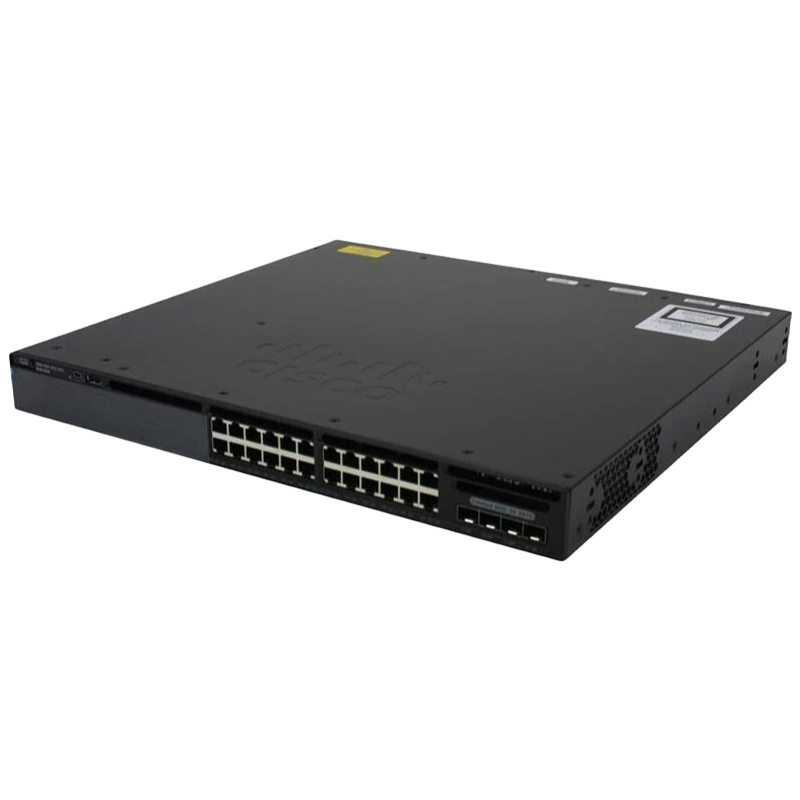

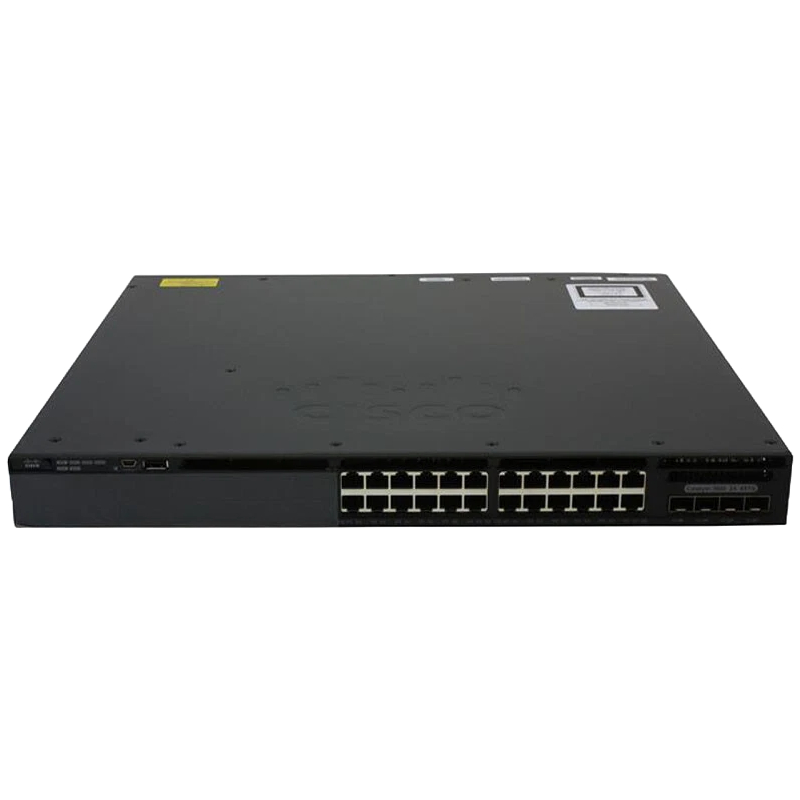

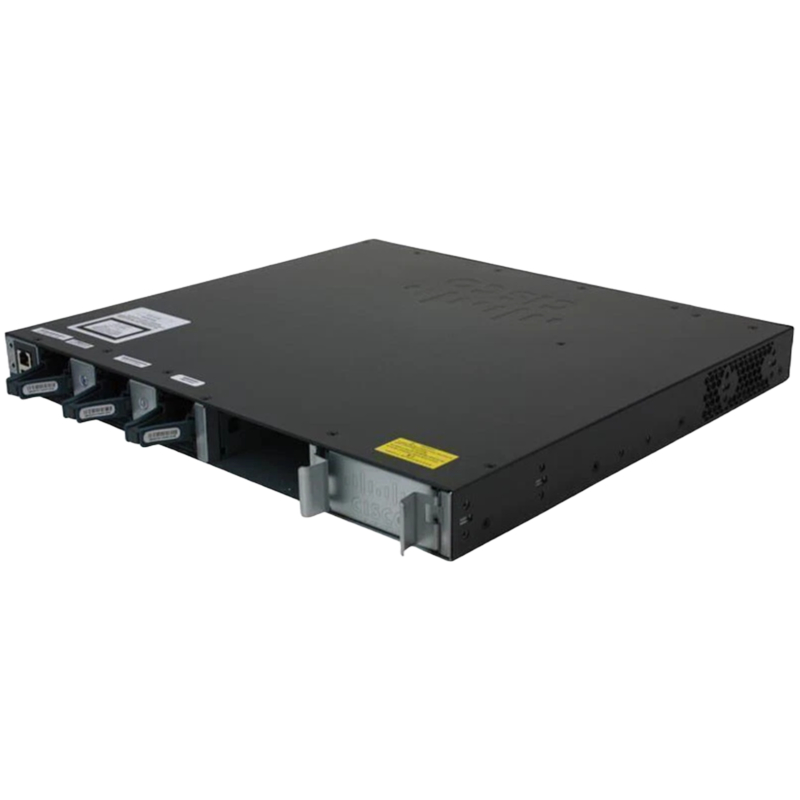

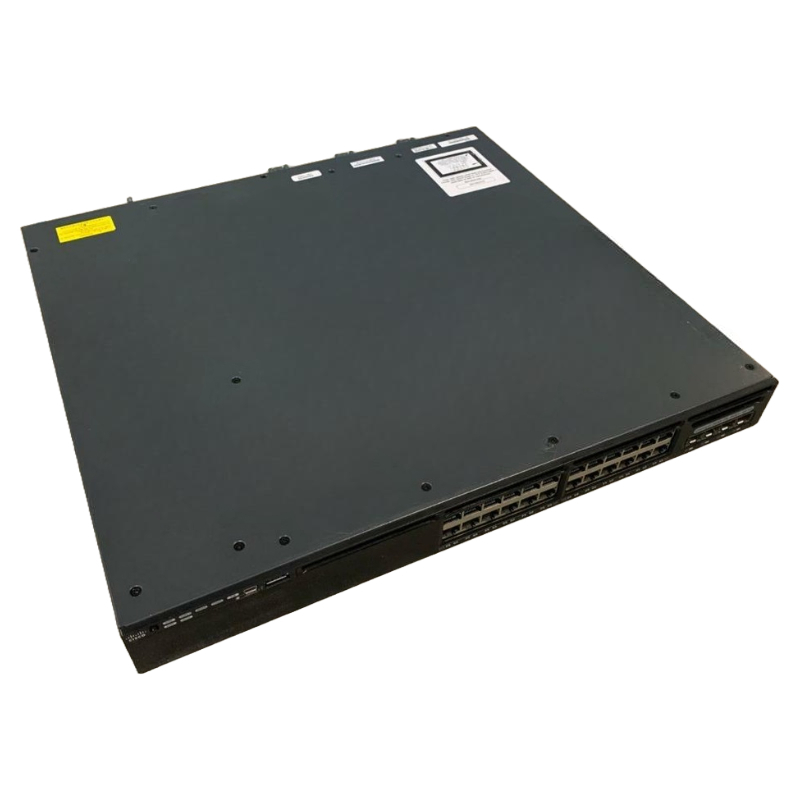

Cisco WS-C3650-24PWD-S 24 Ports Layer 3 Ethernet Switch

Cisco Catalyst WS-C3650-24PWD-S: Advanced Layer 3 Switch

General Product Overview

• Manufacturer Part Number: WS-C3650-24PWD-S
• Brand: Cisco
• Product Classification: Layer 3 Managed Switch

Port Configuration

Network Interfaces

• Total Ports: 24 Gigabit Ethernet ports
• Uplink Ports: Yes, includes 2 x 10 Gigabit Ethernet uplinks
• Modular Capability: No
• Stacking Support: Yes

Media and Performance Specifications

Supported Media Types

• Media Types: Twisted Pair
• Ethernet Technology: 10 Gigabit Ethernet
• Network Standards: 10/100/1000Base-T

Performance Metrics

• Switching Capacity: 92 Gbps for 24-port non-multigigabit models
• Maximum MAC Addresses: 32,000
• IPv4 Routes Supported: 24,000
• Jumbo Frame Size: Up to 9198 bytes

Expansion and Management Features

Expansion Slots

• Total Expansion Slots: 2
• Slot Type: SFP+

Management Capabilities

• Manageable: Yes
• Protocols Supported: Full Layer 4 support
• Redundant Power Supply: Supported

Physical and Power Specifications

Dimensions and Weight

• Form Factor: Rack-mountable and Desktop
• Compatible Rack Unit: 1U
• Dimensions (H x W x D): 1.7" x 17.5" x 17.6"
• Weight: Approximately 16 lb

Power Supply Information

• Power Source: Standard AC power supply
• Power Consumption: Max 975 W

Additional Features and Performance Numbers

Forwarding Rates

• For 2 x 10 Gigabit Ethernet Uplink Models: Up to 68.45 Mpps
• For 4 x 10 Gigabit Ethernet Uplink Models: Up to 130.95 Mpps

Wireless Capabilities

• Access Points Supported per Switch: 25
• Wireless Clients Supported: Up to 1000
• WLANs Supported: 64

Environmental Compliance

• Country of Origin: China
• Operating Temperature: -5°C to 45°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 5% to 95% (non-condensing)

Ports

The Cisco WS-C3650-24PWD-S Layer 3 Manageable Ethernet Switch comes equipped with 24 ports, providing users with ample connectivity options for their network infrastructure. These ports play a crucial role in establishing and maintaining network connections, enabling devices to communicate with each other seamlessly.

Increased Connectivity

With 24 ports, this Cisco switch offers users the ability to connect a multitude of devices to their network. Whether it's computers, servers, printers, or other networking equipment, these ports ensure that there are enough connections available to accommodate the needs of a growing network. The increased connectivity allows businesses to expand their operations without worrying about running out of available ports.

Moreover, the 24 ports also provide flexibility in network design. System administrators can easily integrate existing devices into the network infrastructure without the need for additional equipment or complex configurations. This simplifies the process of expanding or upgrading a network, saving both time and resources.

Enhanced Performance

The Cisco WS-C3650-24PWD-S Layer 3 Manageable Ethernet Switch's 24 ports are designed to deliver high-performance connectivity. Each port supports Gigabit Ethernet, ensuring fast and reliable data transfer rates. This is particularly beneficial for organizations that rely heavily on data-intensive applications or frequently transfer large files within their network.

Furthermore, these ports support Power over Ethernet (PoE), which enables devices such as IP phones, wireless access points, and security cameras to receive power directly from the switch. This eliminates the need for separate power adapters, reducing cable clutter and simplifying installation. It also allows for centralized power management and control, enhancing overall network efficiency.

Improved Network Segmentation

The 24 ports on this Cisco switch enable effective network segmentation. Network segmentation involves dividing a network into smaller, isolated subnetworks, known as VLANs (Virtual Local Area Networks). By creating VLANs, organizations can enhance network security, optimize bandwidth allocation, and improve overall network performance.

With 24 ports available, system administrators have the flexibility to assign specific ports to individual VLANs based on their requirements. This ensures that traffic is isolated and contained within the designated VLAN, preventing unauthorized access and reducing the impact of network congestion. Improved network segmentation also enhances network troubleshooting and simplifies network management tasks.

Redundancy and Link Aggregation

The Cisco WS-C3650-24PWD-S Layer 3 Manageable Ethernet Switch's 24 ports support link aggregation, also known as port trunking. Link aggregation combines multiple physical ports into a single logical link, increasing both bandwidth and redundancy.

By utilizing link aggregation, organizations can achieve higher data transfer rates between devices while ensuring network reliability. In the event of a port failure, traffic seamlessly switches to the remaining active ports within the aggregated link, minimizing downtime and maintaining uninterrupted connectivity.

Scalability and Future-Proofing

Having 24 ports on the Cisco WS-C3650-24PWD-S switch provides scalability and future-proofing for growing networks. As businesses expand and add more devices to their network infrastructure, having additional ports readily available allows for seamless integration without the need for additional switches or complex configurations.

Furthermore, with the increasing demand for network-connected devices and technologies, having a switch with 24 ports ensures that organizations can keep up with future requirements. It allows for the integration of emerging technologies such as Internet of Things (IoT) devices or advanced wireless access points without compromising network performance or stability.

In conclusion, the 24 ports on the Cisco WS-C3650-24PWD-S Layer 3 Manageable Ethernet Switch offer numerous benefits and play a crucial role in facilitating connectivity, enhancing performance, improving network segmentation, providing redundancy, and ensuring scalability. These features make it an ideal choice for businesses or organizations seeking a reliable and versatile network switch to support their growing network infrastructure.
