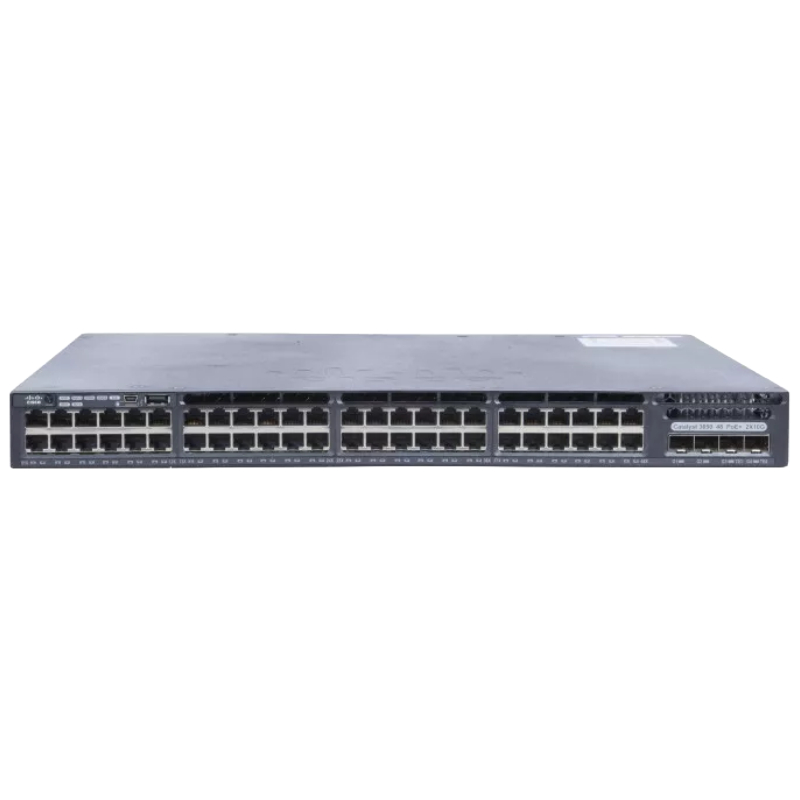

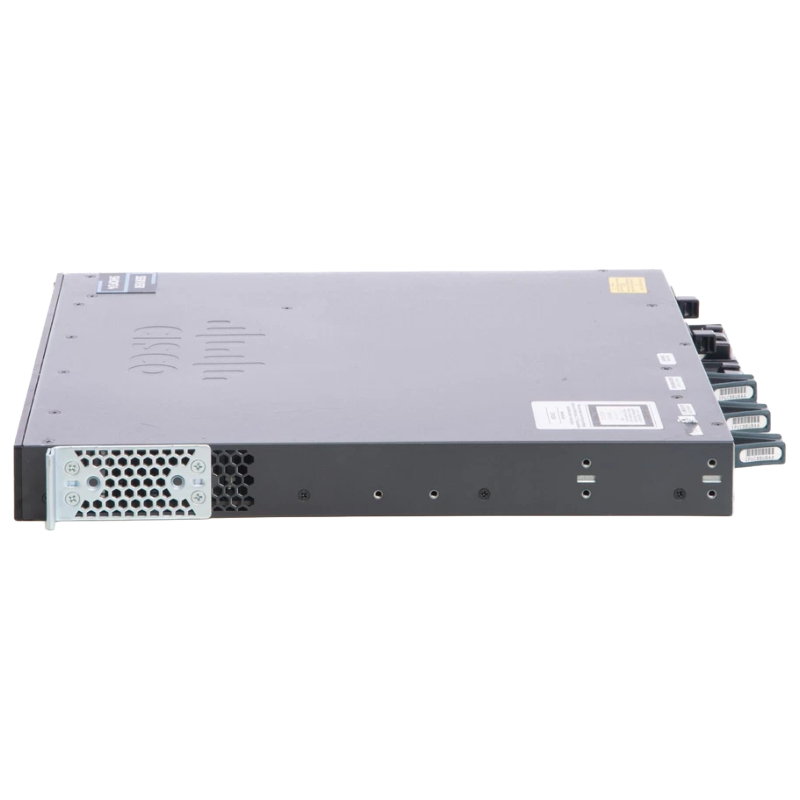

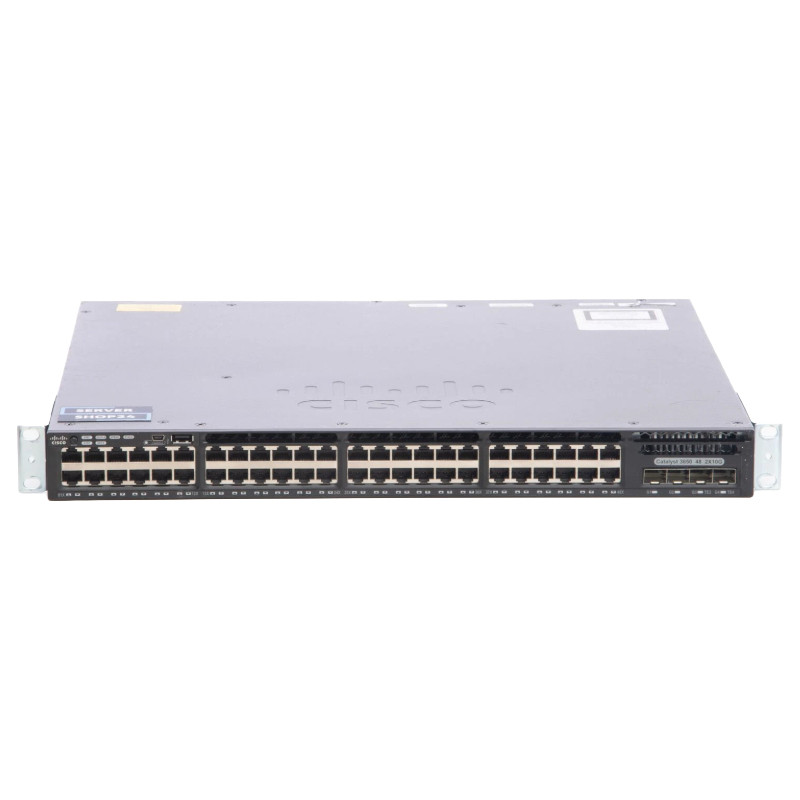

Cisco WS-C3650-48FD-L Catalyst 3650 Ethernet Switch

Ports

The Cisco WS-C3650-48FD-L Ethernet Switch is equipped with a remarkable 48 ports, making it an ideal choice for businesses and organizations that require high-speed and reliable network connectivity. These ports provide the essential foundation for building a robust and scalable network infrastructure.

Cisco WS-C3650-48FD-L: Advanced Ethernet Switch Overview

Core Specifications and Product Details

• Manufacturer: Cisco
• Model Number: WS-C3650-48FD-L
• Product Line: Catalyst
• Product Series: 3650
• Device Type: Ethernet Switch

Network Interface and Connectivity Features

Comprehensive 48-Port Interface

• Total Ports: 48
• Power over Ethernet Plus (PoE+): 48 RJ-45 Ports
• Each PoE+ port delivers up to 30W of power

Uplink Ports

• Gigabit Ethernet Ports: 48 x 1000Base-T
• 10G Uplink Ports: 2 x 10GBase-X SFP+
• Additional Uplink: 2 x 1000Base-X SFP

Performance and Efficiency

Switching and Forwarding Power

• Switching Capacity: 176 Gbps
• Forwarding Performance: 130.95 Mpps

Network Management and Routing Capabilities

• IPv4 Routes Capacity: 24,000
• VLAN Support: 255 VLANs
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table Entries: 32,000
• Jumbo Frame Support: Up to 9,198 bytes
• Routing Protocols: Static IP routing

Remote Management and Monitoring

Supported Protocols

• SNMP Versions 1, 2c, 3
• RMON (Remote Monitoring) Versions 1, 2, 3, 9
• Telnet, SSH, and CLI support for remote control

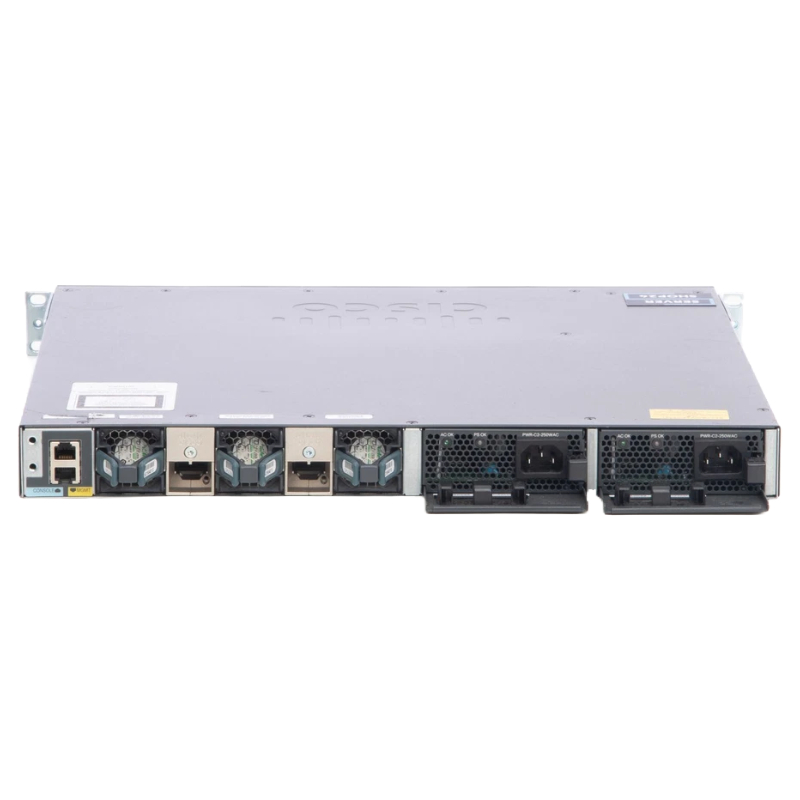

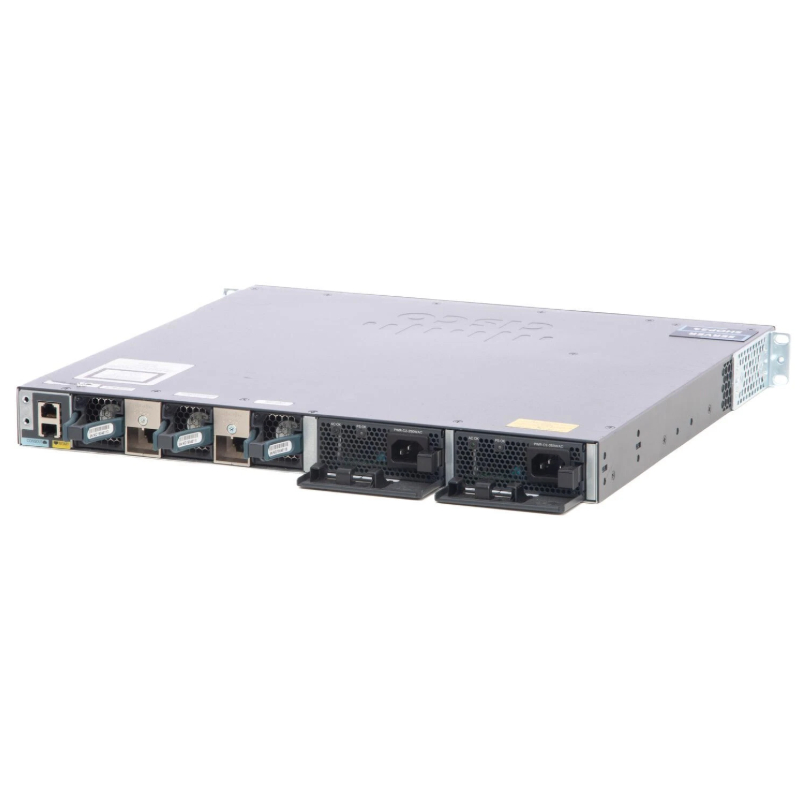

Power and Redundancy

Internal Power Supply

• Installed Power Supply: 1 unit (supports up to 2)
• Power Redundancy: Optional (1+1 scheme)
• Total Power Output: 1,025W

Power Requirements

• Voltage: AC 120/230 V (50/60 Hz)

Expansion and Modular Capabilities

Stacking Options

• Supports 1 stacking module slot for flexibility

Physical Installation and Compliance

Mounting and Environmental Durability

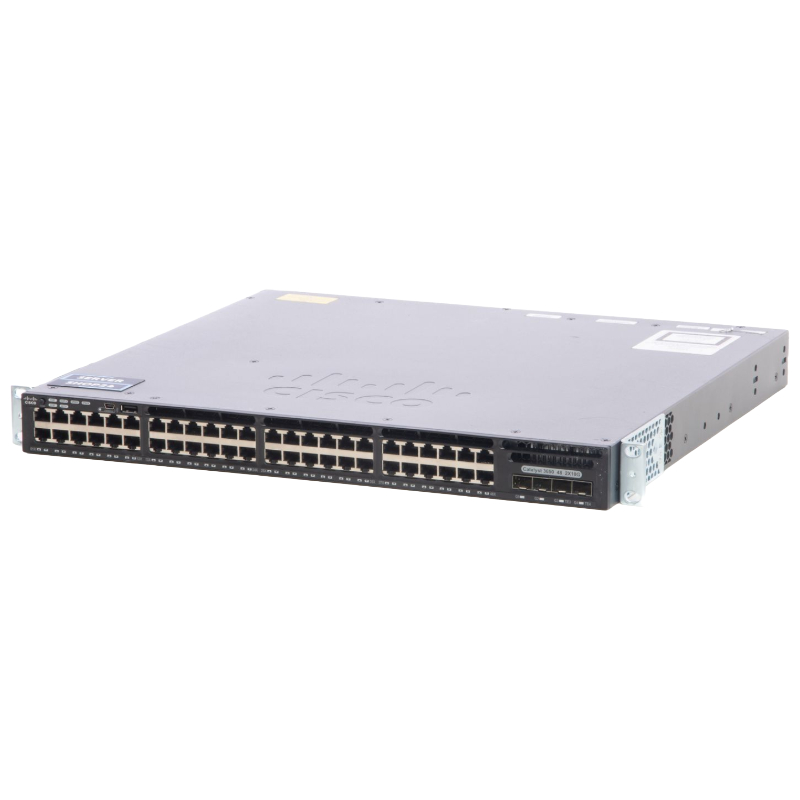

• Rack Mounting Kit: Included for easy setup
• Mean Time Between Failures (MTBF): 383,760 hours

Regulatory Compliance and Standards

• Complies with RoHS, FCC Part 15 A, EN 61000-3-2, and many more international standards

Environmental Conditions

Operating Conditions

• Temperature Range: 23°F to 113°F
• Humidity Range: 5% to 96% (non-condensing)

Storage Parameters

• Temperature Range: -40°F to 158°F

Increased Connectivity

With 48 ports, this Ethernet switch offers an abundance of connectivity options, allowing users to connect a wide range of devices to their network. Whether it's computers, servers, printers, or other networking equipment, the Cisco WS-C3650-48FD-L ensures that you will never run out of available ports. This is particularly beneficial for businesses with a large number of employees or those that require multiple devices to be connected simultaneously.

Furthermore, the increased connectivity provided by the 48 ports enables seamless expansion as your organization grows. You can easily add new devices or expand your network without worrying about limited port availability. This flexibility ensures that your network infrastructure can adapt to future requirements and advancements in technology.

High-Speed Data Transfer

The Cisco WS-C3650-48FD-L Ethernet Switch supports high-speed data transfer rates, thanks to its advanced technology and 48 ports. With each port capable of delivering Gigabit Ethernet speeds, you can experience lightning-fast data transfer within your network. This is particularly important for businesses that handle large amounts of data on a daily basis or rely on real-time communication and collaboration.

Whether you are transferring large files, streaming high-definition videos, or conducting video conferences, the high-speed data transfer provided by this switch ensures smooth and uninterrupted performance. The 48 ports allow for simultaneous data transfer between multiple devices without experiencing any bottlenecks or slowdowns.

VLAN Support

The Cisco WS-C3650-48FD-L Ethernet Switch offers VLAN (Virtual Local Area Network) support, which allows you to segment your network into multiple virtual networks. Each VLAN operates independently, ensuring that traffic from one VLAN does not interfere with another. This feature is especially useful for businesses that require strict network segregation, such as separating guest networks from internal networks or creating separate networks for different departments.

With 48 ports, you have the flexibility to assign specific VLANs to different devices or groups of devices based on your network requirements. This ensures enhanced security, improved network performance, and simplified network management. By utilizing VLANs, you can effectively control network access and optimize the utilization of available bandwidth.

Power Over Ethernet (PoE) Capabilities

In addition to its impressive 48 ports, the Cisco WS-C3650-48FD-L Ethernet Switch also supports Power over Ethernet (PoE) capabilities. This means that it can deliver power to compatible devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cable itself. The PoE feature eliminates the need for separate power cables or power adapters for these devices.

With 48 PoE-enabled ports, you can easily deploy and power a large number of PoE devices throughout your network without the hassle of managing additional power sources. This simplifies installation and reduces cable clutter, resulting in a more organized and efficient network infrastructure.

Cost Savings

The PoE capabilities provided by the Cisco WS-C3650-48FD-L bring significant cost savings to businesses. By eliminating the need for separate power sources for PoE devices, you can save on infrastructure costs, such as power outlets and electrical wiring. Additionally, the centralized power management offered by PoE reduces energy consumption and lowers electricity bills.

Furthermore, the flexibility of PoE allows for easier reconfiguration of devices within the network without the need for rewiring or additional power considerations. This saves both time and money, particularly in dynamic environments where device locations may change frequently.

Improved Reliability

The PoE capabilities of this Ethernet switch also enhance the reliability of your network. With centralized power management, you can ensure that critical devices, such as security cameras or access points, remain operational even during power outages. The switch can intelligently allocate power to prioritize essential devices and maintain uninterrupted network services.

Moreover, the Cisco WS-C3650-48FD-L features advanced power management capabilities, including power monitoring and control. This enables you to monitor the power usage of individual devices, detect abnormalities, and take necessary actions to optimize power distribution. By efficiently managing power consumption, you can extend the lifespan of your devices and reduce the risk of unexpected failures.

Summary

The Cisco WS-C3650-48FD-L Ethernet Switch with its impressive 48 ports offers increased connectivity, high-speed data transfer, VLAN support, and Power over Ethernet capabilities. It provides businesses and organizations with the essential foundation for building a robust and scalable network infrastructure. With its flexibility, reliability, and cost-saving features, this switch is an excellent choice for those seeking a powerful networking solution.
