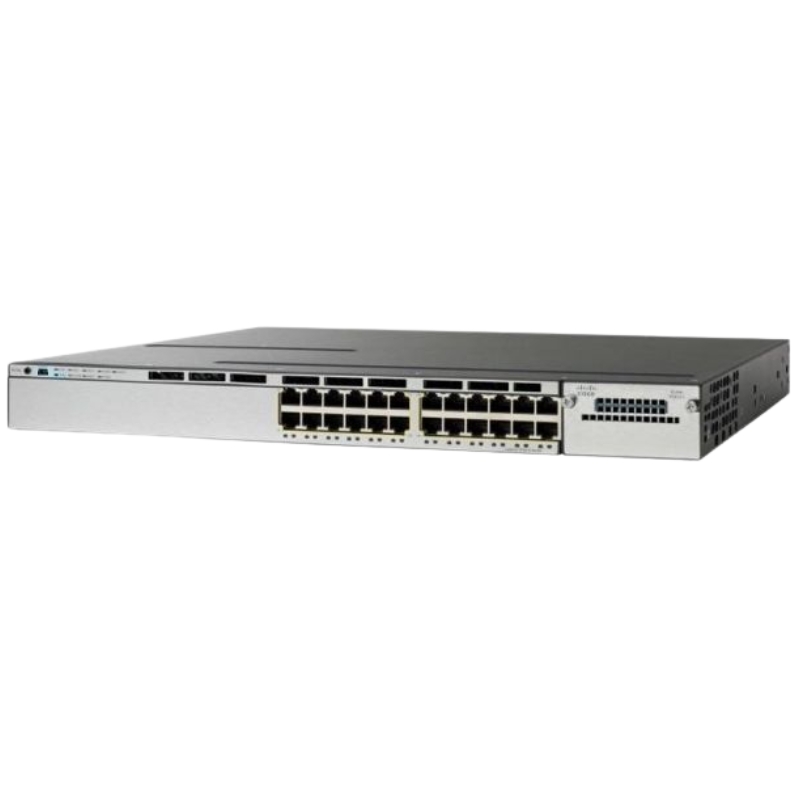

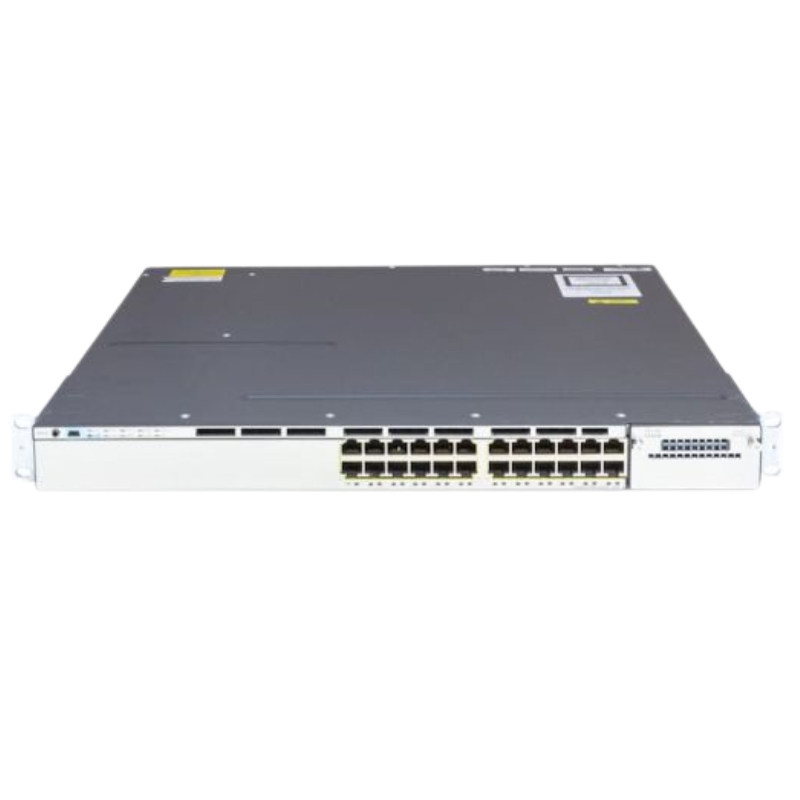

Cisco WS-C3750X-24P-E Switch - 24 Ports Layer 2 Catalyst 3750X Manageable

Ports

The Cisco WS-C3750X-24P-E Switch is equipped with 24 ports, making it a versatile and efficient networking solution for businesses of all sizes. The abundance of ports allows users to connect multiple devices simultaneously, enabling seamless communication and data transfer within the network.

Increased Connectivity and Flexibility

With 24 ports, this Cisco switch offers expanded connectivity options for various devices, such as computers, printers, IP phones, and access points. It eliminates the need for additional switches or hubs, simplifying network infrastructure and reducing costs.

The ample number of ports also provides flexibility in network design and expansion. Businesses can easily accommodate new devices or scale up their operations without worrying about running out of available ports. This scalability is crucial for organizations experiencing growth or planning for future upgrades.

Enhanced Network Performance

Having 24 ports on the Cisco WS-C3750X-24P-E Switch ensures efficient data transmission and minimizes network congestion. Each port operates at Gigabit Ethernet speeds, enabling high-speed data transfer and optimal performance for bandwidth-intensive applications.

Moreover, the switch supports advanced features like Quality of Service (QoS) and Traffic Prioritization. These capabilities allow administrators to allocate bandwidth according to the specific needs of different applications or devices. By prioritizing critical traffic, such as voice or video communications, businesses can ensure smooth operation without disruptions or delays.

Improved Network Security

The abundance of ports on this Cisco switch enables the implementation of enhanced network security measures. Each port can be individually configured with security settings, allowing administrators to control access and monitor network traffic at a granular level.

By segmenting the network into smaller subnets using VLANs (Virtual Local Area Networks), businesses can isolate sensitive data or restrict access to certain resources. This helps prevent unauthorized access and protects against potential security threats.

Power over Ethernet (PoE) Capability

The Cisco WS-C3750X-24P-E Switch also features Power over Ethernet (PoE) capability on all 24 ports. This means that the switch can provide both data connectivity and power supply to compatible devices, such as IP phones, wireless access points, or security cameras.

The PoE functionality eliminates the need for separate power adapters or electrical outlets for these devices, reducing clutter and simplifying installation. It also ensures uninterrupted operation, as the switch can automatically detect and deliver the appropriate power to connected devices.

Benefits of PoE

The inclusion of PoE on all 24 ports offers several benefits for users:

1. Cost Savings: By eliminating the need for extra power cables and adapters, businesses can significantly reduce installation and maintenance costs.

2. Flexibility: PoE allows for flexible device placement, as devices can be installed in locations without nearby power outlets. This makes it easier to deploy devices in areas that may have limited access to electrical infrastructure.

3. Centralized Power Management: The Cisco WS-C3750X-24P-E Switch provides centralized power management capabilities. Administrators can monitor and control the power consumption of connected devices, ensuring efficient utilization and reducing energy waste.

4. Scalability: As the switch offers PoE on all ports, businesses have the flexibility to add or remove powered devices without limitations. This scalability is particularly beneficial in dynamic environments where device requirements may change frequently.

Manageable

One of the standout features of the Cisco WS-C3750X-24P-E Switch is its manageability. With comprehensive management options, this switch empowers network administrators to effectively monitor and control network operations.

Single Point of Control

The manageability of this Cisco switch provides a centralized point of control for network administrators. Through a user-friendly interface, administrators can monitor the network's performance, configure settings, and troubleshoot any issues that may arise.

Centralized management offers several advantages:

1. Simplified Network Administration: With a single point of control, administrators can streamline network administration tasks. They can configure settings, monitor performance, and apply updates across all devices connected to the switch, ensuring consistency and saving time.

2. Enhanced Visibility: The manageability features provide administrators with real-time visibility into network traffic, performance metrics, and security events. This allows for proactive monitoring and troubleshooting, minimizing downtime and optimizing network performance.

3. Efficient Troubleshooting: In the event of network issues or performance degradation, administrators can quickly identify the source of the problem using the switch's management tools. They can isolate specific ports, analyze traffic patterns, and perform diagnostics to resolve issues promptly.

Network Monitoring and Analytics

The Cisco WS-C3750X-24P-E Switch offers advanced monitoring and analytics capabilities that provide valuable insights into network behavior and performance.

Administrators can leverage features such as NetFlow and SNMP (Simple Network Management Protocol) to gather data on network traffic, bandwidth utilization, and application usage. This data can be analyzed to identify trends, optimize resource allocation, and detect potential security threats.

NetFlow

NetFlow is a powerful tool that collects and analyzes network traffic data. By capturing information about source and destination IP addresses, packet size, protocols used, and more, NetFlow provides detailed visibility into network activity.

The Cisco switch supports NetFlow technology, allowing administrators to monitor traffic patterns in real-time or retrospectively. This information helps identify bandwidth-hungry applications or potential security breaches by detecting abnormal traffic behavior.

Benefits of NetFlow

The implementation of NetFlow on the Cisco WS-C3750X-24P-E Switch offers several benefits:

1. Network Performance Optimization: By analyzing NetFlow data, administrators can identify bottlenecks or areas of congestion within the network. This information allows for proactive optimization, ensuring smooth and efficient data transfer.

2. Security Threat Detection: NetFlow data can reveal unusual or suspicious network activity, indicating possible security breaches or unauthorized access attempts. Administrators can set up alerts and triggers based on predefined patterns to promptly respond to potential threats.

3. Capacity Planning: NetFlow provides usage statistics for different applications or protocols, helping administrators plan for future capacity requirements. By understanding current network utilization, businesses can effectively allocate resources and avoid unexpected performance issues.

SNMP

Simple Network Management Protocol (SNMP) is a widely used management protocol that allows network devices to be monitored and controlled remotely. The Cisco WS-C3750X-24P-E Switch supports SNMP, enabling seamless integration with existing network management systems.

Administrators can use SNMP to monitor device health, receive notifications for critical events, and remotely configure switch settings. SNMP also facilitates the collection of performance data, allowing administrators to generate reports and analyze historical trends.

Benefits of SNMP

The inclusion of SNMP on the Cisco switch offers several benefits:

1. Proactive Monitoring: SNMP enables administrators to monitor the switch's performance in real-time, ensuring early detection of issues and reducing downtime. Alerts and notifications can be configured to inform administrators about critical events or potential problems.

2. Streamlined Management: SNMP streamlines management tasks by providing a standardized interface for monitoring and configuring network devices. It allows for centralized control and simplifies the integration of the switch into existing network management systems.

3. Historical Analysis: By collecting and storing SNMP data over time, administrators can analyze historical trends and patterns. This information helps identify performance bottlenecks, plan for future upgrades, and optimize network resources.

Layer

The Cisco WS-C3750X-24P-E Switch operates at Layer 2 of the OSI model, offering a robust set of features and functionalities that are essential for efficient and secure networking.

Enhanced Network Segmentation

Layer 2 switches provide network segmentation capabilities through the use of VLANs. VLANs allow administrators to logically separate the network into different broadcast domains, improving security and reducing network congestion.

By creating VLANs, businesses can group related devices together and control their communication within defined boundaries. This isolation prevents broadcast storms and limits the propagation of network issues, ensuring stable and reliable connectivity.

Benefits of VLANs

The utilization of VLANs on the Cisco WS-C3750X-24P-E Switch offers several benefits:

1. Enhanced Security: VLANs provide an additional layer of security by isolating sensitive data or critical resources from unauthorized access. By separating different departments or user groups, businesses can enforce access controls and prevent unauthorized communication.

2. Improved Performance: By reducing the scope of broadcast domains, VLANs minimize unnecessary traffic and mitigate network congestion. This leads to improved network performance, especially in environments with high bandwidth demands or intensive applications.

3. Simplified Network Management: VLANs allow for simplified network management by providing logical groupings of devices based on their roles or functions. Administrators can apply consistent policies, configure settings, and apply updates to specific VLANs, enhancing overall network manageability.

Efficient Switching and Traffic Control

Layer 2 switches, like the Cisco WS-C3750X-24P-E, offer efficient switching capabilities that enable fast and reliable data transfer within the network.

The switch utilizes MAC addresses to forward data packets between devices connected to different ports. This MAC address learning process allows the switch to build a table associating MAC addresses with specific ports. Subsequently, when a packet is received, the switch can quickly determine the port to which it needs to be forwarded.

Benefits of Efficient Switching

Efficient switching on the Cisco switch provides several benefits:

1. Faster Data Transfer: By forwarding packets based on MAC addresses, the switch ensures fast and direct data transfer between devices. This reduces latency and improves network responsiveness, making it ideal for latency-sensitive applications like video conferencing or real-time data streaming.

2. Reduced Network Congestion: Efficient switching helps minimize network congestion by directing packets only to the appropriate ports. Unnecessary broadcast or multicast traffic is limited, ensuring optimal bandwidth utilization and reducing the chances of packet collisions.

3. Improved Scalability: The efficient switching mechanism allows for seamless scalability as network requirements grow. The switch can handle increased traffic volumes and maintain high performance without compromising data integrity or network stability.

Spanning Tree Protocol (STP)

The Cisco WS-C3750X-24P-E Switch supports Spanning Tree Protocol (STP), a Layer 2 protocol that prevents loop formation in redundant network topologies.

STP ensures that only one path is active at a time in a network, while other redundant paths remain blocked. This prevents loops, which can cause broadcast storms and severely impact network performance.

Benefits of Spanning Tree Protocol

The inclusion of STP on the Cisco switch offers several benefits:

1. Redundancy and Fault Tolerance: STP enables businesses to design networks with redundant links, ensuring high availability and fault tolerance. If a link or switch fails, STP automatically activates an alternate path, minimizing downtime and maintaining network connectivity.

2. Simplified Network Design: STP simplifies network design by allowing administrators to add redundant links without the risk of creating loops. This flexibility allows for scalable and resilient network architectures.

3. Optimal Bandwidth Utilization: By blocking redundant paths, STP optimizes bandwidth utilization and prevents broadcast storms. This ensures that network resources are efficiently allocated, improving overall network performance.

In conclusion, the Cisco WS-C3750X-24P-E Switch offers an abundance of ports, comprehensive manageability features, and operates at Layer 2 of the OSI model. Its 24 ports provide increased connectivity, flexibility, and improved network performance. The manageability features offer centralized control, efficient troubleshooting, and advanced monitoring capabilities. Operating at Layer 2 enables enhanced network segmentation, efficient switching, and the utilization of protocols like STP for redundancy and fault tolerance. Overall, this switch is a reliable and versatile networking solution that caters to the diverse needs of businesses.
