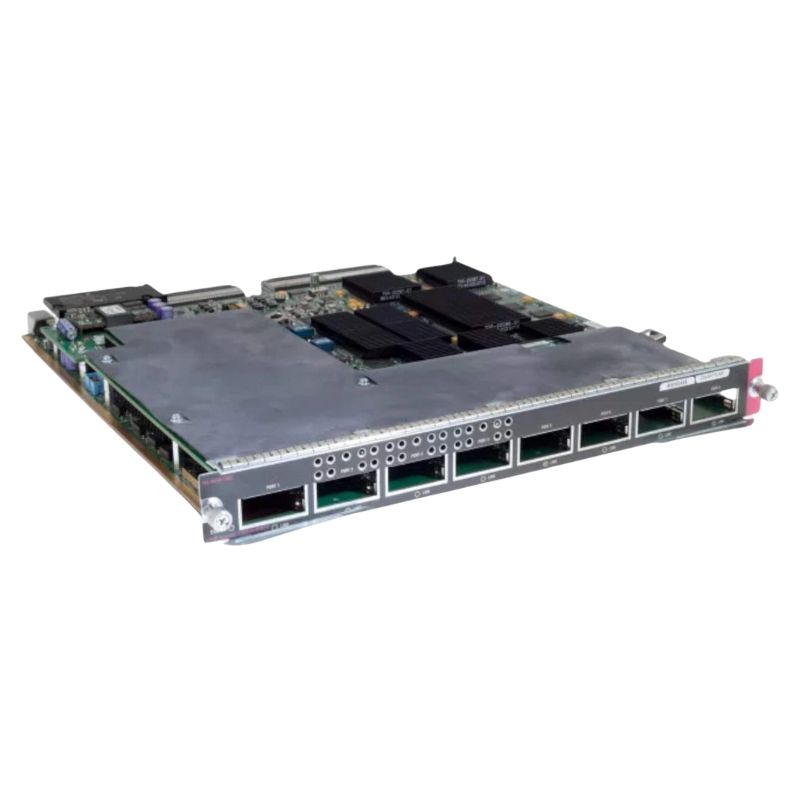

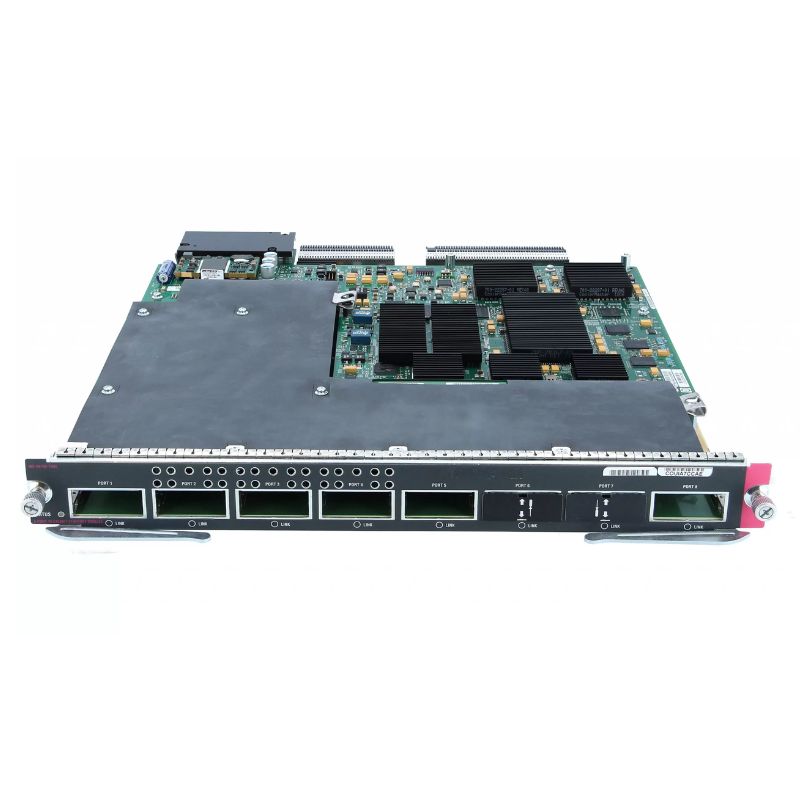

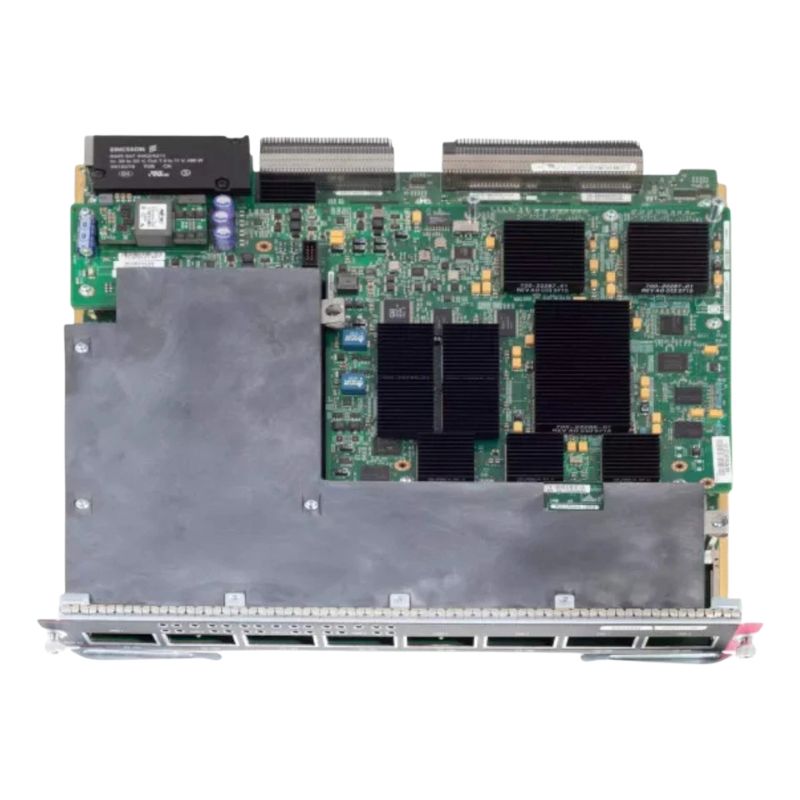

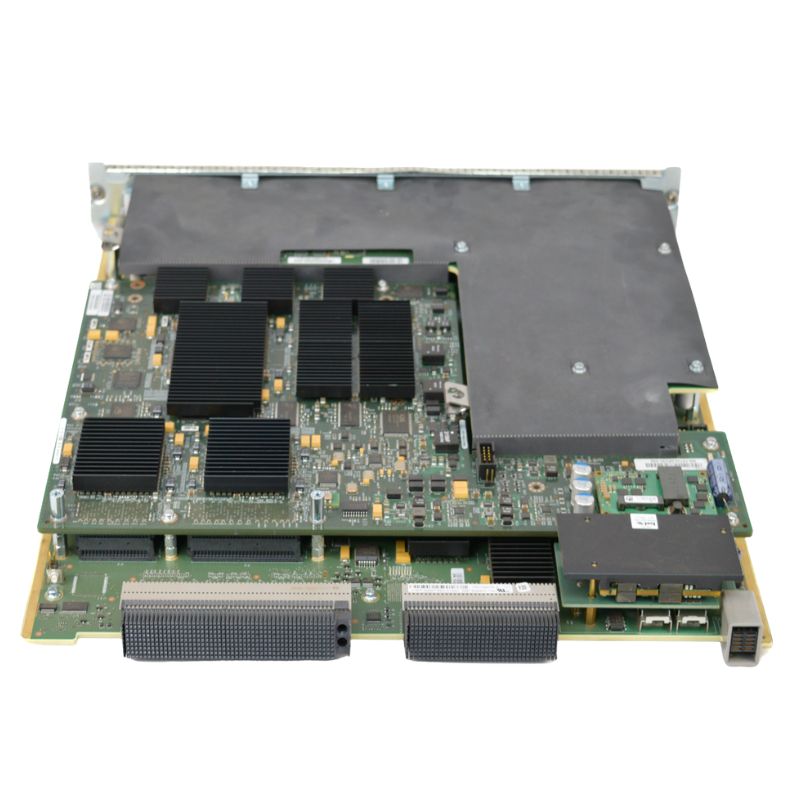

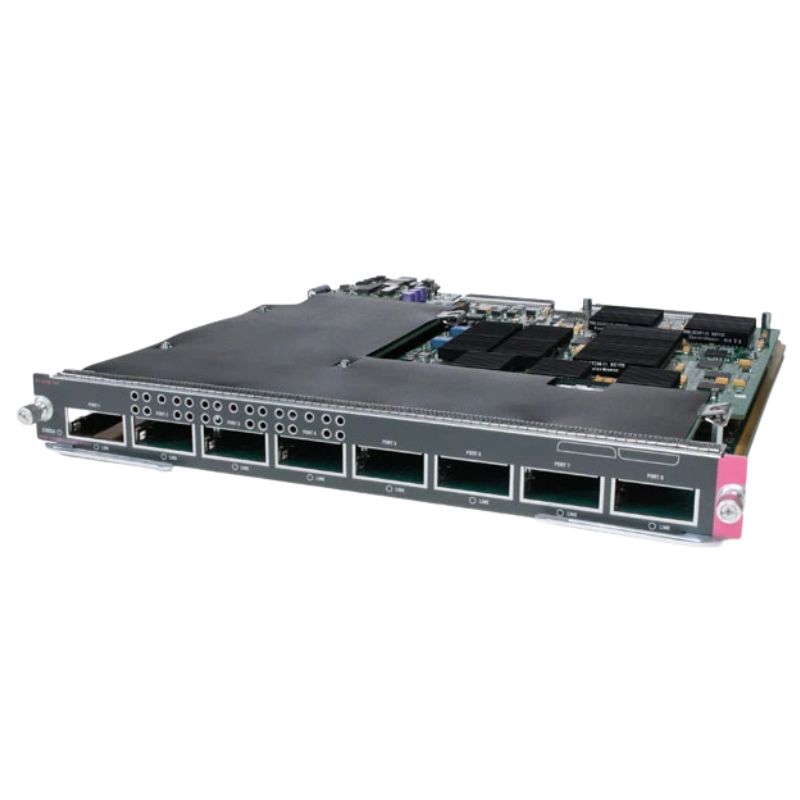

Cisco WS-X6708-10G-3C C6K 8-Port 10 Gigabit Ethernet Module with DFC3C

Ports

The Cisco WS-X6708-10G-3C Ethernet module is equipped with 8 ports, making it an ideal choice for users who require high-performance networking capabilities. These ports offer a range of benefits and play a crucial role in ensuring seamless data transmission and connectivity.

Overview of the Cisco WS-X6708-10G-3C

The Cisco Catalyst 6500 8-Port 10 Gigabit Ethernet Module, identified by the SKU# WS-X6708-10G-3C, is a high-performance expansion module designed for robust network connectivity.

Manufacturer Details

• Brand: Cisco
• Model Number: WS-X6708-10G-3C

Product Specifications

• Product Name: Catalyst 6500 8-Port 10 Gigabit Ethernet Module
• Type: Expansion Module
• Connectivity Technology: Wired
• Cabling Type: Ethernet 10GBase-X
• Data Link Protocol: 10 Gigabit Ethernet
• Data Transfer Rate: 10 Gbps
• Remote Management: RMON, SMON
• Status Indicators: Port status, general status

Expansion and Connectivity

• Expansion Slots: 8 total / 8 available x X2
• Compatible Slots: 1 x expansion slot

Compliance and Standards

• FCC Class A certified
• CISPR 22 Class A
• BSMI CNS 13438 Class A
• CISPR 24
• EN 61000-3-2
• VCCI Class A ITE
• EN 61000-3-3
• EN55024
• EN55022 Class A
• EN50082-1
• CSA 22.2 No. 60950
• EN 61000-6-1
• AS/NZS 60950-1
• CSA C22.2 No. 60950-00
• ICES-003 Class A
• FCC CFR47 Part 15
• FCC CFR21 Part 1040
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• EN 60825
• IEC 60825-1

Processor and Memory

• RAM: 1 GB

Environmental Specifications

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Operating Humidity Range: 10 – 90%

Compatibility

This module is compatible with a range of Cisco devices, including:

• Cisco 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle
• Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle
• Cisco Catalyst 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32
• Cisco Catalyst 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis
• Cisco Catalyst 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System
• Cisco Catalyst 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis with Supervisor Engine 32

Increased Connectivity Options

With 8 ports, users have the flexibility to connect multiple devices simultaneously. This is particularly advantageous in environments where there is a need for extensive network connectivity, such as large enterprises or data centers. The availability of multiple ports eliminates the need for additional networking equipment, reducing costs and simplifying network management.

Improved Network Performance

The 8 ports on the Cisco WS-X6708-10G-3C Ethernet module allow for efficient distribution of network traffic. By distributing the load across multiple ports, the module ensures that each device connected to the network receives the necessary bandwidth and resources for optimal performance. This helps prevent bottlenecks and congestion, resulting in a smoother and more reliable network experience.

Enhanced Scalability

As businesses grow and expand, so does their need for increased network capacity. The 8 ports on this Ethernet module provide scalability options, allowing organizations to easily add more devices to their network without having to invest in additional networking infrastructure. This scalability ensures that the network can keep up with evolving business requirements, supporting future growth and expansion.

Redundancy and High Availability

The availability of multiple ports also offers redundancy and high availability. By connecting devices to different ports, users can create redundant paths within the network. In the event of a port failure or network issue, traffic can be automatically rerouted through alternative paths, minimizing downtime and ensuring uninterrupted connectivity.

Simplified Network Design

Having 8 ports available on a single module simplifies network design and deployment. It reduces the complexity of wiring and cabling, as well as the need for additional networking equipment. This not only saves time and effort during installation but also streamlines network management and troubleshooting processes.

Increased Flexibility

The 8 ports on the Cisco WS-X6708-10G-3C Ethernet module offer users greater flexibility in configuring their network. They can allocate ports to specific devices or network segments based on their requirements, allowing for efficient resource utilization. The flexibility provided by these ports enables users to tailor the network to their unique needs, catering to different applications, departments, or user groups.

Speed

The Cisco WS-X6708-10G-3C Ethernet module boasts a speed of 10 Gigabit, making it a powerful solution for organizations that demand high-speed data transmission. This feature brings numerous benefits and is essential for users who require rapid and efficient network performance.

Enhanced Data Transfer

The 10 Gigabit speed of this Ethernet module ensures swift data transfer between connected devices. It significantly reduces transfer times, allowing for quick access to critical information and applications. This is particularly advantageous in scenarios where large amounts of data need to be transferred rapidly, such as multimedia streaming, server virtualization, or data backup processes.

Improved Network Efficiency

With a 10 Gigabit speed, the Cisco WS-X6708-10G-3C Ethernet module enhances overall network efficiency. It facilitates faster response times, reducing latency and ensuring a seamless user experience. The improved efficiency translates into increased productivity, as employees can access resources and collaborate in real-time without delays or disruptions.

Support for Bandwidth-Intensive Applications

Bandwidth-intensive applications, such as video conferencing or high-definition media streaming, require substantial network resources to function smoothly. The 10 Gigabit speed of this Ethernet module ensures that such applications receive the necessary bandwidth, eliminating buffering or lagging issues. This enables users to leverage these applications to their full potential, enhancing communication and collaboration within the organization.

Future-Proofing

The demand for high-speed data transmission continues to grow, driven by emerging technologies and increasing data volumes. Investing in a 10 Gigabit Ethernet module like the Cisco WS-X6708-10G-3C ensures future-proofing of the network infrastructure. It allows organizations to keep pace with evolving technology trends and seamlessly integrate new applications or devices that require high-speed connectivity.

Compatibility with Existing Infrastructure

Despite its high speed, the Cisco WS-X6708-10G-3C Ethernet module is backward compatible with lower speed devices. It supports auto-negotiation, allowing connections to be established at the highest speed supported by both ends. This ensures that organizations can leverage the benefits of 10 Gigabit speed while still utilizing their existing network infrastructure.

Reduced Network Congestion

Network congestion can occur when multiple devices compete for limited bandwidth. The 10 Gigabit speed of this Ethernet module helps alleviate network congestion by providing ample bandwidth for data transmission. It enables large files to be transferred quickly and efficiently, reducing the chances of bottlenecks and ensuring a smooth flow of data across the network.

DFC

The Cisco WS-X6708-10G-3C Ethernet module features a Distributed Forwarding Card (DFC) with DFC3C capabilities. This advanced feature offers several benefits and plays a crucial role in enhancing network performance and reliability.

Improved Packet Forwarding

The DFC3C on this Ethernet module enhances packet forwarding capabilities. It offloads the forwarding decision-making process from the central processing unit (CPU) to the DFC, resulting in faster and more efficient packet processing. This reduces the strain on the CPU and allows it to focus on other critical tasks, leading to improved overall network performance.

Increased Scalability

DFC3C enables the Ethernet module to handle larger traffic volumes and accommodate more devices. It enhances the module's scalability by distributing the forwarding workload across multiple DFCs. This ensures that the network can easily scale to meet growing demands without compromising performance or introducing bottlenecks.

Enhanced Redundancy and Resiliency

The DFC3C feature provides redundancy and resiliency to the network infrastructure. By enabling multiple DFCs, it ensures that even in the event of a failure or maintenance activity, the network can continue operating without interruption. The redundant DFCs seamlessly take over the forwarding tasks, minimizing downtime and ensuring uninterrupted connectivity.

Advanced Traffic Control

DFC3C offers advanced traffic control capabilities, allowing for granular control over network traffic. It supports features such as Quality of Service (QoS) and access control lists (ACLs), enabling administrators to prioritize critical applications or restrict access based on predefined rules. This enhances network security, optimizes resource allocation, and ensures that mission-critical applications receive the necessary bandwidth and resources.

Optimized Network Performance

By offloading packet forwarding tasks to the DFC, the Cisco WS-X6708-10G-3C Ethernet module optimizes network performance. It reduces latency, improves response times, and enhances overall network efficiency. The optimized performance translates into enhanced user experience and increased productivity within the organization.

Simplified Network Management

The DFC3C feature simplifies network management by centralizing forwarding decisions within the Ethernet module. It eliminates the need for complex configurations or manual intervention, streamlining network operations and reducing administrative overhead. The simplified network management allows IT teams to focus on strategic initiatives rather than routine maintenance tasks.
