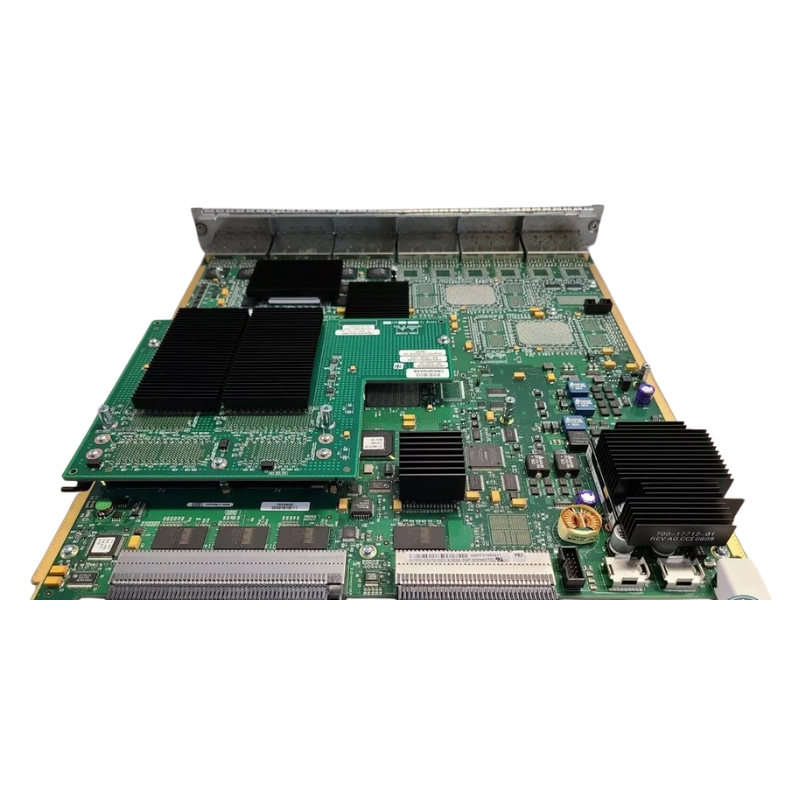

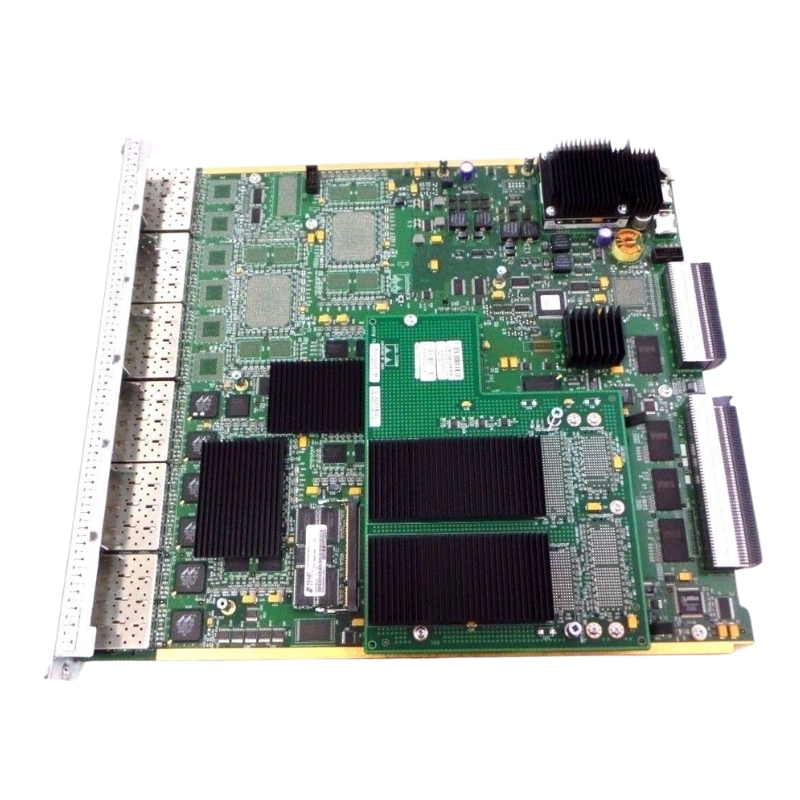

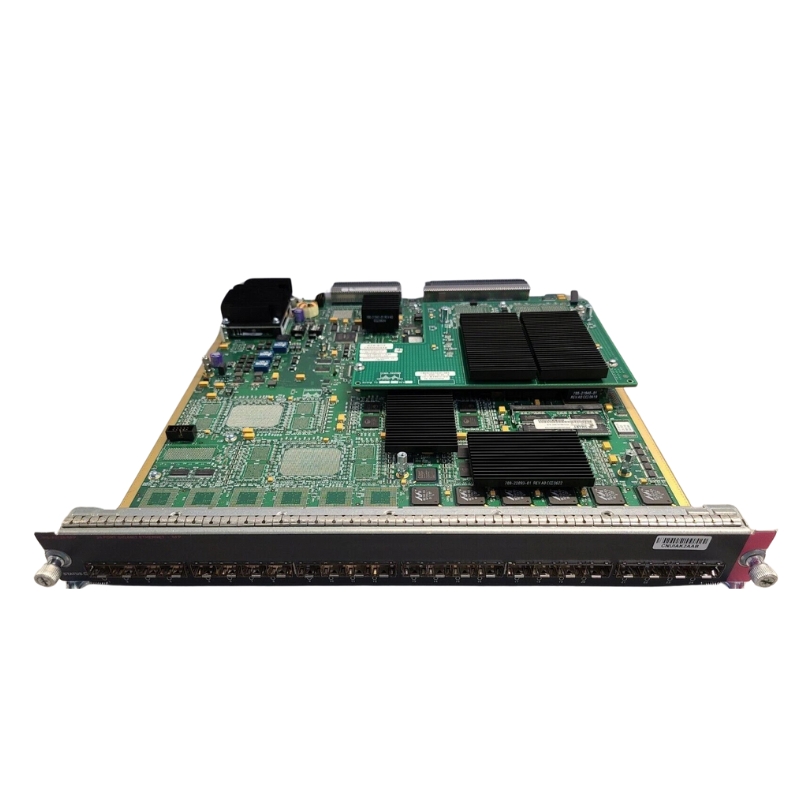

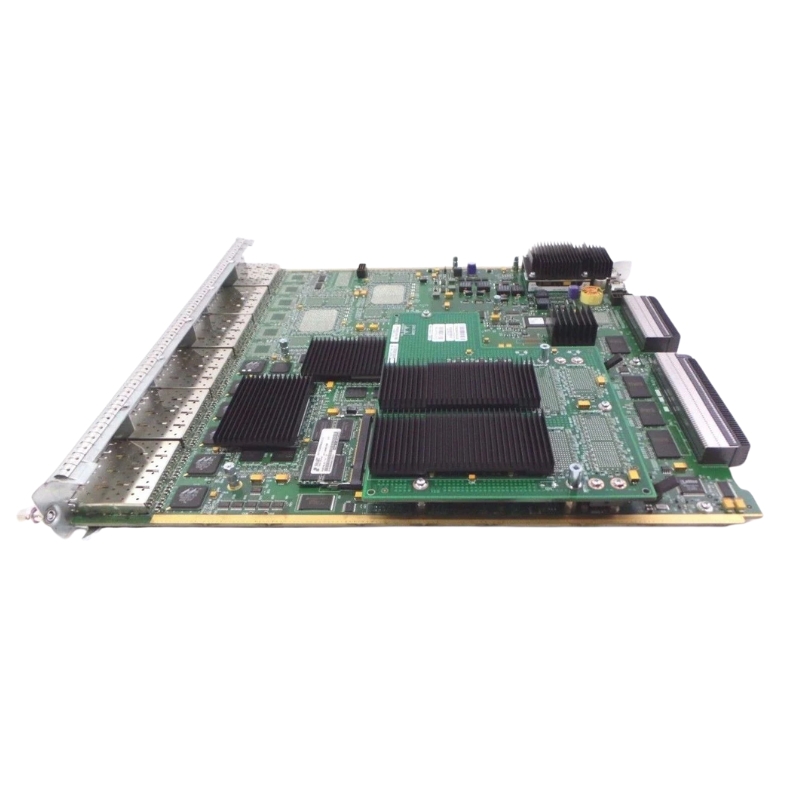

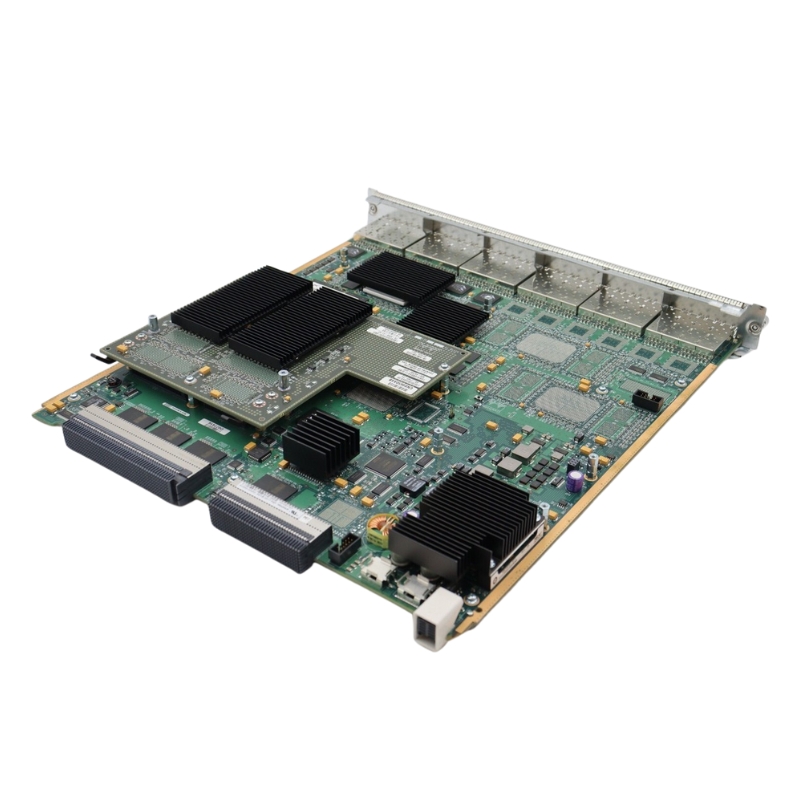

Cisco WS-X6724-SFP Gigabit Ethernet Interface Module

Main Specifications

• Manufacturer: Cisco
• Part Number: WS-X6724-SFP
• Product Type: Switching Module

Usage Scenarios

• This module is designed for effective network switching.

Expansion Capabilities

• Total Expansion Slots: 24
• Slot Type: SFP (mini-GBIC)

Performance Features

• Primary Uses: High-performance distribution, core layer, and data center operations
• Interface Module Class: CEF720
• Queues per Port:
  • Transmit: 1p3q8T
  • Receive: 1q8T (2q8T with CEF)
• Scheduler Type: Weighted Round Robin
• Buffer Sizes:
  • Receive: 166KB
  • Transmit: 1.17MB
• Channel Connection: Supports a single 20-Gbps channel connection to switch fabric on Supervisor Engine 720 (total of 20Gbps); other 67xx modules feature dual 20-Gbps connections.

Compatibility Information

• Cisco Catalyst 6506
• Cisco Catalyst 6509
• Cisco Catalyst 6509-NEB-A
• Cisco Catalyst 6513

The Cisco WS-X6724-SFP Gigabit Ethernet Interface Module is a high-performance network module designed to enhance the capabilities of Cisco Catalyst 6500 Series switches. With 24 ports of Gigabit Ethernet connectivity, this module offers high density and flexibility for various networking environments.

Technical Specifications

The WS-X6724-SFP module is compatible with Cisco Catalyst 6500 Series switches and supports a wide range of features and protocols. The module supports hot-swapping, allowing for easy installation and replacement without disrupting the network. Here are some key technical specifications:

• 24 SFP (Small Form-Factor Pluggable) ports
• Supported protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Maximum port density: 48 Gbps
• Forwarding performance: 30 million packets per second
• Module dimensions: 14.4 x 16.3 x 1.2 inches
• Weight: 8.5 pounds

Key Features

The Cisco WS-X6724-SFP module offers several key features that make it an ideal choice for high-performance network deployments:

Flexible Connectivity

The module provides 24 SFP ports, allowing for flexible connectivity options depending on the networking requirements. The use of SFP modules enables the use of various types of optical or copper interfaces, giving network administrators the flexibility to connect to different media types.

High-Density Performance

With a maximum port density of 48 Gbps, this module offers high-performance networking for demanding environments. The 24 ports provide ample connectivity options for connecting a large number of devices, ensuring smooth data transmission and minimal network congestion.

Hot-Swappable Design

The hot-swappable design of the WS-X6724-SFP module allows for easy installation and replacement without interrupting the network. This feature reduces downtime and enhances network availability, making it suitable for mission-critical environments where uninterrupted connectivity is essential.

Advanced Security

The module supports advanced security features such as access control lists (ACLs) and port security, which help protect the network from unauthorized access and potential security breaches. These features allow administrators to define and enforce policies to ensure secure data transmission.

Scalability

The WS-X6724-SFP module is highly scalable, allowing network administrators to expand their network as needed. With support for Cisco Catalyst 6500 Series switches, the module can be seamlessly integrated into existing network infrastructures, providing a scalable solution for growing businesses.

Benefits

By utilizing the Cisco WS-X6724-SFP Gigabit Ethernet Interface Module, organizations can enjoy a range of benefits:

Increased Network Performance

The high-density Gigabit Ethernet ports and forwarding performance of 30 million packets per second enable faster data transmission and improved overall network performance. This module ensures that network bottlenecks are minimized, allowing for seamless data flow across the network.

Flexibility and Versatility

The SFP ports provide flexibility in terms of connectivity options, allowing organizations to choose the appropriate media type based on their specific requirements. Whether it's fiber optic or copper connections, this module can accommodate diverse networking needs.

Enhanced Network Security

With advanced security features, such as ACLs and port security, the WS-X6724-SFP module helps protect the network from unauthorized access and potential threats. This ensures the integrity and confidentiality of data, providing peace of mind to organizations concerned about network security.

Reduced Downtime

The hot-swappable design of the module allows for easy installation and replacement, minimizing network downtime during upgrades or maintenance. This feature ensures uninterrupted network connectivity, reducing the impact on critical business operations.

Scalability and Investment Protection

The WS-X6724-SFP module is compatible with Cisco Catalyst 6500 Series switches, allowing for easy integration into existing network infrastructures. This scalability ensures that organizations can expand their networks without the need for significant infrastructure changes, thereby protecting their initial investment.

Compatibility

The Cisco WS-X6724-SFP Gigabit Ethernet Interface Module is compatible with the following Cisco Catalyst 6500 Series switches:

• Cisco Catalyst 6503-E
• Cisco Catalyst 6504-E
• Cisco Catalyst 6506-E
• Cisco Catalyst 6509-E
• Cisco Catalyst 6509-V-E
• Cisco Catalyst 6513-E

It is important to ensure compatibility with the specific switch model and firmware version before installation.

In conclusion, the Cisco WS-X6724-SFP Gigabit Ethernet Interface Module offers high-density connectivity, flexible options, advanced security features, and scalability. With its hot-swappable design and compatibility with Cisco Catalyst 6500 Series switches, this module is a reliable choice for organizations seeking enhanced network performance and reliability.
