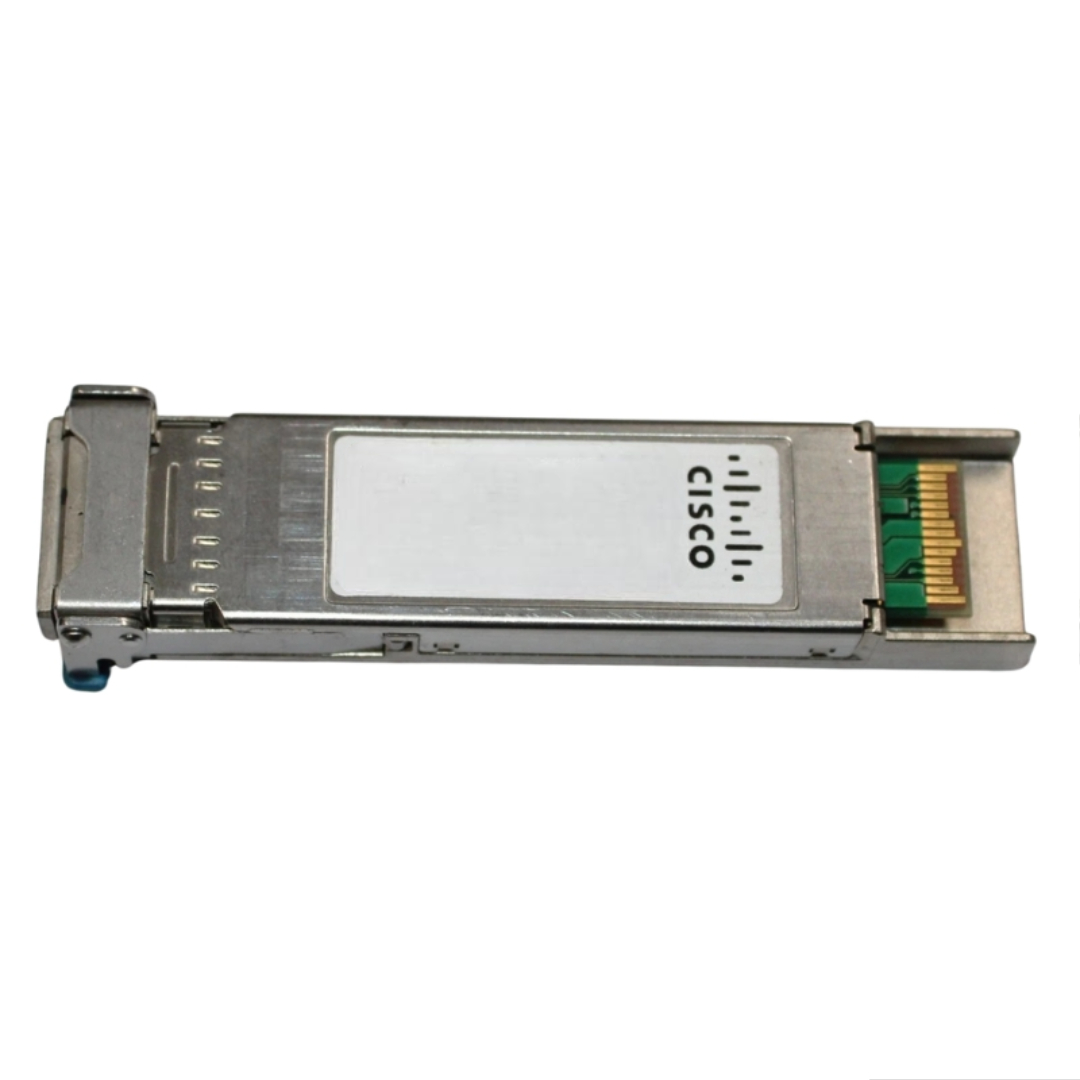

Cisco XFP10GER-192IR-L Single-Mode Multirate XFP Transceiver

General Overview of Cisco XFP10GER-192IR-L 10 Gigabit Transceiver Module

Product Specifications

• Manufacturer: Cisco
• Part Number (SKU#): XFP10GER-192IR-L
• Product Designation: XFP Module
• Type: XFP Transceiver Module

Technical Specifications for Single-Mode Optical Fiber XFP Transceiver

Applications and Usage

• Primarily designed for data networking
• Optimized for use in optical networks

Form Factor and Performance

• Form Factor: XFP
• Data Transfer Rate: 10 Gb/s
• Wavelength: 1550 nm
• Supported Fiber Type: Single-Mode Fiber (SMF)
• Maximum Distance: Up to 10 km

Optical Characteristics

• Optical Components: EML/PIN technology
• Transmitter Power: Ranges from -2 to 3 dBm
• Extinction Ratio: Greater than 6 dB
• Receiver Sensitivity: Less than -16 dBm
• Receiver Overload: More than 0.5 dBm
• Connector Type: LC Duplex
• Digital Diagnostic Monitoring: Supported

Interface and Port Information

Port Details

• Supported Interfaces: 1 x 10GBase-ER/EW Network

Performance Metrics

Media and Network Compatibility

• Media Type: Optical Fiber
• Fiber Mode: Single-Mode
• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology Standards: 10GBase-ER/EW, OC-192/STM-64
• Maximum Data Transfer Rate: 9.72 Gbps

Additional Information

Power Specifications

• Operating Voltage: +3.3V Single Power Supply

Compliance and Certifications

• Compatibility: MSA Compliant
• Green Compliance: Yes
• Green Compliance Certification: RoHS compliant

Rate

The Cisco XFP10GER-192IR-L Single-Mode XFP Transceiver offers a remarkable feature known as Multirate. This feature plays a crucial role in enhancing the flexibility and versatility of the transceiver, making it an ideal choice for a wide range of applications.

Benefits of Multirate

Multirate capability enables the Cisco XFP10GER-192IR-L to support multiple data rates, including 10 Gigabit Ethernet (10GbE), 9.95 Gbps, 10.3 Gbps, and 10.5 Gbps. This flexibility allows users to seamlessly adapt to varying network requirements without the need for additional transceivers or equipment upgrades.

Enhanced Scalability

With Multirate support, the Cisco XFP10GER-192IR-L can be easily integrated into existing network infrastructures, providing enhanced scalability. This means that as your network grows or bandwidth demands increase, you can simply adjust the data rate of the transceiver to meet the new requirements, eliminating the need for costly replacements or extensive network reconfigurations.

Cost Savings

By offering Multirate functionality, the Cisco XFP10GER-192IR-L helps businesses save on costs. Instead of purchasing multiple transceivers to support different data rates, this single transceiver can handle various rates, reducing both upfront and ongoing expenses. Additionally, the flexibility provided by Multirate ensures that your investment in the Cisco XFP10GER-192IR-L remains future-proof as network technologies evolve.

Streamlined Network Management

Managing a network with diverse data rate requirements can be challenging and time-consuming. However, with the Multirate feature of the Cisco XFP10GER-192IR-L, network administrators can simplify their tasks. By using a single transceiver that supports different data rates, network management becomes more streamlined, reducing complexity and minimizing the potential for errors.

Greater Compatibility

The Multirate capability of the Cisco XFP10GER-192IR-L ensures compatibility with various networking equipment and standards. Whether you are connecting to switches, routers, or other devices, this transceiver can seamlessly integrate into your network infrastructure. This compatibility not only simplifies deployment but also enhances interoperability, allowing for seamless communication between different network components.

Connector

The Cisco XFP10GER-192IR-L Single-Mode XFP Transceiver features an LC (Lucent Connector) as its connector type. The LC connector offers several benefits and holds significant importance for users in various networking scenarios.

Benefits of LC Connector

The LC connector is a small form factor (SFF) connector widely used in fiber optic networks. It offers advantages such as compactness, ease of use, and superior performance.

High Density and Space Efficiency

The LC connector's compact design allows for higher port density on networking equipment such as switches and routers. With limited rack space available in data centers, the LC connector enables network administrators to maximize the utilization of their infrastructure without compromising on performance or reliability.

Ease of Use

The LC connector's push-pull design makes it incredibly easy to insert and remove from fiber optic ports. This feature proves particularly beneficial in scenarios where frequent cable connections or disconnections are required, such as during network maintenance or upgrades. The simplicity of the LC connector helps minimize downtime and reduces the risk of damaging equipment during handling.

Superior Performance

Despite its small size, the LC connector offers excellent optical performance. It ensures low insertion loss and return loss, which are critical factors in maintaining signal integrity over long distances. The superior performance of the LC connector contributes to the overall reliability and efficiency of the network.

Versatility

The LC connector is compatible with both single-mode and multimode fibers, providing users with the flexibility to choose the appropriate fiber type for their specific networking needs. This versatility allows for seamless integration with existing network infrastructure or facilitates the implementation of new network designs without compatibility concerns.

In conclusion, the Cisco XFP10GER-192IR-L Single-Mode XFP Transceiver's Multirate feature offers extensive benefits in terms of scalability, cost savings, network management, and compatibility. Additionally, the LC connector enhances space efficiency, ease of use, and optical performance. These features make the Cisco XFP10GER-192IR-L an ideal choice for users seeking a versatile and high-performance transceiver for their networking requirements.
