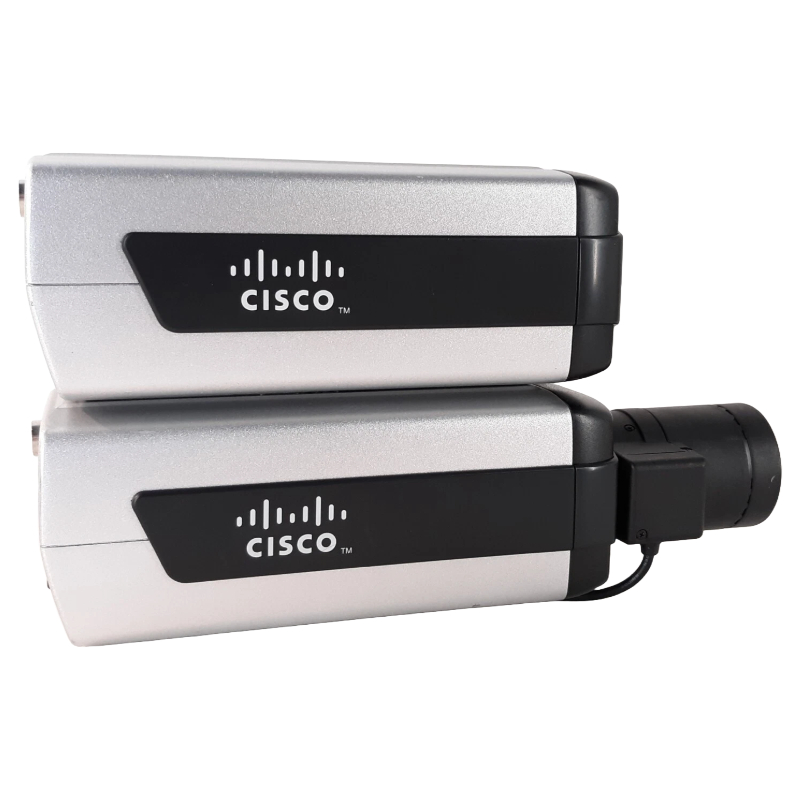

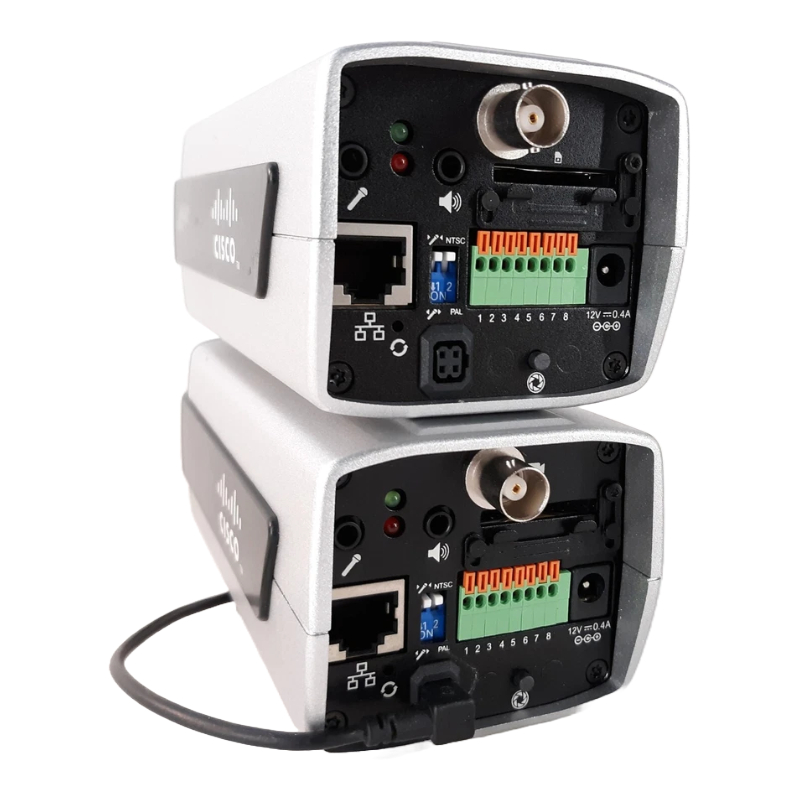

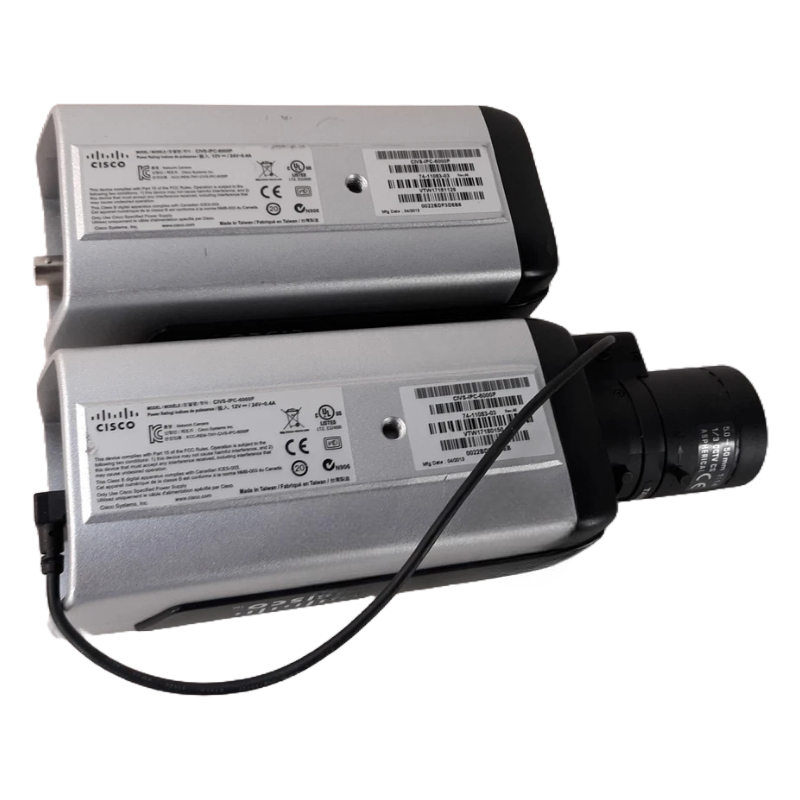

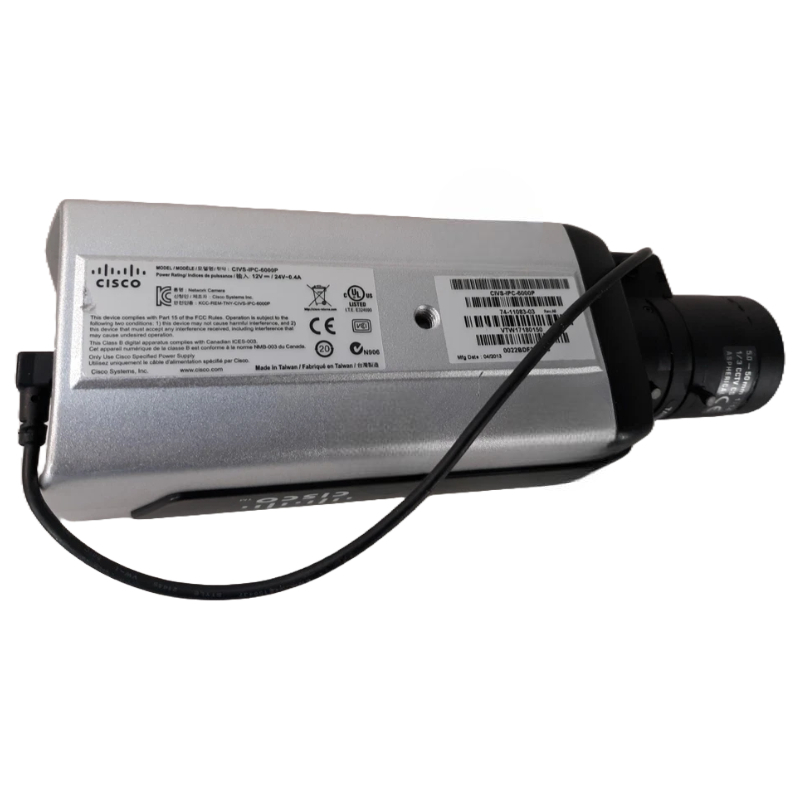

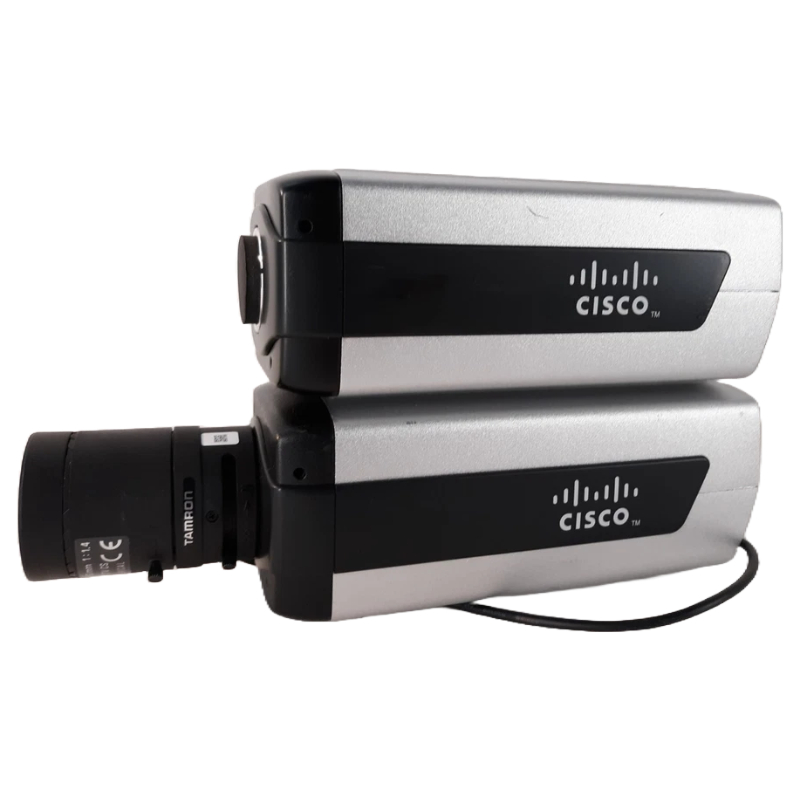

CIVS-IPC-6000P Cisco Video Surveillance IP Network Camera

Overview of Cisco CIVS-IPC-6000P

Manufacturer Details

• Brand: Cisco
• Model Number: CIVS-IPC-6000P
• Product Type: Network Camera

Product Specifications

• Image Sensor: 1/2.7" CMOS
• White Balance Modes: Auto White Balance (AWB)
• Minimum Illumination: 0.2 Lux
• Color Options: Monochrome, Color
• Effective Resolution: 2.1 Megapixels

Video Capabilities

• Supported Video Formats: H.264, Motion JPEG
• Maximum Video Resolution: 1920 x 1080 pixels
• Frame Rate: Up to 30 frames per second (fps)
• Video Signal Formats: NTSC, PAL

Lens & Exposure

• Lens Mount Type: CS Mount
• Shutter Speed Range: 1/32000 to 1/5 seconds
• Exposure Control: Automatic

Network & Communication

Connectivity

• Technology: Wired (Cable)
• Ethernet Support: Yes
• Ethernet Standard: Fast Ethernet

Supported Protocols

• Dynamic Host Configuration Protocol (DHCP)
• Hypertext Transfer Protocol (HTTP)
• Hypertext Transfer Protocol Secure (HTTPS)
• Network Time Protocol (NTP)
• Real-Time Transport Protocol (RTP)
• Real-Time Streaming Protocol (RTSP)
• Simple Mail Transfer Protocol (SMTP)
• Secure Sockets Layer/Transport Layer Security (SSL/TLS)
• Transmission Control Protocol/Internet Protocol (TCP/IP)
• Bonjour
• Simple Network Management Protocol (SNMP)
• Secure Shell (SSH)

Indicators & Power Efficiency

Status and Power Consumption

• Status Indicator: Yes
• Maximum Power Consumption: 6.30 Watts

Features

High-definition video quality

The Cisco CIVS-IPC-6000P IP Network Camera offers exceptional high-definition video quality, ensuring that users can capture crystal-clear images and videos. With a high resolution, this camera provides sharp and detailed footage, allowing for accurate identification of objects, people, or events. Whether it's monitoring a large area or zooming in on specific details, the high-definition video quality of this camera ensures that no important information is missed.

Power over Ethernet (PoE) support

One of the standout features of the Cisco CIVS-IPC-6000P IP Network Camera is its Power over Ethernet (PoE) support. This feature eliminates the need for separate power cables, simplifying the installation process and reducing clutter. With PoE support, the camera can be easily connected to a PoE-enabled switch or injector, which provides both power and network connectivity through a single Ethernet cable. This not only saves time and effort during installation but also offers flexibility in camera placement.

Wide dynamic range (WDR) technology

The inclusion of Wide Dynamic Range (WDR) technology in the Cisco CIVS-IPC-6000P IP Network Camera ensures optimal image quality in challenging lighting conditions. WDR technology allows the camera to capture details in both bright and dark areas simultaneously, preventing overexposure or underexposure. This is particularly useful in environments with strong backlighting or varying light intensities, such as entrances or exits with bright sunlight streaming through windows. With WDR technology, users can expect clear and balanced images, enhancing the overall surveillance experience.

Day/night functionality

The Cisco CIVS-IPC-6000P IP Network Camera is equipped with day/night functionality, ensuring round-the-clock surveillance capabilities. This feature allows the camera to adapt to different lighting conditions, automatically switching between color mode during daylight and black-and-white mode in low-light or nighttime scenarios. The camera's infrared (IR) illuminators enable it to capture clear images even in complete darkness, making it ideal for outdoor applications or areas with minimal lighting. The day/night functionality ensures continuous monitoring and reliable performance, regardless of the time of day.

Remote monitoring capabilities

With the Cisco CIVS-IPC-6000P IP Network Camera, users can easily monitor their premises from anywhere in the world. This camera offers remote monitoring capabilities, allowing users to access live video feeds or recorded footage remotely through a web browser or dedicated mobile app. Whether you're on vacation, at the office, or simply away from the premises, remote monitoring provides peace of mind by enabling real-time surveillance and the ability to respond promptly to any incidents. This feature is particularly valuable for businesses with multiple locations or homeowners who want to keep an eye on their property while away.

Motion detection

Motion detection is a crucial feature in modern surveillance cameras, and the Cisco CIVS-IPC-6000P IP Network Camera delivers it with precision. By utilizing advanced algorithms and built-in sensors, this camera can detect motion within its field of view accurately. When motion is detected, the camera can trigger various actions, such as sending email alerts, sounding alarms, or initiating recording. Motion detection not only enhances security by alerting users to potential intrusions but also reduces storage requirements by only recording when activity occurs. This intelligent feature saves time and resources while ensuring effective surveillance.

Tamper detection

The Cisco CIVS-IPC-6000P IP Network Camera offers tamper detection capabilities, ensuring that any unauthorized tampering with the camera is immediately detected and reported. The camera's tamper detection feature can detect events such as redirection, blocking, or defocusing, and will trigger an alert or alarm to notify users. This feature is vital in environments where the camera's integrity is crucial, such as banks, government buildings, or critical infrastructure. Tamper detection provides an additional layer of security, preventing malicious activities and ensuring the camera's continued operation and reliability.

Privacy masking

Maintaining privacy is paramount in certain environments, and the Cisco CIVS-IPC-6000P IP Network Camera offers privacy masking as a solution. Privacy masking allows users to define specific areas within the camera's field of view that should be obscured or masked from view. This feature is particularly useful in scenarios where sensitive information or private spaces need to be protected, such as ATM keypads, cash registers, or residential areas adjacent to the camera's coverage. Privacy masking ensures compliance with privacy regulations while still providing effective surveillance in critical areas.

Benefits of the Cisco CIVS-IPC-6000P IP Network Camera's Features

Enhanced Security and Safety

The high-definition video quality of the Cisco CIVS-IPC-6000P IP Network Camera ensures that every detail is captured, enabling users to identify potential threats or incidents accurately. The Power over Ethernet (PoE) support simplifies installation and reduces potential vulnerabilities by eliminating the need for separate power cables. The Wide Dynamic Range (WDR) technology allows for clear imaging even in challenging lighting conditions, ensuring that critical details are not missed. The day/night functionality and infrared illuminators guarantee 24/7 surveillance capabilities, enhancing security and safety.

Convenient Remote Monitoring

Remote monitoring capabilities enable users to access live video feeds or recorded footage from anywhere at any time. This convenience is particularly valuable for businesses with multiple locations or homeowners who want to keep an eye on their property while away. Remote monitoring ensures peace of mind and the ability to respond promptly to any incidents, enhancing security and reducing the risk of losses or damages.

Efficient Resource Utilization

Motion detection helps optimize resource utilization by only recording when activity occurs. This intelligent feature reduces storage requirements and eliminates the need to sift through hours of uneventful footage. By triggering actions such as email alerts or alarms, motion detection ensures that users are promptly notified of potential intrusions or suspicious activities, allowing for swift response and minimizing the chances of unauthorized access.

Preservation of Camera Integrity

The tamper detection feature of the Cisco CIVS-IPC-6000P IP Network Camera safeguards against unauthorized tampering. By detecting and reporting redirection, blocking, or defocusing events, this feature ensures that any attempts to compromise the camera's integrity are immediately identified. The tamper detection capability is crucial in environments where the camera's continuous operation and reliability are paramount, providing an additional layer of security against malicious activities.

Compliance with Privacy Regulations

Privacy masking allows for compliance with privacy regulations while still maintaining effective surveillance in critical areas. By defining specific areas within the camera's field of view that should be obscured or masked from view, sensitive information or private spaces can be protected. This feature is particularly important in scenarios where privacy is paramount, such as financial institutions or residential areas adjacent to the camera's coverage.

In summary, the Cisco CIVS-IPC-6000P IP Network Camera offers a range of features that enhance security, convenience, resource utilization, camera integrity, and privacy compliance. Its high-definition video quality ensures clear imaging for accurate identification. Power over Ethernet (PoE) support simplifies installation, while Wide Dynamic Range (WDR) technology provides optimal image quality in challenging lighting conditions. Day/night functionality and remote monitoring capabilities enable 24/7 surveillance from anywhere. Motion detection optimizes resource utilization, tamper detection safeguards camera integrity, and privacy masking ensures compliance with privacy regulations. With these features, the Cisco CIVS-IPC-6000P IP Network Camera is a reliable and versatile solution for various surveillance needs.
