CTS-SX20N-12X-K9 Cisco TelePresence Video Conference Device

Features

High-definition video quality

The Cisco CTS-SX20N-12X-K9 Video Conference Device is designed to deliver high-definition video quality, ensuring that users can have crystal-clear video conferences. With its advanced video processing technology, this device can capture and transmit video at a resolution of up to 1080p, providing users with a lifelike and immersive video conferencing experience. Whether you are in a small meeting room or a large conference room, the high-definition video quality of this device will make you feel like you are in the same room with your remote participants.

General Information on Cisco CTS-SX20N-12X-K9

Product Overview

• Manufacturer: Cisco
• Part Number/SKU: CTS-SX20N-12X-K9
• Product Line: TelePresence
• Series: SX
• Model: SX20
• Product Type: Video Conference Kit

Technical Specifications

Video Conference Device Features

• Device Type: TelePresence
• Supported Protocols:
  • H.323
  • H.460.18/19
  • H.235
  • SIP
• Video Bridging: Point-to-Point

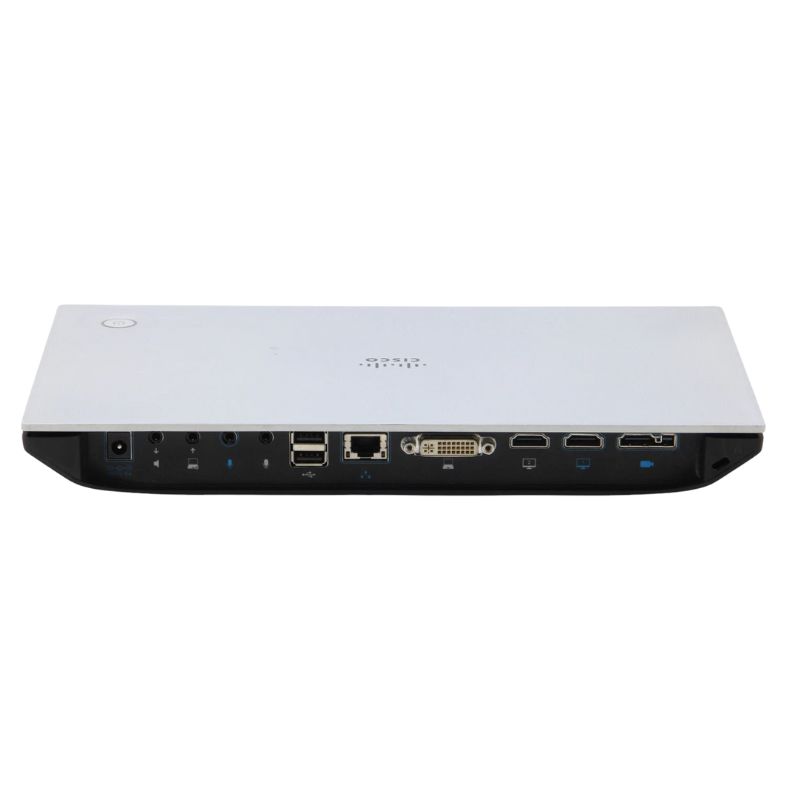

Interfaces and Ports

• DVI In: 1
• HDMI In: 1
• HDMI Out: 2
• Network (RJ-45): 1
• USB Ports: Yes

Networking and Communication

• Carrier Support: ISDN
• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet
• Protocols:
  • DHCP
  • DNS
  • NTP
  • TCP/IP

Audio and Video Capabilities

Audio

• Microphone: External
• Audio Encoding:
  • G.711
  • G.722
  • G.722.1
  • AAC-LD

Video

• Maximum Frame Rate: 60 fps
• Video Encoding:
  • H.263
  • H.263+
  • H.264
  • H.239
• Video Input:
  • Type: Digital video camera – external
  • Interface: HD-SDI output
  • HDMI Output Resolution: 120 x 720, 1920 x 1080
• Video Output:
  • Type: Codec board – external
  • Supported Display Resolutions:
    • 1024×576
    • 1280×720
    • 1280×768
    • 704×576
    • HDTV (1920×1080)
    • SVGA (800×600)
    • VGA (640×480)
    • XGA (1024×768)
  • Digital Video Standard: HDMI

Power and Environmental Specifications

• Power Supply: AC 120/230 V (50/60 Hz)
• Operational Power Consumption: 40 Watts
• Operating Temperature:
  • Min: 32 °F
  • Max: 95 °F
• Humidity Range: 10 – 90% (non-condensing)

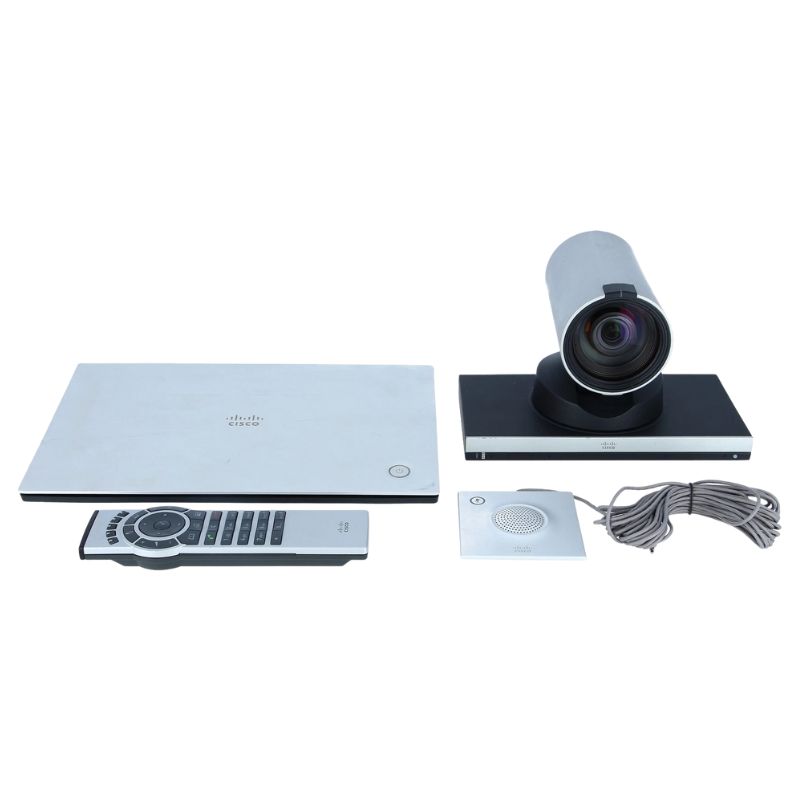

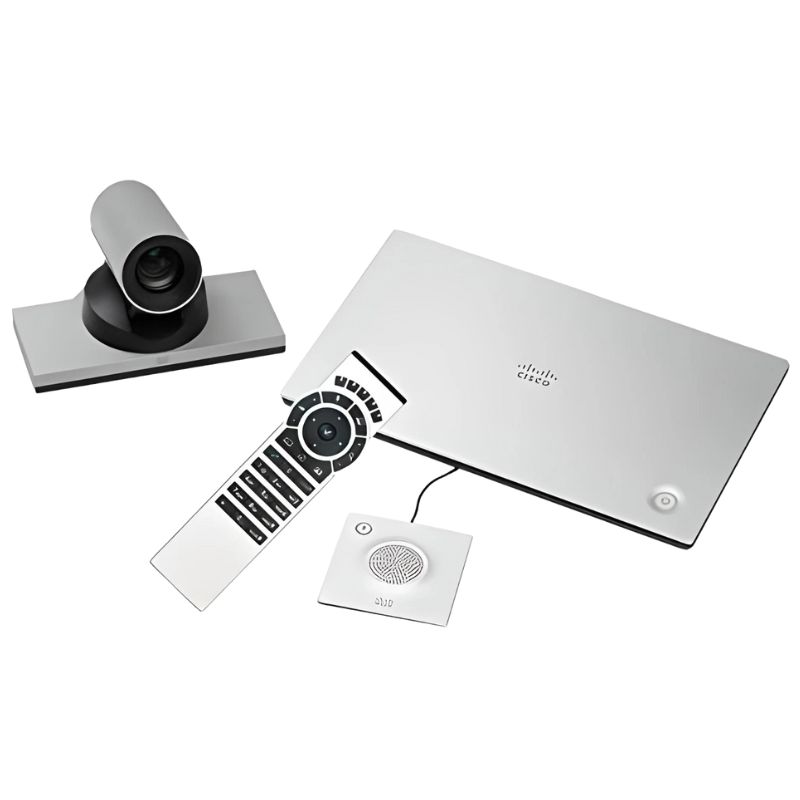

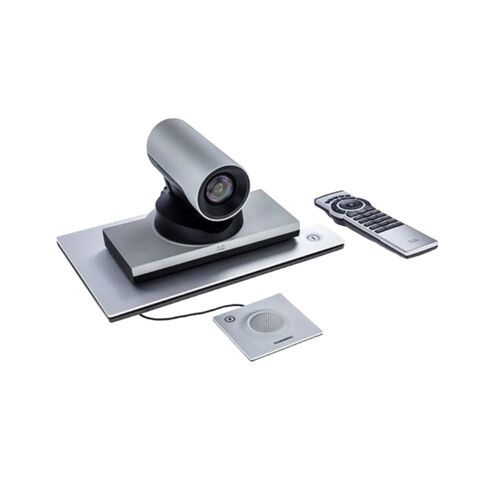

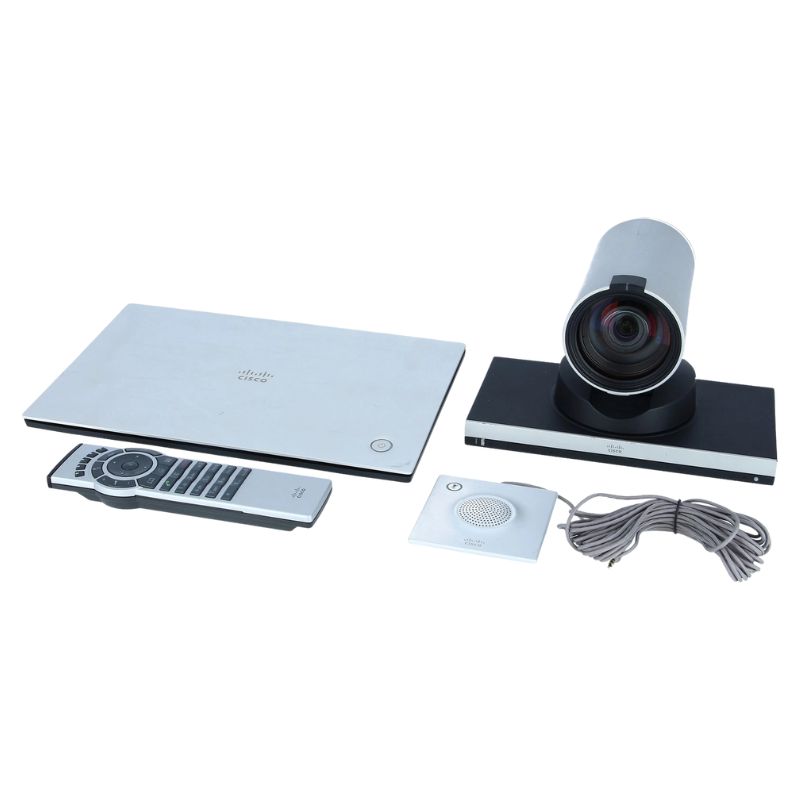

Package Contents

• TelePresence SX20 Quick Set with Precision HD 1080p 2.5x Camera
• SX20 Codec
• Cisco TelePresence Table Microphone 20
• Remote Control
• Cables
• Power Supply

12x optical zoom

The 12x optical zoom feature of the Cisco CTS-SX20N-12X-K9 Video Conference Device allows users to zoom in on distant participants or objects without sacrificing video quality. This is particularly useful in situations where you need to focus on specific details or gestures during a video conference. With the ability to zoom in up to 12 times, this device ensures that no important detail goes unnoticed, enhancing the overall communication experience for all participants.

Wide-angle camera

The wide-angle camera of the Cisco CTS-SX20N-12X-K9 Video Conference Device offers a broader field of view, allowing users to capture more participants or objects in the frame. This is especially beneficial in larger meeting rooms or conference halls where there are multiple participants sitting across a wide area. With its wide-angle camera, this device eliminates the need for participants to squeeze together or adjust their positions, ensuring that everyone can be seen clearly without any inconvenience.

Dual display support

One of the standout features of the Cisco CTS-SX20N-12X-K9 Video Conference Device is its dual display support. This means that users can connect two displays to the device simultaneously, providing them with an extended workspace for more efficient collaboration. With dual display support, users can share content on one screen while having a video conference on the other, enabling seamless multitasking and enhancing productivity during meetings. Additionally, this feature allows users to view shared content and remote participants' video feeds simultaneously, ensuring a more engaging and interactive collaboration experience.

Intuitive user interface

The Cisco CTS-SX20N-12X-K9 Video Conference Device features an intuitive user interface that makes it easy for users to navigate and control the device. The user-friendly interface ensures that even non-technical users can quickly learn how to operate the device without any difficulties. With simple and intuitive controls, users can adjust camera settings, manage audio options, and control the overall video conferencing experience with ease. This not only saves time during meetings but also reduces the need for technical support, allowing users to focus on the meeting agenda and content.

Multiple connectivity options

The Cisco CTS-SX20N-12X-K9 Video Conference Device offers multiple connectivity options to ensure seamless integration with various devices and platforms. It supports standard video conferencing protocols such as SIP and H.323, allowing users to connect with other video conferencing systems regardless of their brand or model. Additionally, this device supports various network protocols, including IPv4 and IPv6, enabling connectivity over both traditional and modern IP networks. With its extensive connectivity options, this device ensures that users can collaborate with colleagues, partners, or clients using their preferred communication tools and platforms.

Remote control included

To enhance convenience and ease of use, the Cisco CTS-SX20N-12X-K9 Video Conference Device comes with a remote control. The remote control allows users to control the device from a distance, providing them with the flexibility to adjust settings, navigate menus, and manage video conferences without being physically close to the device. This is particularly useful in large meeting rooms or when the device is mounted in a location that is not easily accessible. With the included remote control, users can easily manage their video conferencing experience without any hassle.

Benefits of these Features

Enhanced communication and collaboration

The high-definition video quality, 12x optical zoom, and wide-angle camera of the Cisco CTS-SX20N-12X-K9 Video Conference Device ensure that participants can see each other clearly and capture every important detail during a video conference. This enhances communication by reducing misunderstandings and promoting visual engagement, leading to more effective collaboration and decision-making. With these features, remote participants can feel more connected and involved, resulting in a more productive and satisfying meeting experience for everyone involved.

Improved meeting efficiency

The dual display support of the Cisco CTS-SX20N-12X-K9 Video Conference Device allows users to multitask during meetings by sharing content on one screen while having a video conference on the other. This eliminates the need for constant screen switching and improves meeting efficiency by enabling simultaneous content sharing and video communication. Users can seamlessly switch between different content sources and focus on key discussion points without any interruptions, ensuring that meetings stay on track and objectives are achieved more efficiently.

User-friendly operation

The intuitive user interface of the Cisco CTS-SX20N-12X-K9 Video Conference Device simplifies device operation, making it accessible to users of all technical levels. The user-friendly controls and menus allow users to quickly adjust camera settings, manage audio options, and control the overall video conferencing experience without needing extensive technical knowledge or support. This reduces the learning curve and empowers users to take full control of their video conferences, enabling them to focus on the meeting content and objectives rather than struggling with complicated device controls.

Flexible connectivity

The multiple connectivity options provided by the Cisco CTS-SX20N-12X-K9 Video Conference Device ensure that users can collaborate with others using their preferred communication tools and platforms. By supporting standard video conferencing protocols and various network protocols, this device enables seamless connections with other video conferencing systems and allows users to communicate over different types of networks. This flexibility ensures that users can collaborate effectively without being limited by compatibility issues, enhancing communication and collaboration across different organizations and locations.

In conclusion, the Cisco CTS-SX20N-12X-K9 Video Conference Device offers a range of features that enhance the video conferencing experience for users. The high-definition video quality, 12x optical zoom, wide-angle camera, dual display support, intuitive user interface, multiple connectivity options, and included remote control all contribute to improved communication, collaboration, meeting efficiency, user-friendliness, and flexibility. Whether in small meeting rooms or large conference halls, this device provides users with the tools they need to have successful and engaging video conferences.
