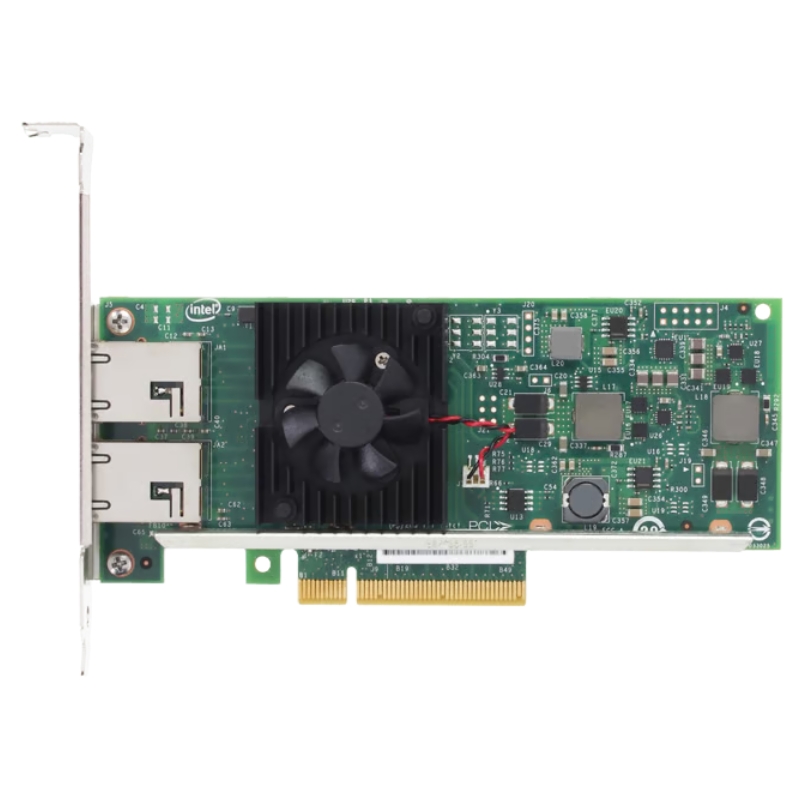

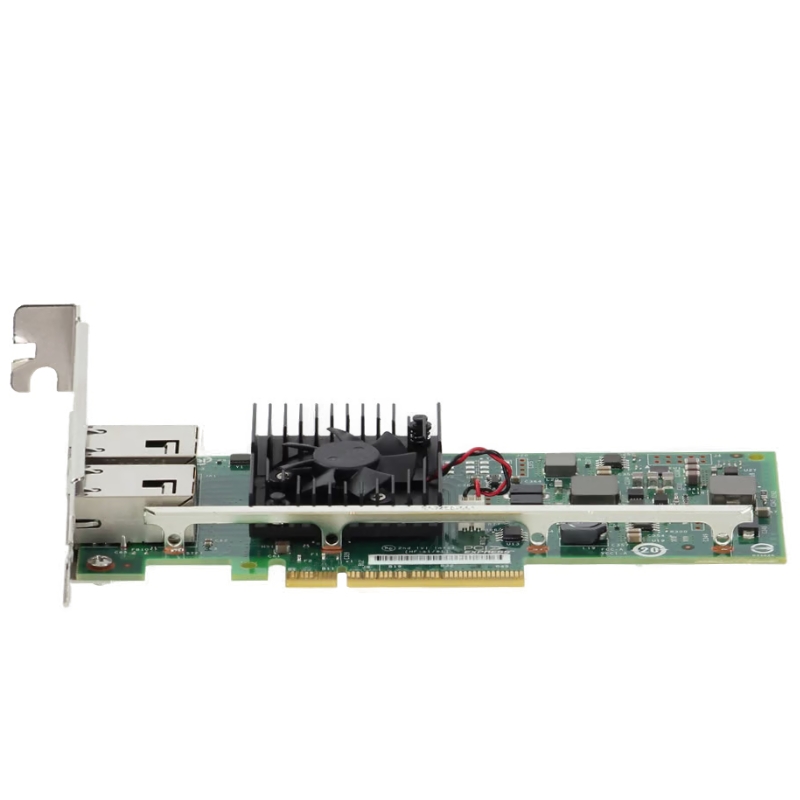

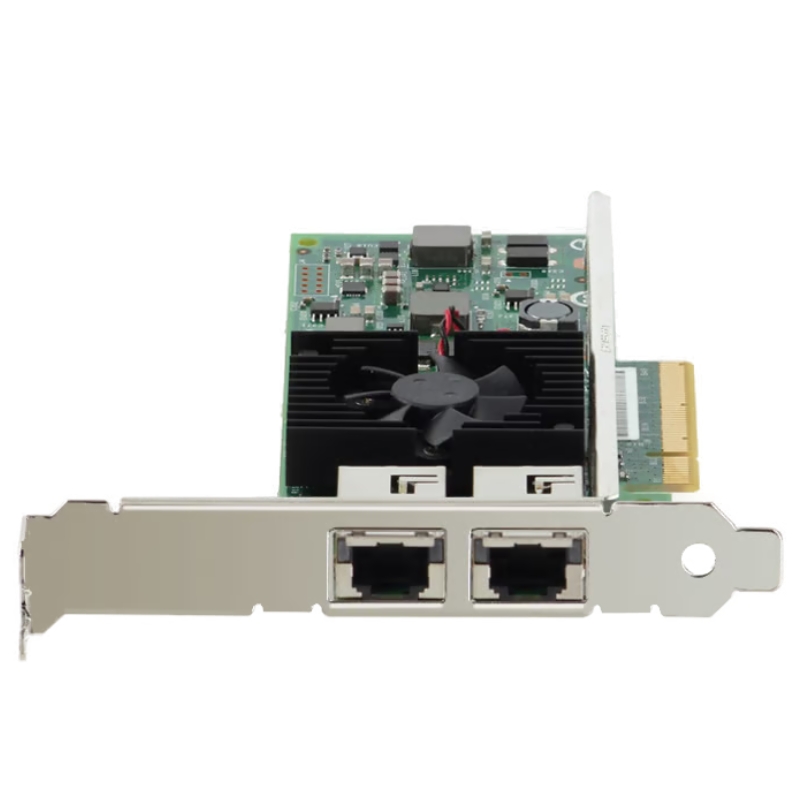

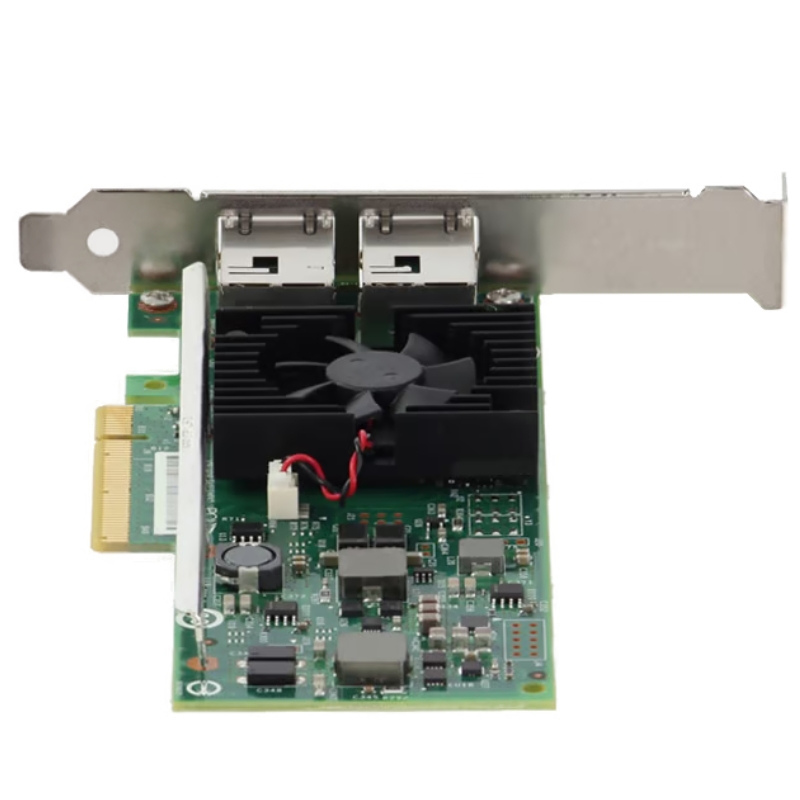

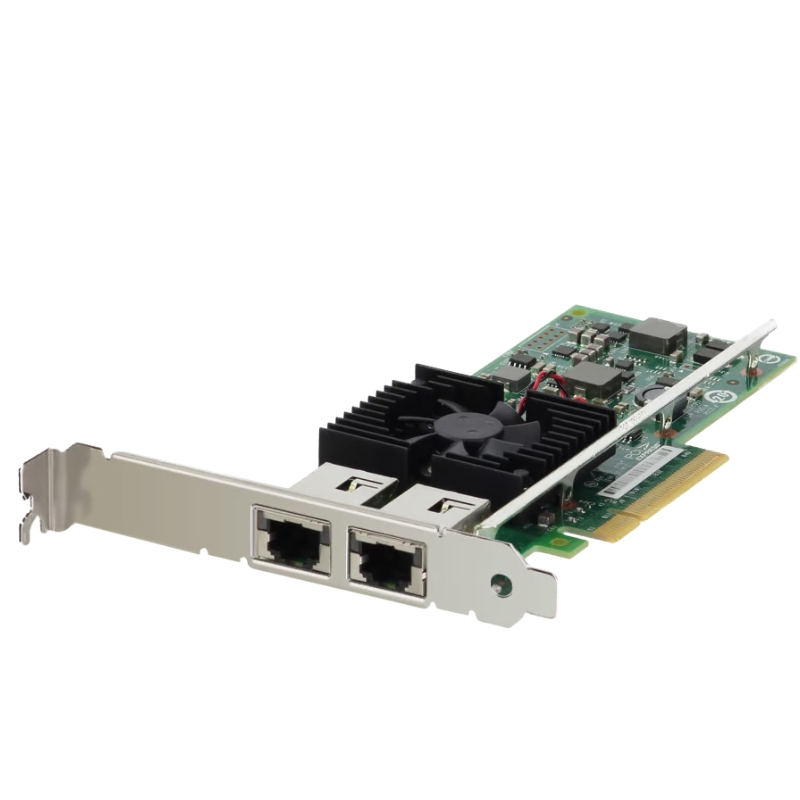

540-BBDU Dell Intel 10GBe PCI-E Network Card

Overview of the Dell 540-BBDU Network Adapter Card

The 540-BBDU is a high-performance network adapter designed for seamless connectivity and fast data transfer. Ideal for advanced networking setups, this adapter ensures robust performance and reliability.

General Information

• Manufacturer: Dell
• Part Number: 540-BBDU
• Product Type: Network Adapter Card

Technical Highlights

• Bus Type: PCI Express X8
• Specification Revision: PCIe 1.1
• Port Type: 2 Ports 10 Gigabit Ethernet
• Connectivity: Wired technology for stable throughput
• Protocol Support: 10 GigE
• Data Transfer Speed: Up to 10 Gbps

Expansion & Compatibility

Interfaces

• 1 × 10Gb Ethernet port

Slot Compatibility

• 1 × PCI Express X8 slot

Server Compatibility

Supported Dell PowerEdge Models

• Rack Servers: R220, R230, R230XL, R320, R330, R330XL, R420, R430, R520, R530, R530XD, R620, R630, R715, R720, R730, R730XD, R820, R920, R930
• Tower Servers: T320, T330, T420, T430, T620, T630
• High-Density Systems: C6220, C6220 II, 2500
• Modular Infrastructure: VRTX

Key Benefits

• Reliable 10GbE connectivity for demanding workloads
• Seamless integration with Dell PowerEdge server families
• Standards-compliant design ensuring interoperability
• Compact form factor suitable for diverse deployment environments

Dell 540-BBDU 2-Port PCI Express Network Adapter Card

The Dell 540-BBDU X540 2-Port 10GBASE-T PCI Express Network Adapter Card is a high-performance networking solution engineered for enterprise servers, virtualization environments, cloud infrastructure, storage networks, and high-bandwidth business applications. Featuring dual 10 Gigabit Ethernet ports, this adapter delivers exceptional throughput, reduced latency, and reliable connectivity across demanding network environments. Built around Intel X540 controller technology, the adapter combines advanced networking intelligence with enterprise-grade stability to support modern data center requirements.

Designed for organizations seeking enhanced network performance without migrating to optical infrastructure, the adapter utilizes standard RJ45 copper cabling while providing full 10GbE speeds. This capability allows businesses to leverage existing network investments while significantly increasing bandwidth availability for critical workloads.

Dual-Port 10 Gigabit Ethernet

The dual-port design enables simultaneous high-speed network connections, delivering aggregate bandwidth capabilities suitable for virtualization clusters, database servers, application servers, and storage systems. Each port operates independently, allowing administrators to configure network segmentation, traffic isolation, redundancy, or load balancing according to infrastructure requirements.

By incorporating two dedicated 10GBASE-T interfaces, the adapter provides enhanced flexibility for organizations managing multiple network streams. Applications that demand substantial bandwidth benefit from dedicated connectivity paths that help maintain consistent data transfer rates under heavy workloads.

Independent Network Interface Functionality

Each Ethernet port supports autonomous operation, enabling distinct networking roles within enterprise environments. Administrators can dedicate one port to production traffic while assigning the second port to backup operations, storage communication, management functions, or virtual machine traffic. This separation contributes to improved network efficiency and workload optimization.

High-Bandwidth Data Transfers

The 10 Gigabit Ethernet capability significantly exceeds traditional Gigabit Ethernet performance levels. Large file transfers, virtual machine migrations, backup operations, and database synchronization tasks benefit from accelerated data movement, reducing operational bottlenecks and improving overall infrastructure responsiveness.

Intel X540 Controller Technology

The Intel X540 Ethernet controller serves as the core processing engine behind the adapter's networking capabilities. Widely recognized in enterprise computing environments, the controller delivers robust performance, extensive operating system compatibility, and advanced networking features required by modern business infrastructures.

Intel's controller architecture incorporates intelligent packet processing mechanisms that help reduce CPU overhead during network-intensive operations. By offloading specific networking functions from the server processor, the adapter enables more efficient utilization of system resources.

Enterprise-Class Reliability

The controller platform is designed to operate continuously in mission-critical environments where network availability directly impacts business operations. Advanced error detection, packet integrity validation, and hardware-assisted processing contribute to stable network performance over extended deployment periods.

Optimized Network

Network traffic acceleration technologies integrated into the controller help improve throughput while reducing processor utilization. This optimization is particularly valuable in virtualized infrastructures where multiple workloads compete for computational resources.

10GBASE-T Copper Connectivity Advantages

One of the primary advantages of the Dell 540-BBDU adapter is its support for 10GBASE-T networking over conventional twisted-pair copper cabling. Organizations can deploy high-speed networking capabilities without requiring specialized fiber optic infrastructure or extensive cabling replacement projects.

The use of RJ45 connectors simplifies deployment, maintenance, and network expansion. IT teams can integrate the adapter into existing Ethernet environments while benefiting from increased bandwidth and improved network scalability.

RJ45 Interface

Standard RJ45 interfaces provide universal compatibility with enterprise switches, routers, patch panels, and structured cabling systems. This widespread compatibility helps reduce deployment complexity and supports seamless integration into existing network architectures.

PCI Express Host Interface Integration

The adapter utilizes a PCI Express interface designed to provide sufficient bandwidth between the network controller and host system. PCIe connectivity ensures efficient communication with server resources, helping maintain consistent network performance during high-throughput operations.

Modern enterprise servers rely on PCI Express architecture to support advanced expansion devices. The Dell 540-BBDU integrates seamlessly into these environments, enabling administrators to add high-speed networking capabilities without compromising system efficiency.

High-Speed Internal Data Path

The PCI Express architecture delivers a robust internal communication channel that supports rapid packet movement between network interfaces and server memory. This efficient data path helps maximize throughput while minimizing communication delays.

Enterprise Server Compatibility

The adapter is designed for deployment across a wide range of enterprise server platforms. Compatibility with industry-standard PCIe slots simplifies installation and supports infrastructure standardization initiatives.

Data Center Networking Applications

Modern data centers require networking solutions capable of supporting dense workloads, cloud services, analytics platforms, and enterprise applications. The Dell 540-BBDU adapter addresses these requirements through high-speed Ethernet connectivity and advanced traffic management capabilities.

Its design supports deployment within rack servers, blade environments, virtualization clusters, and software-defined infrastructure implementations where reliable network communication is essential.

Cloud Infrastructure Deployment

Cloud computing environments depend on efficient network communication between compute, storage, and management resources. The adapter provides the bandwidth necessary to support cloud workloads while maintaining operational efficiency.

Application Hosting Environments

Enterprise applications often require rapid data access and consistent connectivity. High-speed Ethernet networking helps ensure responsive application performance and improved user experiences.

Storage Network Performance Enhancement

Storage-intensive applications can benefit significantly from 10 Gigabit Ethernet connectivity. Backup operations, storage replication, disaster recovery processes, and network-attached storage systems frequently generate large volumes of network traffic that require substantial bandwidth resources.

The adapter enables faster communication between servers and storage platforms, helping reduce backup windows and improve data availability.

iSCSI Storage Connectivity

Organizations utilizing iSCSI storage infrastructures can leverage the adapter's bandwidth capabilities to improve storage access performance. Faster network communication contributes to reduced latency and enhanced storage responsiveness.

Data Replication Operations

Replication tasks often involve transferring substantial amounts of data between systems. The adapter's high-speed interfaces help accelerate synchronization processes and improve disaster recovery readiness.

Advanced Traffic Management Capabilities

Enterprise networking environments require intelligent traffic handling mechanisms to maximize efficiency and maintain performance consistency. The Dell 540-BBDU incorporates advanced networking features designed to optimize packet processing and traffic distribution.

Load Balancing

Dual-port configurations can support load balancing implementations that distribute network traffic across multiple interfaces. This approach helps improve bandwidth utilization and supports enhanced application performance.

Network Redundancy Features

Redundant network paths contribute to increased infrastructure availability. In failover configurations, one port can assume traffic responsibilities if another connection becomes unavailable, helping maintain service continuity.

Enterprise Security and Network Reliability

Business-critical infrastructures require network adapters capable of maintaining reliable communication while supporting organizational security requirements. The Dell 540-BBDU is engineered to provide stable operation under demanding workloads and continuous utilization scenarios.

Continuous Operational Performance

Enterprise environments frequently operate around the clock, requiring networking hardware designed for sustained performance. The adapter's architecture supports long-term deployment in mission-critical systems where uptime is a key operational objective.

Data Integrity Protection

Reliable packet handling and error management mechanisms help ensure accurate data transmission across network connections. These capabilities contribute to dependable communication between servers, storage systems, and network infrastructure components.
