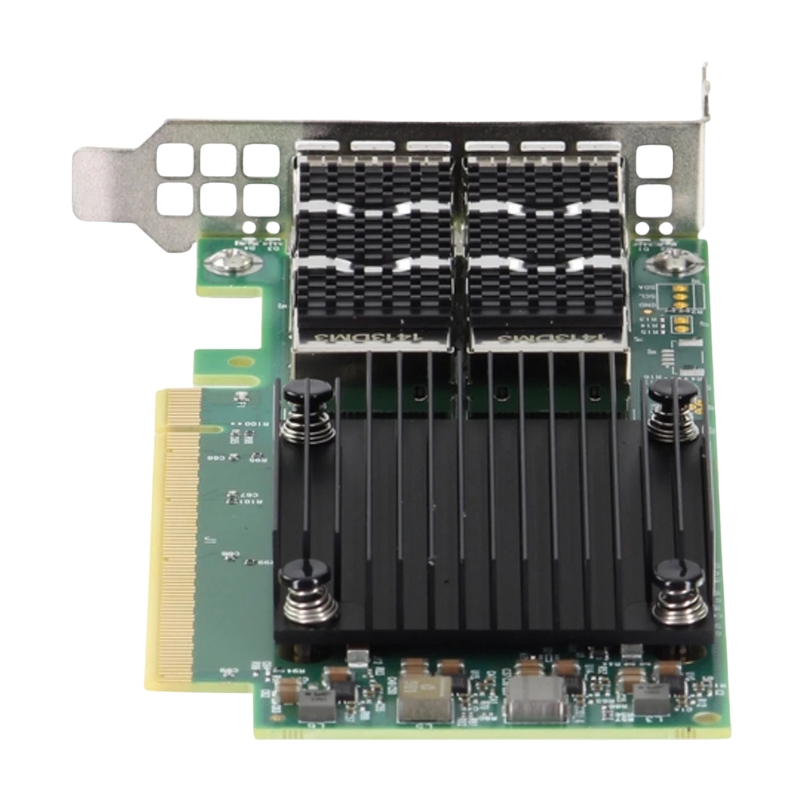

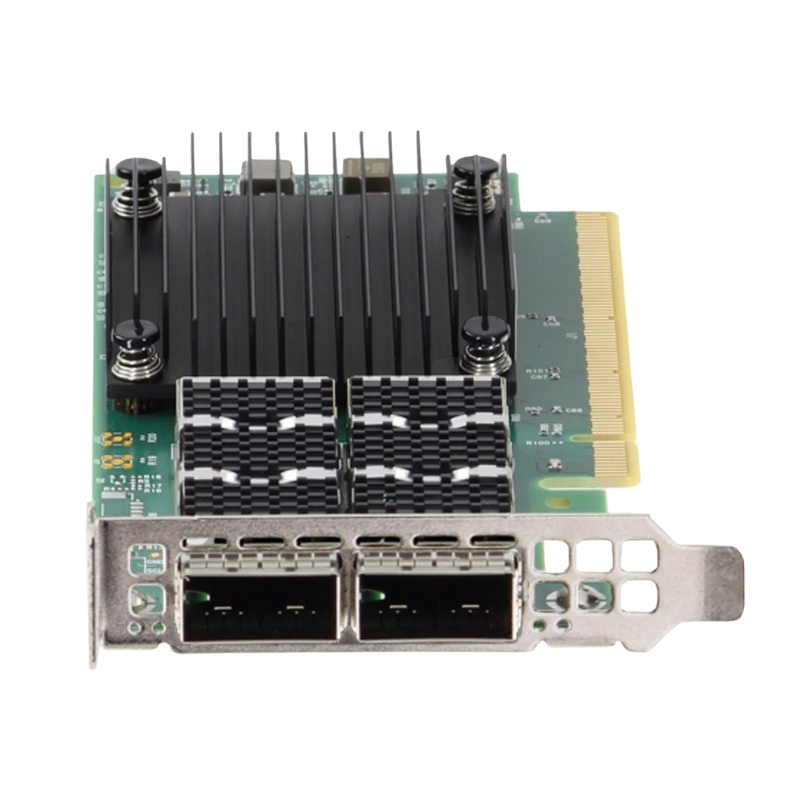

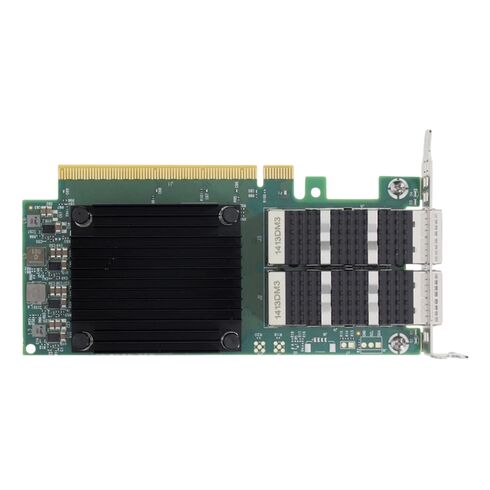

540-BCXP Dell Mellanox Dual Ports 100GbE QFSFP56 Network Adapter

Details of Dell Dual Ports 100GBE Adapter

The Dell 540-BCXP Mellanox Dual-Port 100GbE QSFP56 Network Adapter is a high-performance enterprise networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and QSFP56 ports, this adapter delivers exceptional throughput, reliability, and scalability for modern data centers and high-performance computing workloads.

Main Information

• Brand: Dell
• Part Number: 540-BCXP
• Device Type: Network Adapter

Technical Highlights

• Form Factor: Plug-in Card
• Interface: PCI Express 4.0 x16

Port Configuration

• Ports: Dual-port (2 x Ports)
• Port Type: QSFP56 (Quad Small Form-Factor Pluggable 56)
• Data Transfer Rate: Up to 100Gbps per port (200Gbps aggregate)
• Supported Speeds: 1/10/25/40/50/100GbE Ethernet
• Connectivity Technology: Wired
• Network Technology: 100GBase-X

Compatibility

Supported Dell PowerEdge Systems

Rack Servers

• PowerEdge R650 / R650xs
• PowerEdge R750 / R750xs / R750xa
• PowerEdge R660 / R660xs
• PowerEdge R760 / R760xs / R760xa / R760xd2
• PowerEdge R850
• PowerEdge R950
• PowerEdge R6515 / R6525
• PowerEdge R7515 / R7525
• PowerEdge R6615 / R6625
• PowerEdge R7615 / R7625

Tower Servers

• PowerEdge T550 (installed in full-height riser slots)
• PowerEdge T560

XE-Series High-Performance Servers

• PowerEdge XE8545
• PowerEdge XE9680

Dell 540-BCXP Mellanox Dual Ports 100GbE Adapter Overview

The Dell 540-BCXP Mellanox Dual Ports 100GbE QSFP56 Network Adapter represents a next-generation networking solution engineered for ultra-high throughput environments where latency sensitivity, bandwidth density, and scalable architecture are essential. Designed for enterprise data centers, hyperscale cloud infrastructures, artificial intelligence clusters, and high-performance computing ecosystems, this dual-port adapter provides a robust foundation for modern network transformation. Its integration of 100 Gigabit Ethernet per port enables aggregate bandwidth levels that support demanding workloads, including distributed computing, real-time analytics, and large-scale virtualization environments.

In contemporary IT architectures, network adapters must transcend traditional packet forwarding roles and instead operate as intelligent data movement accelerators. This adapter fulfills that role by combining advanced QSFP56 connectivity with optimized PCI Express interfacing, ensuring that data pipelines remain saturated without bottlenecks. As organizations transition toward software-defined infrastructure and cloud-native ecosystems, the need for deterministic performance and scalable bandwidth becomes central, and this adapter is designed precisely to meet those requirements.

Advanced Hardware Architecture and Engineering Design

High-Density Dual Port 100GbE Configuration

At the core of this network adapter is its dual-port 100GbE configuration, which allows simultaneous handling of two independent high-speed data channels. This architecture ensures that workloads can be segmented or aggregated depending on system requirements. Each QSFP56 interface is designed to support high-speed optical or DAC connectivity, enabling flexible deployment in various data center topologies. The dual-port design also enhances redundancy, ensuring continuous network availability even under demanding operational conditions.

QSFP56 Interface Optimization for Next-Generation Bandwidth

The QSFP56 interface is a critical advancement in high-speed networking, supporting data rates that align with 100GbE standards while maintaining backward compatibility in certain configurations. The physical layer design of QSFP56 ensures minimal signal degradation, reduced crosstalk, and enhanced thermal stability. This makes it particularly suitable for dense server racks where airflow and heat dissipation are significant concerns. The interface also supports advanced modulation techniques that improve signal integrity over both short and long-range optical links.

Silicon and Firmware Integration

The underlying silicon architecture of the Mellanox-based design emphasizes efficiency, parallel processing, and low-latency packet handling. Firmware optimization plays a critical role in enabling adaptive routing, congestion management, and protocol offloading. This reduces CPU overhead on host systems and allows compute resources to focus on application-level processing rather than network stack management. The integration between hardware and firmware ensures that performance remains consistent even under fluctuating network loads.

PCI Express Interface and Server Platform Compatibility

High-Speed PCIe Lane Utilization

The Dell 540-BCXP network adapter connects through a high-bandwidth PCI Express interface that ensures full utilization of the dual 100GbE ports. By leveraging multiple PCIe lanes, the adapter achieves efficient data transfer between system memory and network interfaces. This minimizes latency introduced by bus congestion and ensures that packet processing remains aligned with real-time workload demands.

Enterprise Server Integration

Designed for seamless integration with enterprise-grade servers, this adapter supports a wide range of hardware platforms optimized for virtualization, database processing, and cloud-native workloads. Compatibility with modern server architectures allows IT administrators to deploy the adapter in both blade and rack-mounted configurations. This flexibility ensures that organizations can scale network performance without requiring complete infrastructure redesign.

Driver and Operating System Support

Robust driver support ensures compatibility across major enterprise operating systems, including Linux-based distributions, Windows Server environments, and specialized hypervisor platforms. This ensures that the adapter can be deployed in heterogeneous environments without compromising performance consistency. Driver optimization also enhances RDMA functionality, hardware offloading, and traffic shaping capabilities.

100GbE Performance Characteristics and Network Efficiency

Ultra-Low Latency Packet Processing

Latency is a critical metric in modern networking environments, particularly in financial trading systems, AI model training clusters, and real-time analytics platforms. The Dell 540-BCXP adapter is engineered to minimize packet traversal time by leveraging hardware-based acceleration and optimized buffering strategies. This ensures that data packets move through the network stack with minimal delay, improving overall system responsiveness.

High Throughput Data Transfer Optimization

With dual 100GbE ports, the adapter enables aggregate throughput levels that support massive data ingestion and distribution workloads. This is particularly important for distributed storage systems, where data must be replicated or synchronized across multiple nodes simultaneously. The adapter ensures that throughput remains stable even under sustained high-load conditions.

Congestion Control and Traffic Management

Advanced congestion control mechanisms embedded within the adapter’s firmware help maintain network stability during peak usage. These mechanisms dynamically adjust packet flow to prevent buffer overflow and ensure equitable bandwidth distribution across applications. This contributes to predictable performance in multi-tenant environments where resource contention is common.

RDMA over Converged Ethernet and Low-Latency Acceleration

RDMA Architecture Implementation

Remote Direct Memory Access technology allows systems to transfer data directly between memory spaces without involving the CPU in data movement operations. The Dell 540-BCXP adapter supports RDMA over Converged Ethernet, enabling significant reductions in latency and CPU utilization. This is particularly beneficial in distributed computing environments where large datasets must be shared rapidly between nodes.

RoCE Optimization for Distributed Systems

RoCE-enabled architectures benefit from lossless Ethernet configurations that maintain data integrity while ensuring high-speed transmission. The adapter is designed to support these environments by providing hardware-level acceleration for RDMA traffic. This improves efficiency in applications such as high-frequency trading, machine learning model synchronization, and real-time simulation systems.

Memory Offload and CPU Efficiency

By offloading memory transfer responsibilities to the network adapter, system CPUs are freed to focus on computational tasks. This enhances overall system performance, particularly in environments where CPU cycles are a limiting factor. The result is improved scalability and reduced infrastructure costs for compute-intensive workloads.

Cloud Computing and Virtualization Optimization

Multi-Tenant Network Isolation

In cloud environments, network isolation between tenants is essential for security and performance consistency. The adapter supports virtualization-aware features that allow traffic segmentation and prioritization. This ensures that workloads running on shared infrastructure do not interfere with one another, maintaining predictable performance levels.

Virtual Machine and Container Acceleration

Virtualized environments benefit significantly from high-speed networking interfaces that reduce data transfer overhead between virtual machines and containers. The Dell 540-BCXP adapter enhances VM-to-VM communication speed and improves container orchestration efficiency in Kubernetes-based deployments.

Software-Defined Networking Integration

The adapter integrates seamlessly with software-defined networking frameworks, allowing administrators to define and manage network policies programmatically. This enhances flexibility in cloud infrastructure management and supports dynamic workload allocation across distributed systems.

AI, Machine Learning, and High-Performance Computing Workloads

Distributed Training Acceleration

Artificial intelligence and machine learning workloads require rapid synchronization of model parameters across multiple compute nodes. The dual 100GbE interface ensures that gradient updates and training data can be exchanged efficiently, reducing training time for large-scale models.

High Bandwidth for GPU Clusters

Modern GPU clusters depend heavily on high-speed networking to maintain utilization efficiency. The adapter ensures that GPUs are not starved of data due to network bottlenecks, enabling continuous processing and improved throughput in parallel computing environments.

Scientific Computing and Simulation Environments

High-performance computing workloads such as weather modeling, molecular simulation, and physics-based computations benefit from the deterministic performance provided by this adapter. Its low latency and high throughput characteristics ensure that distributed calculations remain synchronized across compute nodes.

Storage Networking and NVMe-oF Integration

High-Speed Storage Fabric Connectivity

The adapter supports modern storage networking architectures that rely on high-bandwidth Ethernet connectivity to deliver NVMe over Fabrics solutions. This allows remote storage devices to be accessed with near-local performance characteristics, significantly improving storage efficiency.

Distributed Storage Cluster Performance

In distributed storage systems, data replication and redundancy require consistent high-speed communication between nodes. The dual-port design ensures that storage clusters can maintain synchronization without performance degradation, even under heavy I/O workloads.

Latency Reduction in Storage Access

By minimizing the number of hops and optimizing packet delivery paths, the adapter reduces storage access latency. This is critical for applications that rely on real-time data retrieval and processing, such as transactional databases and analytics engines.

Security, Monitoring, and Telemetry Capabilities

Hardware-Level Traffic Security

Security features embedded within the adapter ensure that data integrity and confidentiality are maintained during transmission. Hardware-level offloading of encryption processes reduces CPU overhead while maintaining secure communication channels across the network.

Advanced Telemetry and Monitoring

Real-time telemetry capabilities allow administrators to monitor network performance metrics such as throughput, latency, and packet loss. This visibility enables proactive network management and rapid troubleshooting in complex environments.

Policy-Based Traffic Control

The adapter supports policy-driven traffic management that allows administrators to define rules for prioritizing specific workloads. This ensures that critical applications receive the necessary bandwidth during peak usage periods.

Deployment Scenarios and Scalability in Enterprise Infrastructure

Hyperscale Data Center Deployment

In hyperscale environments, scalability and efficiency are essential. The adapter’s dual 100GbE ports allow seamless expansion of network capacity without requiring extensive hardware changes. This supports rapid infrastructure scaling in response to growing computational demands.

Edge Computing Integration

Edge computing environments benefit from high-speed connectivity that enables local processing and reduced latency. The adapter supports edge deployments where real-time data processing and analytics are required close to the source of data generation.

Hybrid Cloud Networking Strategies

Hybrid cloud architectures require consistent networking performance across on-premises and cloud environments. The adapter ensures that data can flow efficiently between private infrastructure and public cloud services, enabling seamless workload migration and resource balancing.

Long-Term Infrastructure Scalability

As organizations evolve their IT strategies, the need for scalable networking solutions becomes increasingly important. The Dell 540-BCXP Mellanox Dual Ports 100GbE QSFP56 Network Adapter provides a future-ready foundation that supports continuous growth, ensuring compatibility with emerging networking standards and evolving workload requirements.
