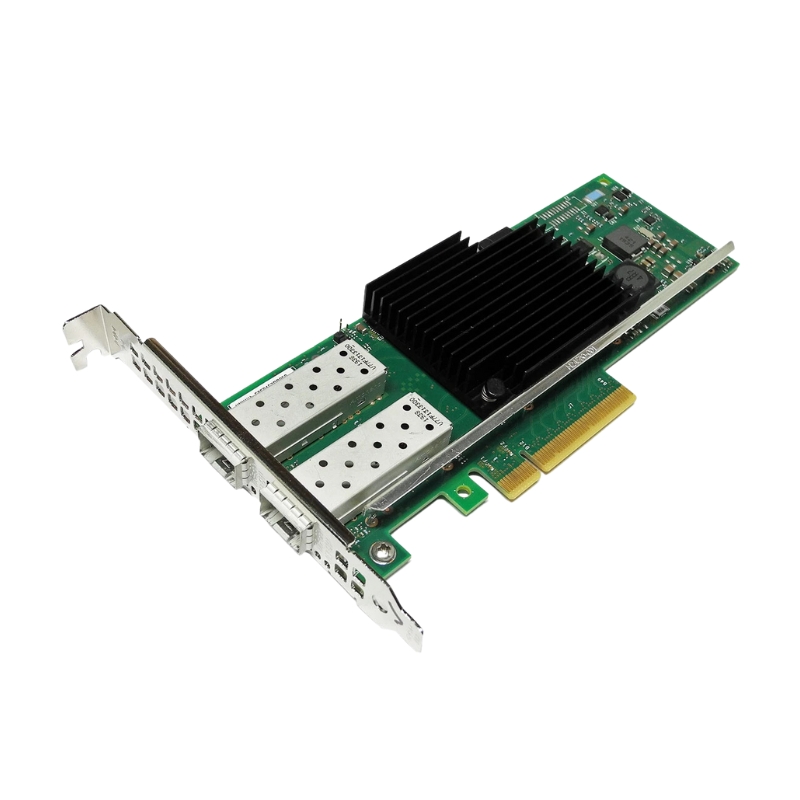

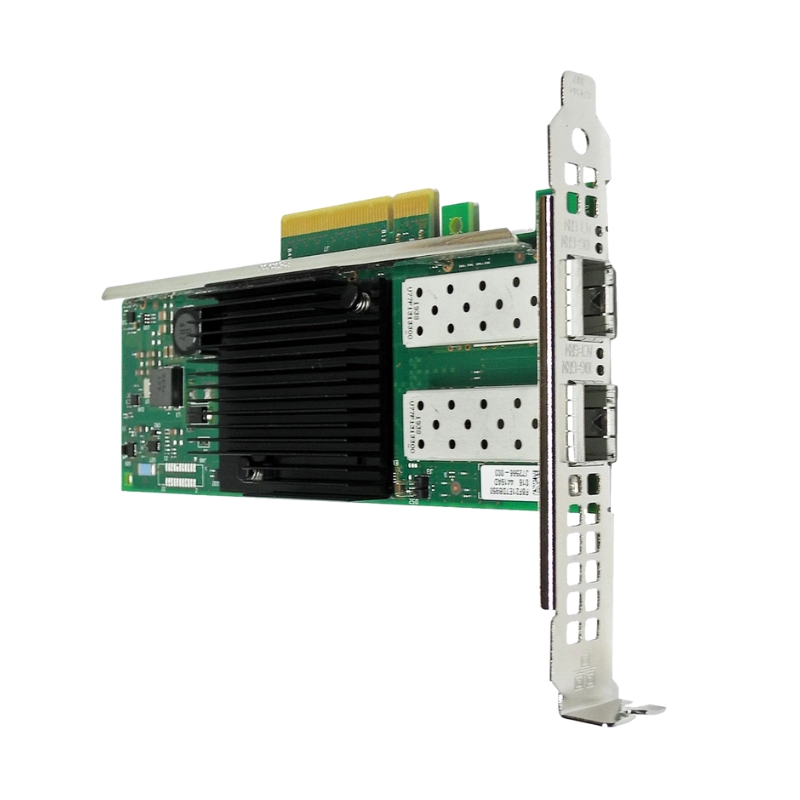

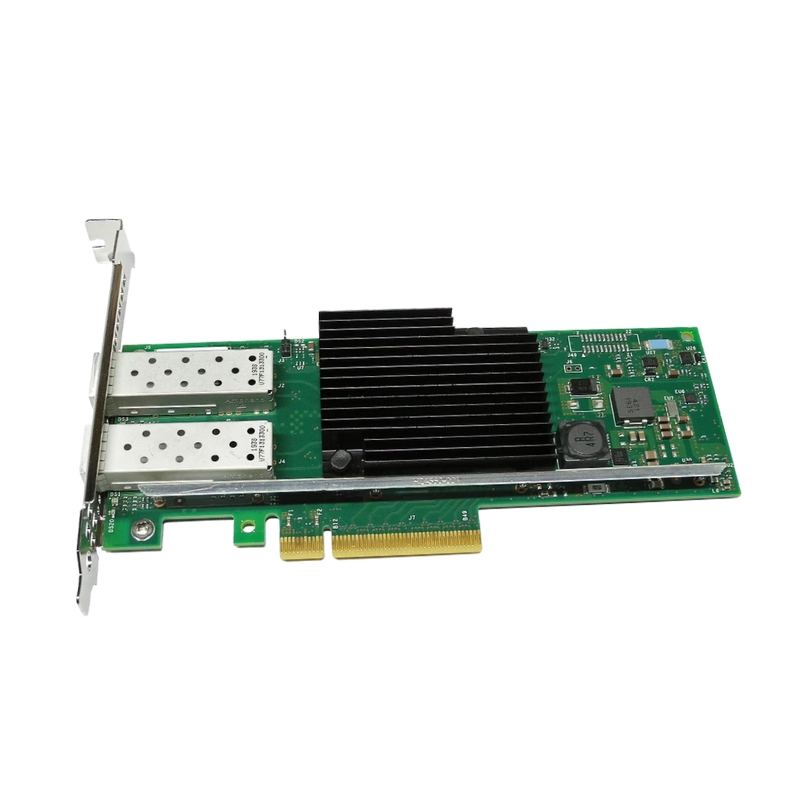

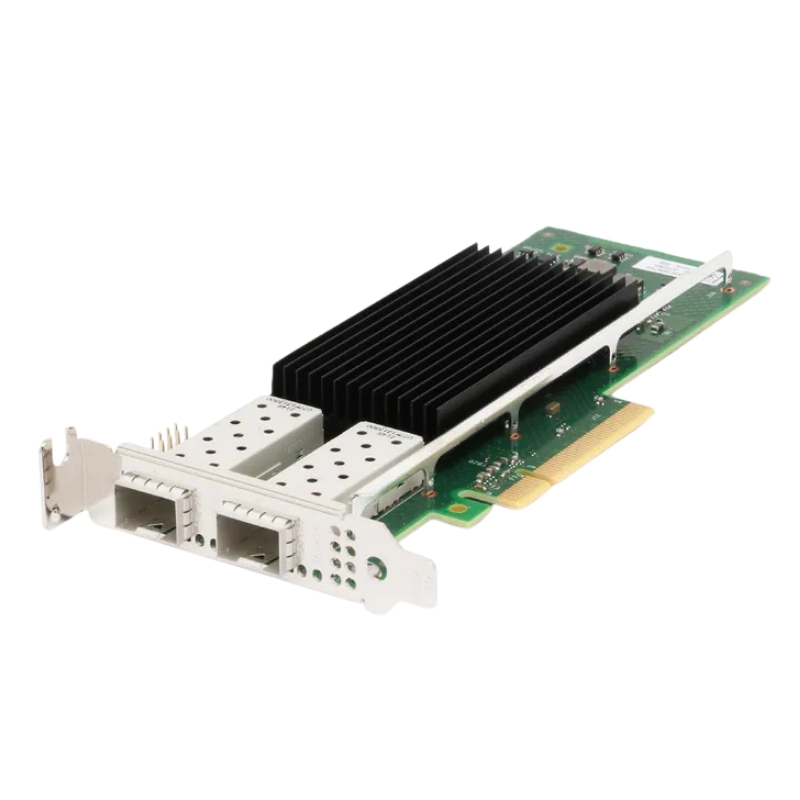

540-BCXX Dell Intel E810xxvda2 25Gb PCIe 4.0 X8 Ethernet Adapter

Highlights of Dell 25GB PCIE Ethernet Adapter

The Dell 540-BCXX Intel E810XXVDA2 25GbE Dual-Port PCIe 4.0 x8 Ethernet Adapter is a high-performance enterprise networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and advanced virtualization features, this adapter ensures reliable throughput, scalability, and efficiency for modern data centers and cloud infrastructures.

Main Information

• Manufacturer: Dell
• Model Number: 540-BCXX
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card
• Interface (Bus) Type: PCI Express 4.0 x8
• PCI Specification Revision: PCIe 3.0, PCIe 4.0

Port Configuration

• Ports: Dual-port (2 x SFP28)
• Port Type: 25 Gigabit SFP28
• Data Link Protocols: GigE, 10 GigE, 25 Gigabit LAN
• Connectivity Technology: Wired

Network Protocols

• iSCSI
• iWARP
• NFS

Advanced Features

• RDMA Support (Remote Direct Memory Access)
• Virtual Machine Device Queues (VMDq)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O Technology (DDIO)
• RDMA over Converged Ethernet (RoCE v2)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance
• On-chip QoS and traffic management

Compatibility

Dell PowerEdge Systems

• Validated for Dell PowerEdge server platforms
• Optimized for enterprise-grade workloads
• Ideal for virtualization, cloud, and HPC environments

Dell 540-BCXX Intel E810xxvda2 25GB PCIE Adapter Overview

The Dell 540-BCXX Intel E810xxvda2 25 Gigabit PCIe 4.0 X8 Ethernet 2 Port Network Adapter represents a high-performance networking solution designed for modern enterprise infrastructures, hyperscale data centers, and advanced cloud computing environments. Built on Intel’s E810 network controller architecture, this adapter is engineered to deliver ultra-low latency, high bandwidth throughput, and enhanced reliability for mission-critical workloads. As organizations continue to transition toward virtualization, containerized workloads, and software-defined networking, this dual-port 25GbE network interface card becomes a strategic component in ensuring seamless data flow and optimized network efficiency.

Advanced Architecture of Dell 540-BCXX Network Adapter

Intel E810 Controller Foundation

At the core of the Dell 540-BCXX network adapter lies the Intel Ethernet E810xxvda2 controller, a next-generation chipset designed to support high-density networking environments. This architecture enables efficient packet processing, reduced CPU overhead, and improved overall system responsiveness. The controller is optimized for PCIe 4.0 x8 lanes, which significantly increases data transfer capabilities compared to previous generations. This ensures that workloads requiring heavy data movement, such as real-time analytics, AI model training, and high-frequency trading systems, can operate with maximum efficiency.

PCIe 4.0 X8 Interface Advantage

The integration of PCIe 4.0 x8 interface provides a substantial boost in bandwidth capacity, allowing the adapter to fully leverage the 25 Gigabit per second per port capability. This high-speed interface reduces bottlenecks between the network card and the host system, ensuring that data packets are transmitted with minimal delay. The increased lane speed also supports advanced virtualization environments where multiple virtual machines require simultaneous high-speed network access.

Dual-Port 25GbE Connectivity Design

The dual-port configuration of the Dell 540-BCXX adapter allows for flexible network deployment scenarios. Each port supports 25 Gigabit Ethernet connectivity, enabling either link aggregation for enhanced throughput or redundancy for improved network reliability. This design is particularly beneficial in enterprise environments where uptime and data integrity are critical. By distributing network loads across two independent ports, organizations can achieve balanced traffic management and improved fault tolerance.

Key Optimization in Enterprise Environments

High Throughput Data Processing

The Dell 540-BCXX adapter is optimized for environments requiring high throughput data transfer. It supports advanced offloading features that shift processing tasks from the CPU to the network adapter itself. This includes checksum offloading, segmentation offloading, and interrupt moderation. These capabilities ensure that system resources are efficiently utilized, allowing servers to focus on application-level processing rather than network overhead.

Low Latency Networking Capabilities

Latency reduction is a critical requirement in modern data-driven applications. The Intel E810 architecture embedded within this adapter ensures minimal delay in packet processing. By reducing hop times and optimizing data path execution, the Dell 540-BCXX enables real-time responsiveness in applications such as financial trading systems, cloud gaming infrastructures, and distributed computing platforms.

Enhanced Virtualization Support

Virtualization environments benefit significantly from the advanced features of the Dell 540-BCXX adapter. It supports SR-IOV (Single Root Input/Output Virtualization), allowing a single physical network adapter to be segmented into multiple virtual interfaces. This improves network efficiency in virtual machine clusters and ensures isolated, high-speed connectivity for each virtual instance. Additionally, it enhances workload scalability in hyper-converged infrastructure systems.

Enterprise Use Cases and Deployment Scenarios

Data Center Integration

In modern data centers, network performance is a fundamental requirement for ensuring seamless operations. The Dell 540-BCXX adapter is designed to integrate seamlessly into high-density server environments, where it supports east-west traffic between servers and north-south traffic to external networks. Its high bandwidth capacity ensures that large-scale data transfers, backup operations, and distributed computing workloads can be executed efficiently without congestion.

Cloud Computing Infrastructure

Cloud service providers rely on high-speed and reliable network interfaces to deliver consistent performance to end users. The Dell 540-BCXX adapter supports scalable cloud infrastructure deployments by providing consistent 25GbE connectivity across virtualized environments. Its ability to handle multiple simultaneous connections makes it suitable for multi-tenant architectures and dynamic resource allocation systems.

High Performance Computing Clusters

High Performance Computing (HPC) clusters require ultra-fast communication between nodes. The Dell 540-BCXX network adapter ensures that inter-node communication occurs with minimal latency and maximum throughput. This is essential for scientific simulations, machine learning model training, and large-scale data analysis tasks that require synchronized processing across multiple computing nodes.

Technical Features and Capabilities

Advanced Packet Processing Engine

The adapter incorporates a sophisticated packet processing engine that enhances data handling efficiency. It is capable of managing large volumes of network traffic while maintaining stability and consistency. This ensures that enterprise systems can operate under heavy load conditions without experiencing packet loss or degradation in performance.

Energy Efficient Ethernet Support

Energy efficiency is a critical consideration in large-scale deployments. The Dell 540-BCXX supports Energy Efficient Ethernet (EEE), which dynamically reduces power consumption during periods of low network activity. This helps organizations reduce operational costs while maintaining high-performance capabilities when needed.

Load Balancing and Traffic Distribution

The dual-port configuration allows for intelligent load balancing across network interfaces. This ensures that network traffic is evenly distributed, preventing congestion and optimizing bandwidth utilization. In enterprise environments, this capability is essential for maintaining consistent performance across multiple workloads and applications.

Security and Reliability Enhancements

Hardware-Based Security Features

The Dell 540-BCXX adapter incorporates hardware-level security features that help protect network traffic from unauthorized access and malicious activity. These features include secure boot mechanisms and cryptographic acceleration, which enhance data integrity and safeguard sensitive information during transmission.

Data Integrity and Error Correction

To ensure reliable communication, the adapter includes advanced error detection and correction mechanisms. These features help identify corrupted packets and ensure that only valid data is transmitted across the network. This improves overall system reliability and reduces the risk of data loss in critical applications.

Redundancy and Failover Capabilities

Network redundancy is essential for maintaining continuous service availability. The Dell 540-BCXX supports failover configurations where one port can automatically take over if the other experiences a failure. This ensures uninterrupted connectivity and enhances system resilience in enterprise environments.

Integration with Modern Server Architectures

Compatibility with Dell PowerEdge Systems

This network adapter is optimized for integration with Dell PowerEdge server platforms. It ensures seamless compatibility with server firmware, BIOS configurations, and system management tools. This tight integration allows for simplified deployment and improved system performance optimization.

Support for Software-Defined Networking

Software-defined networking (SDN) environments benefit significantly from the flexibility of the Dell 540-BCXX adapter. It enables programmable network configurations that can be dynamically adjusted based on workload requirements. This enhances operational efficiency and allows organizations to adapt quickly to changing network demands.

Containerized Workload Optimization

Modern applications increasingly rely on containerized architectures such as Kubernetes. The Dell 540-BCXX adapter supports these environments by providing high-speed network connectivity between container nodes. This ensures efficient microservices communication and reduces latency in distributed application frameworks.

Operational Efficiency and Management

Centralized Network Management Support

The adapter supports centralized management tools that allow IT administrators to monitor performance, configure settings, and troubleshoot issues efficiently. This simplifies network administration and reduces operational complexity in large-scale environments.

Automated Performance Tuning

Built-in automation features enable the adapter to adjust performance settings dynamically based on workload conditions. This ensures optimal network efficiency without requiring manual intervention, improving overall system responsiveness and reliability.

Diagnostics and Monitoring Capabilities

Advanced diagnostic tools integrated into the adapter provide real-time insights into network performance metrics. These tools help identify potential issues before they impact system operations, allowing for proactive maintenance and improved uptime.
