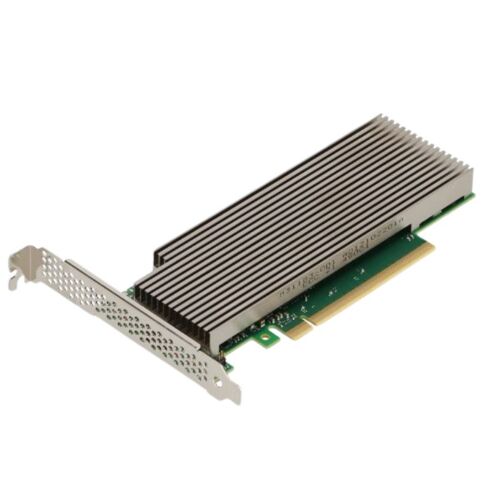

Dell 540-BDJI Intel vRAN Accelerator ACC100 PCI-E Adapter

Dell 540-BDJI Intel VRAN Accelerator ACC100 PCIe Adapter Overview

• Advanced Intel VRAN dedicated accelerator for optimized network performance
• PCIe 3.0 x16 bus interface for high-speed data processing
• Compact dimensions: 6.67 inches x 2.70 inches (169 mm x 69 mm)

Key Adapter Features

• Bus Interface: PCIe 3.0 x16 for seamless data transmission
• Dedicated Intel VRAN Accelerator ACC100 for efficient network virtualization

FEC Acceleration Capabilities for 5G and 4G

• 3GPP 5G LDPC FEC Processing:
  • LDPC Encoder/Decoder for high-speed error correction
  • Code block CRC generation and checking
  • Efficient rate matching and de-matching
  • HARQ buffer management for improved data handling
• 3GPP 4G Turbo FEC Processing:
  • Turbo Encoder/Decoder for robust signal processing
  • Rate matching and de-matching for 4G networks
  • CRC generation and validation of code blocks

Load Balancing and Queue Management

• Hardware queue manager (QMGR) efficiently manages uplink and downlink blocks
• Prioritizes bandwidth allocation based on system demand and resource availability

Manageability and Monitoring Features

• SMBus communication protocol supports up to 1 Mbps for efficient system interaction
• Comprehensive monitoring via PLDM 2.1 over MCTP over SMBus
• Real-time sensor data:
  • Voltage monitoring for both primary and secondary adapter voltages
  • Temperature sensors track adapter, DDR, and bracket ambient temperatures
  • The power sensor oversees total board power consumption
  • Programmable warning and fatal thresholds for voltage and temperature
• Emergency shutdown mechanism for over-temperature or over-voltage situations

Power Efficiency

• Total power consumption: 53W, ensuring efficient operation
• Thermal management:
  • 55°C at 550 LFM airflow
  • 61°C at 650 LFM airflow for optimal cooling

Software and Operating System Compatibility

• Seamless integration via DPDK BBDEV library and APIs for efficient performance
• Supported in FlexRAN software reference architecture
• Compatible with Linux OS for broad applicability

Name: Intel vRAN Accelerator ACC100 PCI-E Adapter Dell 540-BDJI

The Intel vRAN Accelerator ACC100 PCI-E Adapter (Dell 540-BDJI) is a cutting-edge networking solution designed to enhance the performance and efficiency of virtualized radio access networks (vRAN). With its advanced features and powerful capabilities, this adapter offers significant benefits for users in the telecommunications industry.

Improved Performance

One of the key advantages of the Intel vRAN Accelerator ACC100 PCI-E Adapter is its ability to deliver improved performance in virtualized networking environments. By offloading critical functions from the central processing unit (CPU) to dedicated hardware accelerators, this adapter allows for more efficient processing of data packets, resulting in faster network speeds and reduced latency.

Furthermore, the Intel vRAN Accelerator ACC100 PCI-E Adapter integrates Intel's advanced technologies, such as FPGA-based accelerators and optimized software libraries, to enable high-performance data processing. This ensures that network operators can handle the increasing demands of modern applications and services without compromising on performance.

Enhanced Flexibility

The Intel vRAN Accelerator ACC100 PCI-E Adapter offers enhanced flexibility for network operators, enabling them to adapt to changing requirements and scale their networks effectively. With its programmable FPGA-based accelerators, the adapter allows operators to customize and optimize their network functions based on specific needs.

Moreover, the adapter supports industry-standard interfaces and protocols, making it compatible with a wide range of network equipment and software solutions. This compatibility ensures seamless integration into existing infrastructures, reducing deployment complexity and enabling faster time-to-market for new services.

Increased Efficiency

In addition to improved performance and flexibility, the Intel vRAN Accelerator ACC100 PCI-E Adapter helps enhance operational efficiency for network operators. By offloading compute-intensive tasks to dedicated accelerators, the adapter reduces the workload on the CPU, freeing up valuable processing resources.

This increased efficiency not only enables operators to handle higher network loads but also reduces power consumption and operational costs. With the ability to process more data with less power, network operators can achieve significant savings while delivering superior quality of service to their customers.

Accelerated Time-to-Market

The Intel vRAN Accelerator ACC100 PCI-E Adapter plays a crucial role in accelerating the deployment of new services and functionalities in virtualized networks. Its programmable accelerators allow for rapid development and optimization of network functions, reducing the time and effort required for software development and testing.

Additionally, the compatibility of the adapter with industry-standard interfaces ensures seamless integration with existing software-defined networking (SDN) and network functions virtualization (NFV) platforms. This compatibility eliminates compatibility issues and enables network operators to quickly introduce new services and adapt to evolving market demands.

Enhanced Security

Security is a top priority in modern networks, especially in virtualized environments. The Intel vRAN Accelerator ACC100 PCI-E Adapter includes robust security features that help protect sensitive data and ensure the integrity of network communications.

The adapter supports hardware acceleration for encryption and decryption functions, enabling fast and secure data transmission over the network. Additionally, it incorporates Intel's advanced security technologies, such as secure boot and trusted execution environments, providing a solid foundation for building secure virtualized networks.

Future-Proofing

With the rapid advancements in networking technologies, network operators need to invest in solutions that can adapt to future requirements. The Intel vRAN Accelerator ACC100 PCI-E Adapter is designed with future-proofing in mind.

Its programmable FPGA-based accelerators allow operators to add new features and functionalities as needed, without requiring hardware upgrades. This scalability ensures that network operators can keep pace with evolving industry standards and technologies, protecting their investments for years to come.

In conclusion, the Intel vRAN Accelerator ACC100 PCI-E Adapter (Dell 540-BDJI) offers a range of benefits for users in the telecommunications industry. With its improved performance, enhanced flexibility, increased efficiency, accelerated time-to-market, enhanced security, and future-proofing capabilities, this adapter empowers network operators to deliver high-performance virtualized networks that can meet the growing demands of modern applications and services.
