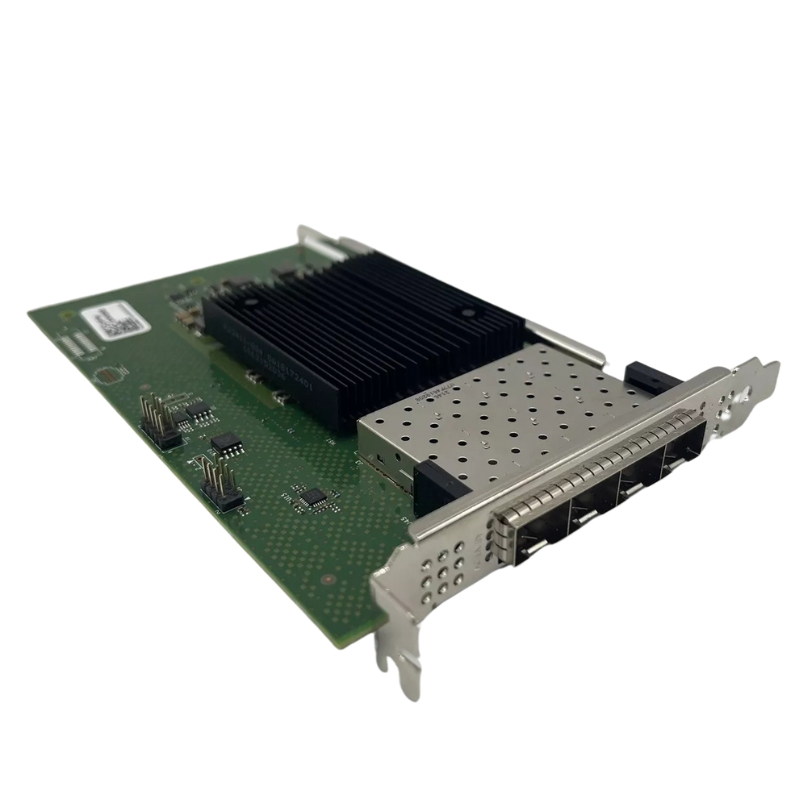

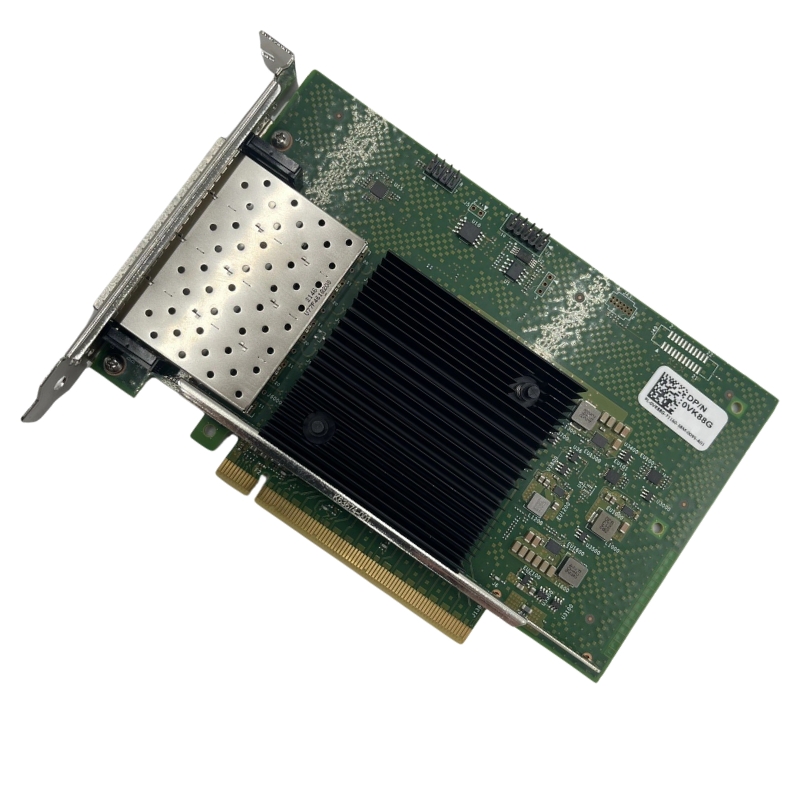

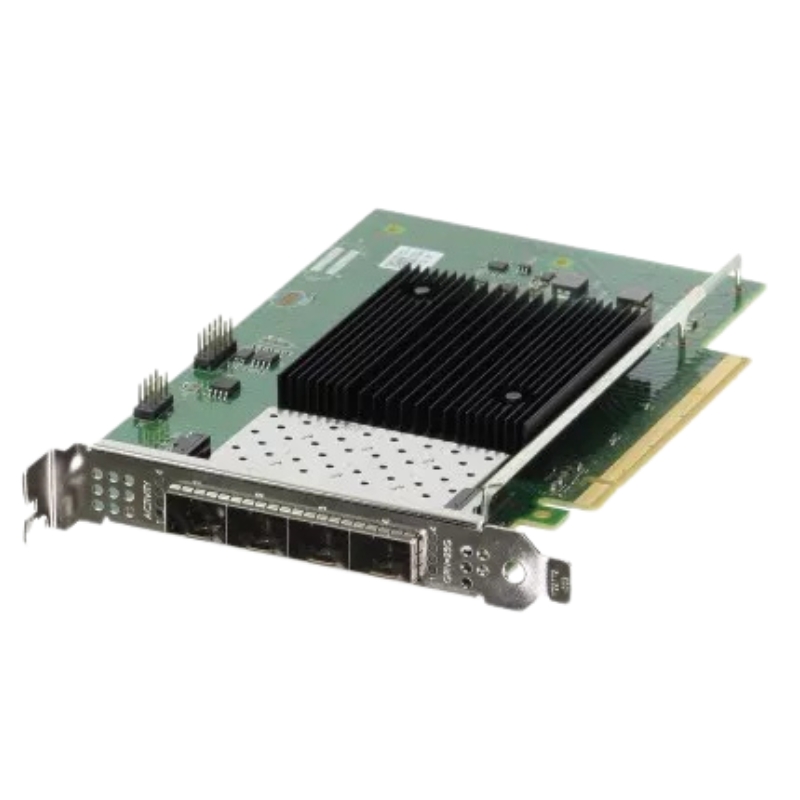

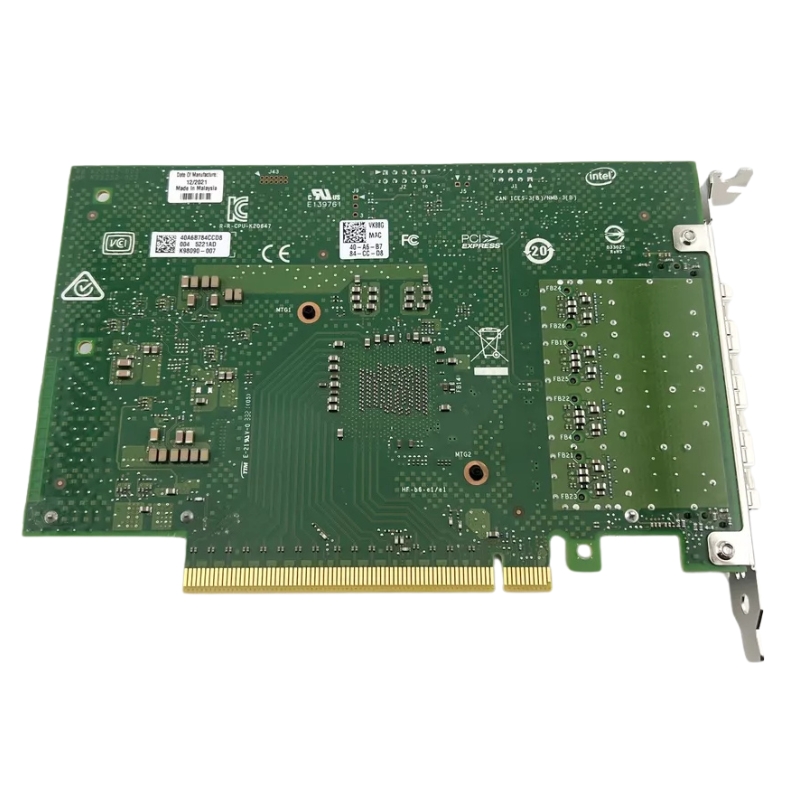

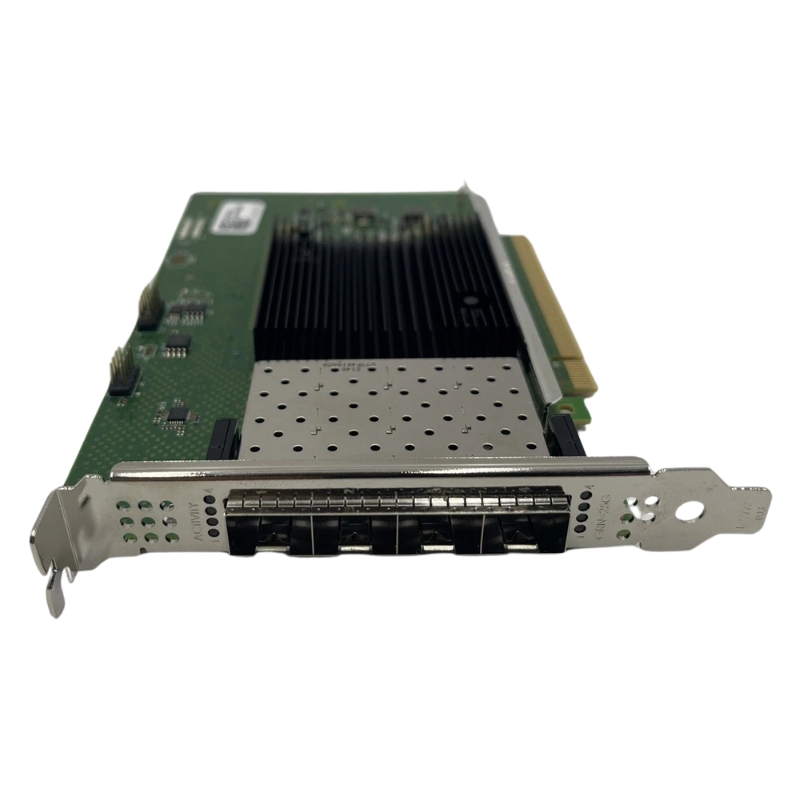

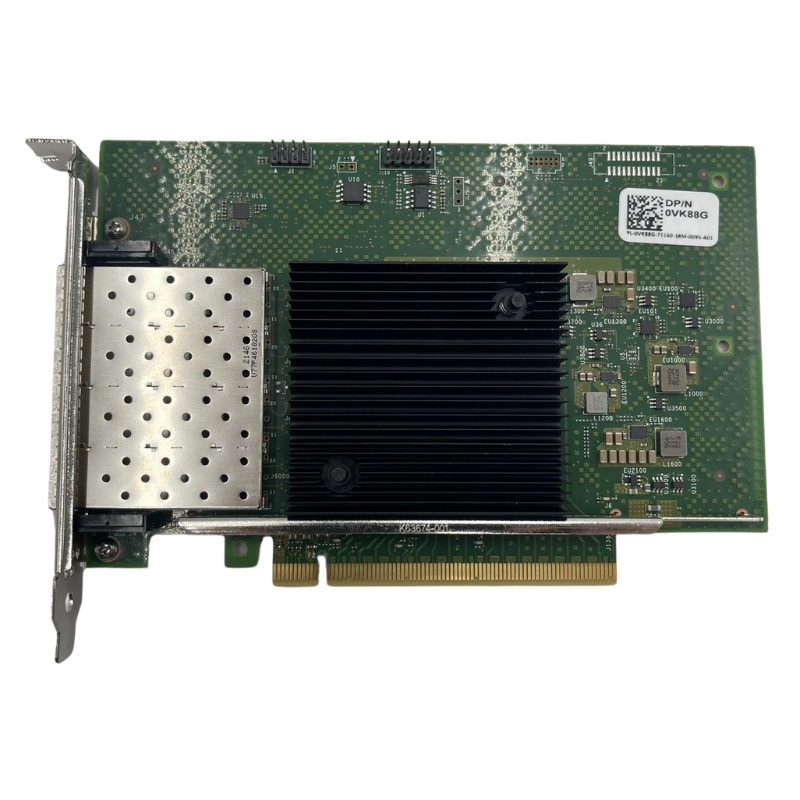

T7WD5 Dell 4 Ports PCI-Express 10/25GbE SFP28 Adapter

Overview of the Dell PCIe 10/25GbE SFP28 4-Port Adapter

The Dell T7WD5 PCI-Express 10/25GbE SFP28 4-Port Adapter is a high-performance networking solution built for enterprise servers, virtualization platforms, cloud infrastructure, and modern data centers. Featuring four SFP28 ports with support for 1GbE, 10GbE, and 25GbE network speeds, this low-profile PCIe 4.0 x16 expansion card delivers exceptional bandwidth, low latency, and reliable connectivity. Advanced technologies such as RDMA, RoCE v2, SR-IOV, DDIO, Intelligent Offloads, Flexible Port Partitioning, and integrated GNSS timing synchronization help maximize network efficiency while reducing CPU utilization, making it an excellent choice for demanding business and mission-critical workloads.

General Information

• Brand: Dell
• Part Number: T7WD5
• Device Type: 4-Port Network Adapter

Technical Specifications

• Host Interface: PCI Express 4.0 x16.
• Form Factor: Plug-in expansion card.
• Profile: Low-profile bracket.
• Port Count: 4 x SFP28 interfaces.
• Ethernet Speeds: 1GbE, 10GbE, and 25GbE.
• PCIe Revision: PCI Express 4.0 compliant.

Advanced Networking Technologies

• Integrated GNSS timing synchronization.
• Data Direct I/O Technology (DDIO).
• Flexible Port Partitioning (FPP).
• Intelligent hardware offloading.
• On-chip Quality of Service (QoS).
• Advanced traffic management capabilities.
• RDMA over Converged Ethernet (RoCE) v2 support.
• Native RDMA acceleration.
• Single Root I/O Virtualization (SR-IOV).
• Virtual Machine Device Queues (VMDQ).

Supported Network Standards

• iSCSI
• iWARP
• NFS

Environmental

• Operating Temperature: 0°C to 65°C (32°F to 149°F).
• Operating Humidity: 0% to 90% non-condensing.

Compatibility

• Compatible with Dell PowerEdge servers featuring an available PCI Express 4.0 x16 expansion slot and supporting low-profile PCIe network adapters. It also works with operating systems and virtualization platforms that support SFP28 Ethernet networking, RDMA, SR-IOV, and PCIe 4.0 technologies.

Dell T7WD5 PCI Express 10/25GbE SFP28 4 Ports Adapter

The Dell T7WD5 PCI Express 10/25GbE SFP28 4 Ports Adapter is a high performance network interface solution designed for modern enterprise data centers, cloud infrastructure, and high throughput computing environments. It is engineered to deliver scalable bandwidth, low latency communication, and advanced packet processing capabilities across multiple network workloads. Built with PCI Express architecture and supporting SFP28 optical transceiver technology, this adapter provides a flexible and powerful foundation for next generation networking demands where efficiency and speed are essential.

Core Functional Purpose in Enterprise Networking

The primary role of the Dell T7WD5 adapter is to enable servers to connect to high speed Ethernet networks operating at 10 Gigabit and 25 Gigabit per second speeds. This dual rate capability ensures compatibility with existing network infrastructure while also allowing seamless migration toward higher bandwidth environments. The four port design allows simultaneous network connections, enabling redundancy, load distribution, and segmentation of traffic across multiple channels for improved performance stability and operational resilience.

Architecture Dell T7WD5 adapter

The internal architecture of the Dell T7WD5 adapter is optimized for efficient packet processing with reduced CPU overhead. By offloading network tasks from the host system, it enables servers to dedicate more computational power to application workloads rather than network management tasks. This architectural separation improves system efficiency and supports virtualization environments where resource allocation must be dynamically balanced.

Hardware Level Acceleration Capabilities

The adapter incorporates hardware acceleration mechanisms that support checksum offloading, segmentation offloading, and advanced queue management. These features ensure that data packets are processed with minimal latency and reduced processing bottlenecks. Hardware acceleration is particularly beneficial in environments handling large volumes of simultaneous data streams, such as cloud computing platforms and storage replication systems.

PCI Express Interface and System Integration

The Dell T7WD5 adapter leverages the PCI Express interface to deliver high speed communication between the network card and the host system motherboard. PCIe provides a direct pathway for data transfer, ensuring minimal latency and high throughput efficiency. The adapter is designed to utilize multiple PCIe lanes effectively, allowing it to handle aggregated traffic from all four ports without congestion or performance degradation.

Server Platforms

This adapter is engineered for compatibility with a wide range of Dell server systems and enterprise grade hardware platforms. Its standardized PCIe form factor ensures easy integration into existing server configurations without requiring significant hardware modifications. The adapter supports hot plug capabilities in certain environments, allowing maintenance and upgrades without full system downtime.

System Resource Optimization

By integrating tightly with server firmware and operating system drivers, the adapter minimizes CPU interrupts and optimizes system resource utilization. This allows enterprise workloads such as virtualization clusters and distributed databases to operate more efficiently under heavy network load conditions.

10GbE and 25GbE Networking Performance

One of the defining features of the Dell T7WD5 adapter is its ability to support both 10 Gigabit Ethernet and 25 Gigabit Ethernet speeds. This flexibility allows organizations to deploy the adapter in mixed infrastructure environments where legacy systems operate at lower speeds while newer systems demand higher throughput. The automatic negotiation of link speeds ensures seamless interoperability across network layers.

SFP28 Port Technology and Optical Connectivity

SFP28 ports represent a compact and efficient optical transceiver interface designed for 25 Gigabit Ethernet connectivity. The Dell T7WD5 adapter uses SFP28 slots to enable flexible media choices, including fiber optic cables and compatible DAC cables. This flexibility allows data centers to tailor network infrastructure based on distance, cost, and performance requirements.

Modular Connectivity Options

The modular nature of SFP28 ports allows administrators to change transceiver types without replacing the entire network adapter. This reduces operational costs and improves long term infrastructure adaptability. It also enables seamless upgrades from 10GbE to 25GbE simply by replacing transceiver modules rather than entire hardware components.

Signal Integrity and Transmission Quality

SFP28 technology ensures strong signal integrity even at high transmission speeds. The adapter is designed to maintain stable communication over varying cable lengths while minimizing packet loss and transmission errors. This makes it suitable for large scale data center environments where consistent connectivity is critical.

Multi-Port Networking Advantages

With four independent ports, the Dell T7WD5 adapter enables parallel data flow across multiple network channels. This architecture improves load distribution and prevents congestion in high traffic environments. Each port can be configured independently, allowing administrators to assign specific roles such as storage traffic, virtualization traffic, or management traffic.

Data Center Integration and Enterprise Usage

The Dell T7WD5 adapter is particularly well suited for high density computing environments where multiple servers operate in tightly integrated clusters. Its high bandwidth capability ensures smooth communication between nodes, enabling efficient workload distribution and data synchronization across the infrastructure.

Cloud Infrastructure Deployment

In cloud computing environments, the adapter supports scalable networking requirements by enabling fast and reliable connectivity between virtual machines, storage systems, and orchestration platforms. Its ability to handle multiple simultaneous connections makes it an ideal choice for cloud service providers and private cloud deployments.

Big Data Processing Systems

Big data frameworks rely heavily on fast interconnects to transfer large datasets between processing nodes. The Dell T7WD5 adapter supports these requirements by delivering high throughput and low latency communication pathways essential for distributed computing frameworks.

Storage Area Network Acceleration

The Dell T7WD5 adapter is capable of supporting storage area network traffic with high efficiency, enabling rapid access to centralized storage systems. This is essential for enterprise databases, virtualization storage clusters, and backup systems that require consistent data availability.

Data Integrity and Transfer Reliability

The adapter ensures reliable data transfer by implementing robust error handling and retransmission mechanisms. This guarantees data integrity even under high load conditions or unstable network environments.

CPU Efficiency

By transferring network processing tasks from the CPU to dedicated hardware, the adapter significantly reduces system overhead. This leads to improved application performance and better utilization of server resources in compute intensive environments.

Scalability and Future Ready Networking

The Dell T7WD5 adapter is designed with scalability in mind, allowing organizations to expand their network infrastructure without replacing existing hardware. Its compatibility with evolving Ethernet standards ensures long term usability.

Adaptation to Emerging Network Standards

As network technologies evolve, the adapter’s flexible architecture allows it to integrate with future enhancements in Ethernet speed and data transmission protocols, ensuring long term investment protection.

Enterprise Server Clusters

In enterprise server clusters, the adapter enables high speed communication between nodes, supporting workload balancing and distributed processing systems that require reliable interconnectivity.

Cloud Service Infrastructure

Cloud service environments rely on consistent and scalable network performance, which the Dell T7WD5 adapter delivers through its multi port high speed connectivity design.

High Performance Computing Workloads

High performance computing systems benefit from the adapter’s ability to transfer large datasets quickly between compute nodes, enabling faster processing and improved computational efficiency.
