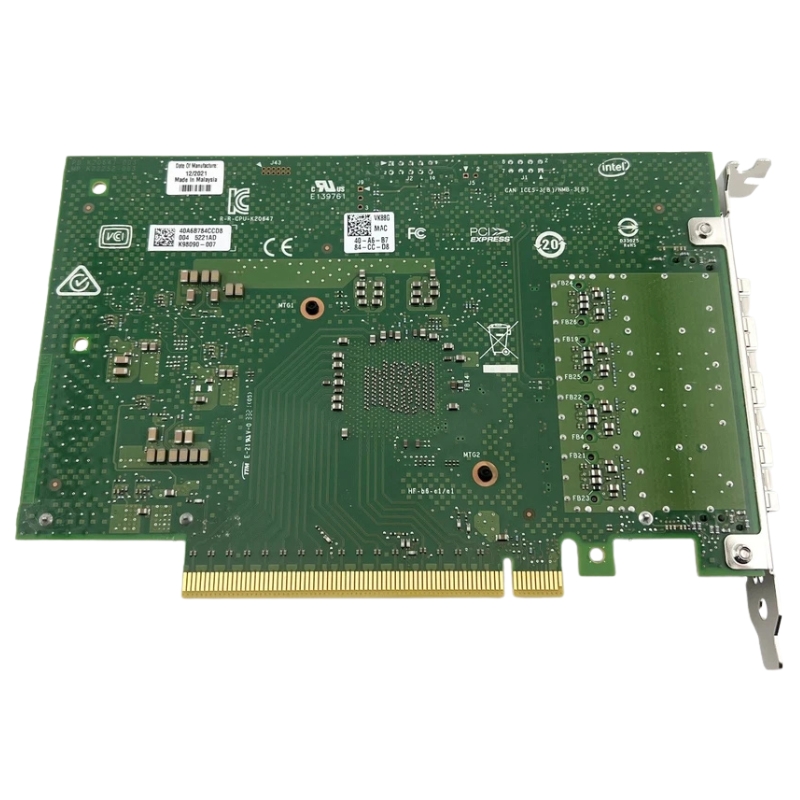

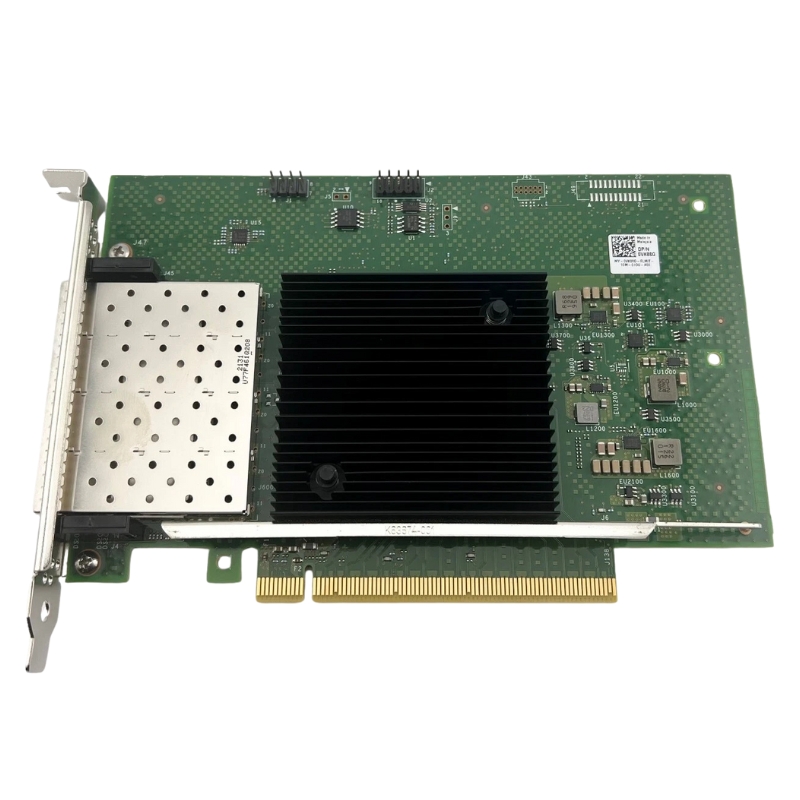

VM90W Dell Intel E810 Quad Port Adapter 10/25GPBS SFP28 PCI-Express

Dell VM90W Intel E810 Quad-Port SFP28 PCIe Network Adapter

High-Performance Enterprise Networking Solution

The Dell VM90W Intel E810 Quad-Port 10/25Gbps SFP28 PCI-Express Adapter is a powerful, enterprise-grade networking card designed for modern data centers. Built for speed, scalability, and virtualization efficiency, it delivers reliable wired connectivity for demanding workloads, cloud environments, and high-throughput applications.

Key Product Identification Details

• Manufacturer: Dell
• Part Number / SKU: VM90W
• Product Category: Network Interface Adapter
• Port Type: 4-Port High-Speed Network Card

Hardware Design and Form Factor

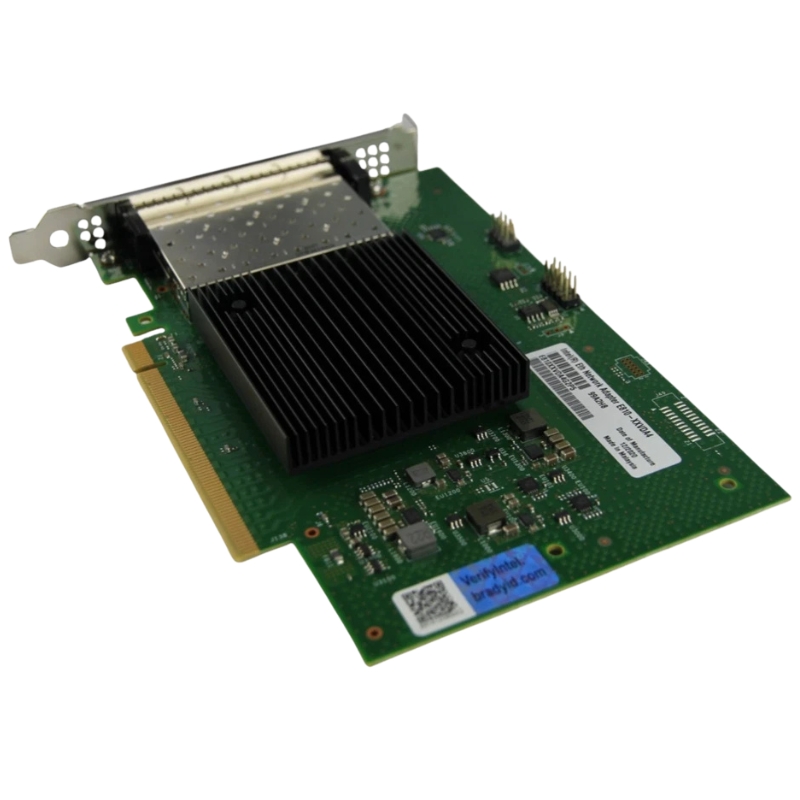

Full-Height PCIe Plug-in Architecture

This adapter is engineered in a full-height plug-in card design, making it suitable for enterprise servers and rack-mounted systems requiring stable and high-bandwidth network expansion.

Physical and Interface Specifications

• Form Factor: Full-height expansion card
• Bus Interface: PCI Express 4.0 x16
• Backward Compatibility: PCIe 3.0 and PCIe 4.0 support

Port Configuration and Connectivity

Dual High-Speed SFP28 Connectivity

The Dell VM90W provides advanced optical networking capability with ultra-fast data transfer rates suitable for enterprise workloads and virtualization environments.

Network Ports Overview

• 2 x 25 Gigabit SFP28 ports
• Wired high-speed Ethernet connectivity
• Optimized for data center switching and server clustering

Supported Network Protocols and Compatibility

Multi-Protocol Enterprise Support

This adapter supports a wide range of networking and storage protocols, ensuring flexibility across diverse IT infrastructures and cloud systems.

Data Link Protocol Support

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 25 Gigabit Ethernet

Network and Storage Protocols

• iSCSI for storage networking
• iWARP for RDMA over TCP/IP
• NFS for distributed file systems

Advanced Features and Performance Enhancements

Optimized for Virtualization and Cloud Computing

The Dell VM90W Intel E810 adapter integrates advanced acceleration technologies that improve performance, reduce CPU overhead, and enhance virtualization efficiency.

Key Intelligent Networking Features

• Remote Direct Memory Access (RDMA) support
• RDMA over Converged Ethernet (RoCE v2)
• Virtual Machine Device Queues (VMDQ)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O (DDIO) technology

Performance Optimization Capabilities

• Flexible Port Partitioning (FPP)
• Hardware-based traffic management
• On-chip Quality of Service (QoS)
• Intelligent packet offloading engine

Enterprise Use Cases and Deployment Scenarios

Ideal for Modern IT Infrastructure

Designed for scalability and reliability, this network adapter is suitable for mission-critical environments requiring high throughput and low latency.

Common Deployment Environments

• Data center virtualization clusters
• Cloud computing infrastructure
• High-performance storage networks
• Enterprise server farms

Dell VM90W Intel E810 Quad Port Adapter

The Dell VM90W Intel E810 Quad Port 10/25Gbps SFP28 PCI-Express Adapter is a high-performance enterprise-grade network interface solution designed for modern data center environments, cloud infrastructure, virtualization workloads, and high-throughput server architectures. This adapter is engineered to deliver ultra-low latency, scalable bandwidth, and flexible port configuration options for mission-critical workloads.

As data traffic continues to grow exponentially in enterprise and hyperscale environments, the need for adaptable, high-speed network adapters like the Dell VM90W becomes essential. This PCI-Express based solution supports multiple high-speed SFP28 interfaces, making it suitable for 10GbE and 25GbE deployments, ensuring compatibility with next-generation network fabrics and evolving infrastructure demands.

Architecture and Design of Dell VM90W Network Adapter

The architecture of the Dell VM90W Intel E810 Quad Port adapter is built around efficiency, scalability, and reliability. It integrates advanced silicon designed for high-performance packet processing, supporting multiple traffic classes and optimized hardware acceleration for virtualization and cloud-native applications.

PCI-Express Interface Integration

The adapter utilizes the PCI-Express (PCIe) interface to ensure high-speed communication between the network card and the server motherboard. PCIe lanes provide dedicated bandwidth, reducing bottlenecks and allowing consistent data throughput across all four ports simultaneously.

Bandwidth Optimization Through PCIe Lanes

By leveraging multiple PCIe lanes, the adapter ensures efficient load balancing across network traffic streams. This architecture minimizes packet loss and reduces latency, particularly in environments running distributed applications or high-performance computing clusters.

Latency Reduction Mechanisms

The design incorporates hardware offloading features that reduce CPU intervention in packet processing. This leads to lower latency in transactional systems, database clusters, and real-time analytics workloads.

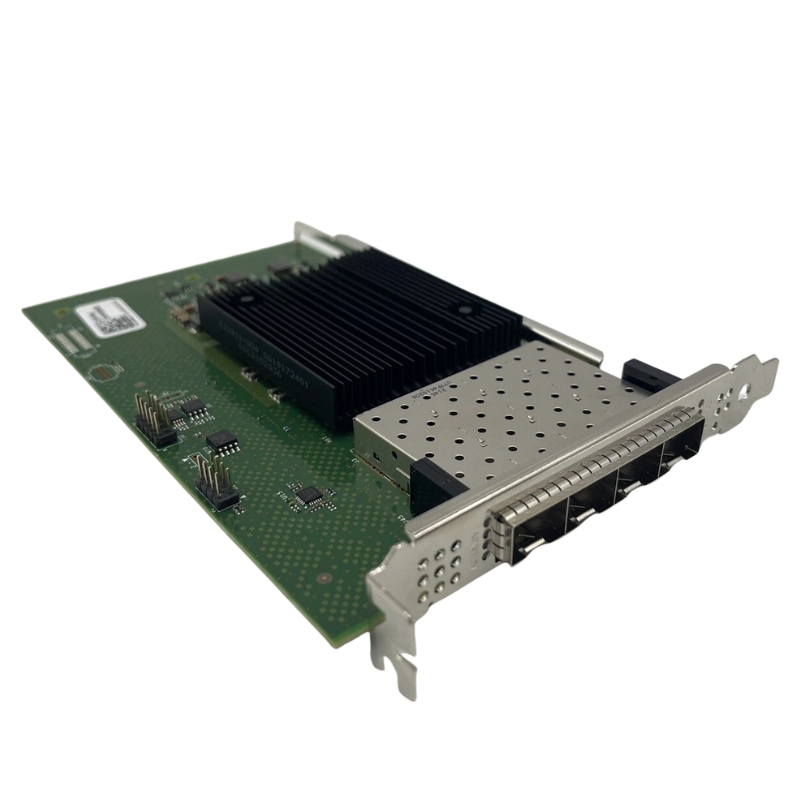

Quad-Port SFP28 Configuration

One of the defining features of the Dell VM90W adapter is its quad-port SFP28 interface configuration. Each port supports 10Gbps or 25Gbps Ethernet connectivity, allowing flexible deployment in mixed-speed environments.

Scalability in Multi-Port Environments

With four independent SFP28 ports, network administrators can design redundant paths, aggregate bandwidth, or segment traffic for different workloads. This flexibility is essential for enterprise-grade data center topologies.

Use Cases for Multi-Port Architecture

• High-density virtualization clusters
• Cloud service provider infrastructure
• Storage area networks (SAN)
• High-frequency trading platforms

Performance Capabilities and Throughput Efficiency

The Dell VM90W Intel E810 adapter is optimized for high-throughput data environments where performance consistency is critical. Its architecture supports advanced packet processing techniques that ensure stable performance even under heavy network loads.

10GbE and 25GbE Dual-Speed Support

One of the key advantages of this adapter is its ability to support both 10 Gigabit Ethernet and 25 Gigabit Ethernet standards through SFP28 transceivers. This allows organizations to upgrade incrementally without replacing entire infrastructure systems.

Adaptive Network Scaling

Adaptive scaling enables seamless transition between network speeds, making it easier for IT departments to manage hybrid environments where legacy systems and modern infrastructure coexist.

Load Balancing Efficiency

The adapter distributes network traffic intelligently across available ports, ensuring balanced utilization and preventing congestion in high-traffic scenarios.

Hardware Acceleration Features

The Intel E810 architecture integrates advanced hardware acceleration capabilities that reduce CPU overhead and improve system efficiency.

Packet Processing Offload

Packet processing tasks such as checksum calculation, segmentation, and encryption are offloaded to the adapter hardware, freeing CPU resources for application-level processing.

Virtualization Optimization

The adapter is optimized for virtualized environments, supporting technologies that improve network I/O performance for virtual machines and containers.

Enterprise Use Cases and Deployment Scenarios

The Dell VM90W Intel E810 Quad Port adapter is widely used in enterprise and cloud environments where reliability and performance are critical. Its flexible architecture makes it suitable for a wide range of deployment scenarios.

Data Center Networking

In modern data centers, this adapter plays a crucial role in ensuring high-speed communication between servers, storage systems, and network switches.

Leaf-Spine Network Topologies

The adapter integrates seamlessly into leaf-spine architectures, enabling high-bandwidth, low-latency communication across distributed systems.

Redundancy and Failover Design

Quad-port configurations allow redundant pathways, ensuring continuous network availability even in case of link failures.

Cloud Infrastructure Environments

Cloud service providers rely heavily on scalable network interfaces like the Dell VM90W to manage dynamic workloads and multi-tenant environments.

Multi-Tenant Isolation

The adapter supports advanced traffic segmentation, enabling secure and isolated environments for multiple tenants within the same infrastructure.

Elastic Resource Allocation

Dynamic allocation of network resources ensures optimal performance during peak usage periods in cloud environments.

High-Performance Computing (HPC)

In HPC environments, low latency and high throughput are critical. The Dell VM90W adapter provides the necessary performance characteristics for scientific simulations, AI training workloads, and large-scale data processing.

Parallel Processing Optimization

The adapter ensures efficient data transfer between compute nodes, reducing synchronization delays in distributed computing systems.

AI and Machine Learning Workloads

Machine learning pipelines benefit from high-speed data ingestion and model distribution capabilities provided by the adapter.

Compatibility and System Integration

The Dell VM90W Intel E810 Quad Port adapter is designed for broad compatibility with enterprise server systems, particularly those optimized for PCIe expansion and SFP28 optical connectivity.

Server Platform Integration

It integrates seamlessly into rack-mounted servers and blade systems, ensuring stable operation across different hardware configurations.

Operating System Support

The adapter supports major enterprise operating systems, enabling flexibility in deployment across Windows Server, Linux distributions, and virtualization platforms.

Driver and Firmware Optimization

Regular firmware updates and optimized drivers ensure continued performance improvements and security enhancements.

Network Infrastructure Compatibility

The adapter is compatible with modern Ethernet switching infrastructure that supports 10GbE and 25GbE standards.

Optical Module Support

SFP28 ports allow the use of compatible optical transceivers and DAC cables, enabling flexible connectivity options.

Cabling Flexibility

Organizations can choose between fiber optic and direct attach copper (DAC) solutions depending on distance and performance requirements.

Advanced Networking Features

The Dell VM90W Intel E810 adapter includes several advanced networking features that enhance performance, security, and manageability in enterprise environments.

Virtualization Offloads

Virtualization offload capabilities reduce CPU overhead and improve virtual machine performance.

SR-IOV Support

Single Root I/O Virtualization (SR-IOV) enables efficient sharing of network resources across multiple virtual machines.

Improved VM Density

By reducing resource contention, more virtual machines can operate efficiently on a single physical host.

Security Enhancements

Security features are integrated at the hardware level to ensure safe data transmission and protection against network threats.

Encryption Acceleration

Hardware-based encryption acceleration supports secure communication protocols without degrading performance.

Secure Boot and Firmware Integrity

Firmware validation ensures that only trusted software runs on the adapter hardware.

Energy Efficiency and Thermal Management

Energy efficiency is a key consideration in modern data center hardware design, and the Dell VM90W adapter is optimized for reduced power consumption without sacrificing performance.

Dynamic Power Scaling

The adapter dynamically adjusts power usage based on workload intensity, reducing energy consumption during low traffic periods.

Thermal Dissipation Design

Efficient heat dissipation ensures stable performance even under sustained high-load conditions.

Data Center Cooling Optimization

Lower thermal output contributes to reduced cooling costs in large-scale deployments.
