FORTINET FG-61F Fortigate 61F Security Appliance - 10 Port

FG-61F
Hover on image to enlarge

Brief Overview of FG-61F

Fortigate 61F Security Appliance - FORTINET FG-61F 10 Port. Excellent Refurbished

QR Code of FORTINET FG-61F Fortigate 61F Security Appliance - 10 Port
Contact us for a price
Ask a question
Additional 7% discount at checkout
SKU/MPNFG-61FAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerFORTINET Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview of FORTINET FG-61F

The FORTINET FG-61F is a powerful and compact desktop network security appliance designed for high-performance protection in enterprise environments. It supports a wide range of networking protocols and advanced security features to meet the demands of modern businesses.

Manufacturer and Model Information

  • Manufacturer: FORTINET
  • Model Number: FG-61F
  • Product Category: Networking

Key Specifications

  • Form Factor: Desktop
  • Connectivity Technology: Wired
  • Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Protocols: IPsec, HTTPS

Performance Features of the FG-61F

Firewall and Network Protection Throughput

  • Firewall Throughput: 10 Gbps
  • IPS Throughput: 1.4 Gbps
  • NGFW Throughput: 1 Gbps
  • Threat Protection Throughput: 700 Mbps
  • Firewall Latency (64-byte UDP): 4 μs

VPN and SSL Performance

  • VPN Throughput (IPsec 512-bit): 6.5 Gbps
  • VPN Throughput (SSL): 900 Mbps
  • SSL Inspection Throughput: 750 Mbps

Additional Throughput Capacities

  • Application Control (AVC) Throughput: 1.8 Gbps
  • CAPWAP Throughput: 15 Gbps

Capacity Specifications

Session and Connection Limits

  • Concurrent TCP Sessions: 700,000
  • New TCP Sessions Per Second: 35,000
  • Firewall Policies: 5,000

Virtual and VPN Tunnel Limits

  • Gateway to Gateway IPsec VPN Tunnels: 200
  • Client to Gateway IPsec VPN Tunnels: 500
  • Concurrent SSL VPN Users: 200
  • SSL Inspection Concurrent Sessions: 55,000

Supported Devices and Virtual Domains

  • Virtual Domains: 10
  • Number of FortiSwitches: 16
  • Number of FortiAP Devices: 30
  • Number of FortiToken Devices: 500
  • Number of Registered FortiClients: 200

Special Features of the FG-61F

Design and Expandability

  • Fanless Design: Quiet operation, reducing noise pollution in sensitive environments.
  • 3G/4G USB Dongle Support: Ensures mobile network connectivity for backup or primary connectivity.
  • FortiLink Mode: Seamless integration with Fortinet devices for enhanced security and network management.
  • SD-WAN Support: Optimizes WAN performance and reduces costs by routing traffic over the best available connection.

Encryption Support

  • SSL Encryption: Secures web-based communications
  • 256-bit AES Encryption: Industry-standard security for VPNs and sensitive data
  • 256-bit SHA: Provides cryptographic security for data integrity.

Expansion and Connectivity Options

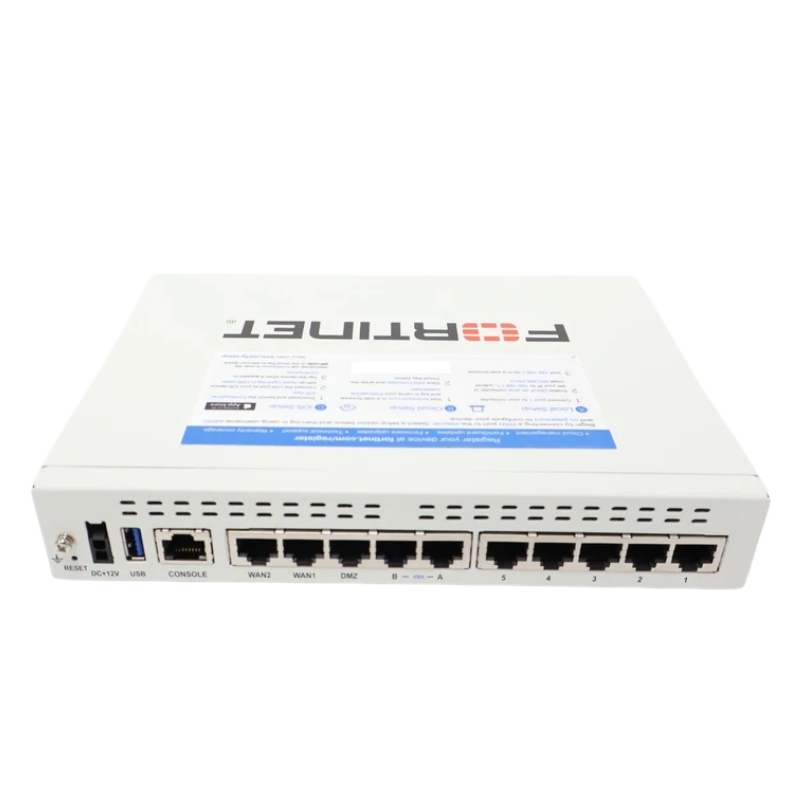

Interface and Port Details

  • WAN Ports: 2 x 1000Base-T RJ-45
  • DMZ Port: 1 x 1000Base-T RJ-45
  • Additional LAN Ports: 7 x 1000Base-T RJ-45
  • USB Port: 1 x USB 3.0 Type A
  • Console Port: 1 x RJ-45

Power Requirements

Device and Power Specifications

  • Power Supply: External Power Adapter
  • Voltage Requirements: AC 120/230 V (50/60 Hz)
  • Operational Power Consumption: 18.7 Watts

Port Count

The Fortinet Fortigate 61F Security Appliance is equipped with an impressive port count of 10, making it an ideal choice for businesses and organizations of all sizes. This feature allows for a versatile and flexible network configuration, enabling seamless connectivity and efficient data transfer.

Enhanced Connectivity

With 10 ports available, the Fortigate 61F offers enhanced connectivity options for users. This means that you can easily connect multiple devices such as computers, servers, printers, and more, without the need for additional switches or hubs. The increased port count ensures that your network remains robust and capable of handling high traffic volumes.

Moreover, the Fortigate 61F supports a variety of port types, including Gigabit Ethernet ports and USB ports. This allows for seamless integration with various devices and peripherals, resulting in a more efficient and productive network environment.

Improved Network Performance

The 10-port count of the Fortigate 61F plays a crucial role in improving network performance. Each port acts as a connection point, enabling data transmission between devices. The more ports available, the higher the capacity for simultaneous data transfer.

This is particularly beneficial in scenarios where multiple users are accessing resources or transferring large files simultaneously. With 10 ports, the Fortigate 61F ensures that your network maintains optimal performance levels under heavy usage. This translates to reduced latency, faster data transfer speeds, and an overall smoother user experience.

Efficient Traffic Segmentation

One of the key advantages of having a 10-port count is the ability to segment network traffic effectively. This means that you can assign specific ports for different purposes or groups within your organization.

For example, you can dedicate one or more ports for guest access, isolating their traffic from the main network. This enhances security and prevents potential threats from spreading to critical systems or sensitive data. Additionally, you can allocate specific ports for servers or high-bandwidth applications, ensuring uninterrupted performance for these crucial resources.

Expandability and Scalability

The 10-port count of the Fortigate 61F provides a solid foundation for network expandability and scalability. As your organization grows and your network requirements evolve, having additional ports readily available simplifies the process of integrating new devices or expanding your infrastructure.

This means that you can easily add new workstations, servers, or other network devices without the need for extensive reconfiguration or investment in additional networking equipment. The Fortigate 61F allows you to scale your network seamlessly, accommodating future growth without compromising performance or security.

Cost-Efficiency

By offering 10 ports, the Fortigate 61F eliminates the need for additional networking hardware in many scenarios. This translates to significant cost savings for businesses and organizations.

Without the requirement for extra switches or hubs, you can allocate your budget towards other critical IT investments. The cost-efficiency of the Fortigate 61F makes it an attractive option for small to medium-sized businesses looking to optimize their network infrastructure without breaking the bank.

In conclusion, the Fortinet Fortigate 61F Security Appliance's 10-port count is a crucial feature that enhances connectivity, improves network performance, enables efficient traffic segmentation, provides expandability and scalability options, and offers cost-efficiency. Whether you are a small business or a larger organization, this feature ensures that your network remains robust, secure, and capable of meeting the demands of modern digital environments.
