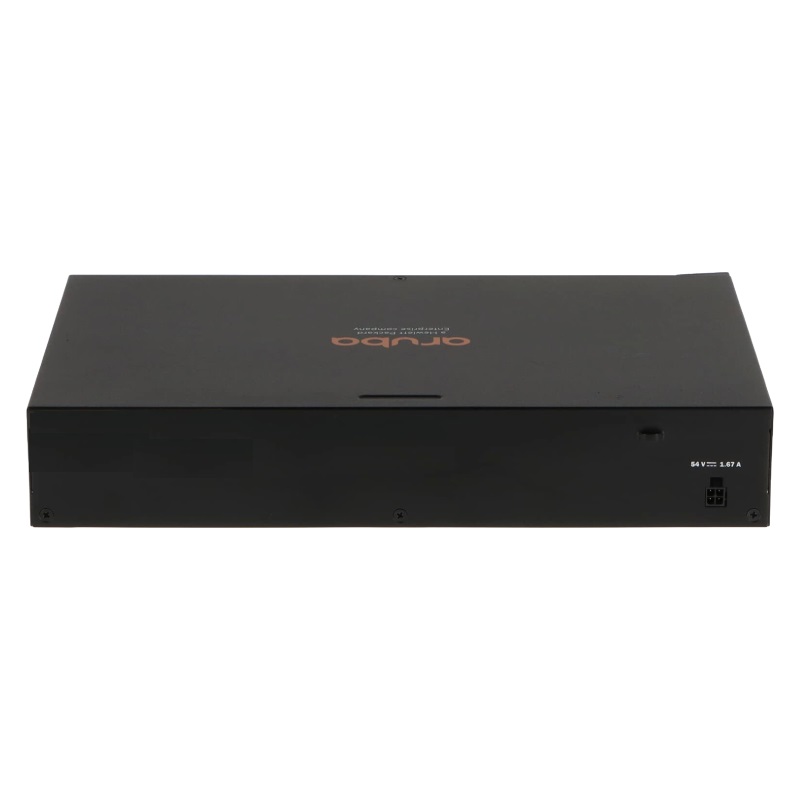

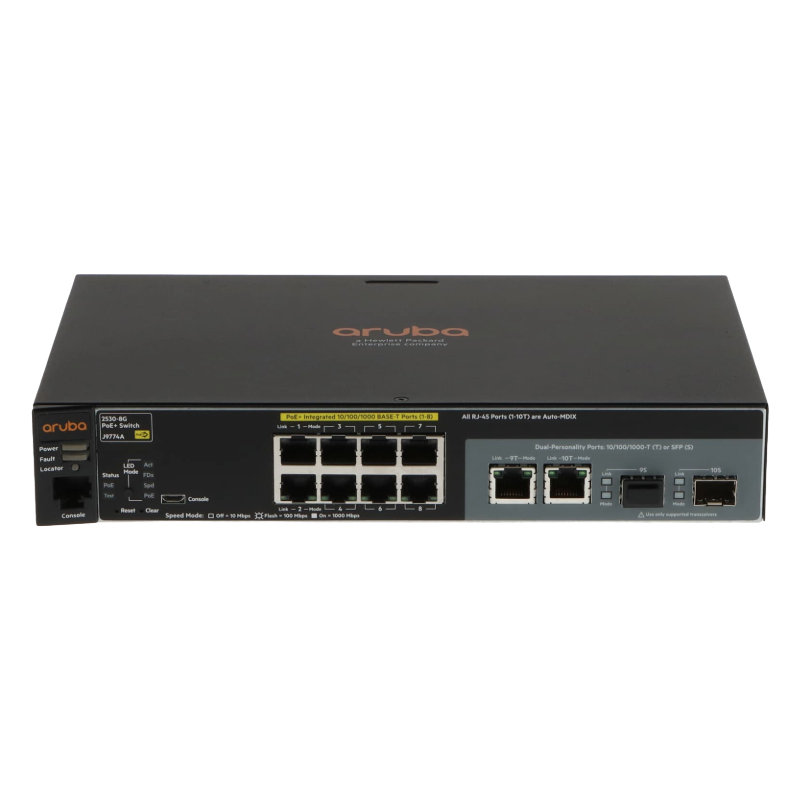

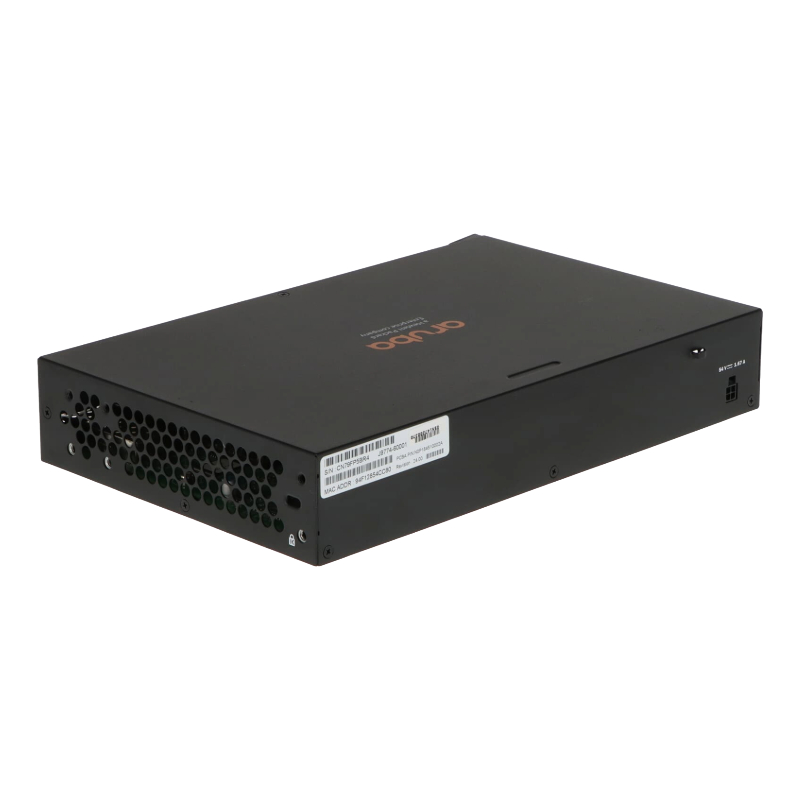

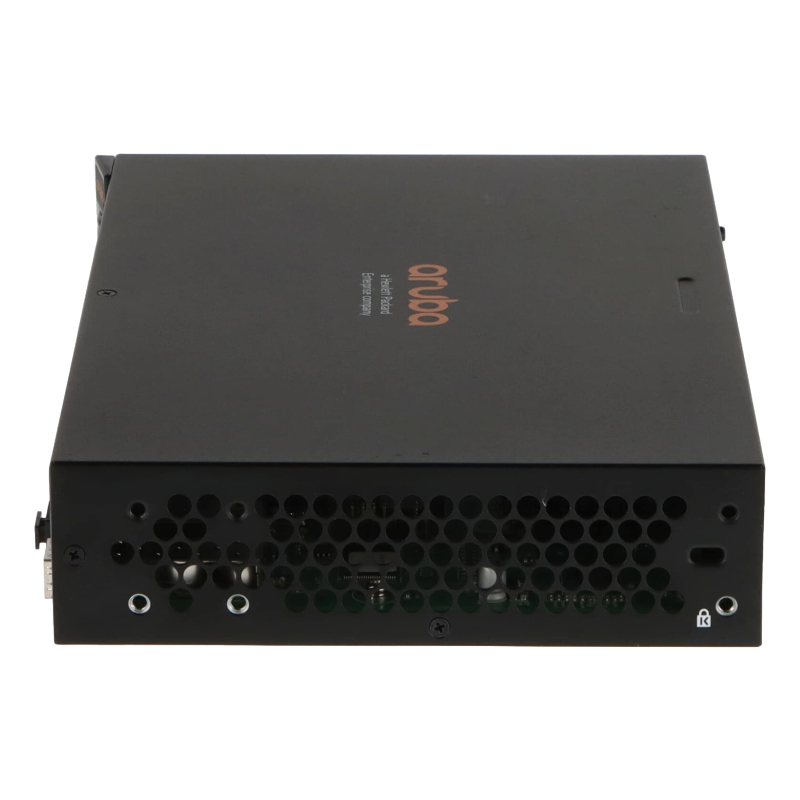

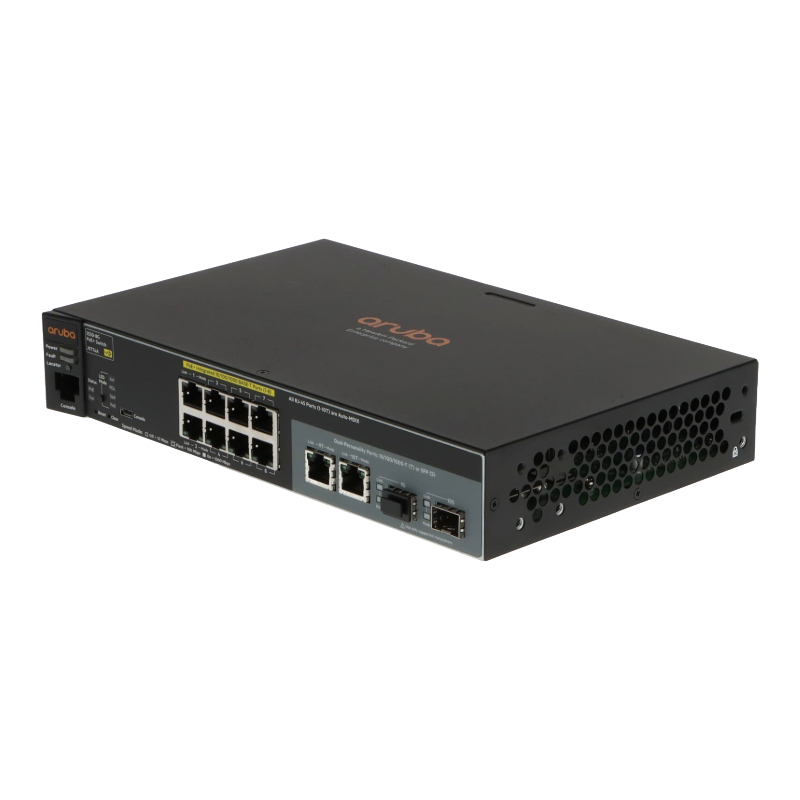

HP J9774-61001 2530 8G PoE Wall-Mountable Switch
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
J9774-61001 | Six-Month (180 Days) | $340.00 | Factory-Sealed New in Original Box (FSB) | You save: $210.00 (38%) |
J9774-61001 | Six-Month (180 Days) | $184.00 | Excellent Refurbished | You save: $141.00 (43%) |
Ports
The HP J9774-61001 Wall-Mountable Switch is equipped with 8 ports, making it an excellent choice for small to medium-sized businesses. These ports offer several benefits and play a crucial role in ensuring seamless connectivity and efficient network management.
Overview of the HP J9774-61001
General Information
The HP J9774-61001 is a managed switch designed to cater to various networking needs. Here’s a comprehensive look at its specifications:
Device Specifications
- Manufacturer: HP
- Part Number: J9774-61001
- Type: Managed Switch
- Ports: 8 x 10/100/1000 (PoE+) and 2 x Combo Gigabit SFP
- Enclosure Types: Desktop, Rack-Mountable, Wall-Mountable 1U
- Power Over Ethernet (PoE): PoE+ with a budget of 67W
- Interfaces: Gigabit Ethernet
Performance Metrics
- Throughput: Up to 14.8 Mpps
- Switching Capacity: 20 Gbps
- MAC Address Table Size: 16,000 entries
- Jumbo Frame Support: Up to 9220 bytes
Remote Management Capabilities
- Supports various protocols including SNMP v1, v2c, and v3
- RMON v1, v2, v3, and v9
- Telnet, HTTP, TFTP, and SSH-2
- Command Line Interface (CLI)
Features and Functionalities
- Flow Control
- DHCP and BOOTP Support
- ARP Support
- VLAN and Trunking Support
- Auto-Uplink (Auto MDI/MDI-X)
- Port Mirroring
- IPv6 Support
- Half Duplex and Full Duplex Modes
- SNTP Support
- SFlow
- Multiple Spanning Tree Protocol (MSTP)
- Access Control Lists (ACL)
- Quality of Service (QoS)
- STP Root Guard
- LLDP Support
- Class of Service (CoS)
- Generic Attribute Registration Protocol (GARP)
Compliance Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1d
- IEEE 802.1q, IEEE 802.3ab
- IEEE 802.1p, IEEE 802.3af
- IEEE 802.3x, IEEE 802.3ad (LACP)
- IEEE 802.1w, IEEE 802.1x
- IEEE 802.1s, IEEE 802.1ab (LLDP)
- IEEE 802.3at, IEEE 802.3az
Power Requirements
- Voltage: AC 120/230V
- Frequency: 50/60 Hz
Enhanced Connectivity
With 8 ports, this switch provides an ample number of connections for various devices such as computers, printers, servers, and other networking equipment. Each port can be used to establish a direct connection with a device, ensuring reliable and high-speed data transfer. This feature is especially beneficial for businesses that require multiple devices to be connected simultaneously.
Flexibility and Scalability
The availability of 8 ports allows for flexibility in network expansion. As the business grows, additional devices can be easily connected to the switch without the need for additional networking equipment. This scalability feature ensures that the switch can accommodate future network expansion requirements, saving both time and money.
Improved Network Efficiency
By distributing the network load across multiple ports, the HP J9774-61001 Wall-Mountable Switch ensures improved network efficiency. Each port can handle a certain amount of traffic, reducing congestion and preventing network bottlenecks. This results in faster data transfer speeds and smoother operation of connected devices.
Reduced Network Downtime
Having 8 ports on the switch provides redundancy in case of any port failures or issues. If one port malfunctions, the other ports continue to function normally, ensuring uninterrupted network connectivity. This redundancy feature is crucial for businesses that rely heavily on a stable network connection to carry out their day-to-day operations.
Port Configuration
Each port on this switch can be individually configured to meet specific networking requirements. Administrators have the flexibility to define settings such as speed and duplex mode to optimize network performance. This level of control ensures that the switch can adapt to the unique needs of the network environment.
Easy Troubleshooting
With 8 ports, troubleshooting network issues becomes easier. Administrators can isolate problems by testing individual ports and identifying any faulty connections. This streamlined troubleshooting process saves valuable time and resources, allowing businesses to quickly resolve network-related issues and minimize downtime.
Enhanced Security
The HP J9774-61001 Wall-Mountable Switch's 8 ports support advanced security features such as access control lists (ACLs) and port security. ACLs enable administrators to define specific rules and policies for each port, restricting unauthorized access and preventing potential security breaches. Port security allows administrators to control which devices can connect to each port, adding an additional layer of protection to the network.
Conclusion
In conclusion, the 8-port configuration of the HP J9774-61001 Wall-Mountable Switch offers enhanced connectivity, flexibility, improved network efficiency, reduced downtime, easy troubleshooting, and enhanced security. This feature makes it an ideal choice for businesses looking for a reliable and scalable networking solution.
Power Over Ethernet
The HP J9774-61001 Wall-Mountable Switch comes equipped with Power over Ethernet (PoE) capabilities on 1 of its ports. This feature provides numerous benefits and plays a vital role in simplifying network setup and powering network devices.
Simplified Network Setup
With PoE, there is no need for separate power cables to be run to each device connected to the switch. The switch itself can provide power to compatible devices through the Ethernet cable, simplifying the overall network setup process. This eliminates the hassle of dealing with multiple power outlets and reduces cable clutter.
Cost Saving
By utilizing the PoE feature, businesses can save on the cost of additional power supplies and electrical infrastructure. The switch can power devices such as IP phones, wireless access points, and IP cameras directly, eliminating the need for individual power adapters. This not only reduces upfront costs but also lowers ongoing maintenance expenses.
Flexibility in Device Placement
PoE allows for greater flexibility in device placement within the network. Since devices can be powered through the Ethernet cable, they are not limited to being located near power outlets. This feature is particularly beneficial for businesses that require devices to be placed in remote or hard-to-reach areas where power sources may be scarce.
Centralized Power Management
With PoE, power management becomes centralized and more efficient. Administrators can monitor and control the power supply to connected devices from a central location, making it easier to manage and troubleshoot any power-related issues. This centralized approach enhances overall network management and ensures optimal device performance.
Power Budgeting
The HP J9774-61001 Wall-Mountable Switch's PoE feature incorporates power budgeting capabilities. Administrators can allocate power to each port based on the specific requirements of connected devices. This ensures that the switch delivers the necessary power to each device without exceeding its maximum power capacity.
Remote Power Cycling
In case of device malfunctions or issues, administrators can remotely power cycle devices connected to PoE ports. This feature allows for quick device restarts without physical intervention, saving time and effort. Remote power cycling is particularly useful in scenarios where devices are located in inaccessible areas or when troubleshooting needs to be done remotely.
Conclusion
The Power over Ethernet (PoE) feature on 1 of the ports of the HP J9774-61001 Wall-Mountable Switch simplifies network setup, reduces costs, provides flexibility in device placement, and enables centralized power management. Whether it's for powering IP phones, wireless access points, or IP cameras, PoE offers convenience and efficiency for businesses of all sizes.
Series
The HP J9774-61001 Wall-Mountable Switch belongs to the 2530 series, which offers a range of benefits and features designed to meet the networking needs of businesses.
Reliable Performance
The 2530 series is known for its reliable performance, ensuring that businesses can rely on a stable and consistent network connection. These switches are built with high-quality components and undergo rigorous testing to meet industry standards. The result is a switch series that delivers reliable performance even under heavy network load.
Advanced Security
Security is a top priority for any business, and the 2530 series doesn't disappoint in this aspect. These switches offer advanced security features such as Access Control Lists (ACLs), protected ports, and Secure Shell (SSH) encryption. ACLs allow administrators to define specific rules for traffic flow, enhancing network security. Protected ports isolate and segregate traffic between devices, preventing unauthorized access. SSH encryption ensures secure remote management of the switch.
Easy Management
The 2530 series switches are designed with ease of management in mind. They come equipped with an intuitive web-based interface that simplifies network configuration and monitoring. Additionally, these switches support industry-standard management protocols such as SNMP (Simple Network Management Protocol), making it easier to integrate them into existing network management systems.
Energy Efficient
In today's environmentally conscious world, energy efficiency is a significant consideration. The 2530 series switches are designed to minimize power consumption without compromising performance. They incorporate features such as Energy Efficient Ethernet (EEE) and idle port power down to reduce energy usage during periods of low network activity. This not only helps businesses reduce their carbon footprint but also lowers energy costs.
Enhanced QoS (Quality of Service)
The 2530 series switches prioritize network traffic using advanced QoS capabilities. Administrators can assign different levels of priority to specific types of network traffic, ensuring that critical applications receive the necessary bandwidth and resources. This feature is particularly important for businesses that rely on real-time applications such as VoIP (Voice over Internet Protocol) or video conferencing.
VLAN Support
Virtual Local Area Networks (VLANs) allow for logical segmentation of the network, improving security and network performance. The 2530 series switches support VLANs, enabling administrators to create separate networks within a single physical infrastructure. This feature provides better control over network access and enhances overall network efficiency.
Conclusion
The HP J9774-61001 Wall-Mountable Switch belonging to the 2530 series offers reliable performance, advanced security features, easy management, energy efficiency, enhanced QoS, and VLAN support. These features make it an excellent choice for businesses that require a high-performing and secure network infrastructure.
