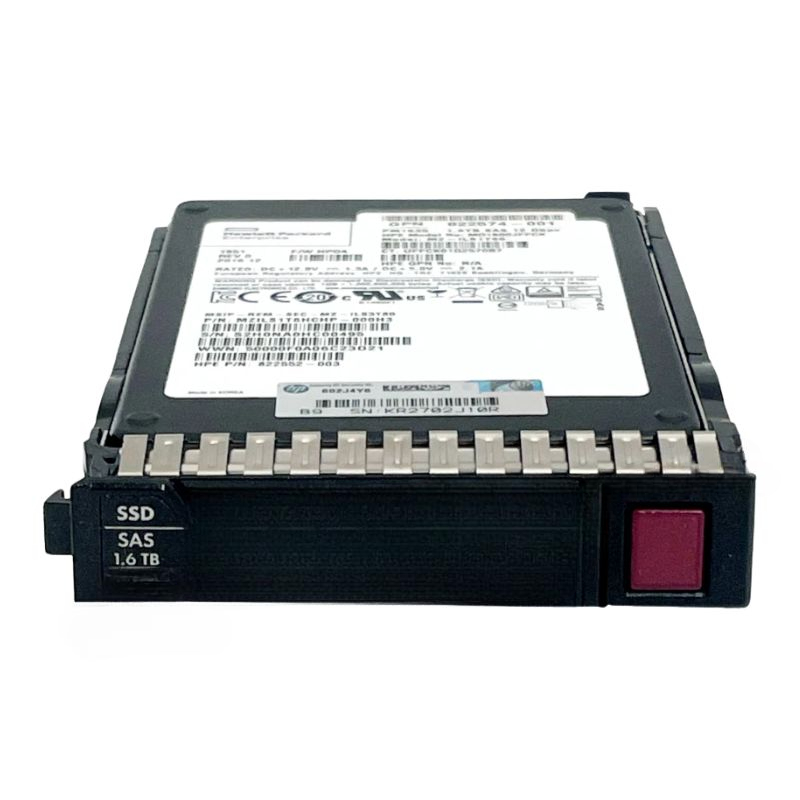

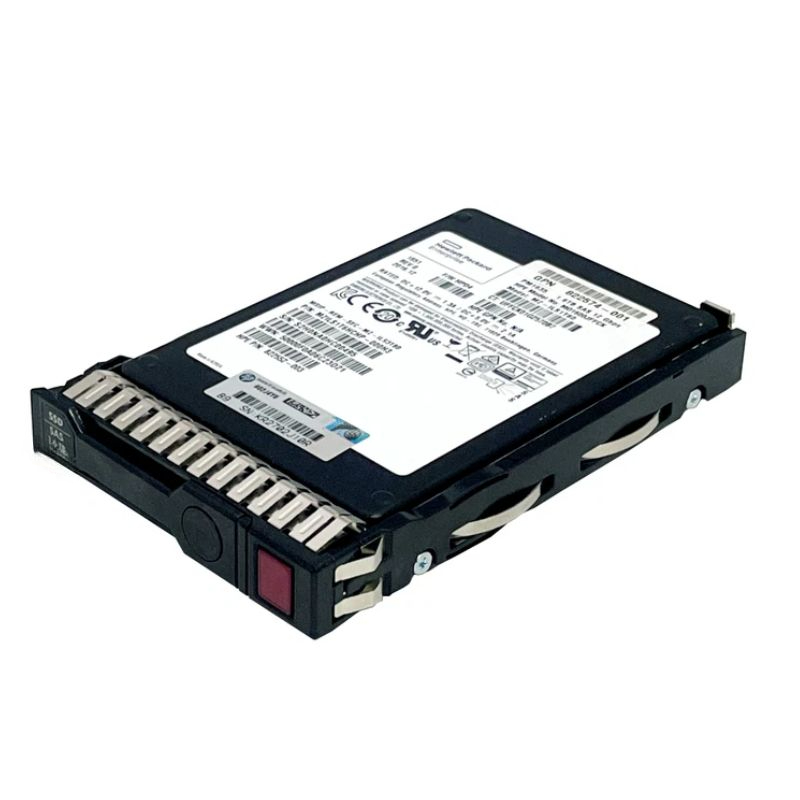

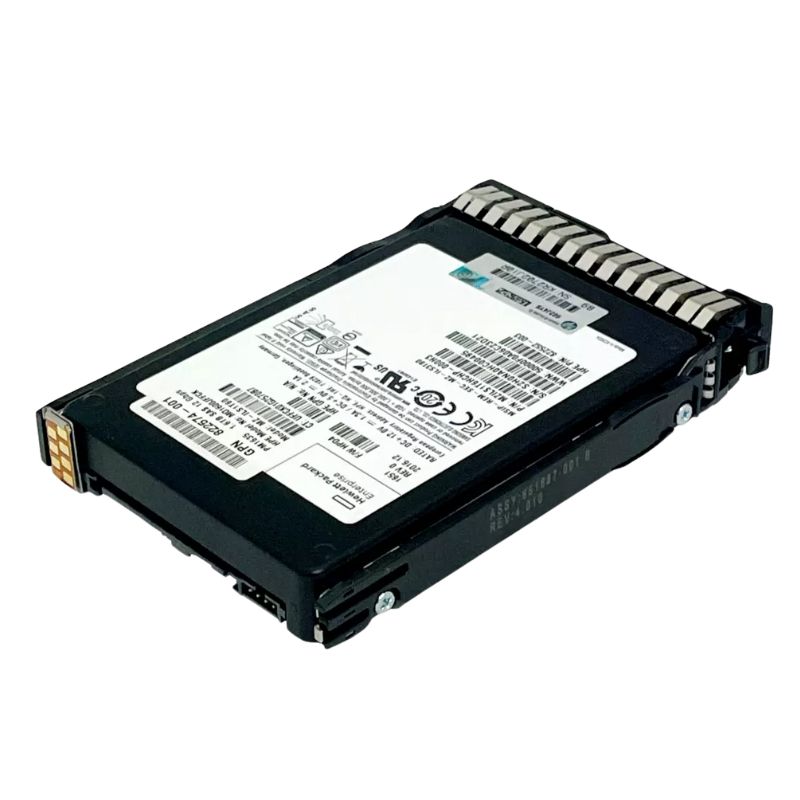

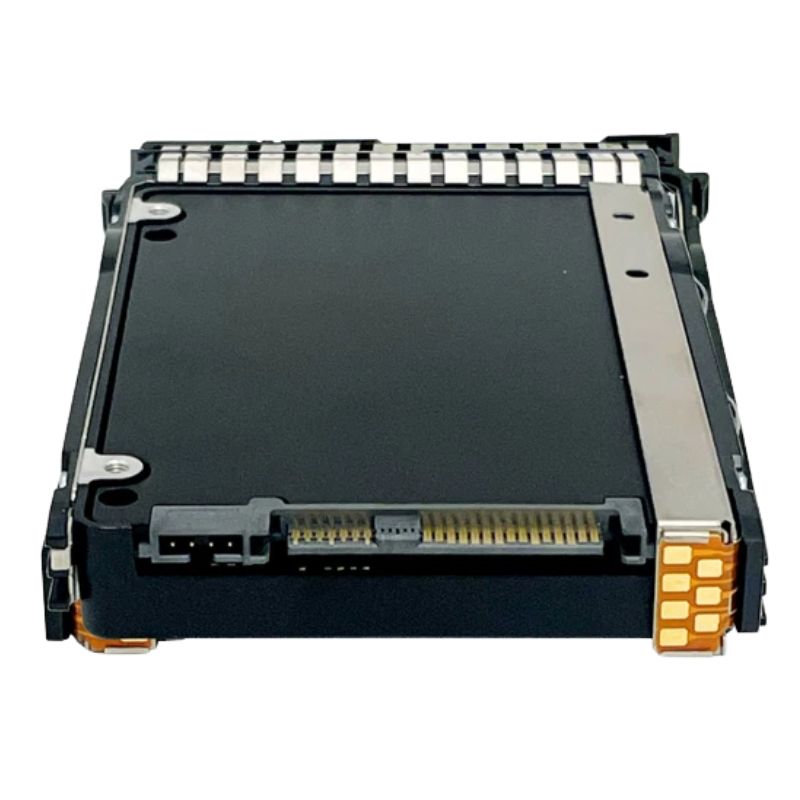

HPE 1.6TB SAS 12GBPS Smart Carrier MLC Mixed Use SSD - P09092-K21

Comprehensive Product Overview

Manufacturer Details

• Brand: HPE
• Model Part Number: P09092-K21
• Type: Solid State Drive (SSD)
• SSD Interface: SAS-12Gbps
• Stock Keeping Unit (SKU): P09092-K21
• Replacement Part Number: P09924-001

Technical Specifications

• Storage Capacity: 1.6 TB
• Form Factor: 2.5 Inch Small Form Factor (SFF)
• Bytes per Sector: 512
• Workload Classification: Mixed Use (MU)
• NAND Flash Type: Multi-Level Cell (MLC)
• Connection Type: Hot Plug
• Carrier Style: Smart Carrier (SC)
• Firmware Features: Digitally Signed Firmware (DS)
• Included Accessories: HPE SmartDrive Carrier
• Drive Height: 15 mm

Performance Metrics

Data Transfer Capabilities

• External Transfer Rate: 12 GB/sec
• Maximum Sequential Read Throughput: 1,095 MiB/s
• Maximum Sequential Write Throughput: 1,045 MiB/s

Endurance and Lifespan

• Total Lifetime Writes: 8,500 TB
• Endurance Rate (DWPD): 3.0 Drive Writes Per Day

Input/Output Operations

• Random Read Average Latency: 100 µSec
• Random Write Average Latency: 33 µSec
• Random Read IOPS (4KiB, Queue Depth = 16): 130,000
• Random Write IOPS (4KiB, Queue Depth = 16): 123,000
• Maximum Random Read IOPS (4KiB): 210,000 @ Queue Depth 32
• Maximum Random Write IOPS (4KiB): 124,000 @ Queue Depth 16

Power Efficiency

Power Consumption Specifications

• Idle Power Usage: 3.00 Watts
• Power during Random Read: 6.30 Watts
• Power during Random Write: 6.30 Watts
• Power during Sequential Read: 5.39 Watts
• Power during Sequential Write: 9.24 Watts
• Random Read/Write Power: 6.30 Watts
• Maximum Power Consumption: 9.24 Watts

Physical Dimensions and Weight

Size Specifications

• Height: 0.63 Inch
• Width: 3.10 Inch
• Depth: 5.45 Inch
• Weight: 1.50 lbs

Compatibility Information

Supported Systems

• HPE ProLiant BL Series:
  • BL460c Gen10 (2.5 Inch)
• HPE ProLiant DL Series:
  • DL325 Gen10 (2.5 Inch)
  • DL325 Gen10 Entry (2.5 Inch)
  • DL325 Gen10 Performance (2.5 Inch)
  • DL325 Gen10 SMB Solution (2.5 Inch)
  • DL360 Gen9 (2.5 Inch)
  • DL385 Gen10 High-Performance (2.5 Inch)
  • DL385 Gen10 Performance (2.5 Inch)
  • DL385 Gen10 Solution (2.5 Inch)
  • DL560 Gen10 (2.5 Inch)
  • DL560 Gen10 Base (2.5 Inch)
  • DL560 Gen10 Entry (2.5 Inch)
  • DL560 Gen10 Performance (2.5 Inch)
  • DL580 Gen10 (2.5 Inch)
  • DL580 Gen10 Base (2.5 Inch)
  • DL580 Gen10 Entry (2.5 Inch)
  • DL580 Gen10 Performance (2.5 Inch)
• HPE ProLiant ML Series:
  • ML110 Gen10 (2.5 Inch)
  • ML110 Gen10 Entry (2.5 Inch)
  • ML110 Gen10 Performance (2.5 Inch)
  • ML110 Gen10 Solution (2.5 Inch)
  • ML30 Gen10 (2.5 Inch)
  • ML30 Gen10 Entry (2.5 Inch)
  • ML30 Gen10 Performance (2.5 Inch)
  • ML30 Gen10 Solution (2.5 Inch)
  • ML30 Gen9 (2.5 Inch)
  • ML30 Gen9 Base (2.5 Inch)
  • ML30 Gen9 Entry (2.5 Inch)
  • ML30 Gen9 Performance (2.5 Inch)
  • ML30 Gen9 Solution (2.5 Inch)
• HPE ProLiant XL Series:
  • XL190r Gen10 (2.5 Inch)
  • XL230k Gen10 Compute Tray (2.5 Inch)
  • XL270d Gen10 (2.5 Inch)
• HPE Synergy:
  • 480 Gen10 Base Compute Module (2.5 Inch)
  • 480 Gen10 Compute Module (2.5 Inch)
  • 480 Gen10 Entry Compute Module (2.5 Inch)
  • 480 Gen10 Performance Compute Module (2.5 Inch)
  • 480 Gen10 Premium Backplane Compute Module (2.5 Inch)
  • 480 Gen10 Standard Backplane Compute Module (2.5 Inch)
  • 480 Gen10 Without Drives Compute Module (2.5 Inch)

Capacity

The HPE P09092-K21 SSD boasts a remarkable capacity of 1.6TB, making it an outstanding storage solution for users who require ample space for their data. With such a vast amount of storage available, users can store and access a substantial amount of data, including large files, documents, images, videos, and more.

Benefits of 1.6TB Capacity

The immense capacity of 1.6TB offers several benefits to users:

1. Ample Storage Space

With 1.6TB at their disposal, users can store a large number of files without worrying about running out of space. This is particularly beneficial for professionals who work with high-resolution images or videos, as these files tend to occupy a significant amount of storage.

2. Enhanced Productivity

Having abundant storage space allows users to keep all their essential files in one place, making it easier to organize and access them whenever needed. This enhances productivity by eliminating the time wasted searching for specific files across multiple drives or devices.

3. Flexibility for Future Growth

The 1.6TB capacity ensures that users have sufficient room for future data growth. As businesses expand and personal requirements evolve, the need for additional storage becomes inevitable. With this SSD, users can confidently accommodate their growing data needs without the hassle of constantly upgrading or adding more storage devices.

4. Improved Performance

Having ample storage space on a high-performance SSD like the HPE P09092-K21 allows for faster read and write speeds. This translates into improved overall system performance, reduced load times for applications and files, and seamless multitasking capabilities.

Importance of 1.6TB Capacity

The importance of the 1.6TB capacity lies in its ability to meet the ever-increasing storage demands of modern users. Whether it's for personal or professional use, having a substantial amount of storage at your disposal ensures a smooth and efficient workflow. Users can store and access their data without constraints, ultimately enhancing productivity and enabling them to focus on their tasks at hand.

Interface

The HPE P09092-K21 SSD features a cutting-edge SAS 12GBPS interface, providing users with a high-speed and reliable connection between the SSD and their system. This interface offers exceptional data transfer rates, ensuring quick access to stored data and seamless performance.

Benefits of SAS 12GBPS Interface

The SAS 12GBPS interface offers several benefits to users:

1. Lightning-Fast Data Transfer

With a transfer rate of 12GBPS, the SAS interface allows for lightning-fast data transfers. Users can quickly move large files or perform data-intensive tasks without experiencing any significant delays. This is particularly advantageous for professionals who work with resource-intensive applications or regularly deal with massive datasets.

2. Reliable Connection

The SAS 12GBPS interface ensures a stable and reliable connection between the SSD and the system. This minimizes the risk of data loss or corruption during transfer, ensuring that users can rely on their SSD for secure storage and retrieval of their critical files.

3. Compatibility

The SAS interface is widely supported by various systems and devices, making it highly compatible with a range of hardware configurations. Users can seamlessly integrate the HPE P09092-K21 SSD into their existing systems without worrying about compatibility issues, simplifying the upgrade process or adding additional storage to their setup.

4. Scalability

The SAS interface provides scalability options, allowing users to connect multiple SSDs or expand their storage capacity effortlessly. This flexibility is particularly valuable for businesses or individuals who anticipate future storage expansion needs.

Importance of SAS 12GBPS Interface

The SAS 12GBPS interface plays a crucial role in delivering exceptional performance and reliability to users. Its high data transfer rates, compatibility, and scalability make it an essential feature for those who require fast and efficient storage solutions. By leveraging this interface, users can experience seamless data access, improved system performance, and the ability to handle demanding workloads with ease.

Carrier

The HPE P09092-K21 SSD comes equipped with a smart carrier, providing enhanced protection and convenience for users. The smart carrier design offers several benefits that ensure the safety and ease of use of the SSD.

Benefits of Smart Carrier

The smart carrier design offers the following advantages:

1. Enhanced Physical Protection

The smart carrier provides an additional layer of physical protection to the SSD. It shields the drive from accidental damage during handling or installation, reducing the risk of data loss or hardware failure. This added protection ensures that users' valuable data remains safe and secure.

2. Easy Installation and Removal

The smart carrier simplifies the installation and removal process of the SSD. Its user-friendly design allows for effortless installation into compatible systems or servers. Users can easily slide the SSD into place, securing it without the need for additional tools or complicated procedures.

3. Hot-Swap Capability

The smart carrier enables hot-swap capability, allowing users to replace or upgrade the SSD without powering down the system. This feature is particularly beneficial for businesses or individuals who require uninterrupted access to their data and cannot afford downtime for maintenance or upgrades.

4. Clear Identification

The smart carrier is designed with clear identification labels, making it easy to identify the specific SSD model or capacity. This eliminates any confusion when managing multiple drives or when troubleshooting issues, saving time and effort.

Importance of Smart Carrier

The smart carrier adds value to the HPE P09092-K21 SSD by providing physical protection, ease of installation, hot-swapping capabilities, and clear identification. These features enhance the overall user experience, ensuring that users can safeguard their data effectively, streamline their SSD management, and perform necessary upgrades without any hassle.

Technology

The HPE P09092-K21 SSD utilizes Multi-Level Cell (MLC) technology to deliver exceptional performance and reliability. MLC technology offers a balance between cost-effectiveness and performance, making it an ideal choice for users who require high-speed storage without compromising on affordability.

Benefits of MLC Technology

MLC technology provides several benefits to users:

1. Cost-Effective Solution

Compared to other solid-state drive technologies, MLC offers a cost-effective solution without sacrificing performance. It strikes a balance between affordability and speed, making it an attractive option for budget-conscious users who still demand reliable and fast storage.

2. Enhanced Performance

MLC technology offers improved performance compared to traditional hard drives. It provides faster read and write speeds, allowing for quick access to data and reduced load times for applications. This ensures a smooth and responsive user experience, especially when dealing with resource-intensive tasks or large datasets.

3. Reliable Data Retention

MLC technology has undergone significant advancements to ensure better endurance and data retention. The HPE P09092-K21 SSD utilizes advanced error correction algorithms and wear-leveling techniques, minimizing the risk of data corruption or loss over time. Users can trust that their valuable data will remain intact and accessible for an extended period.

4. Energy Efficiency

MLC technology is known for its energy efficiency, consuming less power compared to traditional hard drives. This not only reduces electricity costs but also contributes to a greener environment by minimizing energy consumption and heat generation.

Importance of MLC Technology

MLC technology offers a compelling solution for users who seek a cost-effective yet high-performance storage option. Its balance between affordability, enhanced performance, reliable data retention, and energy efficiency makes it a popular choice for various applications. The HPE P09092-K21 SSD's utilization of MLC technology ensures users can enjoy the benefits of fast and reliable storage without breaking the bank.

Use

The HPE P09092-K21 SSD is specifically designed for mixed-use applications, making it an ideal choice for users who require a versatile storage solution capable of handling a wide range of workloads.

Benefits of Mixed Use

The mixed-use capability offers several benefits to users:

1. Versatility

The mixed-use SSD is designed to handle a variety of workloads, making it suitable for diverse applications. Whether users need storage for virtualization, databases, multimedia editing, or general computing, the HPE P09092-K21 SSD can deliver the necessary performance and reliability.

2. Optimal Performance

Mixed-use SSDs are engineered to provide a balance between read and write operations, ensuring optimal performance for a wide range of workloads. This versatility allows users to experience fast and responsive storage regardless of the applications or tasks they are working on.

3. Cost Efficiency

By offering a single SSD that can handle various workloads, mixed-use storage solutions eliminate the need for multiple specialized drives. This results in cost savings for users, as they no longer need to invest in different SSDs for different applications or workloads.

4. Future-Proofing

The mixed-use capability future-proofs users' storage needs by accommodating evolving workloads and application requirements. As technology advances and workloads become more demanding, the HPE P09092-K21 SSD can adapt to changing needs, reducing the need for frequent upgrades or replacements.

Importance of Mixed Use

The mixed-use capability of the HPE P09092-K21 SSD ensures that users can confidently handle diverse workloads without compromising performance or cost-efficiency. Its versatility, optimal performance, cost savings, and future-proofing capabilities make it a valuable solution for individuals and businesses alike, allowing them to streamline their storage infrastructure and meet evolving demands effectively.
