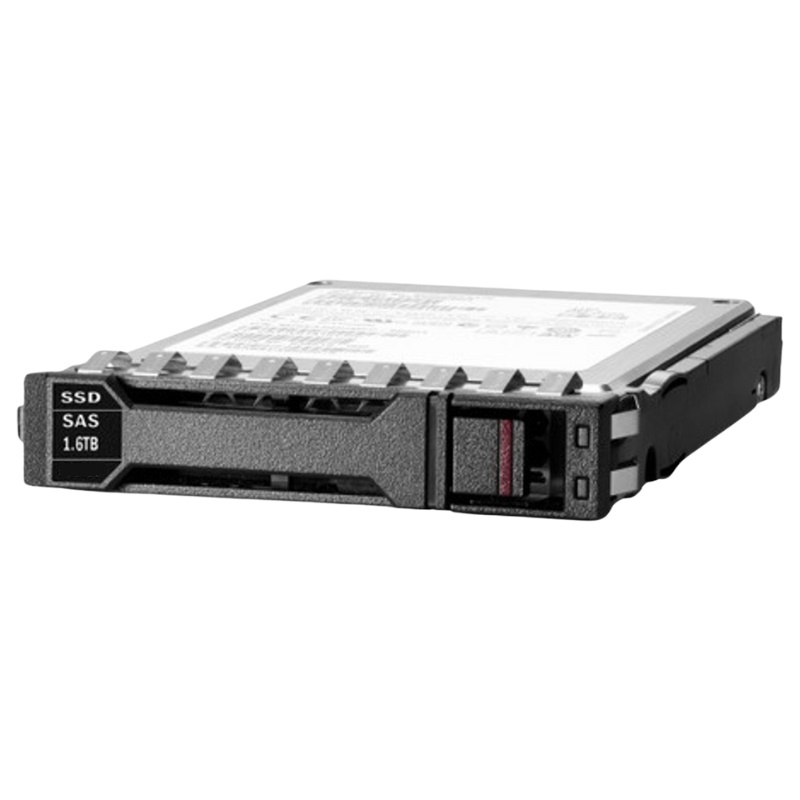

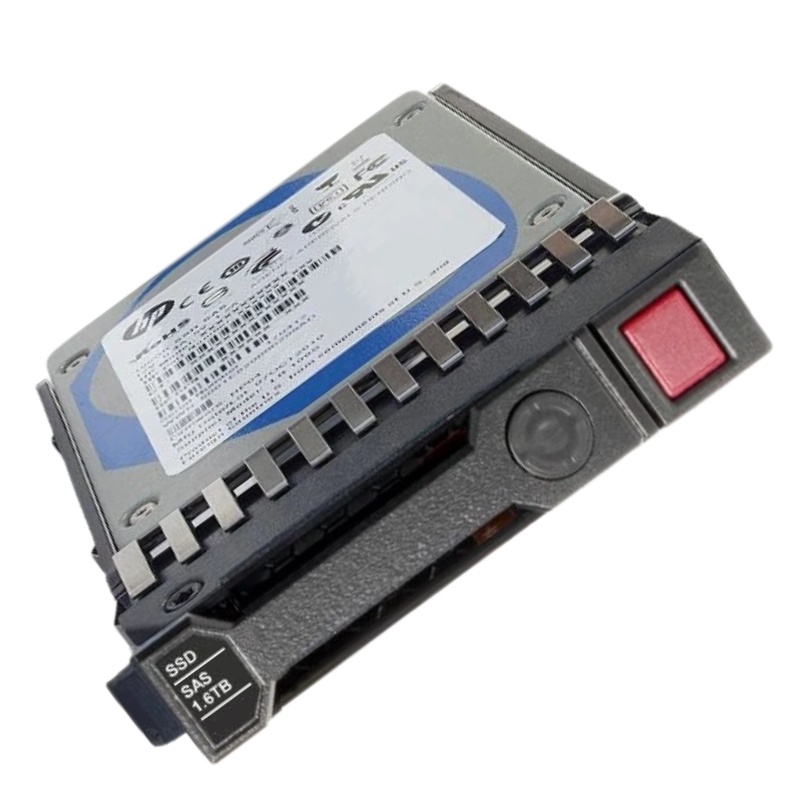

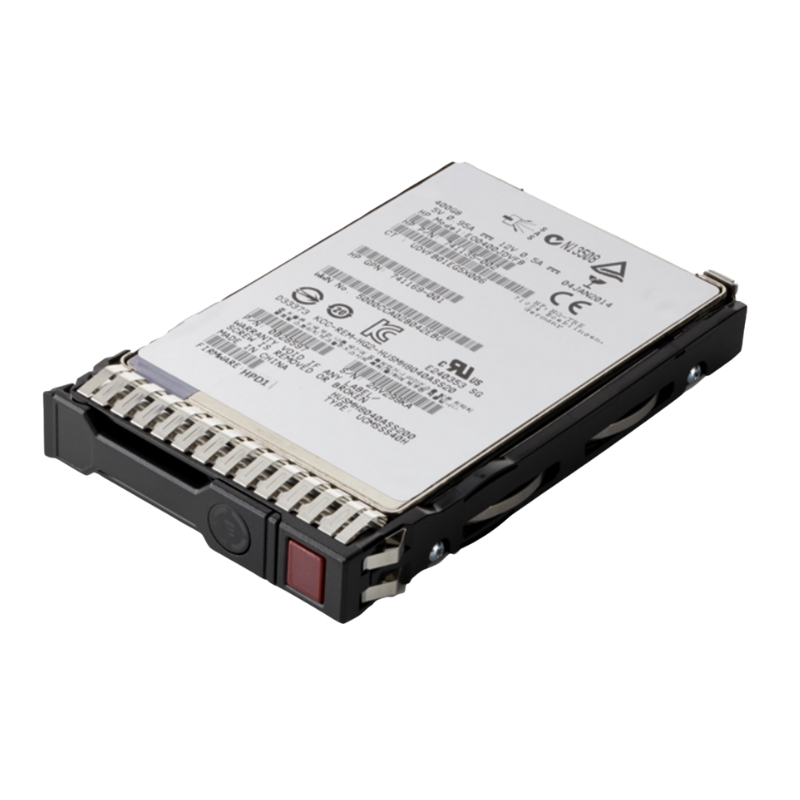

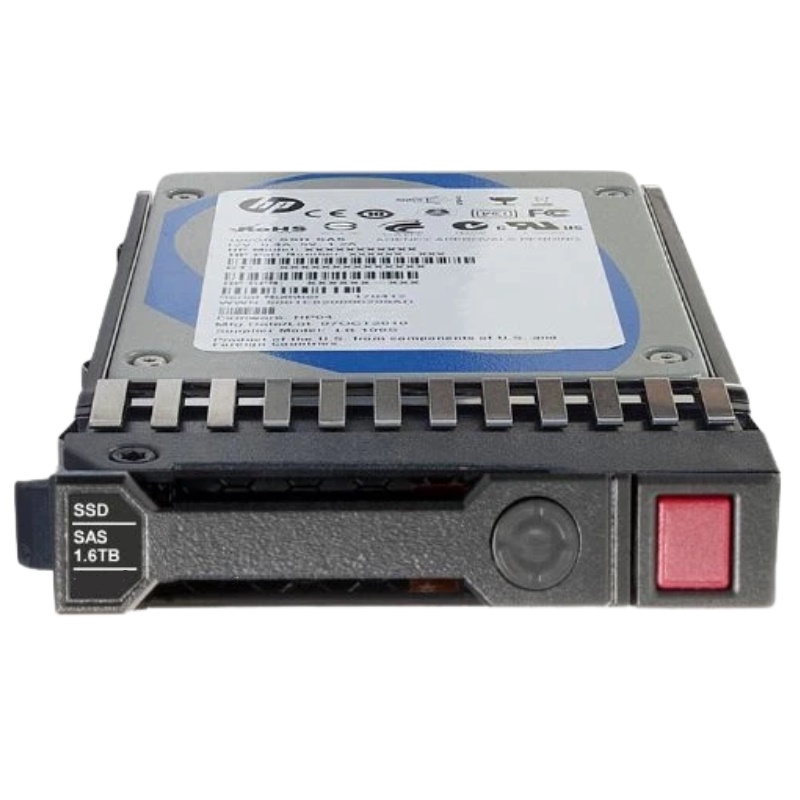

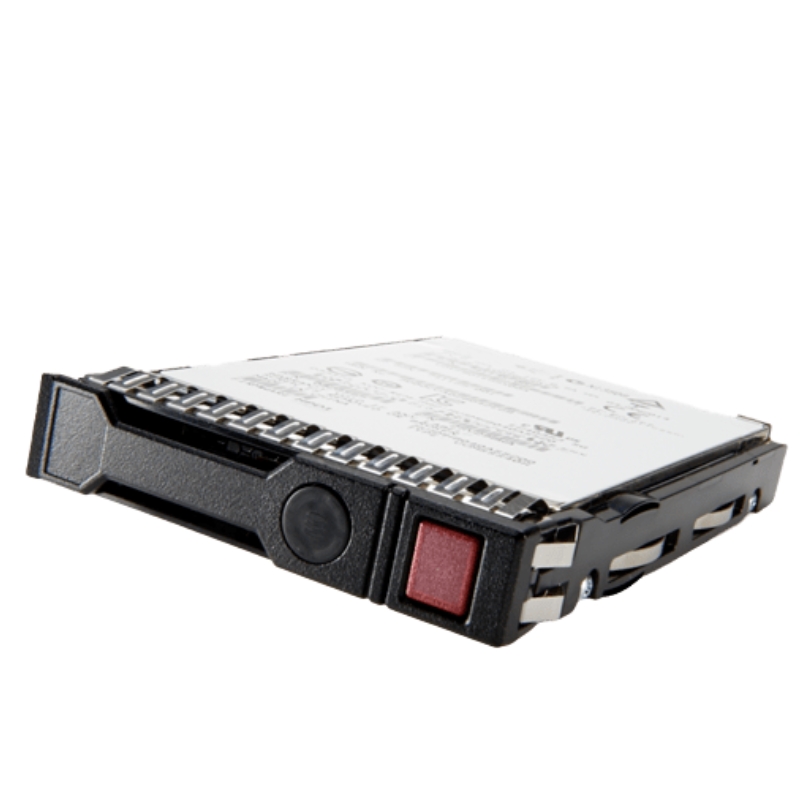

HPE 3.5" DS SAS-12GBPS G9 G10 SSD 1.6TB P04535-K21

P04535-K21
Hover on image to enlarge

Brief Overview of P04535-K21

HPE 3.5inch DS SAS-12GBPS LPC Form Factor G9 G10 SSD 1.6TB P04535-K21. New (System) Pull

QR Code of HPE 3.5" DS SAS-12GBPS G9 G10 SSD 1.6TB P04535-K21
$1,552.50
$1,112.00
You save: $440.50 (28%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP04535-K21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Overview of the HPE P04535-K21

General Information

  • Brand: HPE
  • Part Number: P04535-K21
  • Spare Part Number: P06581-001
  • Model Number: MO001600JWTBT
  • Assembly Number: P04174-003

Device Characteristics

  • Type: Solid State Drive (Hot-Swap)
  • Storage Capacity: 1.6 TB
  • Form Factor: 3.5-inch LFF
  • Interface: SAS 12Gbps
  • NAND Flash Technology: Triple-Level Cell (TLC)
  • Connectivity: Dual Port
  • Plug Type: Hot Pluggable
  • Carrier Type: Low Profile Converter (LPC)
  • Workload Type: Mixed Use
  • Included: HPE Low Profile Converter (LPC)
  • Firmware Features: Digitally Signed
  • Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
  • Height: 15.00 mm

Performance Metrics

  • 30-Day Write Capacity: 8760 writes
  • Endurance (DWPD): 3 Drive Writes Per Day
  • External Transfer Rate: 12 Gb/sec
  • Random Read IOPS (4KiB, Q=16): 109,000
  • Max Random Read IOPS (4KiB): 165,000 at Q32
  • Random Write IOPS (4KiB, Q=16): 105,000
  • Max Random Write IOPS (4KiB): 105,000 at Q16
  • Maximum Sequential Read Throughput: 1075 MiB/s
  • Maximum Sequential Write Throughput: 1030 MiB/s
  • Random Read Average Latency (4KiB, Q1): 135 µSec
  • Random Write Average Latency (4KiB, Q1): 35 µSec

Expansion and Connectivity Options

  • SAS Interface: 1 x 12 Gb/s
  • Compatible Bay Size: 3.5-inch LFF

Power Consumption Details

  • Idle Power Usage: 5.00 Watts
  • Random Read Power Consumption: 6.00 Watts
  • Random Write Power Consumption: 6.00 Watts
  • Sequential Read Power Usage: 6.98 Watts
  • Sequential Write Power Usage: 6.98 Watts
  • Random Read/Write Power Usage: 5.43 Watts
  • Maximum Power Consumption: 8.98 Watts

Physical Dimensions and Weight

  • Height: 5.50 inches (13.97 cm)
  • Width: 7.25 inches (18.41 cm)
  • Depth: 8.75 inches (22.23 cm)
  • Weight: 3.00 lbs (1.36 kg)

Form Factor: 3.5 Inch

The form factor of a solid-state drive (SSD) is an essential specification to consider when choosing storage devices for your server or computer. The HPE P04535-K21 SSD features a 3.5-inch form factor, which offers several benefits and advantages for users.

Compact Design

The 3.5-inch form factor of the HPE P04535-K21 SSD provides a compact design that allows for easy installation and integration into various server configurations. It is especially advantageous for servers with limited space, where optimizing the available area is crucial. With its smaller size, this SSD can be effortlessly fitted into tight spaces without compromising on performance or reliability.

Increased Storage Density

Despite its compact size, the 3.5-inch form factor of the HPE P04535-K21 SSD offers impressive storage density. It can accommodate a significant amount of data in a single drive, making it an ideal choice for users who require high-capacity storage solutions. With a capacity of 1.6TB, this SSD can handle large volumes of data, ensuring that you have ample space to store your critical files, applications, and databases.

Compatibility

The 3.5-inch form factor is widely supported by various server and computer systems, ensuring compatibility with your existing infrastructure. Whether you are upgrading your current storage configuration or building a new server from scratch, the HPE P04535-K21 SSD's 3.5-inch form factor will likely be compatible with your hardware setup, eliminating any concerns about compatibility issues.

Easy Replacement and Upgrade

Another advantage of the 3.5-inch form factor is its ease of replacement and upgrade. If you need to replace an existing drive or add additional storage capacity to your server, the 3.5-inch form factor makes it simple to swap out drives without major modifications. This convenience saves time and effort, allowing for seamless upgrades or maintenance activities.

Efficient Cooling

The larger size of the 3.5-inch form factor allows for better heat dissipation compared to smaller form factors. This improved cooling capability is crucial for maintaining optimal performance and longevity of the SSD. By effectively dissipating heat, the 3.5-inch form factor helps prevent thermal throttling and ensures reliable operation even during heavy workloads.

Enhanced Durability

The 3.5-inch form factor provides additional space for robust construction and durability. The larger physical dimensions allow for stronger internal components, reducing the risk of damage from shocks, vibrations, and other environmental factors. This increased durability ensures that the HPE P04535-K21 SSD can withstand demanding operating conditions, offering reliable performance and data integrity.

Flexibility in Server Configurations

The 3.5-inch form factor offers flexibility in server configurations, allowing users to customize their storage setups according to their specific requirements. Whether you need to build a high-capacity storage array or a compact server with limited drive bays, the 3.5-inch form factor can adapt to different configurations, providing versatility in storage deployment.

Future-Proof Investment

Investing in a storage solution with a 3.5-inch form factor ensures future-proofing your infrastructure. As this form factor remains widely used and supported in the industry, it guarantees compatibility with future server and computer systems. By choosing the HPE P04535-K21 SSD with a 3.5-inch form factor, you can be confident that your investment will serve you well for years to come.

Interface: SAS-12GBPS

The interface of a solid-state drive (SSD) plays a crucial role in determining its performance, compatibility, and overall usability. The HPE P04535-K21 SSD features a SAS-12GBPS interface, which offers numerous benefits and advantages for users.

High Data Transfer Speeds

The SAS-12GBPS interface of the HPE P04535-K21 SSD enables exceptional data transfer speeds. With a maximum transfer rate of 12 gigabits per second (Gbps), this interface ensures fast and efficient data transmission between the drive and the server or computer system. Whether you are running resource-intensive applications or handling large files, the high data transfer speeds provided by the SAS-12GBPS interface minimize latency and significantly improve overall system performance.

Compatibility

The SAS-12GBPS interface is widely supported by modern server and storage systems, ensuring compatibility with various hardware configurations. Whether you are upgrading your existing infrastructure or building a new server, the HPE P04535-K21 SSD's SAS-12GBPS interface will likely be compatible with your system, eliminating concerns about compatibility issues or the need for additional adapters.

Scalability

The SAS-12GBPS interface offers excellent scalability, allowing you to expand your storage capacity as your needs grow. This interface supports daisy-chaining multiple drives together, enabling seamless expansion of your storage array without significant reconfigurations. Whether you need to add more drives to your existing setup or build a new storage array from scratch, the SAS-12GBPS interface provides the flexibility to scale your storage capacity efficiently.

RAID Support

The SAS-12GBPS interface is well-suited for RAID (Redundant Array of Independent Disks) configurations. RAID allows you to combine multiple drives into an array for enhanced performance, reliability, and data protection. The high data transfer speeds and compatibility of the SAS-12GBPS interface make it an excellent choice for RAID setups, ensuring optimal performance and fault tolerance.

Efficient I/O Operations

The SAS-12GBPS interface offers efficient input/output (I/O) operations, allowing for faster data access and reduced latency. This is especially crucial in environments where quick access to data is essential, such as database servers or high-traffic websites. The superior I/O capabilities of the SAS-12GBPS interface ensure that your applications and workloads can access data rapidly, resulting in improved responsiveness and user experience.

Reliability and Data Integrity

The SAS-12GBPS interface provides robust error detection and correction mechanisms, ensuring data integrity and minimizing the risk of data loss or corruption. The interface's advanced error checking capabilities help identify and correct errors during data transmission, enhancing the overall reliability of the HPE P04535-K21 SSD. By maintaining data integrity, this interface ensures the safe storage and retrieval of critical information.

Industry Standard

The SAS-12GBPS interface is an industry-standard for enterprise storage solutions, widely adopted by leading manufacturers and organizations. Choosing an SSD with a SAS-12GBPS interface ensures compatibility with a broad range of systems and avoids vendor lock-in. This standardization provides peace of mind, knowing that you can integrate the HPE P04535-K21 SSD seamlessly into your existing infrastructure or future-proof your storage investments.

Future Compatibility

The SAS-12GBPS interface offers excellent future compatibility, as it remains a prevalent interface in modern storage technologies. By selecting an SSD with this interface, you can confidently invest in a storage solution that will remain compatible with upcoming server and storage systems. This future compatibility ensures that your infrastructure can adapt to evolving technology trends without the need for significant upgrades or replacements.

Features
Product/Item Condition:
New (System) Pull
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
