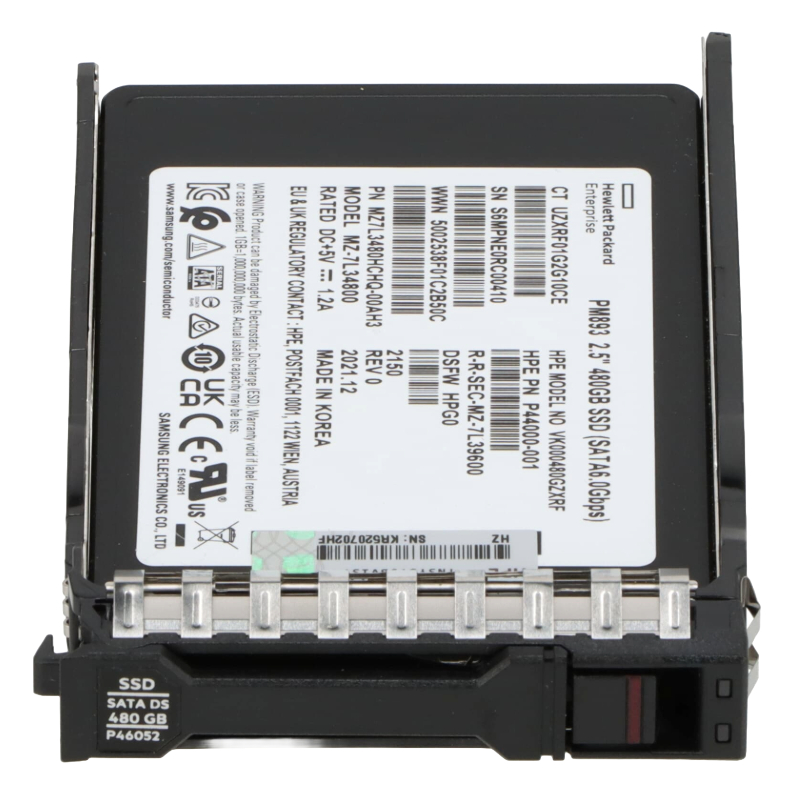

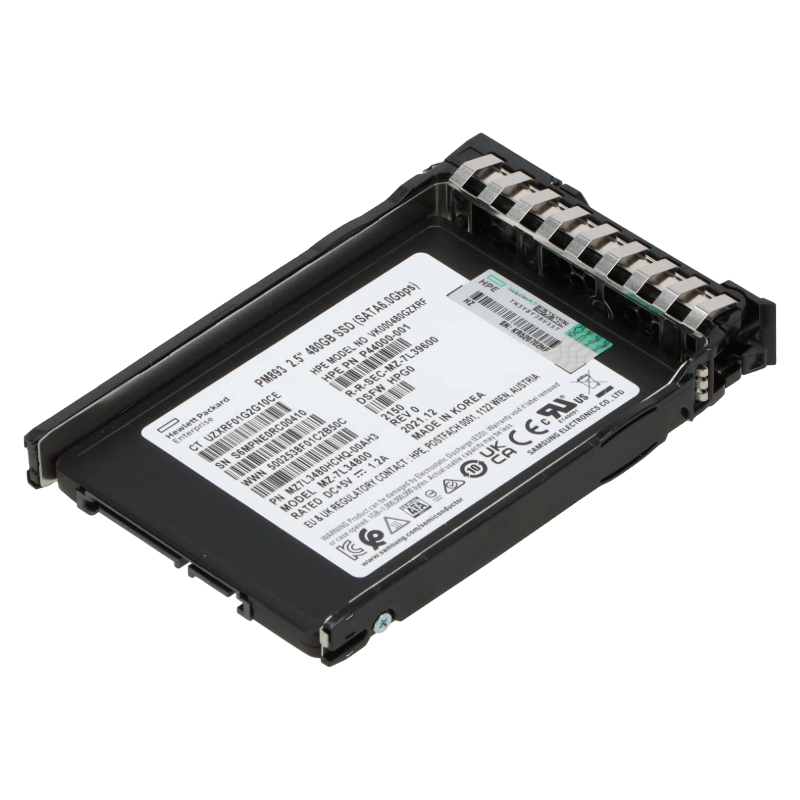

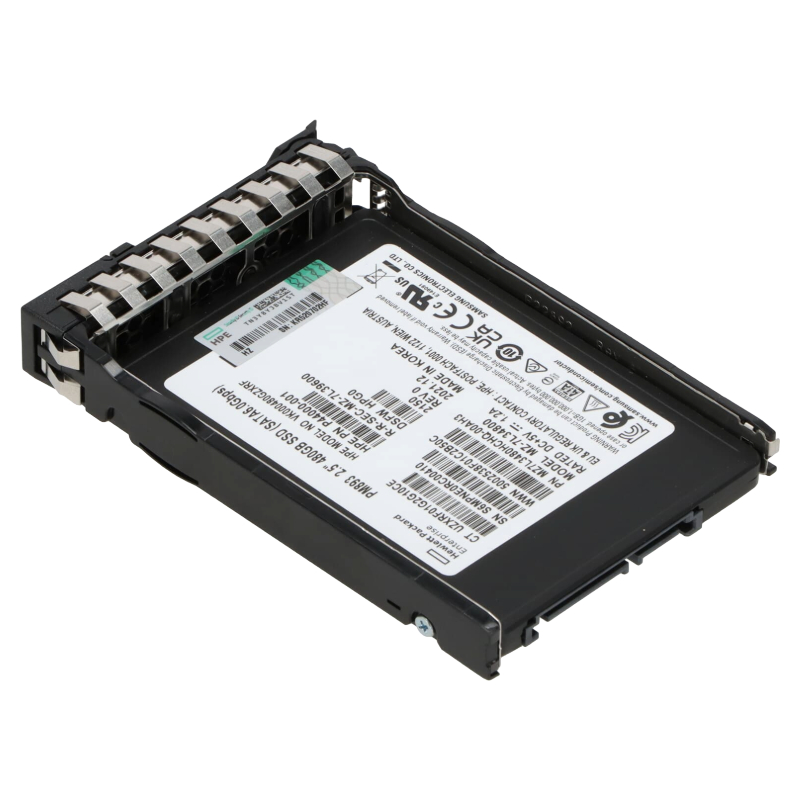

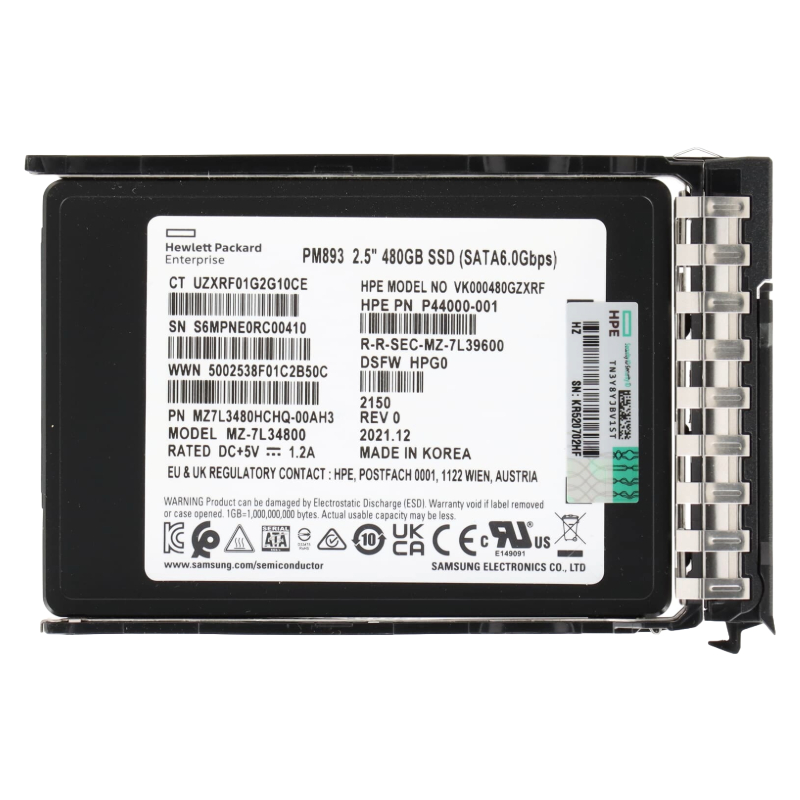

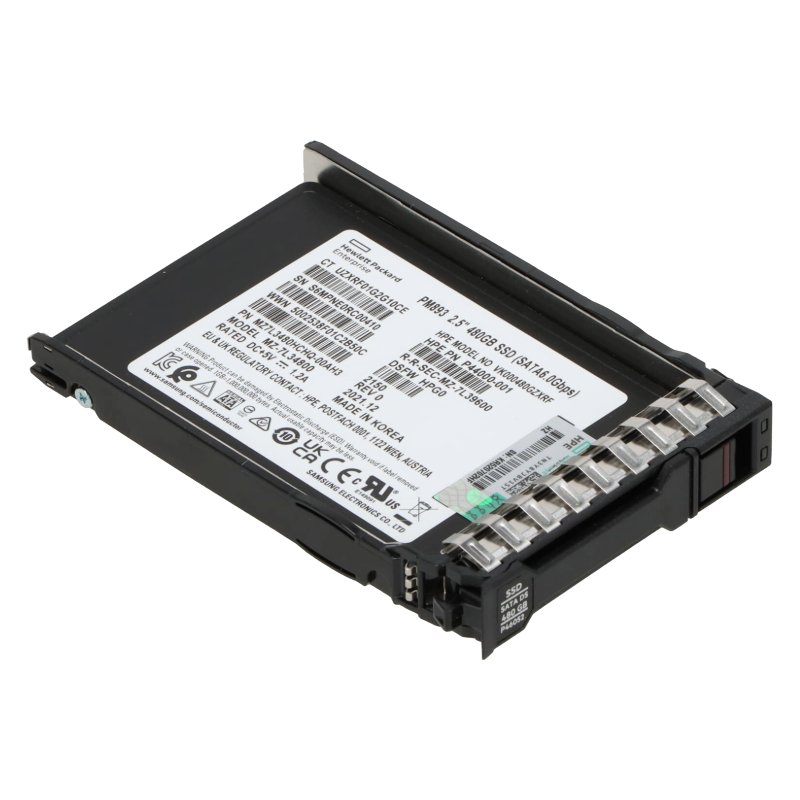

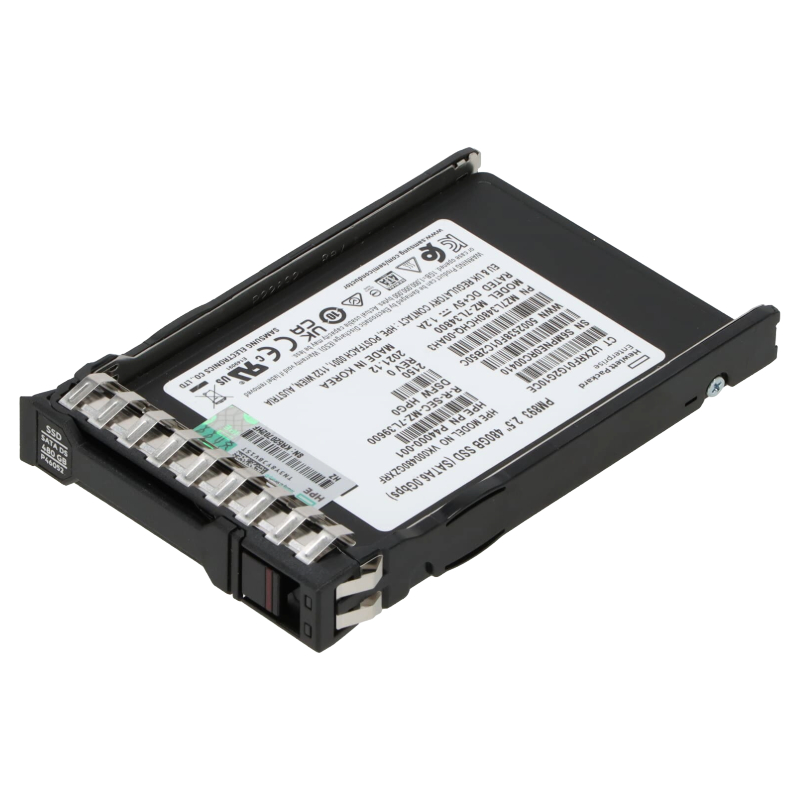

HPE 480GB SSD SATA 6GBPS SC Internal SFF MLC P05320-001

Product Overview

The HPE P05320-001 Read Intensive Solid State Drive is engineered for high-performance computing. This compact 2.5-inch SSD features a 480 GB capacity and supports a robust 6 Gbps data transfer rate. Utilizing a SATA-6Gbps interface, this Small Form Factor (SFF) SSD is optimized for read-intensive workloads.

General Information

• Brand: HPE
• Model Number: P05320-001
• Option Part Number: P04560-B21
• Spare Part Number: P05320-001
• Assembly Number: P02760-002
• Device Type: Hot-Swap Solid State Drive

Technical Specifications

• Storage Capacity: 480 GB
• Form Factor: 2.5-inch SFF
• Interface: SATA 6Gbps
• Workload Type: Read Intensive
• Carrier Type: Smart Carrier (SC)
• NAND Flash Memory: TLC (Triple-Level Cell)
• Connection Type: Single Port
• Plug Type: Hot Plug
• Height: 7 mm

Performance Metrics

Endurance and Transfer Rates

• Daily Writes for 30 Days: 700
• Drive Writes Per Day (DWPD): 0.80
• External Drive Transfer Rate: 600 MB/s
• Maximum Sequential Read Throughput: 535 MiB/s
• Maximum Sequential Write Throughput: 495 MiB/s

IOPS and Latency

• Random Read Average Latency (4KiB, Q1): 105 µSec
• Random Write Average Latency (4KiB, Q1): 36 µSec
• Random Read IOPS (4KiB, Q=16): 68,000
• Random Write IOPS (4KiB, Q=16): 25,000
• Maximum Random Read IOPS (4KiB): 77,000 @ Q32
• Maximum Random Write IOPS (4KiB): 25,000 @ Q1

Power Consumption

• Idle State: 1.12 Watts
• Random Read: 2.29 Watts
• Random Write: 2.29 Watts
• Sequential Read: 1.89 Watts
• Sequential Write: 2.50 Watts
• Random Read/Write: 2.29 Watts
• Maximum Power Requirement: 3.00 Watts

Product Dimensions & Weight

• Height: 5.00 inches (12.70 cm)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Compatible Systems

• HPE Apollo Series: 4200 Gen9 for Google (2.5 inches)
• HPE ProLiant BL Series: BL660c Gen9, DL180 Gen10 (2.5 inches)
• HPE ProLiant DL Series: DL180 Gen10 Entry, DL20 Gen10, DL360 Gen9, DL380 Gen10 (2.5 inches)
• HPE ProLiant ML Series: ML30 Gen10, ML350 Gen10 (2.5 inches)
• HPE Synergy Series: 680 Gen9 (2.5 inches)

Interface: SATA 6Gbps

Enhanced Data Transfer Speed

The HPE P05320-001 Solid State Drive is equipped with a SATA 6Gbps interface, which offers exceptional data transfer speeds. With this interface, users can experience significantly faster read and write speeds compared to traditional hard disk drives. The SATA 6Gbps interface allows for a maximum transfer rate of 6 gigabits per second, ensuring that data can be quickly and efficiently transmitted between the drive and the host system.

Improved System Performance

By utilizing the SATA 6Gbps interface, the HPE P05320-001 Solid State Drive provides users with improved system performance. The enhanced data transfer speed enables faster boot times, quicker application launches, and smoother overall system operation. Whether you are using your computer for gaming, multimedia editing, or heavy multitasking, the SATA 6Gbps interface ensures that your system operates at peak efficiency.

Reduced Load Times

One of the most noticeable benefits of the SATA 6Gbps interface is the reduction in load times. Whether you are loading large files, opening applications, or accessing data stored on the drive, the faster data transfer speeds provided by this interface significantly reduce waiting times. This means that you can spend less time waiting for your computer to respond and more time being productive or enjoying your favorite activities.

Seamless Data Transfers

With its SATA 6Gbps interface, the HPE P05320-001 Solid State Drive ensures seamless data transfers. Whether you are copying files from one location to another or transferring data between different storage devices, the high-speed interface guarantees smooth and uninterrupted data flow. This is particularly advantageous for professionals who deal with large amounts of data on a regular basis, as it allows for quick and efficient file transfers without any bottlenecks.

Backward Compatibility

Another advantage of the SATA 6Gbps interface is its backward compatibility with previous SATA standards. This means that the HPE P05320-001 Solid State Drive can be easily integrated into systems that support older SATA versions, such as SATA 3Gbps or SATA 1.5Gbps. Users can upgrade their storage solution without having to worry about compatibility issues, making the transition to a faster and more efficient drive seamless.

Form Factor: SFF

Space-Saving Design

The HPE P05320-001 Solid State Drive features a Small Form Factor (SFF), making it an ideal choice for systems with limited space. The compact design of this drive allows it to fit seamlessly into small form factor desktops, workstations, and servers without taking up valuable space. Whether you are building a compact gaming rig or a data center with multiple drives, the SFF form factor of this drive ensures efficient utilization of available space.

Increased Storage Density

Despite its small size, the SFF form factor of the HPE P05320-001 Solid State Drive does not compromise on storage capacity. This drive offers a substantial storage capacity of 480GB, allowing users to store a large amount of data in a compact device. The increased storage density provided by the SFF form factor is particularly advantageous for professionals who require high-capacity storage in environments with limited physical space.

Improved Airflow and Cooling

The compact size of the SFF form factor also contributes to improved airflow and cooling within the system. With less obstruction caused by larger drives, air can flow more freely throughout the system, keeping temperatures at optimal levels. This is especially important for high-performance systems that generate a significant amount of heat. The SFF form factor of the HPE P05320-001 Solid State Drive helps maintain system stability and reliability by ensuring efficient heat dissipation.

Easy Installation and Maintenance

The SFF form factor of the HPE P05320-001 Solid State Drive simplifies installation and maintenance procedures. The smaller size allows for easy installation, even in tight spaces or crowded system configurations. Additionally, the compact design makes it easier to access and replace the drive if necessary. This is particularly beneficial for IT professionals who need to quickly swap drives or perform routine maintenance tasks without disrupting system operation.

Versatile Compatibility

The SFF form factor of the HPE P05320-001 Solid State Drive offers versatile compatibility with a wide range of systems. Whether you are using a desktop computer, a laptop, or a server, this drive can be seamlessly integrated into your existing setup. The compact size ensures that compatibility is not limited to specific form factors or device types, providing users with flexibility when choosing their storage solution.

Technology: MLC

Enhanced Data Reliability

The HPE P05320-001 Solid State Drive utilizes Multi-Level Cell (MLC) technology, which enhances data reliability. MLC technology stores multiple bits of data in each cell, allowing for higher storage capacity compared to Single-Level Cell (SLC) technology. This results in increased data integrity and reduced risk of data corruption. Whether you are storing critical business data or personal files, MLC technology ensures that your data remains intact and accessible.

Improved Endurance

MLC technology also offers improved endurance compared to other types of NAND flash memory. The HPE P05320-001 Solid State Drive can withstand a higher number of program/erase cycles, making it more reliable and durable over time. This is particularly important for users who perform frequent read and write operations or work with large datasets. The enhanced endurance of the MLC technology ensures that the drive can handle heavy workloads without compromising performance or lifespan.

Cost-Effective Solution

MLC technology provides a cost-effective solution for users who require high-capacity storage without breaking the bank. Compared to other types of NAND flash memory, such as SLC or TLC (Triple-Level Cell), MLC offers a good balance between cost and performance. The HPE P05320-001 Solid State Drive, with its MLC technology, provides users with an affordable storage solution that delivers reliable performance and ample storage capacity.

Compatibility with Various Workloads

The MLC technology used in the HPE P05320-001 Solid State Drive ensures compatibility with a wide range of workloads. Whether you are using your drive for everyday computing tasks, multimedia editing, or running resource-intensive applications, the drive can accommodate your needs. MLC technology provides the necessary performance and endurance to handle diverse workloads, making it suitable for both personal and professional use.

Enhanced Power Efficiency

Another advantage of MLC technology is its enhanced power efficiency. By storing multiple bits of data in each cell, MLC reduces the number of cells needed for a given amount of storage capacity. This results in lower power consumption compared to other types of NAND flash memory. The HPE P05320-001 Solid State Drive offers energy-efficient operation, contributing to longer battery life in laptops and reduced power consumption in desktop systems.

Capacity: 480GB

Ample Storage Space

With a capacity of 480GB, the HPE P05320-001 Solid State Drive provides users with ample storage space for their data-intensive needs. Whether you are storing large media files, installing resource-intensive applications, or maintaining a database, the 480GB capacity ensures that you have sufficient room for all your files and programs. This is particularly beneficial for professionals who work with large datasets or require extensive storage for their projects.

Improved System Performance

The spacious 480GB capacity of the HPE P05320-001 Solid State Drive contributes to improved system performance. With ample storage space, users can store frequently accessed files and applications on the drive, allowing for faster access times and reduced load times. This results in a more responsive system with improved overall performance. Whether you are booting up your computer or accessing data stored on the drive, the 480GB capacity ensures that you can do so quickly and efficiently.

Future-Proof Storage Solution

The 480GB capacity of the HPE P05320-001 Solid State Drive offers a future-proof storage solution for users. As file sizes continue to increase with advancements in technology, having a larger capacity drive ensures that you can keep up with growing storage demands. Whether you are a creative professional working with high-resolution media or a gamer installing large game files, the 480GB capacity provides you with the necessary headroom to accommodate future storage requirements.

Seamless Data Organization

The generous 480GB capacity allows users to organize their data more efficiently. With ample storage space, users can create dedicated folders for different file types or projects, making it easier to locate and access specific files when needed. This improves productivity and reduces time spent searching for files, especially in environments where data organization is crucial. The 480GB capacity ensures that you have enough space to maintain an organized and structured data storage system.

Cost-Effective Storage Solution

The 480GB capacity of the HPE P05320-001 Solid State Drive offers a cost-effective storage solution for users who require a balance between storage capacity and affordability. With its generous capacity, this drive provides users with ample storage space without the need to invest in higher-capacity drives that may exceed their requirements or budget. The 480GB capacity strikes a balance between cost and functionality, making it an ideal choice for users who need a reliable and cost-effective storage solution.
