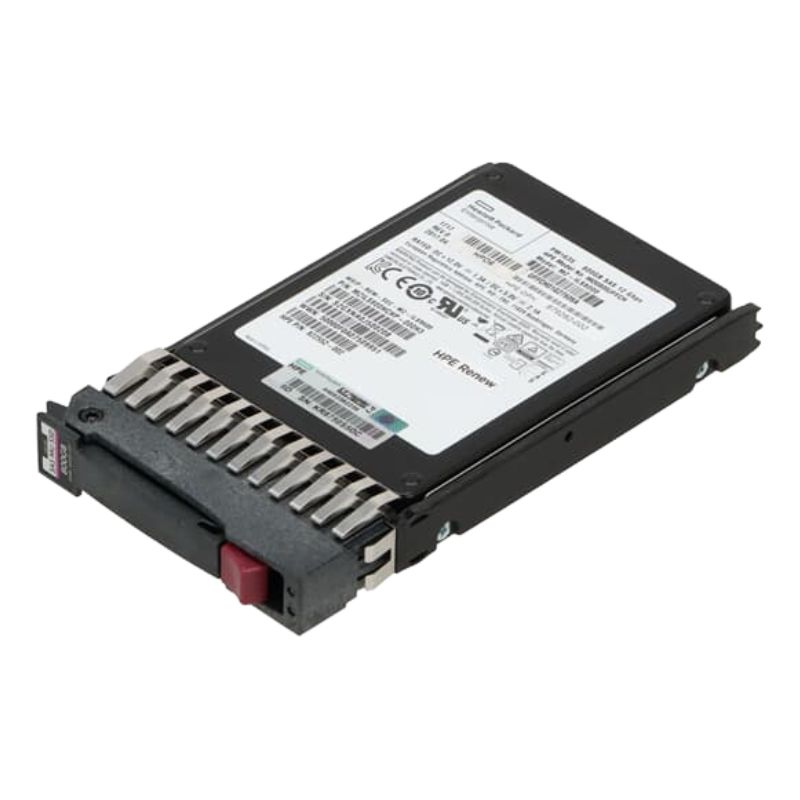

HPE 800GB SAS-12GBPS Hot-Swap SC Mixed Use SSD P09090-K21.

Product Details

• Manufacturer: HPE
• Part Number (MPN): P09090-K21
• Device Type: Solid State Drive (SSD)
• SSD Interface: SAS-12Gbps
• SKU: P09090-K21
• Spare Part Codes: P09923-001, MO000800JWUFU, P07442-002, P09105-002

Technical Specifications

• Storage Capacity: 800 GB
• NAND Flash Type: Multi-Level Cell (MLC)
• Form Factor: 2.5 Inch SFF
• Interface Standard: SAS 12Gbps
• Connection Type: Hot Pluggable
• Carrier Type: Smart Carrier (SC)
• Workload Classification: Mixed Use
• Firmware: Digitally Signed
• Included Accessories: HPE Smart Carrier
• Height: 0.6 inch (15 mm)

Performance Characteristics

• Write Lifetime: 4,500 TBW (Terabytes Written)
• Endurance: 3 DWPD (Drive Writes Per Day)
• External Data Transfer Rate: 12 GB/sec
• Internal Read Speed: 1,095 MB/s
• Internal Write Speed: 1,010 MB/s
• Random Read IOPS (4KiB, Q=16): 130,000
• Maximum Random Read IOPS (4KiB): 210,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 123,000
• Maximum Random Write IOPS (4KiB): 124,000 @ Q16

Dimensions and Weight

• Height: 0.63 inch
• Width: 3.10 inches
• Depth: 5.45 inches
• Weight: 1.50 lbs

Power Specifications

• Idle Power Consumption: 3 Watts
• Power Usage During Random Read: 5.78 Watts
• Power Usage During Random Write: 5.78 Watts
• Power During Sequential Read: 5.26 Watts
• Power During Sequential Write: 8.76 Watts
• Random Read/Write Power: 5.78 Watts
• Maximum Power Draw: 8.76 Watts

Compatibility Information

HPE ProLiant DL Series

• DL325 Gen10 (2.5 Inch)
• DL325 Gen10 Entry (2.5 Inch)
• DL325 Gen10 Performance (2.5 Inch)
• DL325 Gen10 SMB Solution (2.5 Inch)
• DL360 Gen9 (2.5 Inch)
• DL360 Gen9 Base (2.5 Inch)
• DL360 Gen9 CMS (2.5 Inch)
• DL360 Gen9 Entry (2.5 Inch)
• DL360 Gen9 Performance (2.5 Inch)
• DL360 Gen9 Special Server (2.5 Inch)
• DL380 Gen10 (2.5 Inch)
• DL380 Gen10 Base (2.5 Inch)
• DL380 Gen10 Entry (2.5 Inch)
• DL380 Gen10 High Performance (2.5 Inch)
• DL380 Gen10 Performance (2.5 Inch)
• DL380 Gen10 Solution (2.5 Inch)

HPE ProLiant ML Series

• ML110 Gen10 (2.5 Inch)
• ML110 Gen10 Entry (2.5 Inch)
• ML110 Gen10 Performance (2.5 Inch)
• ML110 Gen10 Solution (2.5 Inch)
• ML30 Gen10 (2.5 Inch)
• ML30 Gen10 Entry (2.5 Inch)
• ML30 Gen10 Performance (2.5 Inch)
• ML30 Gen10 Solution (2.5 Inch)
• ML30 Gen9 (2.5 Inch)
• ML30 Gen9 Base (2.5 Inch)
• ML30 Gen9 Entry (2.5 Inch)
• ML30 Gen9 Performance (2.5 Inch)
• ML30 Gen9 Solution (2.5 Inch)

HPE ProLiant XL Series

• XL190r Gen10 (2.5 Inch)
• XL230k Gen10 Compute Tray (2.5 Inch)
• XL270d Gen10 (2.5 Inch)

HPE Synergy Compatibility

• 480 Gen10 Base Compute Module (2.5 Inch)
• 480 Gen10 Compute Module (2.5 Inch)
• 480 Gen10 Entry Compute Module (2.5 Inch)
• 480 Gen10 Performance Compute Module (2.5 Inch)
• 480 Gen10 Premium Backplane Compute Module (2.5 Inch)
• 480 Gen10 Standard Backplane Compute Module (2.5 Inch)
• 480 Gen10 W/O Drives Compute Module (2.5 Inch)
• 660 Gen10 Base Compute Module (2.5 Inch)
• 660 Gen10 Compute Module (2.5 Inch)
• 660 Gen10 Entry Compute Module (2.5 Inch)

Capacity: 800GB

Improved Storage Space

The HPE P09090-K21 SSD offers a substantial storage capacity of 800GB, making it an ideal choice for users who require ample space for storing their data. Whether you are a professional photographer, videographer, or simply someone who needs to store large amounts of data, this SSD provides enough room to accommodate your needs.

Efficient Data Management

With 800GB of storage space, users can easily store and access a wide range of files and applications without worrying about running out of space. This capacity allows for efficient data management, as you can save all your important files in one place without the need for external storage devices or multiple drives.

Seamless Performance

The generous capacity of the HPE P09090-K21 SSD ensures smooth and seamless performance, even when dealing with large files or demanding applications. Whether you are working on multimedia projects, running complex software, or managing extensive databases, this SSD's ample storage capacity ensures that you can do so without any lag or performance issues.

Future-Proof Investment

By choosing an SSD with a capacity of 800GB, users can future-proof their investment. As technology advances and file sizes continue to grow, having a larger storage capacity ensures that your SSD can handle the demands of tomorrow's data-intensive applications. This means that you won't have to worry about upgrading or replacing your SSD in the near future.

Flexibility for Different Users

The 800GB capacity of the HPE P09090-K21 SSD caters to a wide range of users with varying storage needs. Whether you are an individual user looking to store a vast collection of multimedia files or an enterprise seeking to manage extensive databases, this SSD offers the flexibility to accommodate different user requirements.

Reduced Need for Additional Drives

With 800GB of storage space, users can significantly reduce their reliance on additional drives or external storage devices. This not only simplifies the storage setup but also eliminates the need for extra cables and power connections. The HPE P09090-K21 SSD's ample capacity allows for a streamlined and clutter-free storage solution.

Form Factor: 2.5 inch

Optimal Size for Various Applications

The 2.5-inch form factor of the HPE P09090-K21 SSD makes it compatible with a wide range of devices and applications. Whether you are upgrading your laptop, desktop, or server, this compact size ensures easy installation and integration into your existing setup.

Enhanced Portability

The small size of the 2.5-inch form factor makes the HPE P09090-K21 SSD highly portable. It can easily fit into a laptop bag or pocket, allowing users to carry their data with them wherever they go. This portability is particularly advantageous for professionals who frequently work on the go or need to transfer data between different locations.

Space-Efficient Design

The 2.5-inch form factor is known for its space-efficient design. It takes up minimal space within your device, allowing for better airflow and heat dissipation. This not only helps in maintaining optimal performance but also contributes to the overall longevity of your device.

Compatibility with Various Devices

The 2.5-inch form factor of the HPE P09090-K21 SSD ensures compatibility with a wide range of devices, including laptops, desktops, and servers. This versatility makes it easier for users to choose the SSD without worrying about compatibility issues or the need for additional adapters or converters.

Seamless Integration into Existing Systems

With its 2.5-inch form factor, the HPE P09090-K21 SSD seamlessly integrates into existing systems without requiring any major modifications. This means that users can easily upgrade their storage capacity without the hassle of extensive hardware changes or system reconfigurations.

Cost-Effective Upgrade Options

The 2.5-inch form factor of the HPE P09090-K21 SSD offers cost-effective upgrade options for users who want to boost their device's storage capacity. Instead of investing in an entirely new system, users can simply replace their existing storage drive with this compact SSD, saving both time and money.

Interface: SAS-12GBPS

Enhanced Data Transfer Speeds

The HPE P09090-K21 SSD features a SAS-12GBPS interface, which provides lightning-fast data transfer speeds. With this high-speed interface, users can experience significantly faster file transfers, reduced load times, and improved overall system performance.

Efficient Workflows

The SAS-12GBPS interface ensures that data-intensive tasks can be completed quickly and efficiently. Whether you are working with large multimedia files, running demanding applications, or performing complex data analysis, the high-speed interface allows for seamless workflows and enhanced productivity.

Reduced Downtime

The fast data transfer speeds offered by the SAS-12GBPS interface minimize downtime by reducing the time required for data backups, system updates, and file transfers. This is particularly beneficial for businesses that rely on continuous operations and cannot afford extended periods of system unavailability.

Improved Scalability

The SAS-12GBPS interface enables improved scalability for users who require expanding their storage capacity in the future. The high-speed interface ensures that adding additional SSDs or upgrading to larger capacities can be done without sacrificing performance or interrupting ongoing operations.

Seamless Integration into Existing Systems

The HPE P09090-K21 SSD's SAS-12GBPS interface seamlessly integrates into existing systems without requiring any significant hardware changes. This allows users to take advantage of the high-speed interface without the need for complicated setup processes or system reconfigurations.

Compatibility with Enterprise Systems

The SAS-12GBPS interface is widely used in enterprise-level systems, making the HPE P09090-K21 SSD compatible with a variety of server environments. Whether you are managing a small business server or a large-scale data center, this SSD's interface ensures smooth integration and optimal performance.

Hot Swap: 1

Continuous Operations

The HPE P09090-K21 SSD's hot swap feature allows for uninterrupted operations, even during drive replacement or maintenance. With hot swap capabilities, users can quickly and easily replace a faulty drive without having to power down the entire system, resulting in minimal downtime and increased productivity.

Seamless Drive Upgrades

The hot swap feature enables seamless drive upgrades for users who need to expand their storage capacity or replace outdated drives. By allowing drives to be swapped out while the system is running, users can avoid disruptions and delays associated with manual drive installations or system shutdowns.

Fault Tolerance and Data Protection

The hot swap capability of the HPE P09090-K21 SSD enhances fault tolerance and data protection. In the event of a drive failure, the hot swap feature allows for immediate replacement, reducing the risk of data loss and ensuring the continuity of critical operations.

Flexibility and Scalability

The hot swap feature provides flexibility and scalability for users who require easy expansion or reconfiguration of their storage setup. By allowing drives to be added or removed without interrupting system operations, users can adapt their storage capacity to meet changing needs, whether it be accommodating growing data volumes or implementing new storage strategies.

Increased System Reliability

The HPE P09090-K21 SSD's hot swap feature contributes to increased system reliability by minimizing downtime and reducing the risks associated with manual drive replacements. This ensures that critical operations can continue without disruptions, enhancing overall system availability and reliability.

Simplified Maintenance and Upkeep

By allowing drives to be hot swapped, the HPE P09090-K21 SSD simplifies maintenance and upkeep processes. Users can easily perform drive replacements or upgrades without requiring extensive technical knowledge or the assistance of IT professionals, saving time and resources.

Compatibility: G9, G10

Seamless Integration with HPE Servers

The HPE P09090-K21 SSD is specifically designed for compatibility with HPE servers, including Generation 9 (G9) and Generation 10 (G10) models. This ensures seamless integration into HPE server environments, allowing users to leverage the full potential of their servers with enhanced storage capabilities.

Optimized Performance

The compatibility with HPE servers guarantees optimized performance when using the HPE P09090-K21 SSD. The SSD is designed to work seamlessly with HPE server architectures, ensuring efficient data transfer, minimal latency, and overall enhanced system performance.

Enhanced Data Protection

The compatibility with HPE servers ensures that the HPE P09090-K21 SSD benefits from the advanced data protection features provided by HPE's server technology. Users can rely on robust data integrity mechanisms, RAID configurations, and other server-level security measures to safeguard their valuable data.

Streamlined Management and Support

The compatibility with HPE servers simplifies management and support processes for the HPE P09090-K21 SSD. Users can leverage HPE's comprehensive server management tools and support resources to monitor and maintain their SSDs, ensuring optimal performance and minimizing potential issues.

Seamless Upgrade Path

For users who are already using HPE servers, the compatibility of the HPE P09090-K21 SSD with G9 and G10 models ensures a seamless upgrade path. Users can easily replace their existing server storage with this SSD to enhance capacity, performance, and overall storage capabilities without requiring major hardware or software changes.

Verified Performance and Reliability

The compatibility of the HPE P09090-K21 SSD with HPE servers provides users with the confidence of verified performance and reliability. The SSD has undergone rigorous testing and validation by HPE to ensure seamless integration and optimal performance within HPE server environments.
