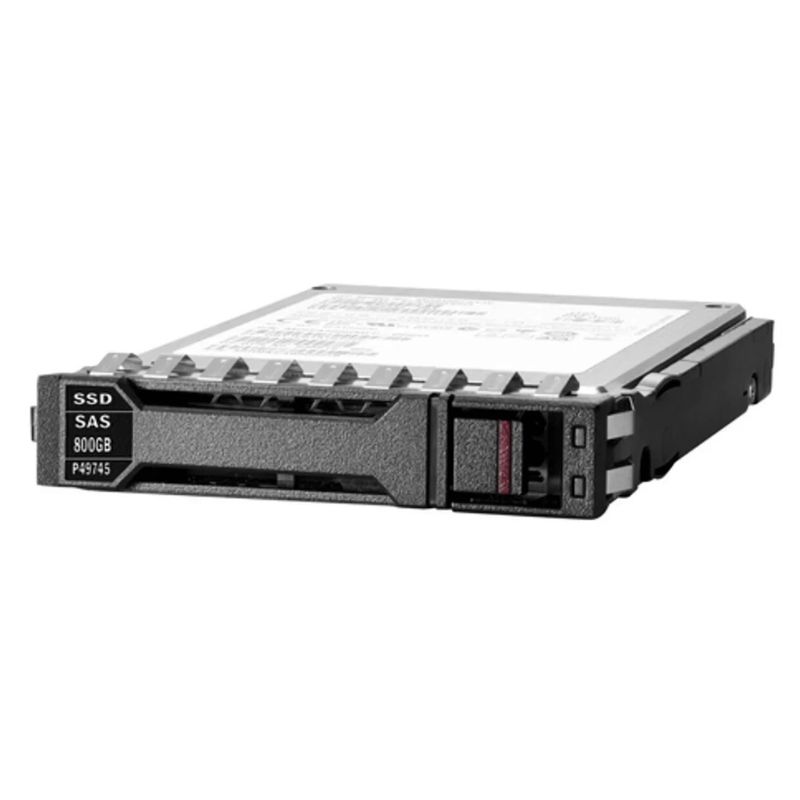

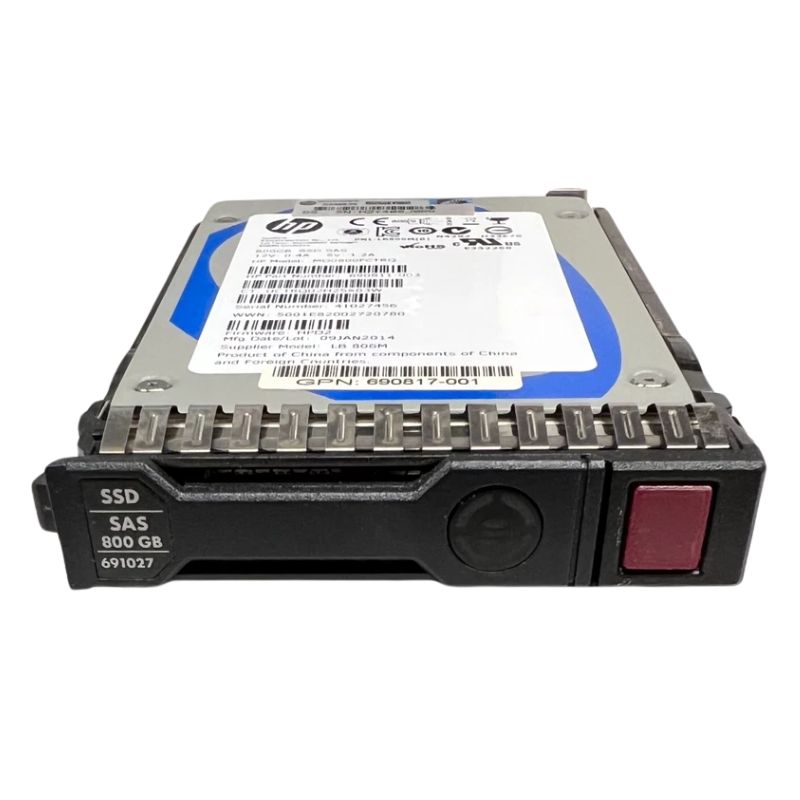

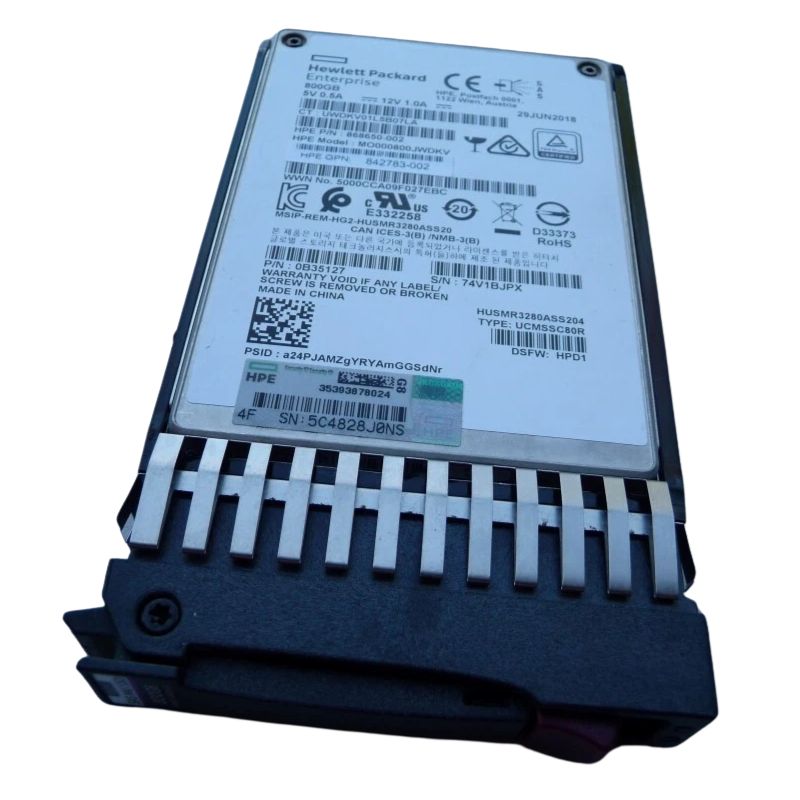

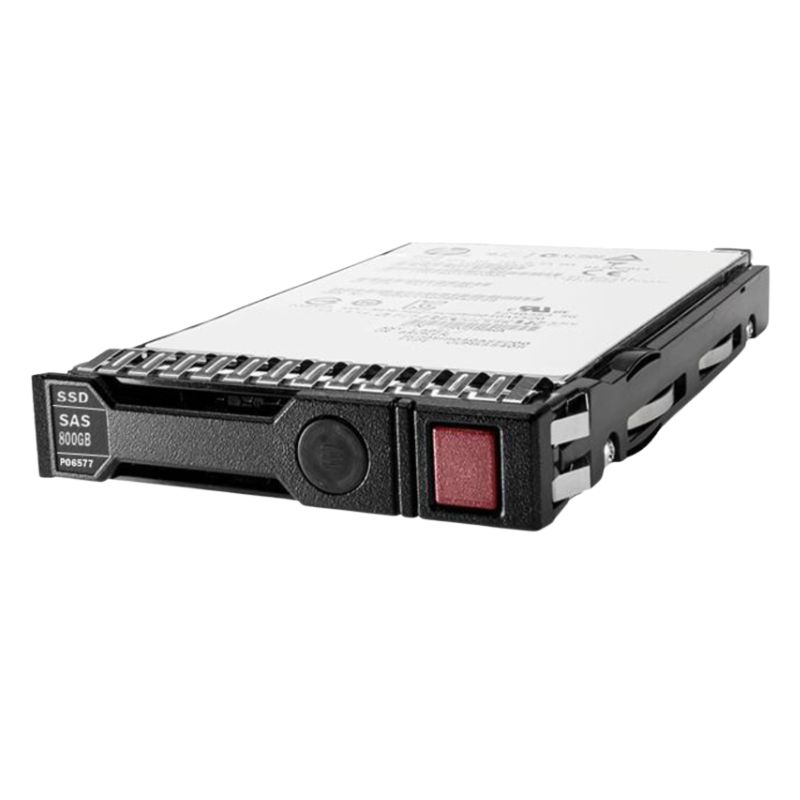

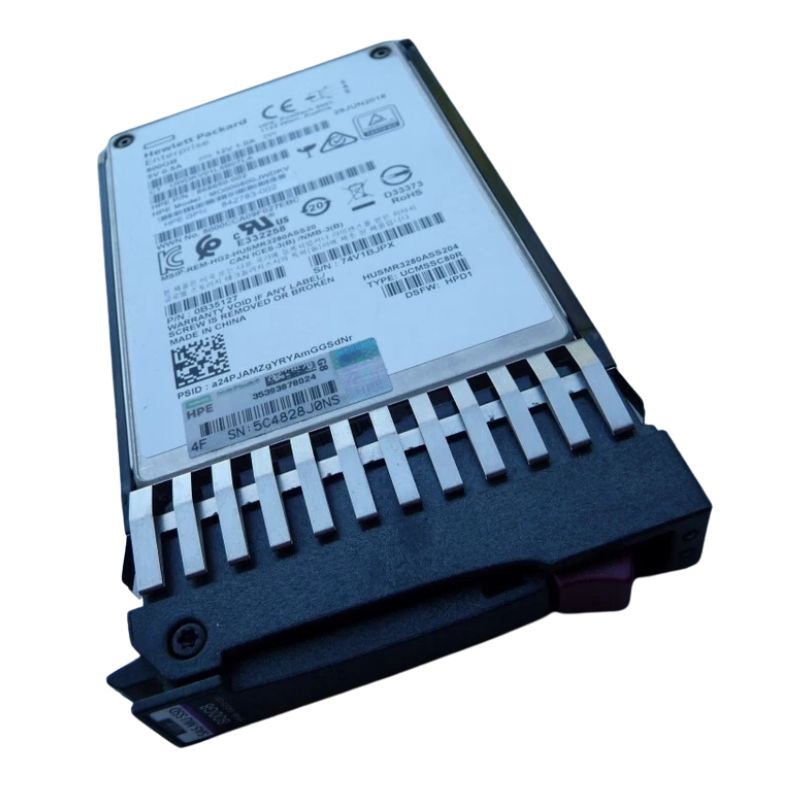

HPE 800GB 2.5" DS SAS-12GBPS SC TLC G9 G10 SSD P04543-H21

P04543-H21
Hover on image to enlarge

Brief Overview of P04543-H21

HPE 800GB 2.5inch DS SAS-12GBPS SC Triple-level Cell G9 G10 SSD P04543-H21. New Sealed in Box (NIB) 3 Years Warranty
QR Code of HPE 800GB 2.5" DS SAS-12GBPS SC TLC G9 G10 SSD P04543-H21
$848.48
$567.52
You save: $280.96 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP04543-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview

Specifications

  • Manufacturer: HPE
  • Part Number: P04543-H21
  • Type: Solid State Drive
  • Interface Type: SAS-12GBPS
  • Spare Part Number: P06602-001
  • Model Identifier: EO000800JWTCA

Key Features

  • Storage Capacity: 800GB
  • Dual Interface: SAS-12GBPS
  • Form Factor: 2.5-inch SFF
  • NAND Flash Type: Triple-Level Cell
  • Hot Plug Capability: Yes
  • Connectivity: Dual
  • Carrier Type: Smart Carrier
  • Workload Suitability: Write Intensive
  • Included Accessory: HPE SmartDrive Carrier
  • Firmware: Digitally Signed Firmware
  • Compatible Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance Metrics

Durability and Endurance

  • Total Lifetime Writes: 14,600 TB
  • Drive Writes Per Day (DWPD): 10.00

Data Transfer Rates

  • External Drive Transfer Rate: 12 GBps
  • Max Sequential Reads Throughput: 1075 MiB/s
  • Max Sequential Writes Throughput: 1030 MiB/s

Input/Output Operations

  • Random Read Latency (4KiB, Q1): 135 µs
  • Random Write Latency (4KiB, Q1): 35 µs
  • Random Read IOPS (4KiB, Q=16): 109,000
  • Random Write IOPS (4KiB, Q=16): 120,000
  • Max Random Read IOPS (4KiB): 165,000 @ Q32
  • Max Random Write IOPS (4KiB): 120,000 @ Q16

Power Consumption

  • Idle State: 4.26 Watts
  • Random Read: 4.97 Watts
  • Random Write: 4.97 Watts
  • Sequential Read: 6.71 Watts
  • Sequential Write: 6.95 Watts
  • Random Read/Write: 4.97 Watts
  • Maximum Power Draw: 6.71 Watts

Dimensions and Weight

  • Height: 0.63 inches
  • Width: 3.10 inches
  • Depth: 5.45 inches
  • Weight: 1.50 lbs

Capacity

The HPE P04543-H21 SSD offers an impressive capacity of 800GB. This ample storage space allows users to store a large amount of data, including files, documents, and multimedia content. Whether you are a professional working with complex datasets or a casual user with a growing collection of photos and videos, the 800GB capacity ensures that you have enough space to accommodate your needs.

Increased Storage Flexibility

With 800GB of storage, users can enjoy increased flexibility in managing their data. They can store more files without worrying about running out of space or constantly having to delete old data to make room for new content. This is particularly beneficial for businesses that deal with large volumes of data on a daily basis, as it eliminates the need for frequent data purges and allows for seamless expansion as the storage requirements grow.

Efficient Data Organization

The generous 800GB capacity enables users to organize their data more efficiently. They can create separate folders for different types of files or projects, making it easier to locate specific information when needed. This level of organization enhances productivity and saves valuable time that would otherwise be spent searching for files.

Seamless Multimedia Experience

If you are an avid photographer, videographer, or content creator, the 800GB capacity is a game-changer. It allows you to store large raw image files, high-definition videos, and other multimedia content without compromising on quality. You can edit and manipulate your files directly on the SSD, ensuring smooth performance and reducing the need to transfer data back and forth between multiple storage devices.

Form Factor

The HPE P04543-H21 SSD features a compact 2.5inch form factor. This slim design makes it easy to integrate the SSD into various devices, including laptops, desktops, and servers. The 2.5inch form factor offers several benefits and is a popular choice among users looking for a versatile and space-efficient storage solution.

Compatibility with Multiple Devices

The 2.5inch form factor ensures compatibility with a wide range of devices. Whether you are upgrading your laptop or expanding the storage capacity of your server, this SSD can seamlessly fit into the existing setup. This compatibility eliminates the need for additional adapters or modifications, saving both time and money.

Space-Efficient Design

The compact size of the 2.5inch form factor allows users to maximize their available space. It is particularly advantageous for small form factor devices where every inch counts. By utilizing this slim design, users can enjoy the benefits of high-capacity storage without sacrificing valuable real estate within their devices.

Easy Installation and Replacement

The 2.5inch form factor simplifies the installation and replacement process for users. It typically involves a straightforward plug-and-play procedure, allowing even novice users to upgrade their storage without any technical expertise. Additionally, in case of SSD failure or the need for an upgrade, replacing the SSD is hassle-free and can be done quickly.

Interface

The HPE P04543-H21 SSD utilizes the SAS-12GBPS interface. This high-speed interface offers excellent performance and reliability, making it an ideal choice for demanding applications and workloads.

Enhanced Data Transfer Speeds

The SAS-12GBPS interface delivers exceptional data transfer speeds, ensuring quick and efficient access to stored information. This is particularly important for tasks that involve large file transfers or data-intensive applications. Users can experience reduced waiting times and improved overall system performance, enhancing productivity and efficiency.

Reliable and Stable Connection

The SAS-12GBPS interface provides a stable and reliable connection between the SSD and the host device. This helps prevent data loss or corruption during data transfers, ensuring the integrity and security of stored information. Users can confidently rely on this interface for critical operations where data integrity is of utmost importance.

Scalability and Future-Proofing

The SAS-12GBPS interface offers scalability and future-proofing for users. It provides ample bandwidth for current applications while also allowing for potential future upgrades or advancements. This ensures that the SSD can keep up with evolving technology demands, providing a long-lasting and versatile storage solution.

Technology

The HPE P04543-H21 SSD features Triple-level Cell (TLC) technology. This advanced technology enhances the storage capabilities of the SSD, providing users with improved performance and reliability.

Higher Storage Density

TLC technology allows for higher storage density, meaning that more data can be stored within the same physical space. This is achieved by storing three bits of information per memory cell, as compared to single-level cell (SLC) or multi-level cell (MLC) technologies. The increased storage density enables users to store more data on their SSDs, which is particularly beneficial for users dealing with large datasets or multimedia content.

Cost-Effective Solution

TLC technology offers a cost-effective storage solution. By maximizing storage density, users can achieve higher capacities at a lower cost per gigabyte. This makes the HPE P04543-H21 SSD an attractive option for individuals, businesses, and organizations looking for high-performance storage without breaking the bank.

Reliability and Endurance

Despite the higher storage density, TLC technology ensures reliable performance and endurance. Advanced error correction algorithms and wear-leveling mechanisms are implemented to maintain data integrity and prolong the lifespan of the SSD. Users can trust that their data is safe and that the SSD will continue to perform optimally even under demanding workloads.

Generation

The HPE P04543-H21 SSD is compatible with both G9 and G10 generations. This compatibility allows users to seamlessly integrate the SSD into their existing infrastructure, whether it is based on G9 or G10 technology.

Flexibility in Infrastructure Upgrades

With support for both G9 and G10 generations, users have the flexibility to upgrade their infrastructure at their own pace. They can choose to upgrade specific components or systems without having to replace the entire infrastructure. This scalability ensures cost-effectiveness and minimizes disruption during the upgrade process.

Optimized Performance

The compatibility of the HPE P04543-H21 SSD with G9 and G10 generations ensures optimized performance. Users can leverage the advancements and features offered by these generations to enhance overall system performance. Whether it is faster processing speeds, improved data management capabilities, or enhanced security features, users can take full advantage of these benefits with this SSD.

Future-Proofing Investment

The compatibility with both G9 and G10 generations future-proofs users' investments. It ensures that the SSD will remain compatible with future upgrades or advancements in technology. Users can adopt new technologies without worrying about compatibility issues, providing a long-term storage solution that can adapt to changing needs.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
