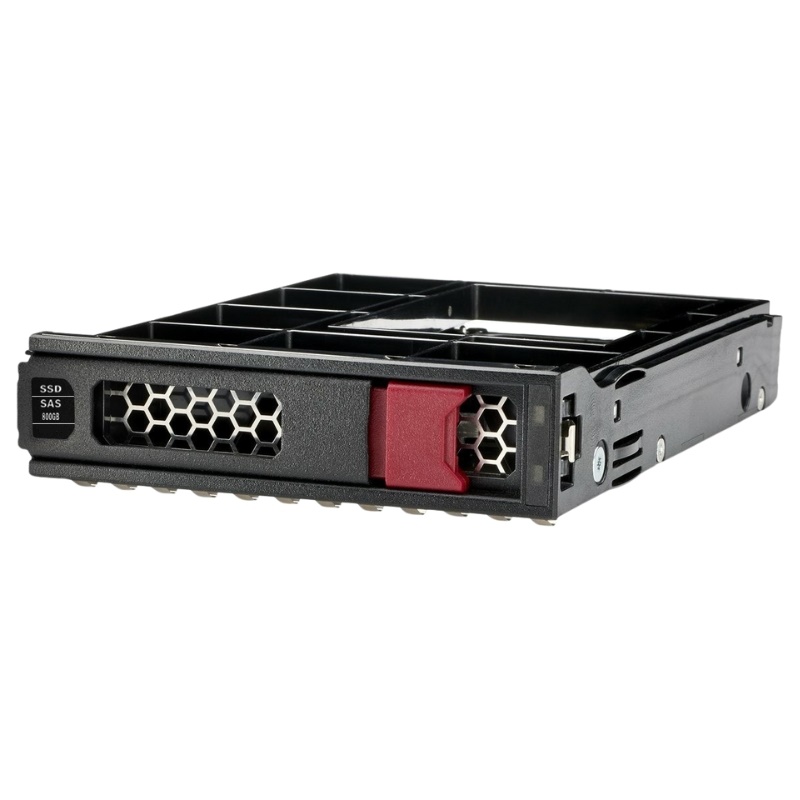

HPE 800GB SAS 12GBPS 3.5" LFF DS SCC Mixed Use SSD P04529-H21

P04529-H21
Hover on image to enlarge

Brief Overview of P04529-H21

HPE 800GB SAS 12GBPS 3.5inch LFF DS SCC Mixed Use G9 G10 SSD P04529-H21. New (System) Pull

QR Code of HPE 800GB SAS 12GBPS 3.5" LFF DS SCC Mixed Use SSD P04529-H21
Contact us for a price
Ask a question
Additional 7% discount at checkout
SKU/MPNP04529-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Overview of the HPE P04529-H21

Brand Information

  • Brand: HPE
  • Part Number: P04529-H21
  • Spare Part Number: P06578-001
  • Model Number: MO000800JWTBR
  • Assembly Number: P04174-002

General Features

Device Type

  • Solid State Drive (SSD) - Hot-Swap

Capacity & Memory

  • Storage Capacity: 800 GB
  • Flash Memory Type: Multi-Level Cell (MLC) NAND

Physical Specifications

  • Form Factor: 3.5-inch Large Form Factor (LFF)
  • Interface: SAS 12Gbps
  • Carrier Type: Smart Carrier Converter
  • Plug Type: Hot Plug
  • Bundled Accessory: HPE Smart Carrier Converter

Firmware and Security

  • Equipped with Digitally Signed Firmware

Performance Specifications

Drive Endurance and Transfer Rates

  • Drive Writes Per Day (DWPD): 3
  • 30 Days Writes: 4380 TB
  • Drive Transfer Rate: Up to 1.2 GB/sec (external)
  • Internal Data Rate: 1075 MBps (read), 1030 MBps (write)

Input/Output Operations Per Second (IOPS)

  • Random Read IOPS (4KiB, Q=16): 104,000
  • Max Random Read IOPS (4KiB): 165,000 @ Q32
  • Random Write IOPS (4KiB, Q=16): 85,000
  • Max Random Write IOPS (4KiB): 85,000 @ Q16

Expansion & Connectivity

Interfaces and Compatibility

  • Interface: 1 x SAS 12Gbps
  • Compatible Bay: 3.5" Large Form Factor (LFF)

Power Consumption

Power Usage by Operation

  • Idle Power Consumption: 4.26 Watts
  • Random Read: 4.97 Watts
  • Random Write: 4.97 Watts
  • Sequential Read: 6.71 Watts
  • Sequential Write: 6.95 Watts
  • Maximum Power Consumption: 6.71 Watts

Product Dimensions

Physical Measurements

  • Depth: 8.75 inches
  • Width: 7.25 inches
  • Height: 5.50 inches
  • Weight: 3 lbs

Capacity

The HPE P04529-H21 SSD offers an impressive capacity of 800GB. This high storage capacity is a crucial feature for users who require ample space to store their data and applications. Whether you are a business professional dealing with large amounts of data or a gamer who needs fast access to a vast library of games, the 800GB capacity of this SSD ensures that you have enough room to store all your important files without compromising on performance.

Efficient Data Storage

With 800GB of storage space, you can easily store a vast amount of data, including documents, images, videos, and applications. This allows you to keep all your files in one place, making it easier to organize and access your data whenever you need it. Whether you are working on a project, editing videos, or simply need to retrieve an important document, the ample storage capacity of the HPE P04529-H21 SSD ensures that you have enough space to store all your files conveniently.

Seamless Workflow

The 800GB capacity of this SSD enables you to maintain a seamless workflow without constantly worrying about running out of storage space. You can keep multiple applications open simultaneously without experiencing any slowdowns or performance issues. This is especially beneficial for professionals who work with resource-intensive software or multitask extensively. With the HPE P04529-H21 SSD's generous capacity, you can effortlessly switch between applications and work on multiple projects concurrently, enhancing your productivity and efficiency.

Ample Gaming Library

For gamers, having a large capacity SSD is essential to accommodate their ever-growing collection of games. The 800GB capacity of the HPE P04529-H21 SSD allows gamers to install and store numerous games without worrying about running out of space. This ensures that they can have their favorite games readily accessible, reducing loading times and enhancing the overall gaming experience.

Interface

The HPE P04529-H21 SSD features a powerful SAS 12GBPS interface. This interface plays a crucial role in ensuring fast and efficient data transfer between the SSD and the host system. With its high-speed interface, this SSD offers several benefits that are essential for users who demand exceptional performance and reliability.

Lightning-Fast Data Transfer

The SAS 12GBPS interface of the HPE P04529-H21 SSD enables lightning-fast data transfer speeds. This ensures that you can transfer large files, such as videos or high-resolution images, quickly and efficiently. Whether you are transferring files between devices or backing up your data, the high-speed interface of this SSD significantly reduces waiting times and improves overall productivity.

Improved System Responsiveness

The SAS 12GBPS interface optimizes the communication between the SSD and the host system, resulting in improved system responsiveness. This means that your applications will load faster, and you will experience minimal lag when accessing or saving files. The high-speed interface ensures that your system operates at its full potential, allowing you to work seamlessly without any performance bottlenecks.

Efficient Workflows

For professionals working with resource-intensive applications, the SAS 12GBPS interface is a game-changer. The fast data transfer speeds enable smooth workflows, allowing professionals to work with large files without any delays. Whether you are editing videos, rendering animations, or working with complex 3D models, the HPE P04529-H21 SSD's high-speed interface ensures that your tasks are completed efficiently, saving you valuable time in your workday.

Form Factor

The HPE P04529-H21 SSD features a 3.5inch LFF (Large Form Factor) design. This form factor is widely recognized and used in enterprise-grade storage systems. The 3.5inch LFF form factor offers several benefits and is an important consideration for users who require reliable and compatible storage solutions.

Easy Integration

The 3.5inch LFF form factor of the HPE P04529-H21 SSD allows for easy integration into existing storage systems and servers. This makes it a versatile choice for businesses that want to upgrade their storage infrastructure without the need for extensive modifications or additional hardware. The SSD can be seamlessly installed into compatible systems, reducing downtime and ensuring a smooth transition to high-performance storage.

Optimal Cooling

The larger form factor of the HPE P04529-H21 SSD provides better heat dissipation, resulting in improved cooling efficiency. Heat management is crucial for the longevity and performance of any storage device. The 3.5inch LFF form factor allows for better airflow within the system, preventing overheating and maintaining optimal operating temperatures. This ensures that the SSD performs reliably even under heavy workloads, reducing the risk of data loss or system failures.

Expandable Storage Capacity

The 3.5inch LFF form factor offers the advantage of expandable storage capacity. As your data storage needs grow, you can easily add more HPE P04529-H21 SSDs to your system without having to replace existing drives or invest in new hardware. This scalability allows businesses to adapt to changing storage requirements effortlessly, ensuring that they have enough capacity to accommodate their growing data.

Endurance

The HPE P04529-H21 SSD is designed for mixed-use applications, making it an ideal choice for users who require high endurance and reliability in their storage solution. The endurance of an SSD determines its ability to handle intensive workloads over an extended period without compromising on performance or durability.

Consistent Performance

The mixed-use endurance of the HPE P04529-H21 SSD guarantees consistent performance under heavy workloads. Whether you are running virtual machines, hosting databases, or performing data analytics, this SSD can handle demanding tasks without experiencing performance degradation. The high endurance ensures that your applications run smoothly and efficiently, allowing you to focus on your work without any disruptions.

Enhanced Reliability

The mixed-use endurance of this SSD translates into enhanced reliability, reducing the risk of data corruption or loss. The HPE P04529-H21 SSD is engineered to withstand the rigors of continuous operation, ensuring that your data remains safe and accessible at all times. This makes it an ideal choice for mission-critical applications where data integrity and reliability are of paramount importance.

Extended Lifespan

The high endurance of the HPE P04529-H21 SSD extends its lifespan, making it a cost-effective investment in the long run. With its ability to handle intensive workloads, this SSD can continue performing reliably for an extended period, reducing the need for frequent replacements or upgrades. This not only saves you money but also minimizes downtime and maintenance efforts.

Generation

The HPE P04529-H21 SSD belongs to the G9 G10 generation, which offers several advancements and improvements over previous generations. The generation of an SSD plays a crucial role in determining its performance, compatibility, and overall capabilities.

Enhanced Performance

The G9 G10 generation of the HPE P04529-H21 SSD delivers enhanced performance compared to previous generations. This translates into faster data transfer speeds, improved random access times, and reduced latency. Whether you are running demanding applications or performing intensive tasks, the G9 G10 generation ensures that you have the necessary performance to handle your workload efficiently.

Compatibility

The G9 G10 generation is designed to be backward compatible with older generation systems, ensuring seamless integration and compatibility. This means that you can upgrade your storage infrastructure without worrying about compatibility issues or the need for extensive system modifications. The HPE P04529-H21 SSD's compatibility with a wide range of systems makes it a versatile choice for businesses and individuals who want to maximize their storage performance without disrupting their existing setup.

Future-Proof Investment

Investing in the G9 G10 generation of the HPE P04529-H21 SSD ensures that you are future-proofing your storage infrastructure. As technology continues to advance, newer systems and applications will require higher performance and capabilities. By choosing a generation that is at the forefront of technology, you can ensure that your storage solution will remain relevant and capable of meeting future demands.

Hot Swap

The HPE P04529-H21 SSD features hot swap capability, allowing for easy replacement or addition of drives without shutting down the system. Hot swapping is a valuable feature for users who require uninterrupted operation and minimal downtime.

Flexibility and Convenience

The hot swap capability of the HPE P04529-H21 SSD provides flexibility and convenience, allowing you to add or replace drives on the fly. This eliminates the need to power down the entire system, reducing downtime and minimizing disruptions to your workflow. Whether you need to expand your storage capacity or replace a faulty drive, the hot swap feature ensures that these tasks can be performed quickly and efficiently without affecting system availability.

Scalability

The hot swap capability enables easy scalability of your storage infrastructure. As your storage needs grow, you can seamlessly add more HPE P04529-H21 SSDs to your system without interrupting ongoing operations. This scalability allows you to adapt to changing demands without having to invest in additional hardware or undergo complex setup procedures. The hot swap feature ensures that your storage solution can grow alongside your business, providing the necessary flexibility and scalability.

Minimized Downtime

One of the key benefits of the hot swap capability is the minimization of downtime. By allowing drives to be replaced or added without shutting down the system, you can ensure continuous operation and avoid interruptions to your critical processes. This is especially important for businesses that rely on 24/7 availability and cannot afford any downtime. The hot swap feature of the HPE P04529-H21 SSD ensures that your storage solution remains operational even during maintenance or upgrades, maximizing productivity and minimizing disruptions.

Features
Product/Item Condition:
New (System) Pull
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
