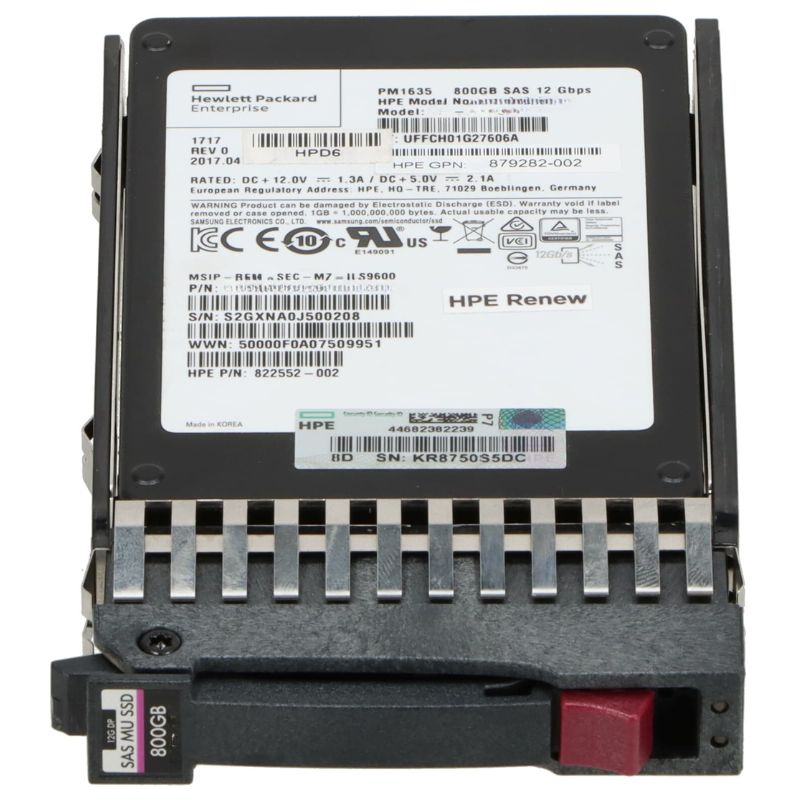

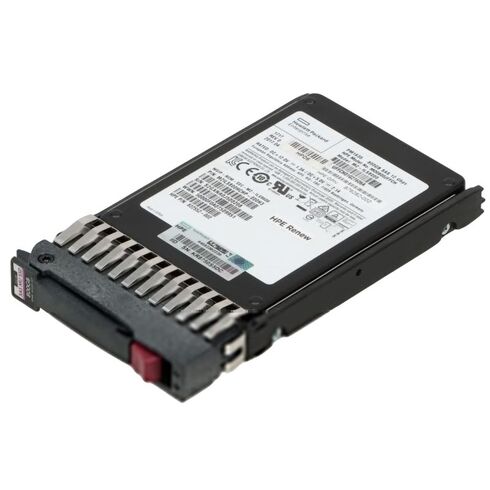

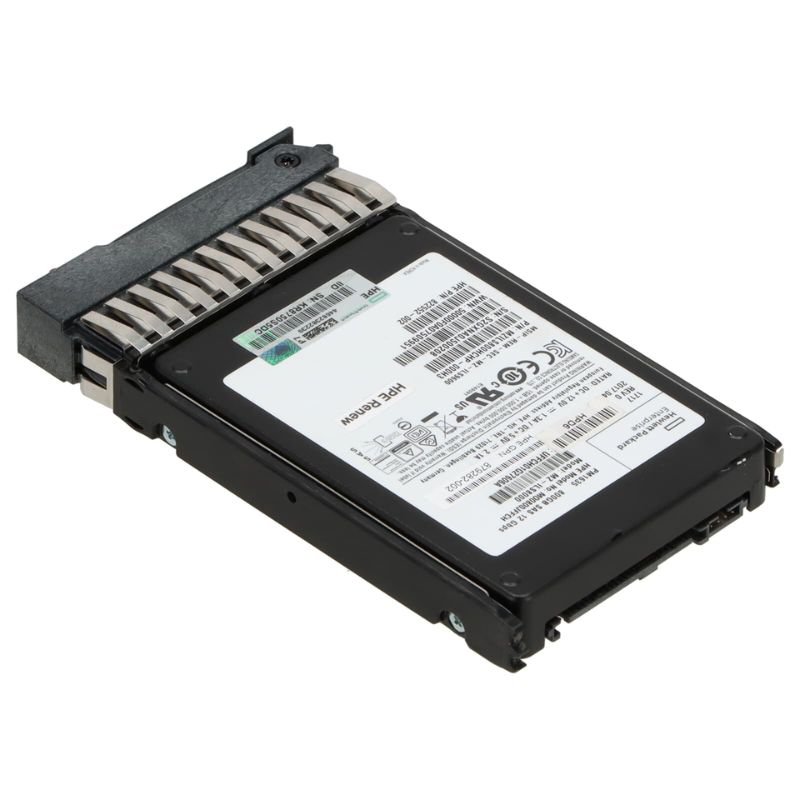

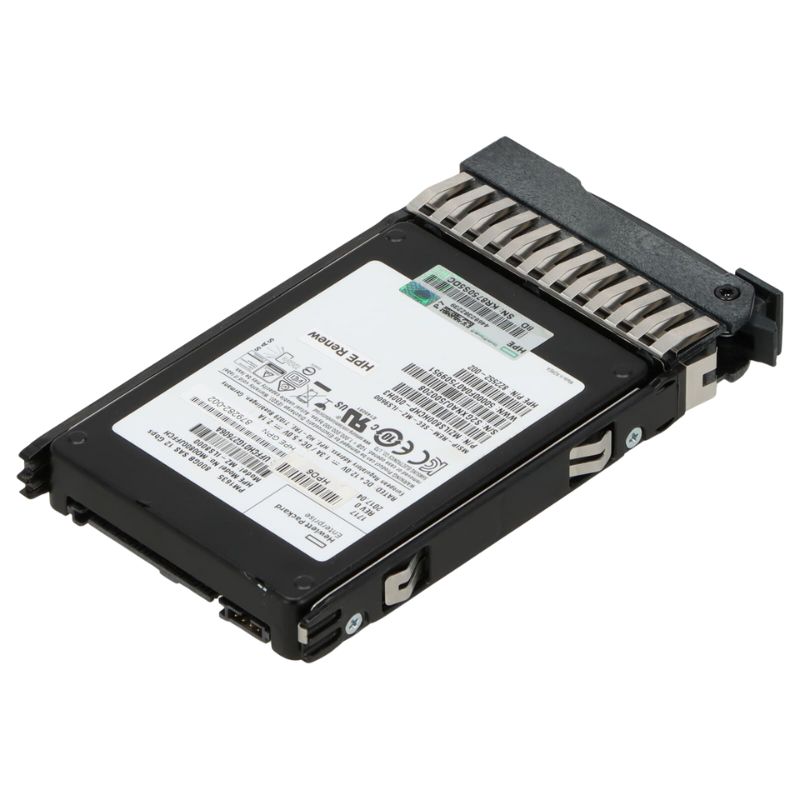

HPE 868649-002 SC Write Intensive SSD SAS 12GBPS 800GB DS Firmware

Main Details of HPE 868649-002 SAS 12GBPS SSD

• Brand: HPE
• SKU#: 868649-002
• Device Type: Hot-Swap Solid State Drive
• Storage Capacity: 800 GB
• Form Factor: Compact 2.5-inch Small Form Factor (SFF)
• Interface: SAS 12 Gbps for high-speed connectivity
• NAND Flash Memory: Multi-Level Cell (MLC)
• Hot-Pluggable: Yes, enabling easy installation and replacement
• Carrier Type: Smart Carrier (SC)
• Workload Compatibility: Ideal for write-intensive tasks
• Bundled Accessory: Includes HPE SmartDrive Carrier (SC)
• Firmware Features: Digitally Signed Firmware (DS)
• Platform Compatibility: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance Specifications

• Endurance (TBW): 1,500 TB total writes
• Drive Writes Per Day (DWPD): 10 times daily
• Transfer Rate: 12 Gbps external drive transfer rate
• Sequential Read Throughput: Up to 1,050 MiB/s
• Sequential Write Throughput: Up to 1,005 MiB/s
• Random Read Latency: 105 µs (4KiB, Q1)
• Random Write Latency: 35 µs (4KiB, Q1)
• Max Random Read IOPS: 170,000 (4KiB, Q64)
• Max Random Write IOPS: 100,000 (4KiB, Q16)

Power Consumption

• Idle Power: 3.61 Watts
• Random Read/Write Power Usage: 6.19 Watts
• Sequential Read Power Usage: 6.63 Watts
• Sequential Write Power Usage: 10.65 Watts
• Maximum Power Consumption: 11.00 Watts

Physical Specifications

• Height: 0.63 inches
• Width: 3.10 inches
• Depth: 5.45 inches
• Weight: 1.50 lbs

Connectivity and Compatibility

• Interface Type: SAS 12 Gbps
• Compatible Drive Bay: 2.5-inch SFF

Compliance and Standards

• Compliance: WEEE Compliant

Compatibility with HPE ProLiant Series

• HPE ProLiant DL Series: DL120 Gen9, DL160 Gen9, DL180 Gen9, DL20 Gen10, DL360 Gen9, DL380 Gen9, DL385 Gen10, DL560 Gen10, DL580 Gen10 (various configurations and sizes)
• HPE ProLiant ML Series: ML110 Gen9/Gen10, ML150 Gen9, ML350 Gen9/Gen10 (various configurations and sizes)
• HPE ProLiant XL Series: XL190r Gen10, XL270d Gen9/Gen10 (2.5 inch SFF)

Interface: SAS 12GBPS

Benefits of SAS 12GBPS

1. High Data Transfer Speeds

The SAS 12GBPS interface offers blazing-fast data transfer speeds, making it ideal for high-performance applications and environments. With a transfer rate of up to 12 gigabits per second, this interface ensures that data can be read from and written to the HPE 868649-002 SSD quickly and efficiently. This means that users can experience significantly reduced latency and improved overall system performance.

2. Enhanced Scalability

The SAS 12GBPS interface provides enhanced scalability, allowing users to connect multiple devices in a daisy-chain configuration. This enables seamless expansion of storage capacity without the need for additional controllers or complex cabling setups. Whether you need to add more solid-state drives (SSDs) or other storage devices, the SAS 12GBPS interface offers the flexibility to scale your storage infrastructure easily.

3. Improved Reliability

Reliability is a critical factor when it comes to storage solutions. The SAS 12GBPS interface is known for its robustness and fault tolerance. It incorporates advanced error detection and correction mechanisms, ensuring that data integrity is maintained even in the presence of potential transmission errors. This feature is particularly important for enterprise environments where data loss or corruption can have severe consequences.

Importance of SAS 12GBPS

1. Accelerated Workloads

The SAS 12GBPS interface allows for faster data access and retrieval, resulting in accelerated workloads. Whether you are running resource-intensive applications or handling large datasets, the high data transfer speeds provided by SAS 12GBPS can significantly reduce processing times and improve overall system responsiveness. This translates into increased productivity and enhanced user experience.

2. Seamless Integration

The SAS 12GBPS interface is widely supported by various storage devices, servers, and operating systems. This ensures seamless integration with your existing infrastructure, minimizing compatibility issues and simplifying deployment. Whether you are upgrading your storage system or building a new one, the SAS 12GBPS interface offers a reliable and standardized solution that can be easily integrated into your setup.

3. Future-Proof Investment

Investing in a storage solution with the SAS 12GBPS interface ensures that you are prepared for future technological advancements. As data demands continue to grow, having a high-speed interface like SAS 12GBPS provides headroom for expansion and scalability. By future-proofing your storage infrastructure, you can avoid costly upgrades or migrations down the line, saving both time and resources.

Capacity: 800GB

Benefits of 800GB Capacity

1. Ample Storage Space

The 800GB capacity of the HPE 868649-002 SSD offers ample storage space for various applications and data-intensive workloads. Whether you need to store large multimedia files, databases, or virtual machines, this capacity ensures that you have enough room to accommodate your data requirements. With greater storage capacity, you can avoid running out of space and ensure uninterrupted operations.

2. Consolidation and Simplification

Having a high-capacity SSD like the HPE 868649-002 allows for the consolidation of storage resources. Instead of managing multiple smaller drives, you can streamline your storage infrastructure by deploying fewer high-capacity SSDs. This simplifies management tasks, reduces maintenance efforts, and lowers overall costs associated with hardware procurement and management.

3. Improved Performance

Higher capacity SSDs often offer better performance characteristics compared to their lower capacity counterparts. With more storage space, the HPE 868649-002 SSD can distribute data across a larger number of memory cells, reducing the wear on individual cells and improving overall drive endurance. This translates into enhanced performance and longevity, ensuring that your storage solution can meet demanding workloads.

Importance of 800GB Capacity

1. Scalability and Flexibility

The 800GB capacity of the HPE 868649-002 SSD provides scalability and flexibility for your storage needs. Whether you are a small business or an enterprise, having the ability to expand your storage capacity as your requirements grow is crucial. The 800GB capacity allows for easy scalability, enabling you to add more drives or upgrade to higher-capacity models without disrupting your operations.

2. Cost-Effective Solution

Investing in a storage solution with sufficient capacity can be a cost-effective approach in the long run. By opting for the 800GB capacity of the HPE 868649-002 SSD, you can meet your current storage needs while leaving room for future growth. This eliminates the need for frequent hardware upgrades and minimizes the total cost of ownership over time.

3. Streamlined Data Management

With larger capacities, you can consolidate data onto fewer drives, simplifying data management tasks. This reduces complexity and improves overall efficiency when it comes to data backup, recovery, and archiving processes. Having a streamlined data management strategy not only saves time but also reduces the risk of errors and data loss associated with managing multiple drives.

Technology: Multi Level

Benefits of Multi Level Technology

1. Higher Storage Density

Multi Level technology enables higher storage densities by allowing multiple bits to be stored in a single memory cell. This means that more data can be stored within the same physical footprint, maximizing storage efficiency and reducing the need for additional drives. With higher storage densities, you can optimize space utilization and reduce power consumption.

2. Cost-Effective Solution

Multi Level technology offers a cost-effective solution for data storage. By allowing multiple bits to be stored in a single cell, the cost per bit is reduced compared to Single Level technology. This makes Multi Level SSDs more affordable for users who require large storage capacities without breaking their budget. It provides an excellent balance between cost and performance.

3. Enhanced Performance

Multi Level technology has evolved over the years, resulting in improved performance characteristics. Modern Multi Level SSDs offer faster read and write speeds, reduced latency, and improved overall responsiveness compared to older generations. With enhanced performance, users can experience quicker access to their data and seamless execution of resource-intensive tasks.

Importance of Multi Level Technology

1. Efficient Data Storage

Efficient data storage is crucial for businesses and individuals alike. By leveraging Multi Level technology, the HPE 868649-002 SSD can store more data within a smaller physical space, allowing for efficient utilization of storage capacity. This is particularly important for environments where space constraints are prevalent, such as data centers or compact servers.

2. Balanced Performance

Multi Level technology strikes a balance between cost and performance requirements. It provides a cost-effective solution without compromising on performance characteristics. The HPE 868649-002 SSD with Multi Level technology offers excellent read and write speeds, ensuring that users can access their data quickly and efficiently. This is especially beneficial for applications that demand high-speed data processing.

3. Long-Term Reliability

Multi Level technology advancements have also resulted in improved endurance and reliability. Modern Multi Level SSDs incorporate various wear-leveling and error-correction mechanisms to ensure data integrity and extend drive lifespan. This means that users can rely on the HPE 868649-002 SSD with Multi Level technology for long-term storage needs, minimizing the risk of data loss or drive failure.

Firmware: Digitally Signed

Benefits of Digitally Signed Firmware

1. Enhanced Security

Digitally signed firmware ensures the integrity and authenticity of the firmware installed on the HPE 868649-002 SSD. By digitally signing the firmware, the manufacturer guarantees that it has not been tampered with or modified by unauthorized parties. This enhances security and reduces the risk of firmware-based attacks or malicious manipulation of the drive's functionality.

2. Secure Updates

Digitally signed firmware allows for secure updates to be applied to the HPE 868649-002 SSD. The digital signature ensures that the updates come from a trusted source and have not been altered during transmission or installation. This ensures that firmware updates are reliable and free from potential security vulnerabilities, providing peace of mind for users.

3. Regulatory Compliance

In certain industries or organizational settings, regulatory compliance is a critical requirement. Digitally signed firmware helps meet these compliance standards by providing evidence of authentic firmware installation and update processes. This is particularly important in sectors such as healthcare, finance, or government, where data security and integrity are of utmost importance.

Importance of Digitally Signed Firmware

1. Protection against Malicious Activities

Digitally signed firmware acts as an additional layer of protection against potential threats or malicious activities. By ensuring that only trusted and unmodified firmware is installed on the HPE 868649-002 SSD, the risk of unauthorized access, data breaches, or system vulnerabilities is significantly reduced. This is especially crucial for organizations handling sensitive or confidential data.

2. Reliable Firmware Updates

Firmware updates are essential for maintaining optimal drive performance and addressing potential security vulnerabilities. Digitally signed firmware updates provide assurance that the updates come from a trusted source and have not been tampered with during transit. This ensures that the HPE 868649-002 SSD remains up-to-date and secure, protecting your data and system integrity.

3. Trust and Accountability

Digitally signed firmware instills trust and accountability in the manufacturer of the HPE 868649-002 SSD. By digitally signing their firmware, manufacturers demonstrate their commitment to delivering secure and reliable products. This builds confidence among users, knowing that they are using a trustworthy storage solution that adheres to industry best practices and standards.
