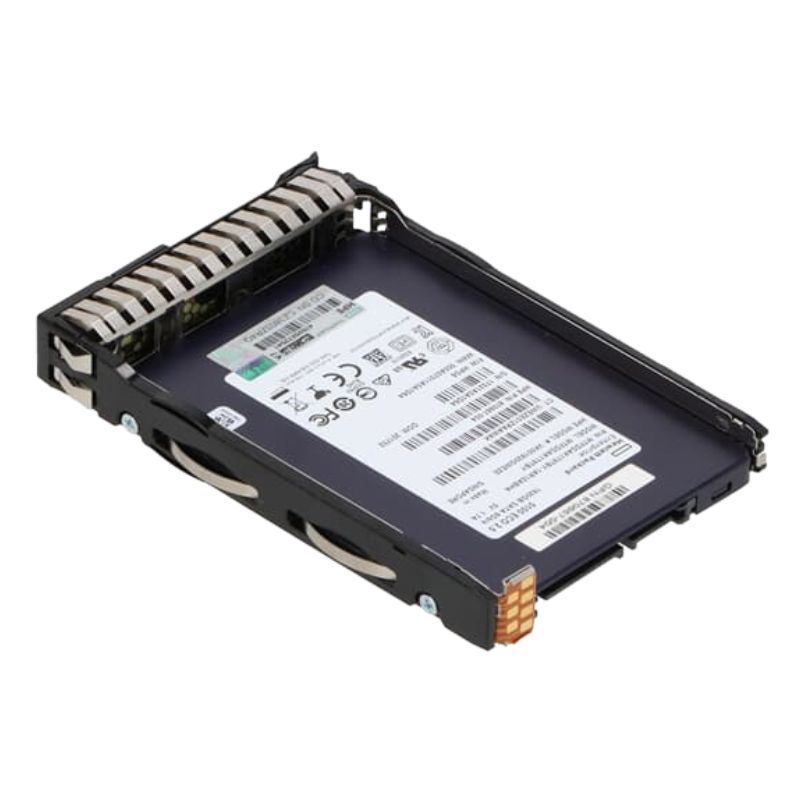

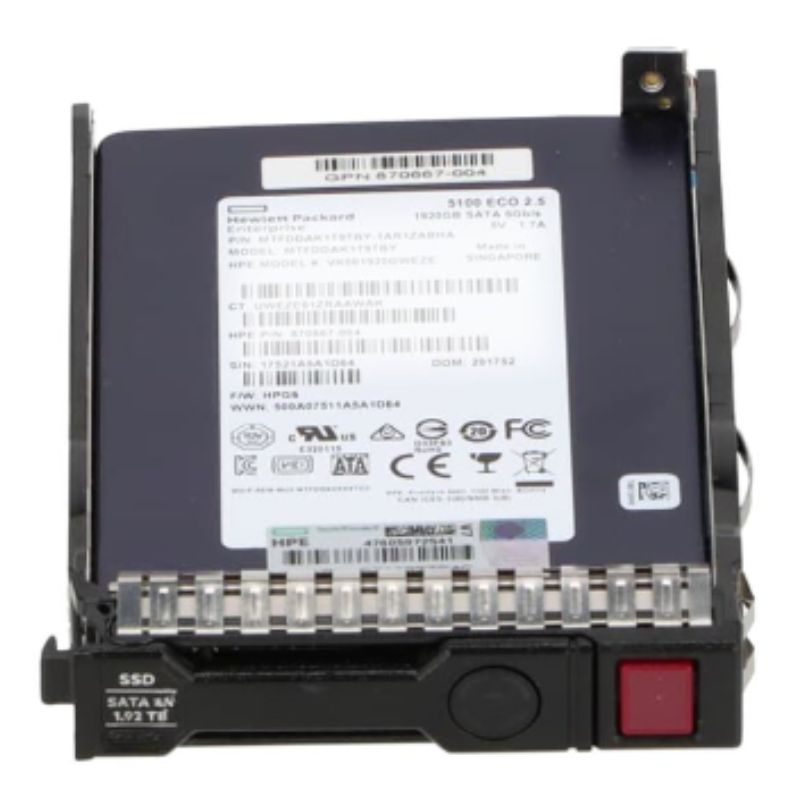

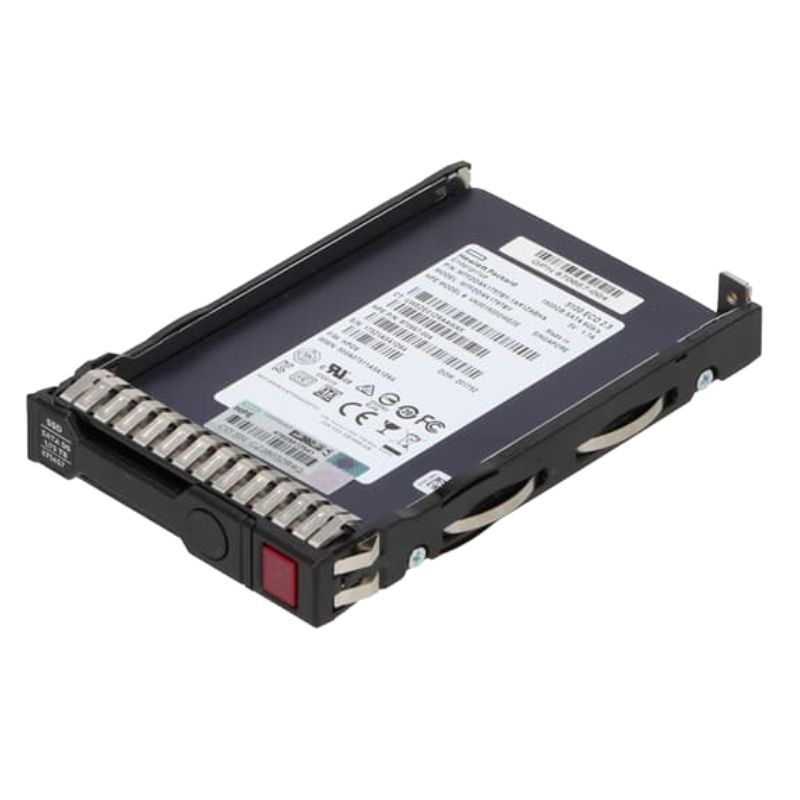

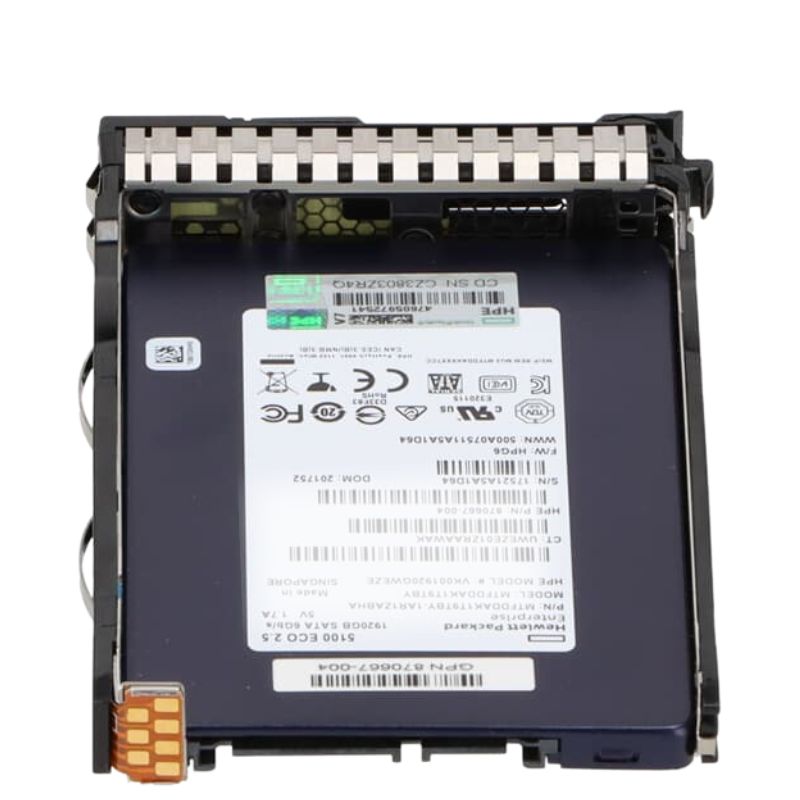

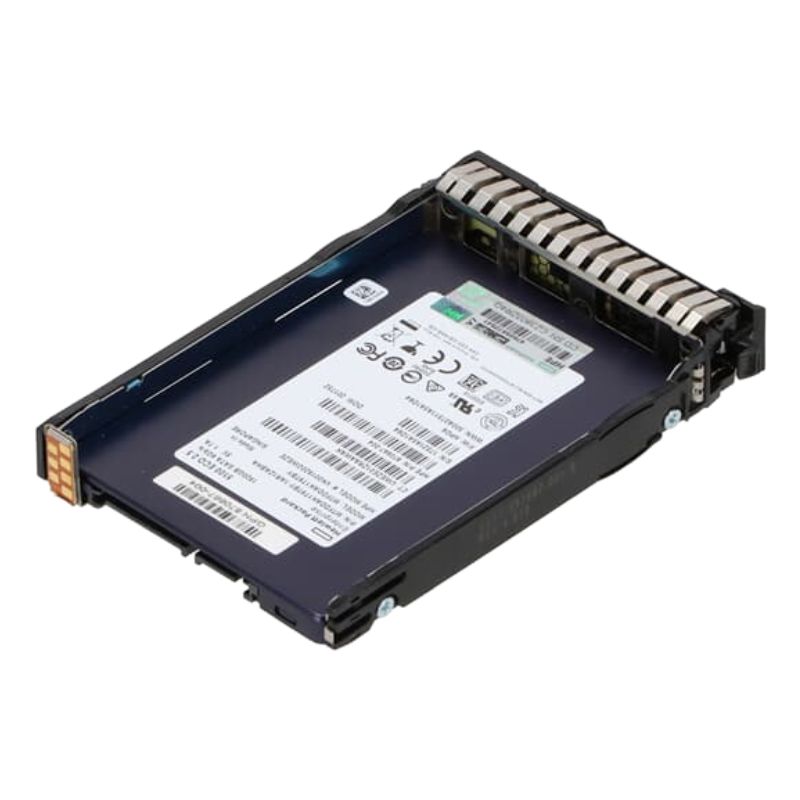

HPE 868826-H21 SATA 6GBPS 1.92TB 2.5" SC Read Intensive SSD
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
868826-H21 | Six-Month (180 Days) | $295.00 | Excellent Refurbished | You save: $125.00 (30%) |
868826-H21 | Six-Month (180 Days) | $570.00 | Factory-Sealed New in Original Box (FSB) | You save: $200.96 (26%) |
Essential Details of HPE 868826-H21 SSD
Overview
- Manufacturer: HPE
- Part Number: 868826-H21
- Type of Device: Solid State Drive – Hot-Swap
- Storage Capacity: 1.92 TB
- Form Factor: 2.5 inch SFF
- Interface: SATA 6Gbps
- NAND Flash Memory: Multi-Level Cell (MLC)
- Hot-Plug Capability: Yes
- Carrier Type: Smart Carrier (SC)
- Usage Type: Read Intensive
- Included Accessories: HPE SmartDrive Carrier
- Firmware Features: Digitally Signed Firmware (DS)
- Compatible Platforms: HPE ProLiant Rack, Tower, BladeSystem Servers, and Synergy
Performance Specifications of HPE 1.92TB SSD
Drive Endurance and Writes
- Total Lifetime Writes: 2979
- Endurance DWPD (Drive Writes Per Day): 0.8
Transfer Rates
- External Drive Transfer Rate: 600 MBps
- Maximum Sequential Reads Throughput: 530 MiB/s
- Maximum Sequential Writes Throughput: 490 MiB/s
Random Performance Metrics
- Random Read Average Latency (4KiB, Q1): 120 µSec
- Random Write Average Latency (4KiB, Q1): 38 µSec
- Random Read IOPS (4KiB, Q=16): 61500
- Random Write IOPS (4KiB, Q=16): 26000
- Maximum Random Read IOPS (4KiB): 73500@Q32
- Maximum Random Write IOPS (4KiB): 26000@Q1
- Random 4KiB 70% Read / 30% Write IOPS: 56000
- Random 4KiB 50% Read / 50% Write IOPS: 44000
Dimensions and Weight of the 2.5 inch SFF SSD
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 lbs
Power Consumption of the SATA 6GBPS SSD
- Idle Power Consumption: 1.29 Watts
- Random Read Power Consumption: 2.87 Watts
- Random Write Power Consumption: 2.87 Watts
- Sequential Read Power Consumption: 3.10 Watts
- Sequential Write Power Consumption: 3.98 Watts
- Random Read/Write Power Consumption: 2.87 Watts
Expansion and Connectivity Features
- Available Interfaces: 1 x SATA 6 Gb/s
- Compatible Bay Type: 2.5″ SFF
Regulatory Compliance and Environmental Conditions
- Compliant Standards: WEEE
Operational Temperature Range
- Minimum Operating Temperature: 32 °F
- Maximum Operating Temperature: 140 °F
Supported Compatibility with HPE Systems
Apollo Series
- 4200 Gen9 for Google (2.5 inch)
ProLiant BL Series
- BL460c Gen10 (2.5 inch)
ProLiant DL Series
- DL360 Gen10 and variants (2.5 inch)
- DL380 Gen10 and variants (2.5 inch)
- DL388 Gen10 and variants (2.5 inch)
- DL560 Gen10 and variants (2.5 inch)
- DL580 Gen10 and variants (2.5 inch)
ProLiant ML Series
- ML350 Gen10 and variants (2.5 inch)
Synergy Series
- 480 Gen10 and variants (2.5 inch)
- 660 Gen10 and variants (2.5 inch)
Interface: SATA 6Gbps
The HPE 868826-H21 SSD is equipped with a SATA 6Gbps interface, providing users with a high-speed and reliable connection between the drive and the host system. SATA, which stands for Serial ATA, is a standard interface used for connecting storage devices to computers. It offers significant improvements over its predecessor, Parallel ATA, in terms of speed, performance, and ease of use.
Benefits of SATA 6Gbps
Enhanced Data Transfer Speeds
The SATA 6Gbps interface offers blazing-fast data transfer speeds, allowing for quick and efficient communication between the SSD and the computer. With a maximum transfer rate of 6 gigabits per second (Gbps), this interface ensures that you can access and transfer large files or data-intensive applications rapidly. Whether you are working on complex projects or running resource-intensive applications, the high-speed interface ensures smooth and seamless performance.
Improved System Responsiveness
By leveraging the capabilities of the SATA 6Gbps interface, the HPE 868826-H21 SSD dramatically improves system responsiveness. The faster data transfer speeds enable quick boot-up times, reduced application loading times, and snappier overall system performance. This means you can enjoy a more efficient and productive computing experience, whether you are using your computer for work or leisure activities.
Compatibility and Ease of Use
SATA interfaces are widely adopted in the industry, making the HPE 868826-H21 SSD compatible with a vast range of computers and devices. Whether you have a desktop computer or a laptop, you can easily install this SSD without any hassle. The plug-and-play nature of SATA connections ensures that you can upgrade your existing storage solution effortlessly.
Importance of SATA 6Gbps
Future-Proofing Your System
With technology advancing at a rapid pace, it's crucial to future-proof your system by investing in storage solutions that support the latest interfaces. The SATA 6Gbps interface ensures that your system remains compatible with future upgrades and enhancements. By choosing the HPE 868826-H21 SSD with SATA 6Gbps, you can rest assured that your storage solution will be able to keep up with the evolving demands of data-intensive applications and workflows.
Maximizing Drive Performance
The HPE 868826-H21 SSD is designed to deliver exceptional performance, and the SATA 6Gbps interface plays a vital role in maximizing this potential. By providing a high-speed connection, the interface eliminates any bottlenecks that could hinder the drive's performance. This enables you to fully leverage the capabilities of the SSD, ensuring optimal read and write speeds, as well as reliable data access.
Efficient Data Management
SATA 6Gbps offers not only fast transfer speeds but also advanced features for efficient data management. It supports Native Command Queuing (NCQ), which optimizes data flow and prioritizes requests, resulting in improved overall performance. Additionally, SATA 6Gbps supports hot-swapping, allowing you to connect or disconnect the SSD without restarting your system. This feature is particularly beneficial for IT professionals or users who frequently need to swap drives.
Capacity: 1.92TB
The HPE 868826-H21 SSD boasts an impressive capacity of 1.92TB, making it an ideal storage solution for users who require ample space for storing large amounts of data. Whether you are a creative professional working with high-resolution media files or an enterprise user dealing with extensive databases, the 1.92TB capacity ensures that you can store and access your data conveniently.
Benefits of 1.92TB Capacity
Ample Storage Space
With 1.92TB of storage capacity, the HPE 868826-H21 SSD provides ample space to accommodate a wide range of data-intensive applications and files. You can store large media files, such as videos and images, without worrying about running out of space. This is especially important for professionals who need to work with high-resolution content or manage extensive digital libraries.
Improved Workflow Efficiency
The spacious capacity of the HPE 868826-H21 SSD allows for better organization and management of your files and applications. You can keep all your data in one place, eliminating the need for external storage devices or multiple drives. This streamlines your workflow, enabling quick and efficient access to your files whenever you need them. Whether you are working on complex projects or need to access critical data, the 1.92TB capacity ensures that you have everything at your fingertips.
Scalability and Future Growth
As data storage requirements continue to grow exponentially, having a high-capacity SSD like the HPE 868826-H21 becomes essential. The 1.92TB capacity provides room for future growth, allowing you to expand your digital assets without worrying about running out of storage space. This scalability ensures that your storage solution remains relevant and capable of accommodating increasing data demands for years to come.
Importance of 1.92TB Capacity
Cost-Effective Solution
The HPE 868826-H21 SSD's 1.92TB capacity offers a cost-effective alternative to traditional storage solutions. With the decreasing costs of SSD technology, the price per gigabyte has become more affordable, making high-capacity SSDs a viable option for a broader range of users. By investing in a 1.92TB SSD, you can enjoy the benefits of faster performance and ample storage without breaking the bank.
Reduced System Complexity
Having a single drive with a large capacity simplifies your system setup and reduces complexity. With the HPE 868826-H21 SSD's 1.92TB capacity, you can consolidate multiple smaller drives into one, eliminating the need for RAID configurations or managing multiple drive letters. This not only saves time and effort but also reduces the risk of data loss or drive failure associated with complex storage setups.
Enhanced Data Security
Storing all your data in one place offers enhanced data security measures. With the HPE 868826-H21 SSD's 1.92TB capacity, you can implement robust backup and disaster recovery strategies more effectively. Centralizing your data reduces the chances of data fragmentation or loss, ensuring that your critical information remains safe and accessible at all times.
Form Factor: 2.5inch
The HPE 868826-H21 SSD adopts a compact and widely-used form factor of 2.5 inches, making it compatible with various devices and systems. The 2.5-inch form factor is prevalent in laptops, desktops, servers, and storage arrays, ensuring that you can seamlessly integrate the SSD into your existing infrastructure.
Benefits of 2.5inch Form Factor
Wide Compatibility
The 2.5-inch form factor is widely accepted and adopted by manufacturers across different industries. By choosing the HPE 868826-H21 SSD with a 2.5-inch form factor, you can rest assured that it will be compatible with a vast range of devices and systems. Whether you are upgrading a laptop or expanding the storage capacity of a server, the 2.5-inch form factor ensures a hassle-free integration process.
Space Efficiency
The compact size of the 2.5-inch form factor allows for efficient space utilization in various computing environments. Whether you have limited space in your desktop PC or need to accommodate multiple drives in a server rack, the 2.5-inch form factor offers a balance between performance and physical footprint. This is particularly beneficial for users who require high-capacity storage solutions but have limited space constraints.
Hot-Swapping Capability
The 2.5-inch form factor supports hot-swapping, enabling you to replace or upgrade the HPE 868826-H21 SSD without powering down your system. This feature is particularly useful in enterprise environments where minimizing downtime is crucial. With hot-swapping, you can easily and quickly replace or upgrade drives, ensuring continuous operation and uninterrupted workflow.
Importance of 2.5inch Form Factor
Flexibility and Versatility
The 2.5-inch form factor offers flexibility and versatility, allowing you to deploy the HPE 868826-H21 SSD in various computing environments. Whether you need to install it in a laptop, desktop, or server chassis, the 2.5-inch form factor ensures compatibility and ease of installation. This versatility makes the HPE 868826-H21 SSD an excellent choice for individuals or businesses with diverse IT infrastructure needs.
Future-Proofing Your Investment
Investing in storage solutions with a widely-adopted form factor, such as the 2.5-inch form factor, ensures that your investment remains relevant and compatible with future hardware upgrades. As technology evolves and newer form factors emerge, the 2.5-inch form factor is expected to remain prevalent for years to come. By choosing the HPE 868826-H21 SSD with a 2.5-inch form factor, you can future-proof your storage solution and avoid potential compatibility issues down the line.
Cost Savings and Compatibility
The 2.5-inch form factor offers cost savings and compatibility advantages compared to larger form factors. The smaller size allows for better space utilization, reducing the overall footprint and cooling requirements of your system. Additionally, 2.5-inch drives are generally more affordable than their larger counterparts, providing a cost-effective solution without compromising on performance or capacity.
Intended Use: Read Intensive
The HPE 868826-H21 SSD is specifically designed for read-intensive workloads, making it an excellent choice for applications that require fast data access and retrieval. Whether you are running virtualization environments, databases, or content delivery networks (CDNs), the read-intensive nature of this SSD delivers exceptional performance and reliability.
Benefits of Read Intensive SSDs
High Read Performance
Read-intensive SSDs, such as the HPE 868826-H21, prioritize read operations, resulting in significantly higher read speeds compared to write-intensive drives. This is particularly beneficial for applications that require frequent data access or retrieval, such as web servers or content delivery networks. By focusing on read performance, these SSDs ensure quick data delivery and reduced latency.
Enhanced Endurance
Read-intensive SSDs are designed to handle constant read operations, resulting in improved endurance and longevity. The HPE 868826-H21 SSD's read-intensive nature allows it to withstand heavy workloads without compromising performance or reliability. This makes it an ideal choice for applications that involve continuous data access, such as data analytics or real-time processing.
Cost-Effective Solution
Read-intensive SSDs typically offer a more cost-effective solution compared to write-intensive drives. Since read operations are prioritized, the HPE 868826-H21 SSD can be optimized for read performance while utilizing more affordable memory components. This cost savings translates to a more budget-friendly storage solution without sacrificing performance or reliability.
Importance of Read Intensive SSDs
Optimized Performance for Specific Workloads
Choosing an SSD that aligns with your specific workload requirements is crucial for achieving optimal performance. The read-intensive nature of the HPE 868826-H21 SSD ensures that it excels in applications where read speed is paramount, such as content delivery networks or virtualization environments. By selecting a drive designed for your workload, you can maximize performance and improve overall system efficiency.
Reduced Total Cost of Ownership (TCO)
The HPE 868826-H21 SSD's read-intensive design offers a lower total cost of ownership compared to write-intensive drives, especially in scenarios where read operations dominate. By investing in a drive that matches your workload needs, you can optimize resource allocation and minimize unnecessary expenses. This efficient use of resources translates to long-term cost savings and improved return on investment (ROI).
Reliable Data Access and Availability
In applications that demand constant data access and availability, having an SSD specifically designed for read-intensive workloads is essential. The HPE 868826-H21 SSD's read-intensive nature ensures reliable and fast data access, minimizing the risk of bottlenecks or performance degradation. This reliability is crucial for critical applications, such as databases or transactional systems, where any delay or downtime can have severe consequences.
