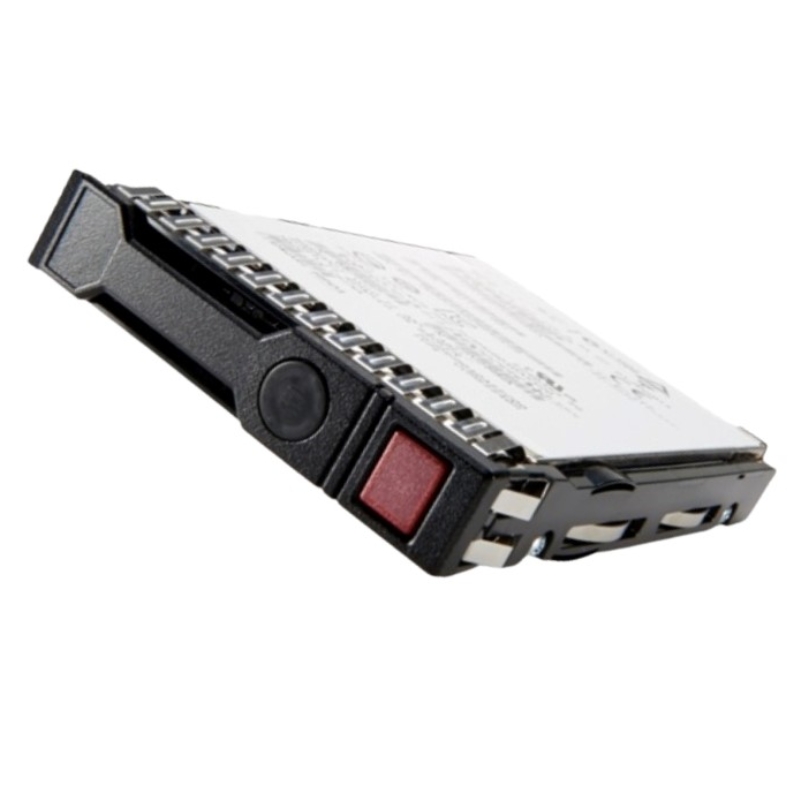

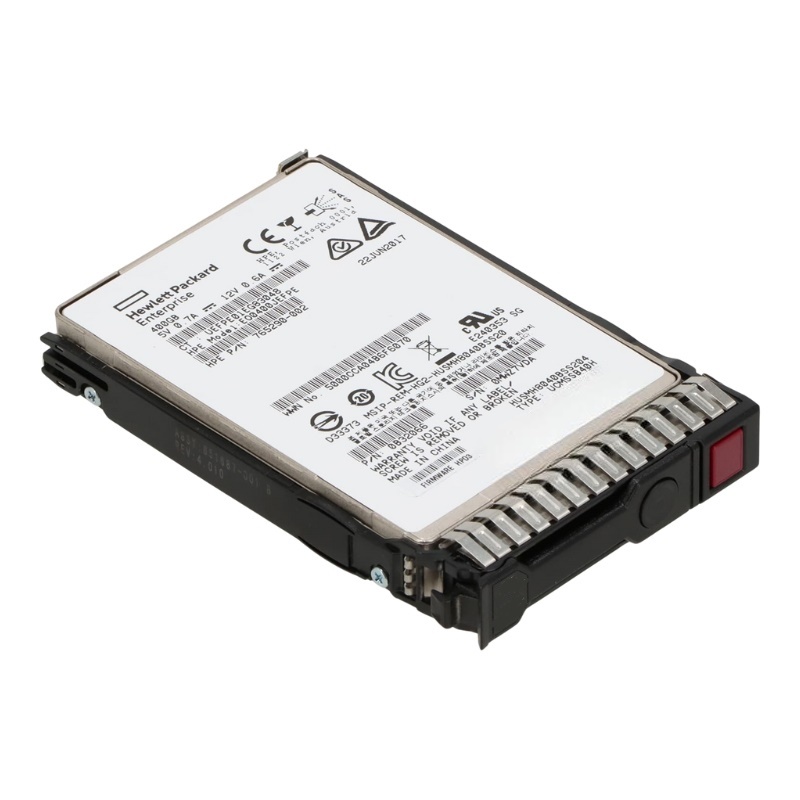

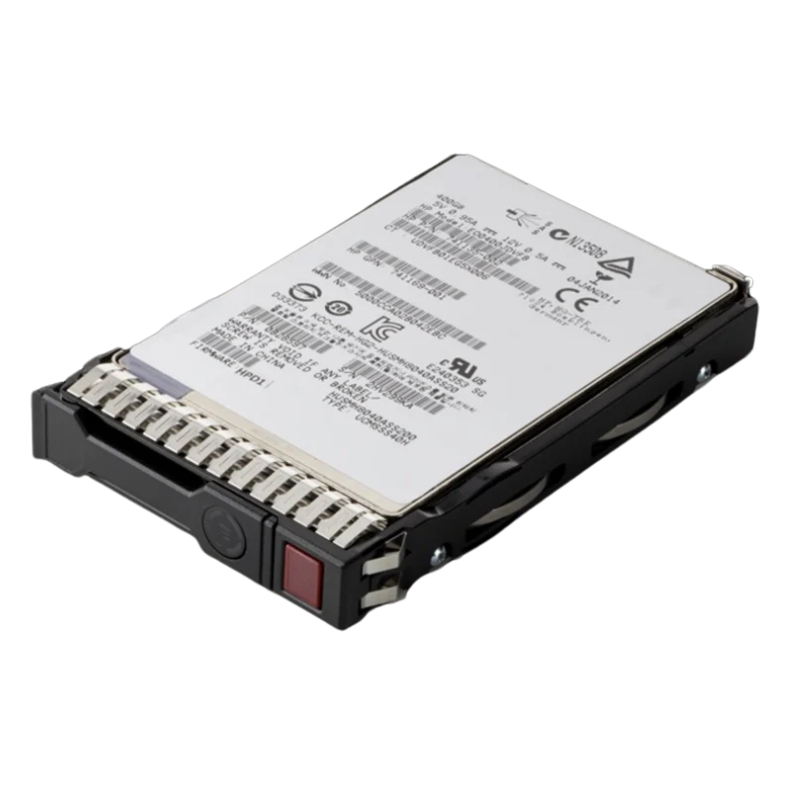

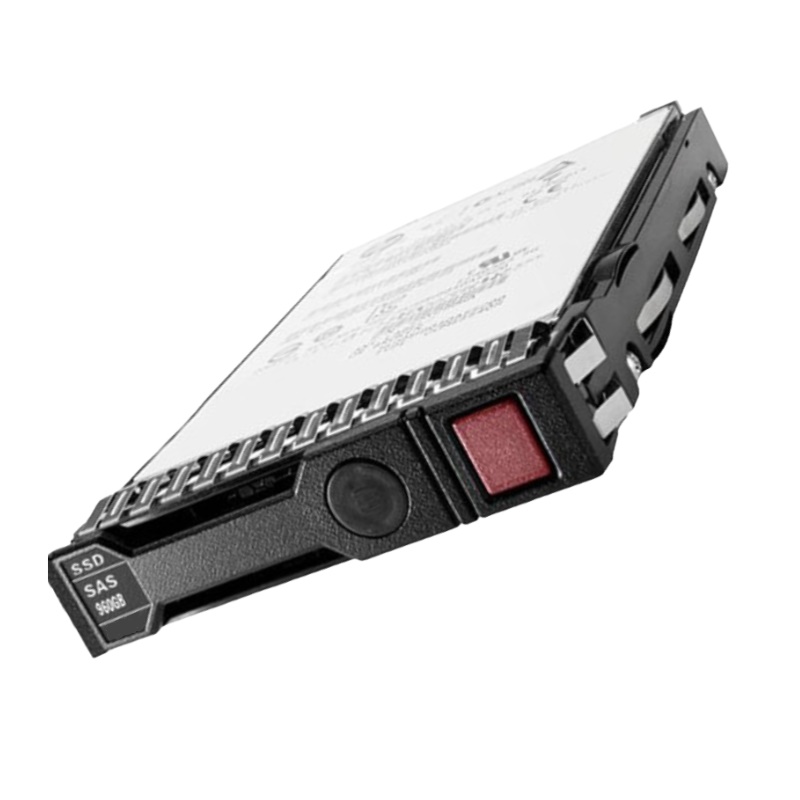

HPE 872396-002 SAS 12GBPS 960GB SSD Signed Firmware

Product Specifications

Brand & Part Numbers

• Manufacturer: HPE
• MPN: 872396-002

General Characteristics

• Device Type: Solid State Drive - Hot-Swap
• Storage Capacity: 960 GB
• NAND Flash Memory: Multi-Level Cell (MLC)
• Form Factor: 2.5 inch SFF
• Connection Interface: SAS 12Gbps
• Plug Type: Hot Pluggable
• Workload Type: Read Intensive
• Firmware: Digitally Signed
• Included Accessories: HPE SmartDrive carrier
• Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Height: 0.6 inch

Performance Metrics

• 30 Days Write Capacity: 1752 TB
• Endurance (DWPD): 1
• Drive Transfer Rate: 1200 MBps (external)
• Maximum Sequential Reads Throughput: 1070 MiB/s
• Maximum Sequential Writes Throughput: 1025 MiB/s
• Random Read Average Latency: 120 µSec (4KiB, Q1)
• Random Write Average Latency: 50 µSec (4KiB, Q1)
• Random Read IOPS: 120,000 (4KiB, Q=16)
• Random Write IOPS: 29,000 (4KiB, Q=16)
• Max Random Read IOPS: 185,000@Q32 (4KiB)
• Max Random Write IOPS: 34,000@Q4 (4KiB)

Expansion & Connectivity

• Interface Options: 1 x SAS 12 Gb/s
• Compatible Bay Size: 2.5" SFF

Power Consumption Details

• Idle State: 3.06 Watts
• Power During Random Read: 4.07 Watts
• Power During Random Write: 4.07 Watts
• Sequential Read Power: 6.28 Watts
• Sequential Write Power: 8.22 Watts
• Random Read/Write Power: 4.07 Watts
• Maximum Power Consumption: 9.00 Watts

Compatibility Overview

HPE ProLiant DL Series

• DL120 Gen9 (2.5 inch)
• DL160 Gen9 (2.5 inch)
• DL180 Gen9 (2.5 inch)
• DL360 Gen10 (2.5 inch)
• DL580 Gen9 (2.5 inch)

HPE ProLiant ML Series

• ML110 Gen9 (2.5 inch)
• ML350 Gen9 (2.5 inch)

HPE ProLiant WS Series

• WS460c Gen9 (2.5 inch)

HPE ProLiant XL Series

• XL190r Gen9 (2.5 inch)
• XL450 Gen10 (2.5 inch)

Part Number: 872396-002

The HPE SAS 12GBPS 960GB Digitally Signed Firmware SSD is an advanced storage solution designed to enhance the performance and reliability of enterprise systems. One of its key features is the unique part number, 872396-002, which plays a crucial role in ensuring compatibility and ease of use for users.

Compatibility and Interoperability

The part number, 872396-002, serves as a unique identifier that distinguishes this specific SSD model from others in the market. This is particularly important when it comes to compatibility and interoperability with existing hardware and software configurations. By referring to the part number, users can ensure that the SSD is compatible with their specific system requirements, reducing the risk of compatibility issues and potential system failures.

Furthermore, the part number allows users to easily identify and procure the correct replacement or upgrade SSD when needed. This eliminates the guesswork and potential errors that can occur when searching for a specific product without a clear identifier.

Firmware Updates and Security

The part number, 872396-002, also plays a crucial role in firmware updates and security. Digitally signed firmware ensures that the SSD's firmware is authentic and has not been tampered with. This provides an additional layer of security against unauthorized access or malicious activities.

When firmware updates are released by HPE, users can easily identify if their SSD model is eligible for the update by referring to the part number. This allows users to stay up-to-date with the latest features, bug fixes, and security enhancements provided by HPE.

Enhanced Performance and Reliability

The HPE SAS 12GBPS 960GB Digitally Signed Firmware SSD with part number 872396-002 is designed to deliver exceptional performance and reliability. The digitally signed firmware ensures optimal performance by enabling advanced features and algorithms specifically tailored for this SSD model.

The SSD's high-speed SAS 12Gbps interface allows for faster data transfer rates, reducing latency and improving overall system responsiveness. This makes it ideal for demanding applications that require quick access to large amounts of data, such as databases, virtualization, and data analytics.

In addition to performance, the part number also signifies the SSD's reliability. HPE has a reputation for producing high-quality products, and the part number serves as an assurance of the SSD's quality and reliability. Users can trust that the 872396-002 model is built to withstand rigorous workloads and provide consistent performance over its lifespan.

Ease of Maintenance and Support

Having a clear part number like HPE 872396-002 SSD simplifies maintenance and support processes. When users need assistance or seek warranty support, they can easily reference the part number to ensure accurate identification of their specific SSD model. This streamlines the troubleshooting and support process, minimizing downtime and maximizing productivity.

HPE's support team can provide targeted assistance based on the part number, ensuring that users receive the most relevant and effective support for their specific SSD model. Whether it's troubleshooting, firmware updates, or warranty claims, having the correct part number readily available expedites these processes.

Conclusion

The HPE SAS 12GBPS 960GB Digitally Signed Firmware SSD with part number 872396-002 offers a range of benefits for users. By providing compatibility assurance, firmware security, enhanced performance, and reliability, as well as simplified maintenance and support processes, this SSD model stands out in terms of usability and user satisfaction. The unique part number serves as an essential identifier that facilitates seamless integration into existing systems and ensures users can make the most of their investment in HPE's advanced storage solution.
