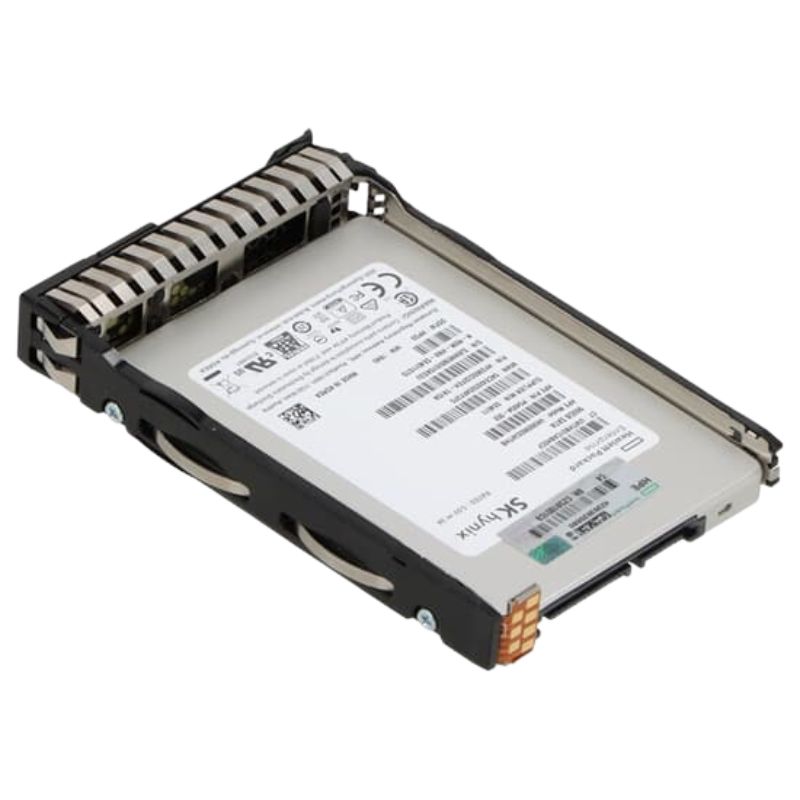

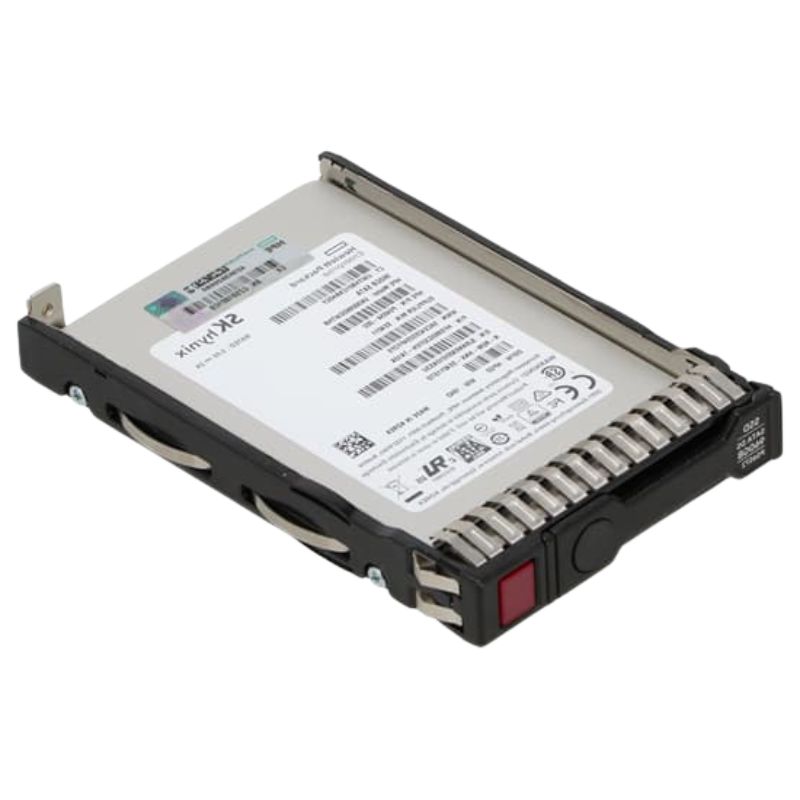

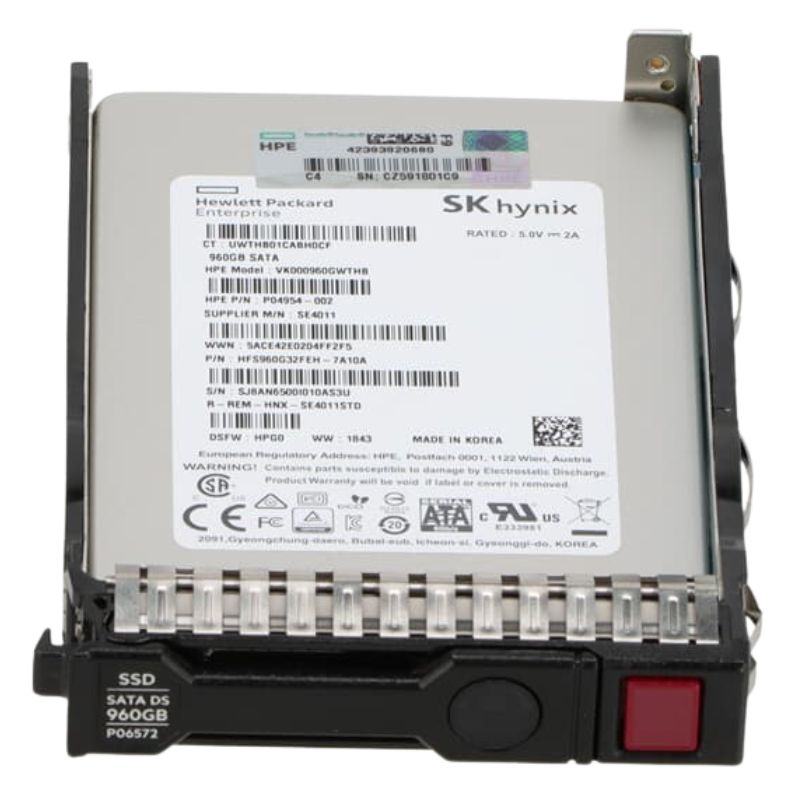

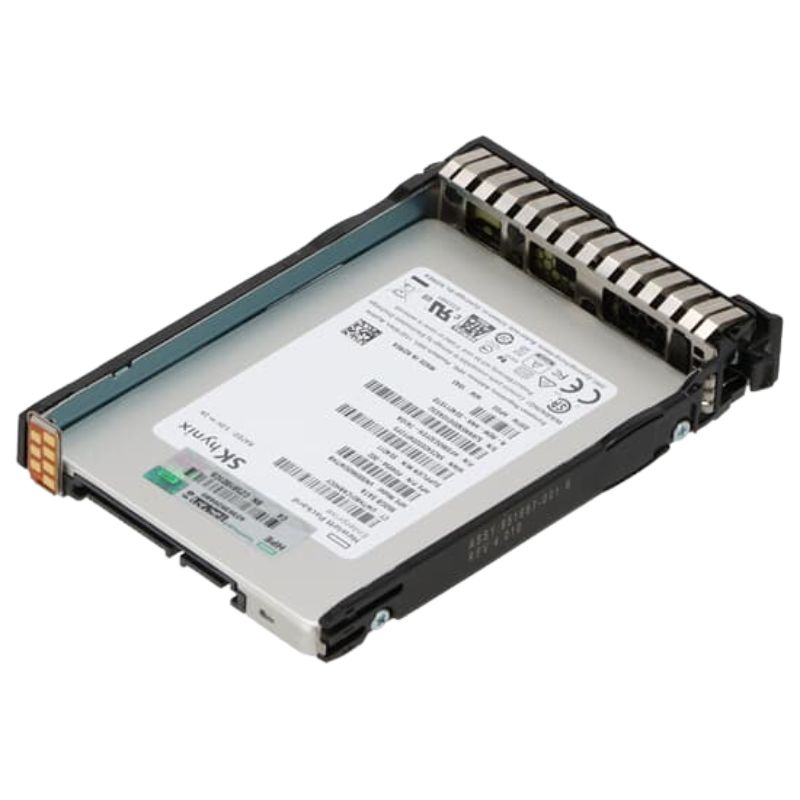

P06196-H21 HPE 960GB SATA 6GBPS TLC SSD

HPE P06196-H21 960GB SATA 6GBPS TLC SSD

The HPE P06196-H21 is a high-performance 960GB SATA solid-state drive optimized for read-intensive workloads in enterprise environments. Designed for seamless integration with HPE ProLiant servers, Synergy systems, and Apollo platforms, this 2.5-inch drive delivers exceptional reliability, fast data access, and efficient storage management.

Key Features of HPE P06196-H21 SSD

• Brand: HPE
• Part Number: P06196-H21
• Spare Part Number: P06572-001
• Device Type: Hot-swappable solid-state drive
• Form Factor: 2.5-inch small form factor (SFF)
• Interface: SATA 6GBPS
• Flash Technology: Triple-Level Cell (TLC)
• Workload Class: Read-intensive
• Included Accessories: HPE SmartDrive Carrier
• Firmware: Digitally signed for enhanced security

Technical Specifications

Sequential and Random Performance

• Sequential Read: Up to 530 MiB/s
• Sequential Write: Up to 480 MiB/s
• Random Read IOPS: 58,500 (4KiB, Q16)
• Random Write IOPS: 36,500 (4KiB, Q16)
• Max Random Read IOPS: 58,500 @ Q32
• Max Random Write IOPS: 38,200 @ Q16
• Average Random Read Latency: 120 μs
• Average Random Write Latency: 65 μs

Endurance and Reliability

• 30-Day Write Volume: 1,710 GB
• Endurance: 1 Drive Write Per Day (DWPD)
• Hot-Plug Capability: Ensures zero downtime during replacements

Power Efficiency

The HPE P06196-H21 SSD is engineered for minimal energy consumption without compromising performance, supporting both operational cost savings and environmental efficiency.

• Idle Power: 0.78 W
• Random Read/Write: 1.61 W
• Sequential Read: 1.69 W
• Sequential Write: 2.35 W
• Maximum Power Draw: 2.43 W

Physical Dimensions & Weight

• Height: 0.5 inch (12.70 mm)
• Width: 2.75 inch (69.85 mm)
• Depth: 9.0 inch (228.6 mm)
• Weight: 1.10 lbs (0.50 kg)

Connectivity and Expansion

The drive supports standard SATA 6Gb/s connectivity, providing compatibility with HPE 2.5-inch SFF drive bays. Its hot-swappable design ensures straightforward upgrades or replacements without system interruptions.

• Interface: 1 x SATA 6Gb/s
• Compatible Drive Bay: 2.5-inch SFF

Supported Platforms

HPE P06196-H21 is fully compatible with a wide range of HPE enterprise servers and modules, including ProLiant, Synergy, and Apollo systems. It is optimized for high-density, mission-critical environments.

HPE ProLiant DL Series Compatibility

• DL20 Gen10 (Standard, Entry, Performance, Solution)
• DL325 Gen10 (Standard, Entry, Performance, SMB Solution)
• DL360 Gen10 (Standard, Entry, Low, High, Performance, Solution)
• DL380 Gen10 (Base, Entry, High, Performance, Solution)
• DL385 Gen10 (Base, Entry, High-Performance, Solution)
• DL580 Gen10 & Gen9 (Base, Entry, Performance, SAP HANA Scale-up/Scale-out)

HPE ProLiant ML Series Compatibility

• ML30 Gen9 & Gen10 (Standard, Entry, Performance, Solution)
• ML350 Gen10 (Base, Entry, Performance, Solution, Sub-Entry)

HPE ProLiant XL & Synergy Series Compatibility

• XL190r & XL270d Gen10 (2.5-inch)
• Synergy 480 & 660 Gen10 Modules (Base, Entry, Performance, Premium, Standard, Compute without Drives)
• Synergy 680 Gen9 4S-EX Compute Module

HPE P06196-H21 960GB SATA SSD Overview

The HPE P06196-H21 960GB SATA 6GBPS TLC Read Intensive 2.5 Inch SSD is designed to deliver high-speed, reliable storage performance for enterprise-level applications and data-centric workloads. Optimized for read-intensive operations, this SSD ensures consistent performance and low latency across demanding environments. With its 960GB capacity, the HPE P06196-H21 offers a perfect balance between storage space, performance, and endurance, making it suitable for applications such as database management, virtualization, and content delivery systems.

Advanced SATA 6GBPS Interface

The SATA 6GBPS interface of the HPE P06196-H21 SSD provides a robust and stable connection to enterprise servers and storage systems. This interface allows for fast data transfer rates up to 6 gigabits per second, which significantly improves read and write operations compared to earlier SATA standards. The SATA interface remains highly compatible with a wide range of HPE storage platforms and third-party servers, ensuring easy integration without the need for specialized hardware modifications.

Optimized TLC NAND Technology

This SSD leverages Triple-Level Cell (TLC) NAND technology, which stores three bits of data per cell, offering higher storage density and cost efficiency compared to Single-Level Cell (SLC) or Multi-Level Cell (MLC) options. TLC NAND is particularly well-suited for read-intensive workloads, allowing the HPE P06196-H21 to maintain high read speeds and durability while delivering reliable storage performance. The implementation of TLC technology ensures that users can achieve both cost savings and dependable long-term performance.

Read-Intensive Performance Features

The read-intensive design of this SSD is tailored to handle applications where data is predominantly read rather than written. This includes high-traffic database queries, virtualization storage, and web hosting environments. With enhanced read performance, the HPE P06196-H21 reduces latency and accelerates data retrieval, enabling organizations to maintain efficient operations even under heavy workloads. Its architecture is optimized for consistent IOPS (Input/Output Operations Per Second), which is critical for enterprise-grade storage solutions.

2.5 Inch Form Factor for Universal Compatibility

The 2.5-inch form factor of the HPE P06196-H21 ensures compatibility with a broad range of server and storage systems. This standard size allows easy installation in existing server bays and storage enclosures without the need for adapters or additional mounting hardware. The compact form factor also contributes to improved airflow and thermal management within storage racks, which is essential for maintaining SSD performance and longevity in high-density data center environments.

Enterprise Reliability and Endurance

HPE has engineered the P06196-H21 SSD to meet stringent enterprise reliability standards. With advanced error correction technologies, wear leveling, and power-loss protection features, this SSD minimizes the risk of data loss and ensures stable operation under critical workloads. Read-intensive TLC SSDs like this model are built to handle sustained read operations while maintaining data integrity, making them ideal for applications that demand high availability and reliability.

Power Efficiency and Thermal Management

The HPE P06196-H21 is designed with power efficiency in mind. It consumes lower energy compared to traditional hard drives while providing higher performance, which helps reduce operational costs and cooling requirements in data centers. Additionally, the SSD’s thermal management mechanisms prevent overheating during prolonged usage, ensuring that the device operates within optimal temperature ranges, thereby extending its lifespan and maintaining consistent performance.

Seamless Integration with HPE Ecosystem

The P06196-H21 SSD integrates seamlessly with the broader HPE storage ecosystem, including ProLiant servers, HPE Nimble Storage, and HPE Apollo systems. Its compatibility with HPE Smart Array controllers ensures that users can leverage advanced storage management features such as RAID configurations, predictive analytics, and automated data protection. This integration simplifies deployment and management while maximizing the overall efficiency of enterprise storage environments.

Data-Intensive Analytics

Data-intensive analytics applications benefit significantly from the high read throughput of the HPE P06196-H21. Whether performing real-time business intelligence, predictive analytics, or big data processing, this SSD delivers the necessary read speeds to process large volumes of data efficiently. Its ability to maintain consistent performance under continuous read operations ensures that analytical workflows remain uninterrupted and highly responsive.

Enhanced Data Security Features

The HPE P06196-H21 incorporates advanced data protection mechanisms to safeguard sensitive information. While primarily designed for read-intensive tasks, it supports features such as secure erase and encryption capabilities, allowing enterprises to comply with regulatory requirements for data security. These security measures help protect data from unauthorized access and accidental deletion, providing peace of mind for IT administrators and business leaders alike.

Longevity and Endurance Considerations

Even though this SSD is optimized for read-intensive workloads, it offers sufficient endurance to handle occasional write operations without compromising reliability. The use of wear-leveling algorithms ensures that write cycles are distributed evenly across the NAND cells, prolonging the overall lifespan of the device. This makes the HPE P06196-H21 a sustainable choice for organizations seeking durable storage solutions with predictable performance over time.

Comparative Advantages over Traditional HDDs

Compared to traditional 2.5-inch hard drives, the HPE P06196-H21 offers multiple advantages. It delivers faster data access times, lower latency, and improved energy efficiency. Additionally, its shock resistance and lack of moving parts make it less prone to mechanical failure, ensuring higher reliability in demanding enterprise environments. These benefits make TLC-based SATA SSDs a cost-effective upgrade for organizations aiming to optimize storage performance without excessive infrastructure changes.

Scalability for Enterprise Storage Solutions

The HPE P06196-H21 SSD supports enterprise scalability, allowing IT teams to expand storage capacity seamlessly as business needs grow. Its high-density design enables efficient use of available drive bays, while maintaining consistent performance across large-scale deployments. By adopting these SSDs, organizations can scale storage infrastructures without compromising speed, reliability, or data integrity, ensuring long-term operational efficiency.

Future-Proofing Enterprise Storage

Investing in HPE P06196-H21 960GB SATA SSDs provides enterprises with a future-proof storage solution capable of supporting evolving workloads. Its combination of high read performance, reliable TLC NAND technology, and integration with HPE ecosystems ensures that organizations can meet current storage demands while preparing for future data growth. This forward-looking design supports business agility and enhances the resilience of enterprise IT infrastructure.
