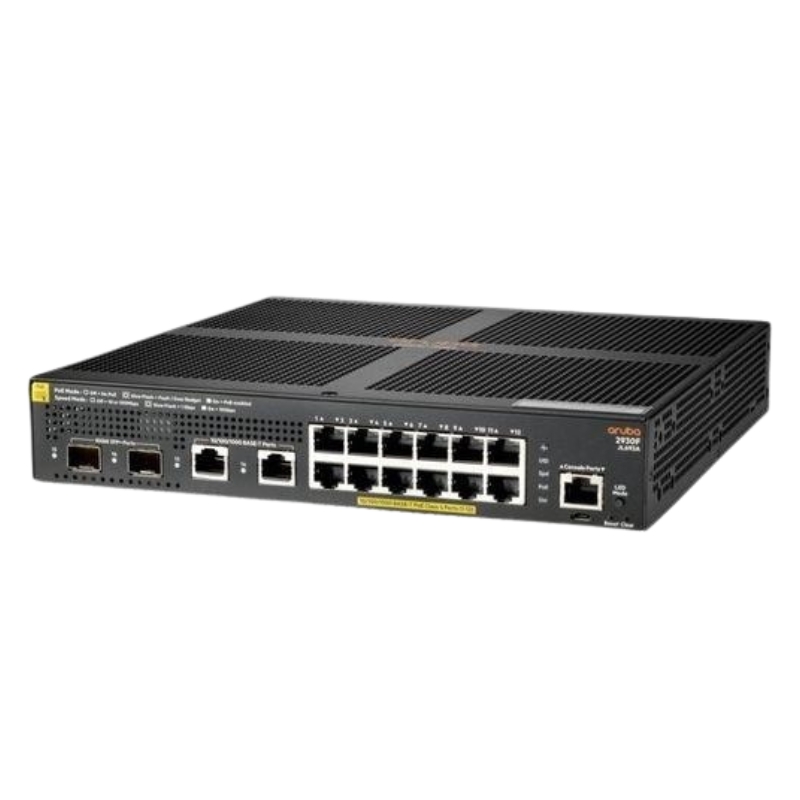

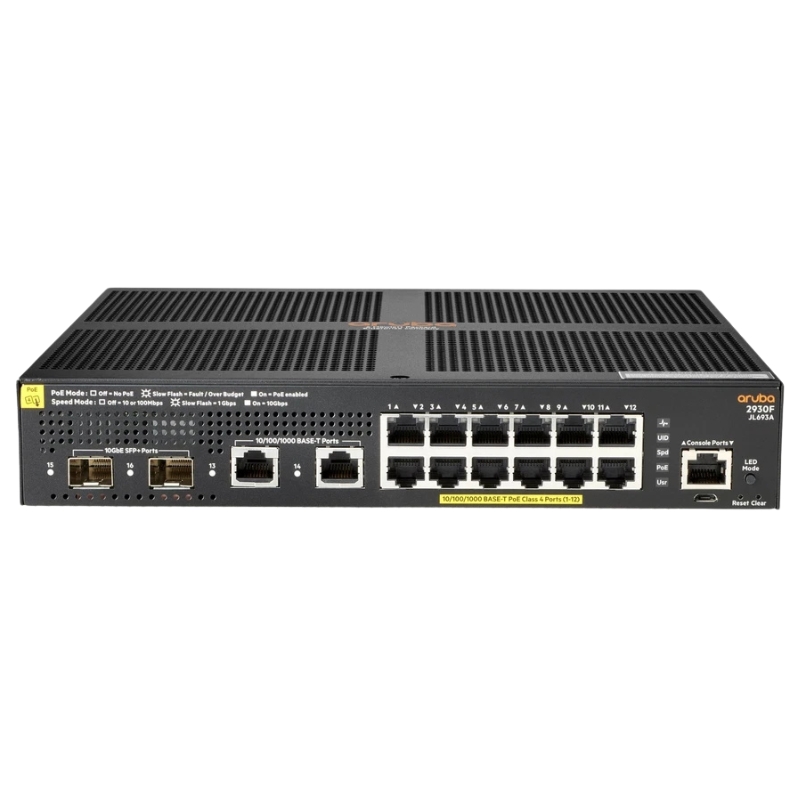

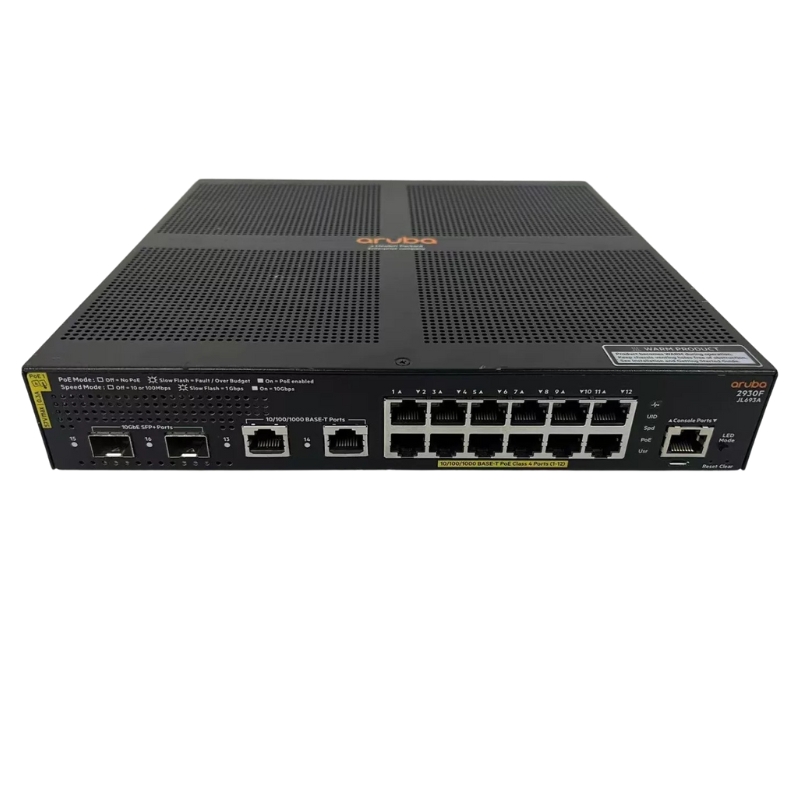

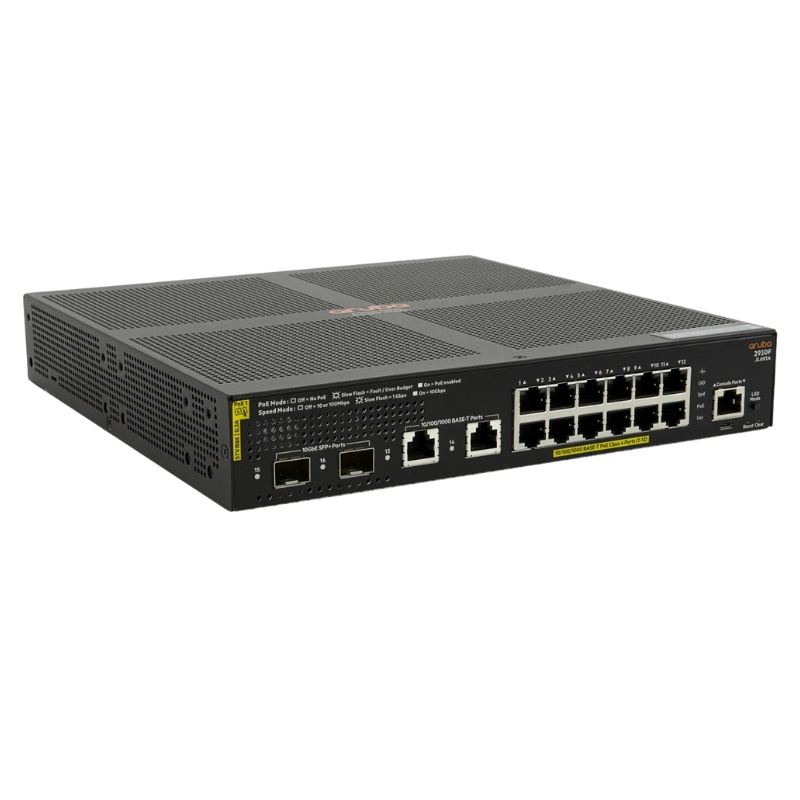

HPE Aruba JL693-61101 2930F 12G PoE+ 139W 12 Ports L3 Managed Switch
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
HPE JL693-61101 Ethernet Switch Overview
Key Product Details
- Manufacturer: HPE
- Part Number: JL693-61101
- Device Type: Layer 3 Managed Stackable Switch
Hardware Specifications
Physical Design
- Enclosure: 1U Rack-Mountable
- Power over Ethernet: PoE+ (139W)
Port Configuration
- 12 x 10/100/1000 Mbps PoE+ Ports
- 2 x Gigabit/10 Gigabit SFP+ Uplink Ports
- 2 x 10/100/1000 Mbps Ethernet Ports
Performance Features
Switching and Throughput
- Switching Capacity: 68 Gbps
- Throughput: 41.7 Million Packets Per Second (Mpps)
- Latency: 3.8 µs (1 Gbps) / 1.6 µs (10 Gbps)
- Jumbo Frame Size: 9220 bytes
Routing and Addressing
- IPv4 Routing Table: 2000 Entries
- IPv6 Routing Table: 1000 Entries
- MAC Address Table Size: 32,000 Entries
Routing Protocols and Management
Supported Protocols
- OSPF, RIP, IGMP (v2, v3)
- Static Routing (IPv4 & IPv6)
- RIPng, MLD, CIDR, and more
Remote Management Options
- SNMP (v1, v2, v3), Telnet, SSH (v1, v2)
- CLI Access, RMON, and XRMON
- Encryption Methods: MD5, SSL
Advanced Features and Support
Network Control and Security
- Flow Control & Full Duplex
- VLAN Support and IGMP Snooping
- Access Control Lists (ACLs)
- Link Aggregation (LACP)
- Dynamic ARP Protection, DHCP Protection
Quality of Service (QoS)
- Supports Jumbo Frames & MLD Snooping
- Diffserv and Class of Service (CoS)
- Traffic Management and Prioritization
Compliance with Industry Standards
- IEEE 802.3, 802.1Q, 802.3x, 802.3af, 802.3at, 802.3az
- IEEE 802.1D, 802.1X, 802.1s, 802.1v
- Other relevant IEEE standards for networking efficiency
Memory and Processing
- Processor: ARM Cortex-A9, 1.016 GHz
- RAM: 1 GB DDR3 SDRAM
- Flash Memory: 4 GB
Connectivity and Expansion Options
Interfaces
- 12 x 1000BASE-T RJ-45 PoE+ Ports
- 2 x Gigabit/10Gbit SFP+ Ports
- 1 x Console Serial Port
- 2 x 1000BASE-T RJ-45 Ports
Expansion Capabilities
- 1 Expansion Slot (1 available)
- Maximum Modules Installed: 0 (max 2)
Power Requirements
- Power Supply: Internal Power Supply
- Voltage Requirements: AC 120/230V, 50/60Hz
Conclusion: A Reliable Networking Solution
The HPE JL693-61101 Aruba 2930F is an adaptable and powerful Layer 3 managed Ethernet switch, tailored for high-performance network environments. It combines excellent throughput, advanced routing, robust security, and extensive management features to optimize your network. With its support for PoE+ and a wide range of industry standards, this switch is a smart choice for businesses seeking reliable and scalable network infrastructure.
Ports
The HPE 2930F 12G PoE+ 139W L3 Managed Switch is equipped with 12 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide numerous benefits and play a crucial role in enhancing connectivity and facilitating seamless communication among devices.
Increased Connectivity
With 12 ports, this managed switch allows you to connect multiple devices simultaneously. Whether it's computers, servers, printers, or other network devices, the abundance of ports ensures that you can establish connections without any limitations. This is particularly useful in office environments where various teams and departments rely on a stable network to carry out their tasks efficiently.
Flexibility in Network Expansion
The availability of 12 ports offers flexibility when it comes to expanding your network. As your business grows and your network requirements increase, you can easily add more devices without the need for additional switches or complex configurations. This scalability ensures that your network infrastructure can adapt to evolving demands, saving you time, effort, and resources in the long run.
Improved Data Transfer Speed
The 12 ports on the HPE 2930F switch support high-speed data transfer rates, allowing for quick and seamless file transfers, multimedia streaming, and data-intensive applications. This is particularly beneficial for businesses that rely heavily on data exchange or require real-time collaboration among team members. The fast transfer speeds ensure that there are no bottlenecks in the network and that information flows smoothly between devices.
Power Over Ethernet (PoE+)
One of the standout features of the HPE 2930F switch is its Power over Ethernet capability. PoE+ enables the switch to deliver both power and data through a single Ethernet cable, eliminating the need for separate power sources for connected devices. This feature provides significant advantages for users in various scenarios.
Simplified Installation
With PoE+, the need for additional power outlets or power adapters is eliminated, simplifying the installation process. This is particularly useful in environments where installing power outlets near each device may be impractical or costly. By utilizing the existing Ethernet infrastructure, you can conveniently power devices such as IP phones, wireless access points, and security cameras directly from the switch, reducing clutter and improving aesthetics.
Cost Savings
The PoE+ capability of the HPE 2930F switch offers cost savings in multiple ways. Firstly, it eliminates the need for separate power supplies, reducing the overall equipment costs. Additionally, by powering devices through Ethernet cables, you minimize energy consumption and lower electricity expenses. This is especially beneficial for businesses with a large number of powered devices, such as offices or educational institutions.
Flexibility in Device Placement
With PoE+, you have the freedom to deploy devices in locations that are not easily accessible to power outlets. This flexibility allows for more strategic placement of devices, ensuring optimal coverage and performance. For example, wireless access points can be conveniently installed in areas with the best signal strength, rather than being limited by power availability. This enhances network coverage and improves overall user experience.
Power Budget
The HPE 2930F 12G PoE+ 139W L3 Managed Switch boasts a power budget of 139W, which refers to the maximum amount of power it can provide to connected PoE+ devices. This feature is crucial for users who rely on Power over Ethernet functionality and need to ensure that their devices receive sufficient power for optimal performance.
Support for High-Power Devices
The 139W power budget of this HPE switch allows it to support a wide range of power-hungry devices. Whether it's high-performance IP cameras, access points with advanced features, or devices with additional power requirements, this switch can supply the necessary power without compromising performance. This ensures that your network infrastructure can accommodate diverse devices and adapt to changing technology requirements.
Reliable Power Delivery
The power budget of 139W ensures a stable and consistent power supply to connected devices. This reliability is essential in critical applications where uninterrupted power is vital for continuous operation. By eliminating power fluctuations or outages, you can minimize downtime, enhance productivity, and avoid potential data loss or system failures.
Power Management and Monitoring
The HPE 2930F switch offers advanced power management features, allowing you to monitor and control the power consumption of connected PoE+ devices. This enables you to optimize power allocation, prioritize critical devices, and maximize energy efficiency. With the ability to monitor power usage in real-time, you can proactively identify potential issues or anomalies and take appropriate actions to maintain a reliable network environment.
Part Number (JL693-61101)
The part number JL693-61101 refers to the specific model of the HPE 2930F 12G PoE+ 139W L3 Managed Switch. While it may seem like a simple identifier, the part number carries significant importance for users who need to ensure compatibility, obtain technical support, or manage their inventory effectively.
Compatibility Assurance
The part number JL693-61101 serves as a unique identifier for this particular switch model. It allows users to verify compatibility with other HPE products, such as transceivers or stacking modules, ensuring seamless integration within their existing network infrastructure. By matching part numbers during the planning and procurement stages, you can prevent compatibility issues and ensure optimal performance.
Technical Support and Documentation
When contacting technical support or referring to product documentation, the part number plays a crucial role in ensuring accurate assistance. By providing the part number of your switch, you can receive tailored support specific to your model, eliminating any confusion or potential misunderstandings. This simplifies troubleshooting processes and allows for efficient resolution of any issues that may arise.
Inventory Management and Tracking
For businesses that have multiple switches or manage a sizable IT infrastructure, the part number serves as a vital asset for inventory management and tracking. By associating the part number with each switch, you can easily identify and locate specific devices when needed. This facilitates maintenance, replacement, or upgrade activities, ensuring smooth operations and minimizing downtime.
In summary, the HPE 2930F 12G PoE+ 139W L3 Managed Switch offers significant benefits through its 12 ports, Power over Ethernet capability, 139W power budget, and unique part number. These features enhance connectivity, simplify installation, provide flexibility in network expansion, ensure reliable power delivery, and streamline compatibility assurance and inventory management. Whether it's for small to medium-sized businesses or larger enterprises, this switch is a reliable choice for building a robust and efficient network infrastructure.
