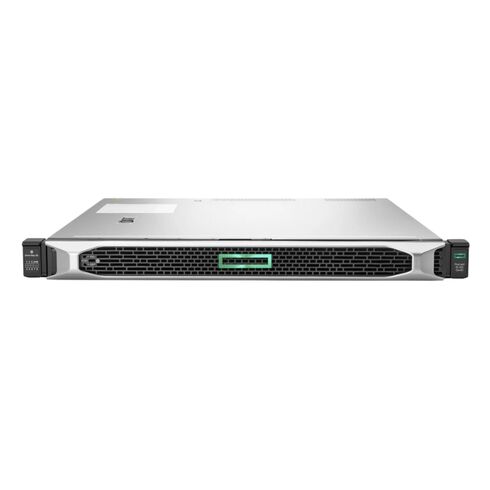

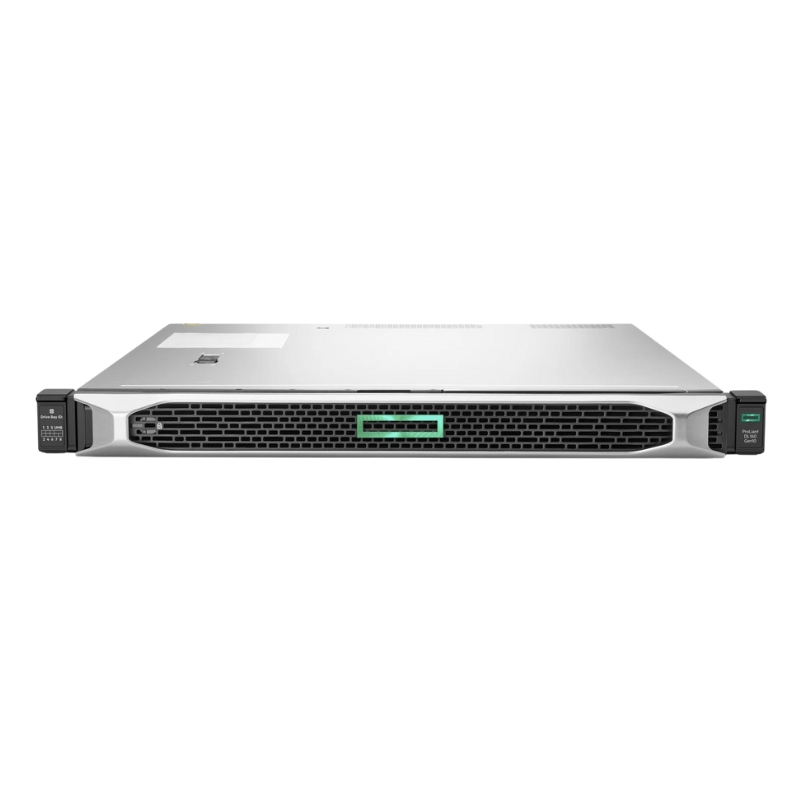

HPE DL160 Gen10 4210R Server 1P 16GB 8Sff 500W P35516-B21

Processor

The HPE DL160 Gen10 Server is equipped with a powerful 4210R processor, offering exceptional performance and efficiency for users. The 4210R is a 10-core, 20-thread processor with a base clock speed of 2.4GHz and a maximum turbo boost frequency of 3.2GHz. This processor is based on Intel's Cascade Lake architecture, which provides enhanced security features and improved memory performance.

General Product Details

Manufacturer Information

• Brand: Hewlett Packard Enterprise
• Part Number: P35516-B21
• Model: Proliant DL160 Gen10 - 1U Rack-Mountable Server (Pre-configured)

Processor & Chipset Specifications

• Processor: Intel Xeon Silver 4210R with a base clock of 2.4 GHz
• Maximum Turbo Frequency: 3.2 GHz
• Core Count: 10 cores
• Processor Quantity: 1 (supports up to 2)
• Upgrade Potential: Upgradeable
• Chipset: Intel C622

Cache Memory

• Installed Cache Size: 13.75 MB L3 Cache
• Cache per Processor: 13.75 MB

Memory Configuration

• Installed Memory: 16 GB (expandable up to 1 TB)
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2933 MHz
• Memory Form Factor: DIMM 288-pin
• Total Slots: 16 (1 slot occupied)
• Memory Features: Registered, Online Spare Memory, HPE SmartMemory, 6-channel Memory Architecture

Storage Information

• Hard Drive: No HDD included
• Storage Controllers:
  • Type: 1 x SATA - PCIe 3.0 x4
  • Interface: SATA 6 Gb/s
  • Controller: HPE Smart Array S100i
  • Channel Quantity: 14
  • RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Optical and Graphics Components

• Optical Drive: No Optical Drive
• Graphics Controller: VGA Interface

Networking and Communication

• Ethernet Ports: 2 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WoL), PXE Support

Expansion and Connectivity Options

• Expansion Bays: 8 total, all hot-swappable 2.5 SFF
• Expansion Slots:
  • 1 x MicroSD Card (internal)
  • 1 x PCIe 3.0 x8 (Low-profile)
  • 1 x PCIe 3.0 x16 (Half-length, Full-height)

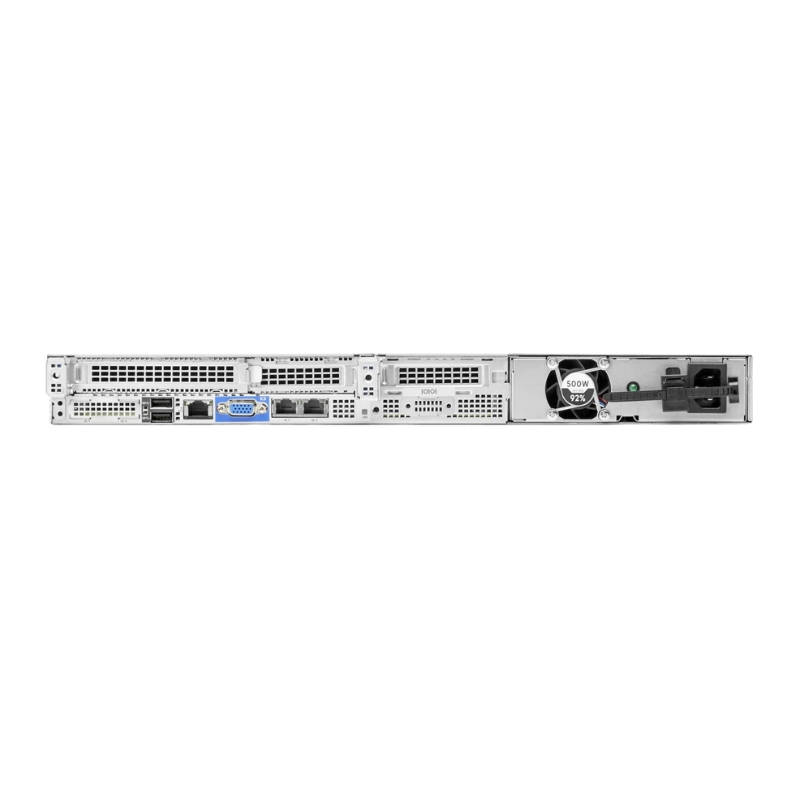

Interfaces & Ports

• 1 x VGA Port
• 2 x LAN Ports (Gigabit Ethernet)
• 1 x HPE iLO Port
• 1 x HPE iLO RJ-45 Port
• 4 x USB 3.0 Ports (1 Front, 2 Rear, 1 Internal)

Compliance and Power Specifications

• Compliance Standards: WEEE, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1
• Power Supply:
  • Type: Hot-plug Power Supply
  • Redundancy: Optional (1+1 with additional power supply)
  • Installed Power Supply: 500 Watts
  • Maximum Supported Power Supplies: 2
  • Nominal Voltage: AC 120/230 V (50/60 Hz)
  • 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 24.2 inches
• Height: 1.7 inches
• Weight: 24.18 lbs

Increased Performance

The 4210R processor delivers outstanding performance, making it an excellent choice for demanding workloads. With its multi-core design and high clock speeds, it can handle resource-intensive applications and processes with ease. Whether you're running virtual machines, conducting data analysis, or managing databases, the 4210R processor ensures smooth and efficient operation.

Efficient Power Consumption

In addition to its impressive performance capabilities, the 4210R processor is designed to be energy-efficient. It utilizes Intel's Turbo Boost Technology to dynamically adjust its power consumption based on workload demands, ensuring optimal efficiency without compromising performance. This not only helps reduce electricity costs but also contributes to a greener and more sustainable IT infrastructure.

Improved Security

The Cascade Lake architecture of the 4210R processor incorporates advanced security features to protect your data and systems. It includes Intel's Total Memory Encryption (TME) technology, which encrypts data in memory to safeguard against potential vulnerabilities. This added layer of security helps prevent unauthorized access and protects sensitive information from potential threats.

Enhanced Virtualization Capabilities

The 4210R processor supports Intel Virtualization Technology (VT-x), which enables efficient utilization of system resources through hardware-assisted virtualization. This feature allows you to create multiple virtual machines and run different operating systems simultaneously, maximizing the utilization of your server and optimizing resource allocation.

Seamless Scalability

The 4210R processor is designed to support scalability, allowing you to expand your server's capabilities as your business grows. Its architecture provides support for up to 2-way processing, enabling you to add additional processors for increased performance and capacity. This scalability ensures that your server can adapt to future demands and accommodate evolving business requirements.

Reliable Performance

HPE DL160 Gen10 Server's 4210R processor is engineered with reliability in mind. It undergoes rigorous testing and validation to ensure consistent and dependable performance. With its robust design and high-quality construction, this processor delivers the reliability needed for critical business operations, minimizing downtime and maximizing productivity.

Memory

The HPE DL160 Gen10 Server features 16GB of memory, providing ample capacity for efficient data processing and multitasking. The memory is DDR4 ECC Registered DIMM, which offers enhanced reliability and error correction capabilities.

Faster Data Access

With 16GB of memory, the DL160 Gen10 Server can handle large datasets and complex computations more efficiently. It enables faster data access and retrieval, reducing latency and improving overall system performance. This is particularly beneficial for applications that require quick access to large amounts of data, such as databases or virtualized environments.

Improved Multitasking

The generous amount of memory in the DL160 Gen10 Server allows for seamless multitasking. Users can run multiple applications simultaneously without experiencing significant performance degradation. This is especially advantageous in environments where users need to switch between various tasks quickly or work on resource-intensive projects.

Error Correction and Data Integrity

The DDR4 ECC Registered DIMM memory in the DL160 Gen10 Server incorporates error correction capabilities, ensuring data integrity and system stability. Error correction codes (ECC) detect and correct single-bit errors, offering protection against memory errors that could potentially lead to system crashes or data corruption. This feature is essential for applications that require high levels of reliability and uptime.

Scalability and Expansion

The 16GB memory configuration in the DL160 Gen10 Server provides a solid foundation for your current needs, but it also offers room for future expansion. The server supports up to 1.5TB of memory capacity, allowing you to scale up your memory as your workload demands grow. This scalability ensures that your server can accommodate future requirements without the need for a complete hardware overhaul.

Optimized Workload Performance

By providing a sufficient amount of memory, the DL160 Gen10 Server helps optimize workload performance. It reduces the need for frequent disk read/write operations by storing frequently accessed data in memory, resulting in faster execution times and improved overall efficiency. This is particularly advantageous for applications that rely heavily on random access memory, such as virtualization or high-performance computing.

Enhanced Virtualization Capabilities

The 16GB memory capacity of the DL160 Gen10 Server is ideal for virtualized environments. It allows for efficient resource allocation and enables you to create multiple virtual machines with adequate memory allocation. This ensures smooth operation and optimal performance for virtualized workloads, making it an excellent choice for businesses embracing virtualization technology.

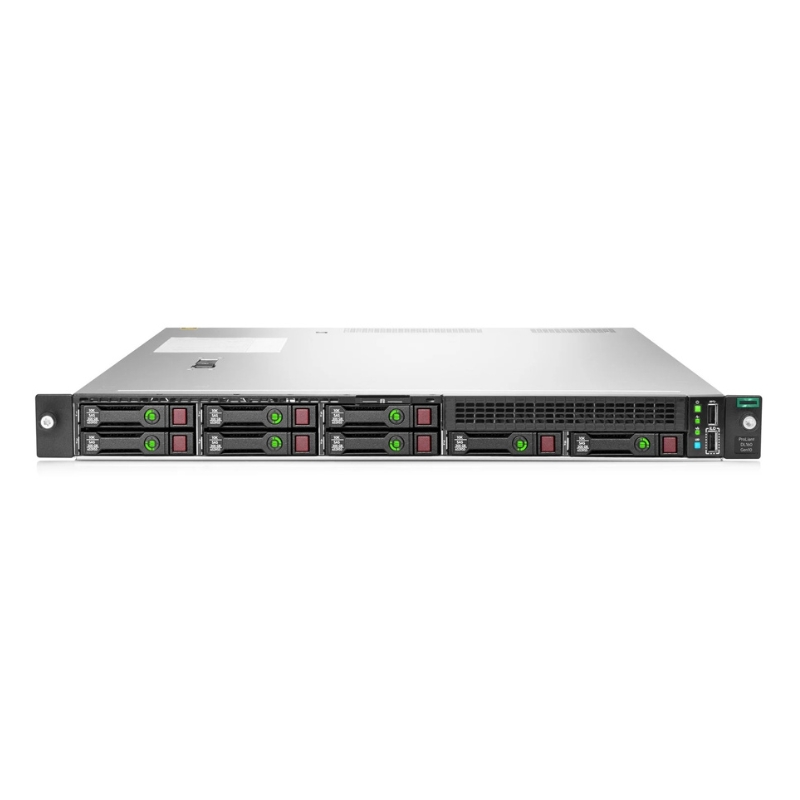

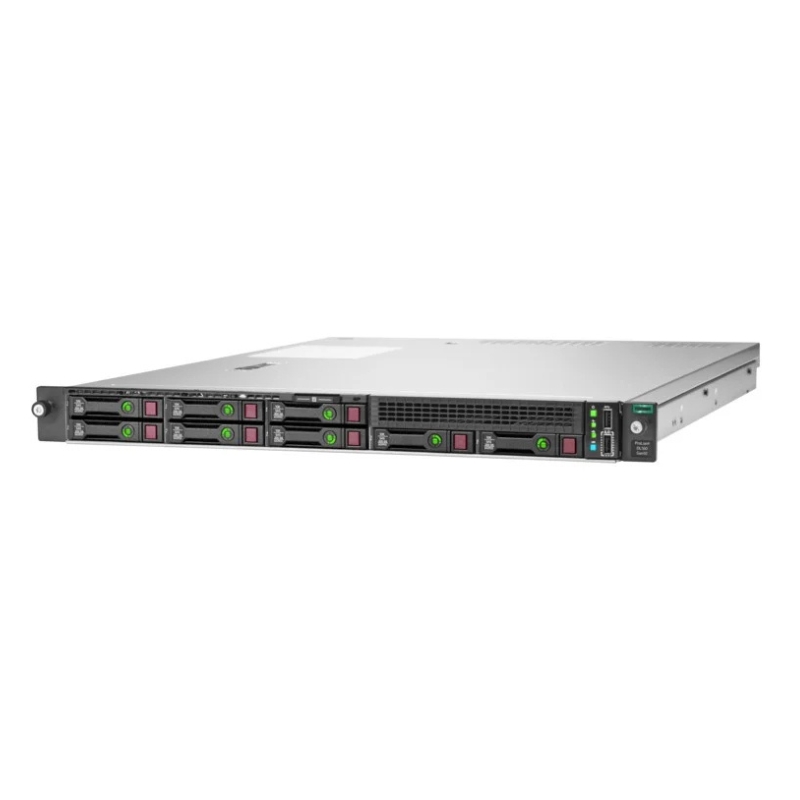

Drive Bays

The HPE DL160 Gen10 Server is equipped with 8Sff (Small Form Factor) drive bays, offering ample storage capacity in a compact form factor. These drive bays provide flexibility and scalability for your storage needs, allowing you to configure your server to meet specific requirements.

Increased Storage Capacity

The 8Sff drive bays in the DL160 Gen10 Server allow you to install up to eight small form factor hard drives or solid-state drives. This offers substantial storage capacity for your data-intensive applications, allowing you to store large amounts of data locally on the server. Whether you need to host databases, media files, or virtual machine images, the 8Sff drive bays ensure you have enough space to accommodate your storage requirements.

Flexible Storage Configuration

The DL160 Gen10 Server's 8Sff drive bays provide flexibility in terms of storage configuration. You can choose between different drive types and capacities based on your specific needs. Whether you prefer high-capacity hard drives for bulk storage or fast solid-state drives for performance-critical applications, the 8Sff drive bays allow you to tailor your storage setup to match your workload requirements.

Hot-Swap Capability

The 8Sff drive bays in the DL160 Gen10 Server support hot-swapping, allowing you to replace or add drives without shutting down the server. This feature ensures minimal downtime and uninterrupted operation, as you can perform maintenance or upgrade tasks on your storage without impacting the availability of your applications or services. Hot-swappable drive bays are particularly beneficial for businesses that require continuous operation without interruption.

Data Redundancy and Fault Tolerance

The 8Sff drive bays enable the implementation of RAID (Redundant Array of Independent Disks) configurations, enhancing data redundancy and fault tolerance. You can configure multiple drives in RAID arrays to protect against data loss in the event of a drive failure. RAID configurations provide data redundancy by replicating data across multiple drives, ensuring that your critical data remains accessible even if a drive fails. This is crucial for businesses that cannot afford to lose valuable data due to hardware failures.

Improved Data Access Speed

The 8Sff drive bays support high-performance storage solutions such as solid-state drives (SSDs), which offer significantly faster data access speeds compared to traditional hard disk drives (HDDs). By utilizing SSDs in the 8Sff drive bays, you can experience improved application performance and reduced latency. This is particularly advantageous for applications that require fast data retrieval, such as databases or virtualized environments.

Scalability and Future Expansion

The DL160 Gen10 Server's 8Sff drive bays provide scalability and room for future expansion. As your storage needs grow, you can easily add more drives to the available drive bays, allowing you to scale your storage capacity without requiring additional hardware or server replacements. This scalability ensures that your server can adapt to changing demands and accommodate future business growth.

Power Supply

The HPE DL160 Gen10 Server is equipped with a 500W power supply, providing reliable and efficient power delivery to the server components. The power supply unit (PSU) is designed to meet the demanding requirements of modern server systems, ensuring stable and uninterrupted operation.

Reliable Power Delivery

The 500W power supply in the DL160 Gen10 Server delivers reliable power to all the server components, including the processor, memory, storage devices, and expansion cards. It provides a stable power source, minimizing the risk of system crashes or instability caused by power fluctuations. With its robust design and high-quality components, the power supply ensures consistent and uninterrupted operation even under heavy workloads.

Energy Efficiency

The 500W power supply is designed to be energy-efficient, helping to reduce electricity costs and minimize environmental impact. It complies with energy efficiency standards, such as 80 PLUS certification, which ensures that the power supply operates at high efficiency levels. By minimizing power wastage and optimizing energy consumption, the power supply contributes to a greener and more sustainable IT infrastructure.

Redundancy and Fault Tolerance

The DL160 Gen10 Server supports redundant power supply configurations, allowing you to install an additional power supply unit for increased reliability and fault tolerance. Redundant power supplies provide backup power in case one of the PSUs fails, ensuring uninterrupted operation even in the event of a power supply failure. This redundancy is crucial for businesses that require high availability and cannot afford downtime caused by power supply issues.

Efficient Cooling

The 500W power supply is equipped with an efficient cooling system, ensuring optimal thermal management within the server chassis. It features built-in fans that help dissipate heat generated by the server components, preventing overheating and maintaining a stable operating temperature. Efficient cooling not only prolongs the lifespan of the server components but also contributes to overall system stability and reliability.

Modular Design

The power supply in the DL160 Gen10 Server adopts a modular design, allowing for easy installation and maintenance. Modular power supplies feature detachable cables that can be connected or disconnected as needed, simplifying cable management and reducing clutter within the server chassis. This modular design facilitates easier maintenance and upgrades without requiring extensive rewiring or cable management.

Power Monitoring and Management

The 500W power supply provides comprehensive power monitoring and management capabilities. It allows you to monitor power consumption, voltage levels, and other power-related parameters through management interfaces or software tools. This enables you to optimize power usage, identify potential issues, and implement power-saving measures to reduce costs and improve energy efficiency.

Part Number

The part number for the HPE DL160 Gen10 Server is P35516-B21. This unique identifier is used to specify the exact configuration and model of the server, ensuring accurate ordering and compatibility with other components or accessories.

Accurate Ordering and Configuration

The part number, P35516-B21, allows you to precisely specify the DL160 Gen10 Server when ordering from vendors or resellers. It ensures that you receive the exact configuration you require, including the specific processor, memory capacity, storage options, and other features. This helps avoid any confusion or compatibility issues that may arise from incorrect or incomplete specifications.

Compatibility with Accessories and Spare Parts

The part number serves as a reference for compatibility with various accessories and spare parts designed specifically for the DL160 Gen10 Server. When looking for additional components or replacement parts, you can use the part number to ensure that they are compatible with your server model. This simplifies the process of expanding or maintaining your server infrastructure by ensuring that all components work seamlessly together.

Support and Documentation

The part number is often referenced in support documentation and resources provided by HPE. It helps identify the specific model and configuration of the DL160 Gen10 Server when seeking technical assistance or accessing product documentation. By utilizing the part number, you can quickly locate relevant information and resources tailored to your server, ensuring efficient troubleshooting and reliable support.

Easy Identification and Tracking

The part number provides a unique identifier for the DL160 Gen10 Server, simplifying inventory management and tracking. It allows for easy identification of the server model and its associated specifications, making it convenient to keep track of multiple servers within a larger IT infrastructure. This simplifies asset management, warranty tracking, and maintenance scheduling.

Future Upgrades and Expansion

The part number serves as a reference point for future upgrades and expansion of your server infrastructure. When considering adding additional servers or expanding your existing setup, the part number allows you to easily identify and procure the same model or compatible alternatives. This ensures consistency in your server environment and facilitates seamless integration with your existing infrastructure.
