HPE DL360 2.9GHz Rack Server Xeon 16-core P40406-B21

Processor

The HPE Proliant DL360 Rack Server is equipped with a powerful Xeon 16-core processor, making it a reliable and efficient solution for a wide range of business needs. This processor is designed to deliver exceptional performance, ensuring seamless operation even under heavy workloads.

General Overview of P40406-B21

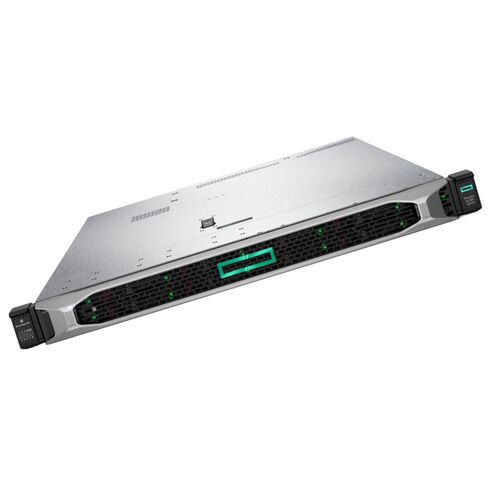

Discover the Hewlett Packard Enterprise Proliant DL360 Gen10, a 1U rack-mounted server designed to meet high-performance demands.

Product Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P40406-B21
• Product Name: Proliant DL360 Gen10 - Rack Mountable Server
• Scalability: 2-way
• Rack Height: 1U

Processor & Chipset Specifications

• Processor Model: 2nd Gen Intel Xeon Gold 6226R
• Clock Speed: 2.9 GHz, with Max Turbo Speed up to 3.9 GHz
• Cores: 16-core
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Upgradeability: Upgradable, with support for up to 2 CPUs

Memory Configuration

• Installed Memory: 32 GB, expandable up to 1.5 TB
• Memory Type: DDR4 SDRAM with Advanced ECC
• Memory Speed: Effective and Rated at 2933 MHz
• Form Factor: DIMM 288-pin
• Available Slots: 24 total (23 empty)
• Memory Features: Registered, HPE SmartMemory
• Supported Configurations: Up to 3 TB Load-Reduced ECC, 1.5 TB Registered ECC, 192 GB Non-Volatile ECC

Storage & Controllers

• Hard Drive Type: No HDD
• Controller: HPE Smart Array S100i
• Controller Interface: SATA 6 Gb/s
• Channels: 14

Optical & Media Storage

• Optical Drive: None

Networking & Communication

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Controller: Broadcom BCM57416
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5 (iLO 5)
• Features: Wake On LAN (WoL), PXE Support

Expansion & Connectivity

• External Universal Media Bay: 1 total (1 free)
• Hot-Swap 2.5 SFF: 8 total (8 free)

Expansion Slots

• PCIe 3.0 x16: 1 slot (three-quarter-length, full-height)
• PCIe 3.0 x8: 1 slot (low-profile)
• FlexibleLOM: 1 slot (three-quarter-length, full-height)
• MicroSD Card (internal): 1 slot

Interfaces & Ports

• HPE iLO Type A: 1 (front)
• HPE iLO RJ-45: 1
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• VGA LAN (Gigabit Ethernet) - RJ-45: 1

Miscellaneous Information

• HPE High Performance Heatsink
• 5 Standard Fans
• SFF Easy Install Rails

Compliance Standards

• AES, Triple DES, TLS v1.2
• ASHRAE Class A4, ASHRAE Class A3
• WEEE 2002/95/EC
• Redfish API, UEFI

Power & Environmental Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 with additional power supply
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Operating Environment

• Operating Temperature: 50 °F to 95 °F
• Humidity Range: 8 - 90% (non-condensing)
• Energy Star Certified: Yes, Version 3.0

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

The Xeon 16-core processor offers enhanced performance capabilities that enable the server to handle demanding tasks with ease. With its high core count, it can efficiently handle multiple threads simultaneously, resulting in faster processing times and improved overall system performance. This means that users can experience increased productivity and efficiency when running resource-intensive applications or performing complex computations.

Increased Scalability

Another notable benefit of the Xeon 16-core processor is its scalability. Having multiple cores allows for greater parallel processing, enabling the server to handle larger workloads efficiently. This scalability is particularly beneficial for businesses experiencing growth or those that require the flexibility to accommodate changing computing demands. With the HPE Proliant DL360 Rack Server's Xeon 16-core processor, businesses can easily scale their operations without compromising performance.

Optimized Virtualization

Virtualization has become an essential component of many modern IT infrastructures. The Xeon 16-core processor is specifically designed to optimize virtualized environments, ensuring smooth operation and improved resource allocation. With its advanced virtualization capabilities, the HPE Proliant DL360 Rack Server can support a larger number of virtual machines and deliver superior performance, enabling businesses to fully leverage the benefits of virtualization technology.

Speed

In addition to its powerful processor, the HPE Proliant DL360 Rack Server boasts impressive speed capabilities with its 2.9GHz clock speed. This high clock speed allows for faster data processing and execution of tasks, contributing to improved overall system performance.

Quick Response Time

The 2.9GHz clock speed of the HPE Proliant DL360 Rack Server ensures a quick response time for users. Whether it's accessing files, running applications, or performing computations, the server can swiftly handle these tasks, minimizing any potential delays or bottlenecks. This speed advantage is especially crucial for businesses that rely on real-time data processing or time-sensitive operations.

Efficient Workload Management

With its high clock speed, the server can efficiently manage workloads by processing instructions at a rapid pace. This capability allows for more efficient resource allocation, ensuring that critical tasks are completed promptly. The improved workload management provided by the HPE Proliant DL360 Rack Server's 2.9GHz speed allows businesses to maximize their productivity and minimize downtime.

Optimized Application Performance

Applications often require fast processing speeds to deliver optimal performance. The HPE Proliant DL360 Rack Server's 2.9GHz clock speed ensures that applications run smoothly and responsively, enhancing user experience and productivity. Whether it's running database queries, performing data analysis, or hosting web services, the server's speed contributes to an efficient and reliable application environment.

Part Number

The HPE Proliant DL360 Rack Server is identified by its unique part number, P40406-B21. This part number plays a crucial role in identifying and ordering the specific model of the server, ensuring compatibility and ease of maintenance.

Easy Identification

The part number, P40406-B21, simplifies the process of identifying the HPE Proliant DL360 Rack Server model among various other server options available in the market. With a unique part number assigned to this particular model, businesses can easily communicate their requirements to vendors or IT professionals, ensuring accurate procurement and deployment of the server.

Compatibility Assurance

The part number serves as a guarantee of compatibility. By specifying the part number P40406-B21, businesses can be confident that the server they receive will be the exact model they require. This eliminates any potential issues that may arise from using an incompatible server and ensures that all components and features of the HPE Proliant DL360 Rack Server will function seamlessly together.

Simplified Maintenance

When it comes to maintenance and support, having a specific part number helps streamline the process. IT professionals can easily reference the part number P40406-B21 when ordering replacement parts or seeking technical assistance. This simplifies troubleshooting and ensures that any necessary repairs or upgrades are performed accurately on the HPE Proliant DL360 Rack Server.

In conclusion, the HPE Proliant DL360 Rack Server stands out with its powerful Xeon 16-core processor, boasting enhanced performance, increased scalability, and optimized virtualization capabilities. Additionally, its 2.9GHz clock speed delivers quick response times, efficient workload management, and optimized application performance. The unique part number, P40406-B21, simplifies identification, guarantees compatibility, and facilitates streamlined maintenance processes. With these features, the HPE Proliant DL360 Rack Server provides businesses with a reliable and high-performing solution for their IT infrastructure needs.
