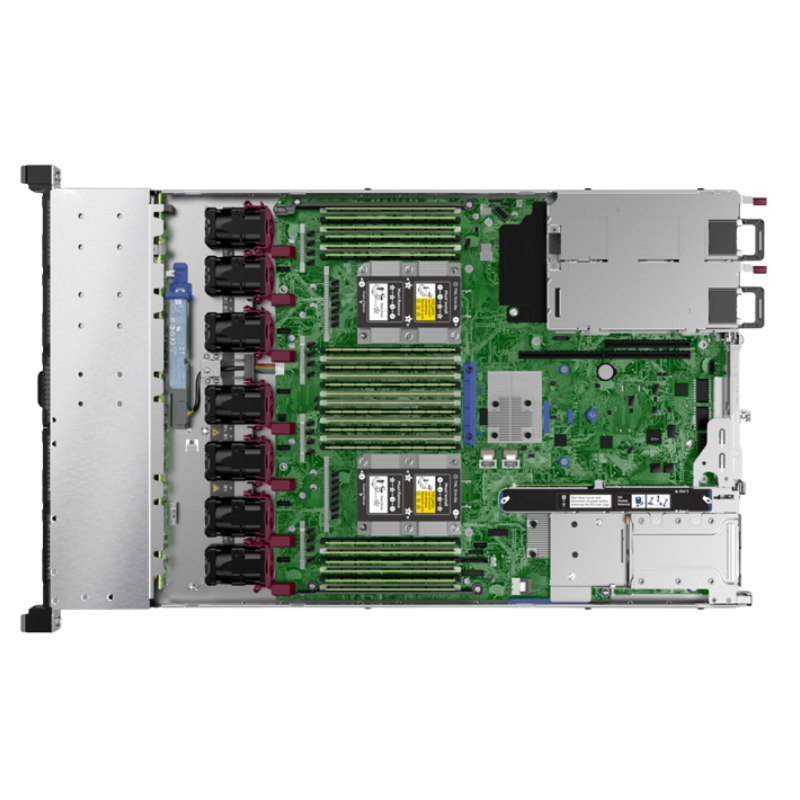

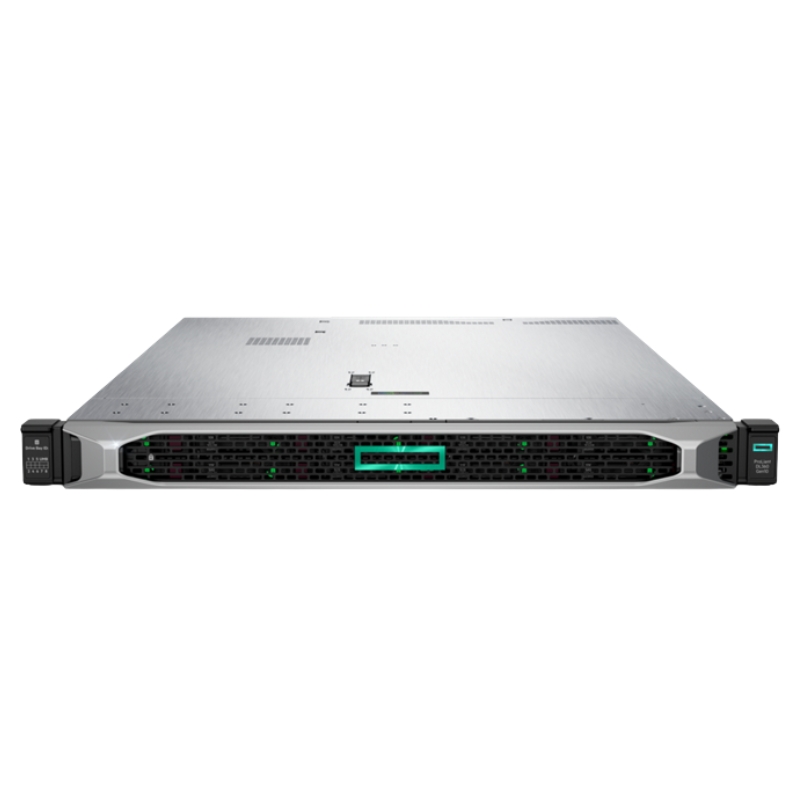

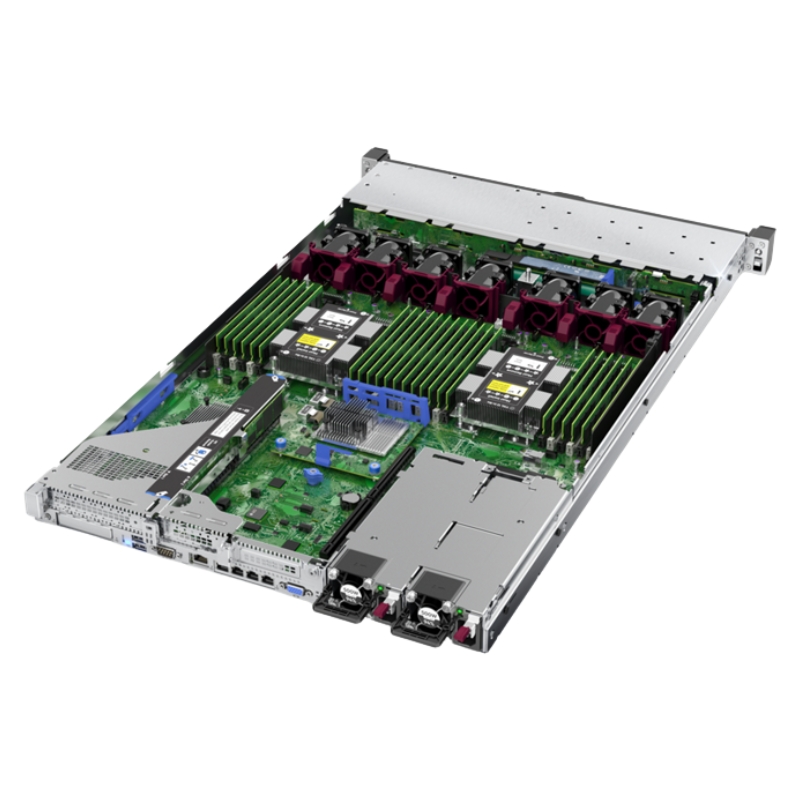

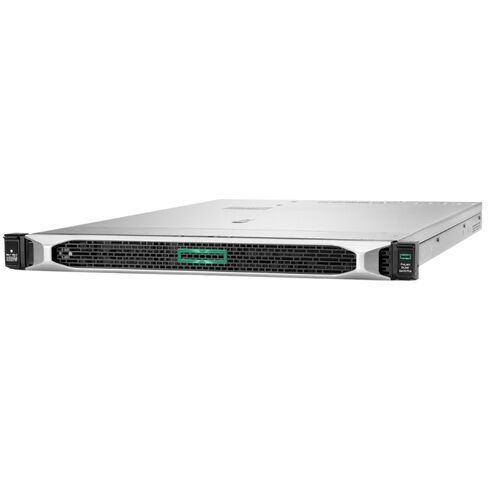

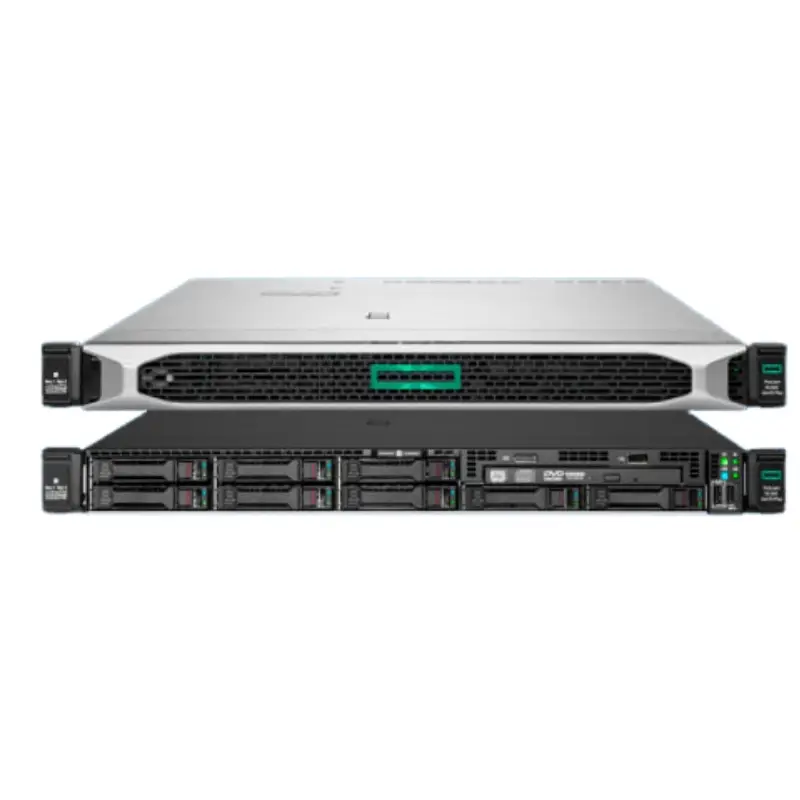

HPE DL360 Gen10 3204 1.9GHz 6-Core 1P 16GB-R PS Server P03629-B21

Processor: 3204 1.9GHz 6-Core

The processor is the heart and brain of any server, and the HPE Proliant DL360 Gen10 Server is equipped with a powerful 3204 1.9GHz 6-Core processor. This processor is designed to deliver exceptional performance, reliability, and efficiency, making it an ideal choice for businesses of all sizes.

General Overview of DL360 Gen10

Discover the Hewlett Packard Enterprise ProLiant DL360 Gen10, a 1U rack-mountable server designed for optimal performance and reliability. With the part number SKU#P03629-B21, this server is ideal for enterprise applications and data center deployments.

Processor and Chipset

• CPU Model: 2nd Gen Intel Xeon Bronze 3204, 1.9 GHz
• Core Count: 6-core
• CPU Quantity: 1 (upgradable to 2)
• CPU Socket: FCLGA3647
• Chipset Type: Intel C621

Cache Memory

• Installed L3 Cache Size: 11 MB
• Cache Per Processor: 11 MB

Memory Specifications

• Installed Memory: 16 GB (expandable up to 3 TB)
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2133 MHz
• Rated Memory Speed: 2666 MHz
• Memory Specification Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total (23 free)
• Features: Registered, Dual Rank
• Supported RAM Configurations: 1 x 8 GB, up to 3.072 TB Load-reduced PC4-20800, 768 GB Registered PC4-20800, 192 GB Non-volatile

Storage Controllers

• Controller Type: SATA
• Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channel Quantity: 14

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA

Network and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WoL), PXE Support

Expansion and Connectivity

• External: 1 (total), 1 (free)
• Hot-swap 2.5" SFF: 8 (total), 8 (free)

Slots

• DIMM 288-pin: 24 (total), 23 (free)
• CPU: 2 (total), 1 (free)
• FlexibleLOM (Low-profile): 1 (total), 1 (free)
• PCIe 3.0 x16 (Full-height): 1 (total), 1 (free)
• PCIe 3.0 x8 (Low-profile): 1 (total), 1 (free)
• MicroSD Card (Internal): 1 (total), 1 (free)

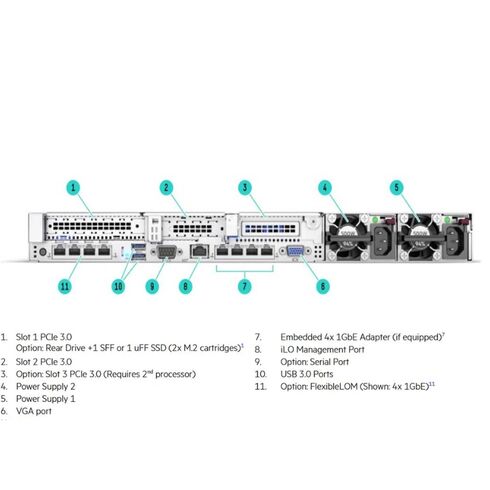

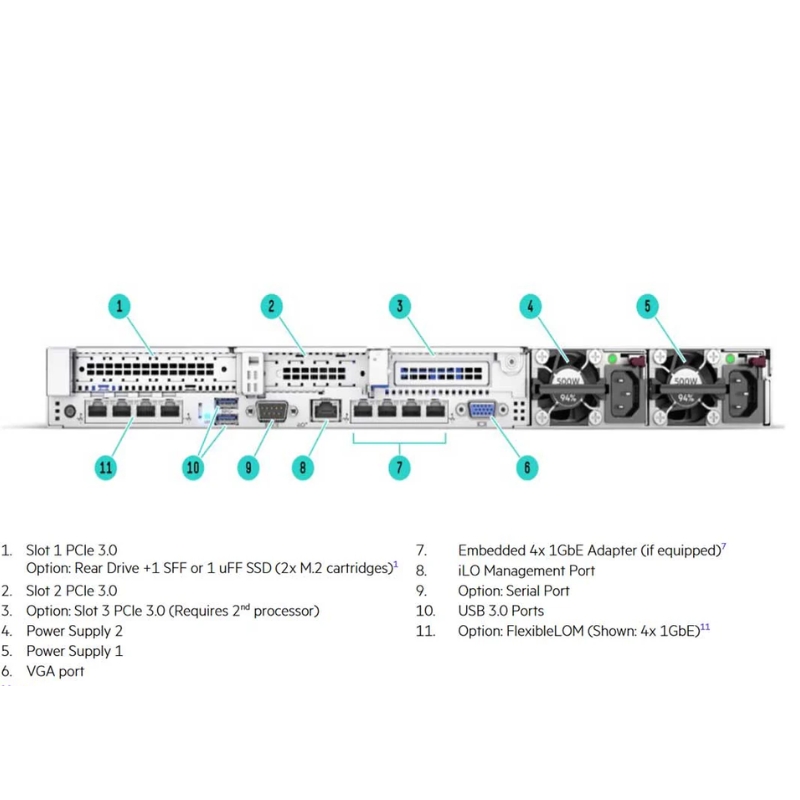

Interfaces

• SATA-600: 14
• HP iLO - RJ-45: 1 (rear)
• VGA: 1 (rear)
• LAN (Gigabit Ethernet) - RJ-45: 4 (rear)
• HP iLO - Type A: 1 (front)
• USB 3.0: 2 (rear), 1 (front), 1 (internal)
• PoweredUSB 3.0: 1 (front)

Miscellaneous Information

• HPE Easy Install Rails
• Standard CPU Heatsink
• 5 Standard Hot Plug Fans

Cables Included

• Power Cable

Compliant Standards

• AES
• WEB
• TLS V1.2
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Power Supply: 1
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Increased Performance

The 3204 1.9GHz 6-Core processor boasts an impressive clock speed of 1.9GHz, allowing it to handle demanding workloads with ease. With six cores, it can efficiently multitask and process multiple tasks simultaneously, resulting in improved overall performance.

Whether you are running resource-intensive applications, virtual machines, or databases, this processor ensures smooth and efficient operations, minimizing any performance bottlenecks that may hinder productivity.

Enhanced Efficiency

Efficiency is crucial for any server as it directly impacts power consumption and operational costs. The HPE Proliant DL360 Gen10 Server's 3204 1.9GHz 6-Core processor is built using advanced technologies that optimize power consumption without compromising on performance.

By taking advantage of Intel's power management features, this processor intelligently adjusts its power usage based on workload demands. It dynamically scales frequency and voltage to match the required performance levels, resulting in reduced energy consumption and lower electricity bills.

Reliability and Scalability

In addition to its impressive performance and efficiency, the 3204 1.9GHz 6-Core processor offers excellent reliability and scalability. It is designed to handle heavy workloads without compromising stability or system integrity.

For businesses that require scalability, this processor provides ample room for growth. With its multi-core architecture, it can easily accommodate future expansion needs by efficiently distributing workloads across its cores.

Virtualization Support

Virtualization has become increasingly popular in modern IT environments, allowing businesses to optimize resource utilization and streamline operations. The 3204 1.9GHz 6-Core processor is fully compatible with virtualization technologies, making it an excellent choice for virtualized environments.

With its multiple cores and efficient resource allocation capabilities, this processor allows businesses to run multiple virtual machines simultaneously without compromising performance. It helps maximize server consolidation efforts, resulting in reduced hardware costs and simplified management.

Improved Security

Security is a top priority for every organization, and the 3204 1.9GHz 6-Core processor incorporates advanced security features to protect sensitive data. It supports Intel's Trusted Execution Technology (TXT), which verifies the integrity of the server's firmware and helps prevent unauthorized access or tampering.

Additionally, this processor includes Intel's Advanced Encryption Standard New Instructions (AES-NI), which accelerates encryption and decryption algorithms. This feature enhances data protection and enables businesses to secure their critical information without sacrificing performance.

Efficient Virtualization Management

Managing virtualized environments can be complex, but the 3204 1.9GHz 6-Core processor simplifies the process with its support for Intel Virtualization Technology (VT). This technology enables efficient virtual machine monitoring, allowing administrators to manage and optimize resources effectively.

With VT-x (Virtualization Technology for x86), businesses can run multiple operating systems on a single server, ensuring maximum utilization of hardware resources. This capability streamlines IT infrastructure management and reduces costs associated with maintaining separate physical servers for each operating system.

Memory: 16GB-R

Memory plays a vital role in server performance, and the HPE Proliant DL360 Gen10 Server is equipped with 16GB-R memory. This substantial memory capacity allows the server to handle complex workloads efficiently and deliver optimal performance.

Improved Application Performance

The 16GB-R memory provides ample capacity for running resource-intensive applications. Whether you are running databases, virtual machines, or high-performance computing workloads, this memory configuration ensures that the server can handle the workload without experiencing performance bottlenecks.

With more memory, the server can store and access data faster, resulting in reduced latency and improved overall application performance. Users can expect faster response times and smoother operations, even when dealing with complex and data-intensive tasks.

Enhanced Virtualization Capabilities

Virtualization is a key component of modern IT infrastructure, allowing businesses to optimize resource utilization and improve efficiency. The 16GB-R memory configuration of the HPE Proliant DL360 Gen10 Server enables smooth virtualization operations by providing sufficient memory for running multiple virtual machines simultaneously.

In a virtualized environment, each virtual machine requires a portion of the server's memory. With 16GB-R memory, businesses can run more virtual machines without compromising performance. This capability enhances server consolidation efforts, reduces hardware costs, and simplifies management.

Improved Scalability

Scalability is an essential consideration for businesses planning for future growth. The 16GB-R memory configuration of the HPE Proliant DL360 Gen10 Server offers excellent scalability options. As your business expands and demands increase, you can easily upgrade the server's memory to meet growing requirements.

This flexibility ensures that your investment in the server is future-proofed, allowing you to scale resources without needing to replace the entire system. It also eliminates the need for downtime during upgrades, as memory modules can be added while the server remains online.

Reliability and Data Integrity

Reliability and data integrity are critical in any server environment. The 16GB-R memory configuration of this server ensures data consistency and reduces the risk of data corruption or loss.

With error correction code (ECC) memory, the server can detect and correct single-bit memory errors automatically. This feature provides an added layer of protection against data corruption, ensuring that your critical business data remains intact.

Faster Data Access

The 16GB-R memory configuration enables faster data access, improving overall system performance. With more memory available, the server can cache frequently accessed data, reducing the need to retrieve it from slower storage devices.

This capability significantly improves response times for applications and reduces latency, resulting in a more responsive and efficient user experience. Whether you are accessing files, running databases, or performing complex calculations, the server's memory ensures that data is readily available for quick retrieval.

Part Number: P03629-B21

The part number is an essential identifier for the HPE Proliant DL360 Gen10 Server, and it is represented by P03629-B21. This unique alphanumeric code helps identify and differentiate this particular server model from other similar products in the market.

Easy Identification

The part number serves as a simple and efficient way to identify and locate the HPE Proliant DL360 Gen10 Server within a vast range of HPE products. By referring to the part number, customers and IT professionals can easily ensure they are purchasing the correct server model that meets their specific requirements.

For businesses with multiple servers or those looking to expand their existing infrastructure, having a unique part number simplifies procurement processes. It eliminates confusion and ensures that the right product is selected for deployment.

Compatibility Assurance

The part number also plays a crucial role in ensuring compatibility with other hardware components and accessories. By referring to the specific part number (P03629-B21), customers can be confident that any additional components or upgrades they purchase will work seamlessly with the HPE Proliant DL360 Gen10 Server.

This compatibility assurance helps prevent compatibility issues or the need for additional troubleshooting, saving time and effort during installation and setup processes. It streamlines the overall deployment process and minimizes any potential disruptions to business operations.

Identifying Product Revisions

Part numbers are often associated with specific revisions or versions of a product. In the case of the HPE Proliant DL360 Gen10 Server, the part number P03629-B21 may indicate a particular configuration, hardware revision, or firmware version.

This information is valuable for businesses that require specific features or need to ensure compatibility with existing infrastructure. By referring to the part number, customers can easily identify any revisions or updates made to the server model and make informed decisions based on their specific needs.

Warranty and Support

The part number is also crucial for warranty and support purposes. By providing the specific part number (P03629-B21) when seeking technical assistance or warranty support, customers can ensure that they receive the correct level of service and support for their particular server model.

HPE's support team can quickly identify the server model based on its part number and provide prompt assistance, minimizing any downtime or disruptions to business operations. This streamlined support process ensures that businesses receive timely resolutions to any issues they may encounter.

Streamlined Spare Parts Management

For businesses that maintain an inventory of spare parts, having a unique part number simplifies spare parts management. By referring to the part number (P03629-B21), businesses can easily track and manage their inventory, ensuring that they have the necessary spare parts readily available when needed.

This streamlined approach eliminates confusion and ensures that spare parts are compatible with the specific server model. It helps minimize downtime in case of component failures and ensures quick restoration of services without compromising productivity.
