HPE DL360 Gen10 Server Xeon 2.5GHz 6248 20-Core 2P 64GB-R P02723-B21

Processor: Xeon 2.5GHz 6248 20-Core

The HPE Proliant DL360 Gen10 Server is equipped with a powerful and efficient Xeon 2.5GHz 6248 20-Core processor. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for demanding workloads and critical business applications.

General Overview of P02723-B21

Manufacturer: Hewlett Packard Enterprise

Part Number: P02723-B21

Product Name: Proliant DL360 Gen10 - 1U Rack Mountable Server (High-Performance Model)

Processor and Chipset Details

• Model: 2nd Gen Intel Xeon Gold 6248
• Base Clock Speed: 2.5 GHz
• Max Turbo Frequency: 3.9 GHz
• Core Count: 20 cores
• Number of CPUs: 2
• CPU Upgradability: Yes

Chipset Specifications

• Chipset Type: Intel C621
• Processor Features: Hyper-Threading, Intel Turbo Boost Technology 2.0, Intel Smart Cache

Cache Memory

• Installed Cache Size: L3 Cache - 55 MB
• Cache per Processor: 27.5 MB

Memory Specifications

• Installed Size: 64 GB, expandable up to 2 TB
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2666 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total, 22 available

Memory Configuration Features

• Configuration: 2 x 32 GB
• Supported RAM: Up to 2 TB Registered, 6 TB Load-Reduced, 192 GB Non-Volatile
• Additional Features: Registered, Online Spare Memory, Dual Rank, HPE SmartMemory, 6-Channel Architecture

Storage Controllers

• Controller Type: RAID - PCIe 3.0 x8
• Controller Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Graphics and Network Connectivity

• Video Memory: 16 MB
• Video Interface: VGA

Network Interfaces

• Interface Type: FlexibleLOM
• Ethernet Ports: 4 x Gigabit Ethernet, 2 x 25 Gigabit Ethernet
• Ethernet Controller: HPE 640FLR
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• External: 1 (1 available)
• Hot-Swap 2.5 SFF: 8 (all available)

Slots

• PCIe 3.0 x16: 1 (1 available)
• PCIe 3.0 x8: 1 (0 available)
• FlexibleLOM: 1 (0 available)
• MicroSD Card (internal): 1 (1 available)

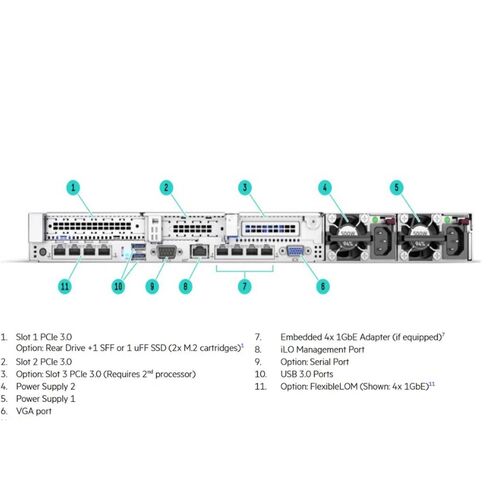

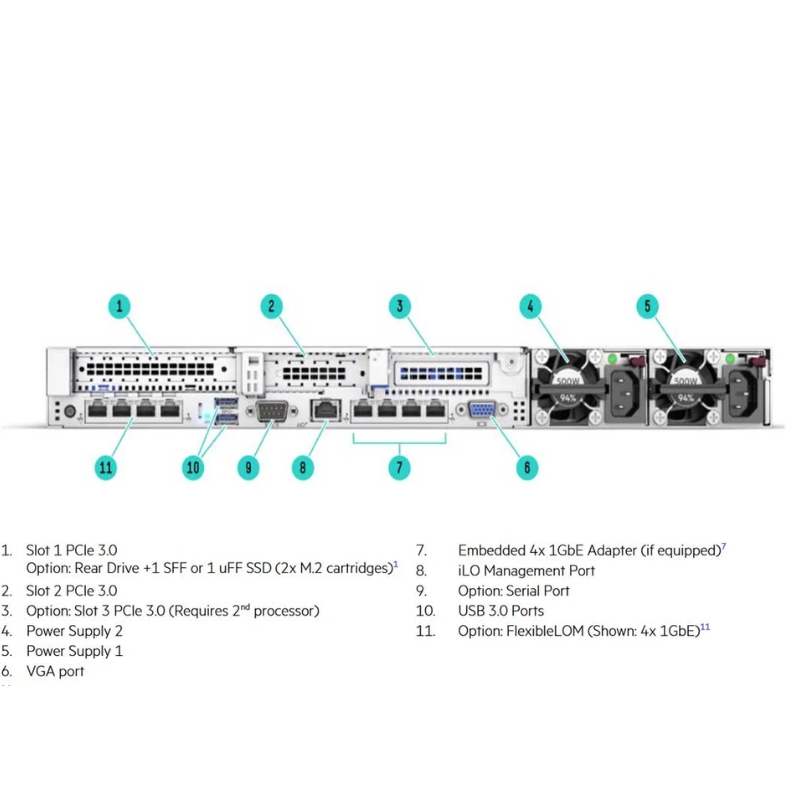

Interfaces

• SATA/SAS: 8 x SATA-600 / SAS 3.0
• HP iLO Type A: 1 (front)
• HP iLO RJ-45: 1 (rear)
• USB 3.0: 5 (1 front, 2 rear, 2 internal)
• VGA: 1 (rear)
• Gigabit Ethernet LAN: 4 x RJ-45 (rear)
• 25 Gigabit Ethernet LAN (SFP28): 2 (rear)

Miscellaneous Information

• Standard CPU Heatsink
• 7 High-Performance Fans
• SFF Easy Install Rails

Compliance Standards

• AES
• WEB
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

• Power Supply Type: Hot-plug
• Redundancy: Optional (1+1 with additional power supply)
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: Platinum

Physical Dimensions

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

The Xeon 2.5GHz 6248 20-core processor offers a significant boost in performance compared to previous generations. With its high clock speed and multiple cores, it can handle complex tasks and heavy workloads with ease. Whether you are running virtualization, database management, or data analysis applications, this processor ensures smooth and efficient operations.

Increased Productivity

The advanced architecture of the Xeon processor enables faster data processing and improved multitasking capabilities. This means that you can run multiple applications simultaneously without experiencing any lag or slowdown. With increased productivity, your business can achieve more in less time, leading to better efficiency and higher profits.

Optimized Resource Allocation

The Xeon 2.5GHz 6248 20-Core processor incorporates Intel's advanced technologies, such as Turbo Boost and Hyper-Threading. These features dynamically allocate system resources based on workload demands, ensuring that each task receives the necessary processing power. By optimizing resource allocation, the processor maximizes performance and minimizes response times.

Reliability and Stability

The Xeon processors are renowned for their reliability and stability. They undergo rigorous testing and validation processes to ensure that they can withstand heavy workloads and operate flawlessly under challenging conditions. With the Xeon 2.5GHz 6248 20-Core processor, you can trust that your server will deliver consistent performance without any unexpected downtime.

Future-Proofing

Investing in a server with a powerful processor like the Xeon 2.5GHz 6248 20-Core ensures that your infrastructure is future-proof. As technology advances and workloads become more demanding, having a capable processor will allow your server to adapt and handle emerging challenges. This means that you won't have to replace your server frequently, saving you both time and money in the long run.

Processor Count: 2

The HPE Proliant DL360 Gen10 Server boasts a processor count of 2, which provides significant advantages for businesses seeking high-performance computing solutions.

Increased Processing Power

With two processors, the server can perform tasks in parallel, effectively doubling the processing power available. This is particularly beneficial for resource-intensive applications that require substantial computational capabilities. Whether you are running virtual machines, hosting databases, or performing complex calculations, the dual processors ensure that your server can handle the workload efficiently.

Enhanced Multi-Tasking

Dual processors enable efficient multitasking by dividing the workload between them. This ensures that each processor can focus on specific tasks, resulting in improved performance and reduced response times. With enhanced multitasking capabilities, you can run multiple applications simultaneously without experiencing any performance degradation.

Redundancy and Fault Tolerance

Having two processors provides redundancy and fault tolerance. If one processor fails or experiences an issue, the other processor can seamlessly take over, ensuring uninterrupted operation. This redundancy feature is crucial for businesses that rely on their servers for critical operations and cannot afford any downtime. The dual processors offer peace of mind by minimizing the risk of hardware failures impacting your business operations.

Scalability

The dual-processor configuration also offers scalability options for growing businesses. As your workload increases, you can easily upgrade your server by adding more processors. This scalability allows you to adapt to evolving business needs without having to invest in an entirely new server infrastructure, saving both time and money.

Improved Virtualization Performance

Virtualization is a key component of modern IT environments, enabling businesses to maximize resource utilization and streamline operations. With two processors, the HPE Proliant DL360 Gen10 Server excels in virtualized environments by providing ample computing power to run multiple virtual machines simultaneously. This translates into improved performance and responsiveness for your virtualized applications.

Ram: 64GB-R

The HPE Proliant DL360 Gen10 Server is equipped with 64GB-R RAM, offering substantial memory capacity to support demanding workloads and ensure optimal performance.

Enhanced Performance

With 64GB-R RAM, the server can efficiently handle memory-intensive tasks and applications. This high memory capacity allows for faster data access and manipulation, resulting in improved overall performance. Whether you are running large databases, virtual machines, or data analysis software, the ample RAM ensures that your server can meet the demands of complex workloads.

Reduced Latency

Having a large amount of RAM reduces the need for frequent disk access, which can be a significant bottleneck in many systems. By storing more data in memory, the server can retrieve information quickly, reducing latency and improving response times. This is particularly beneficial for applications that rely heavily on random access memory, such as database management systems.

Efficient Virtualization

Virtualization relies heavily on available memory to run multiple virtual machines simultaneously. With 64GB-R RAM, the HPE Proliant DL360 Gen10 Server can accommodate a significant number of virtual machines without sacrificing performance. This allows businesses to consolidate their infrastructure, save on hardware costs, and achieve better resource utilization.

Future-Proofing

Investing in a server with sufficient RAM capacity ensures future-proofing of your infrastructure. As applications and workloads become more memory-intensive, having ample RAM will allow your server to cope with increasing demands. This means that you won't need to upgrade or replace your server as frequently, saving both time and money in the long run.

Flexibility and Expandability

The HPE Proliant DL360 Gen10 Server offers flexibility and expandability when it comes to RAM. With 64GB-R RAM as the base configuration, you have room for expansion to meet future needs. The server supports additional DIMM slots, allowing you to easily upgrade and add more RAM modules as your requirements evolve.

Part Number: P02723-B21

The HPE Proliant DL360 Gen10 Server is identified by the part number P02723-B21, which is a unique identifier that ensures compatibility and accurate ordering of replacement parts or additional components.

Compatibility and Interchangeability

Part number P02723-B21 serves as a reference for the compatibility and interchangeability of components within the HPE Proliant DL360 Gen10 Server series. It ensures that any replacement parts or additional components you order are specifically designed for this server model, minimizing the risk of compatibility issues or performance limitations.

Accurate Ordering and Inventory Management

By using the correct part number when ordering replacement parts or additional components, you can ensure accurate inventory management. This allows you to maintain optimal stock levels, reducing downtime caused by delayed or incorrect shipments. Additionally, accurate ordering based on part numbers helps streamline the maintenance process by providing the necessary information to service technicians.

Warranty and Support

The part number P02723-B21 is essential for warranty and support purposes. It helps identify the specific server model and ensures that you receive the appropriate level of support from the manufacturer or authorized service providers. By using the correct part number, you can access timely assistance and ensure that your server remains in optimal condition throughout its lifespan.

Upgrade and Expansion Possibilities

The HPE Proliant DL360 Gen10 Server offers various upgrade and expansion options, and the part number P02723-B21 plays a crucial role in identifying compatible components. Whether you are looking to add more storage, upgrade the processor, or expand the memory capacity, using the correct part number ensures that you select components that seamlessly integrate with your existing server configuration.

Accurate Documentation and Knowledge Sharing

Part number P02723-B21 serves as a reference point in documentation and knowledge sharing within the IT community. It allows for precise identification of the server model when discussing specifications, configurations, or troubleshooting procedures. This ensures clear communication and accurate information exchange among professionals working with HPE Proliant DL360 Gen10 Servers.
