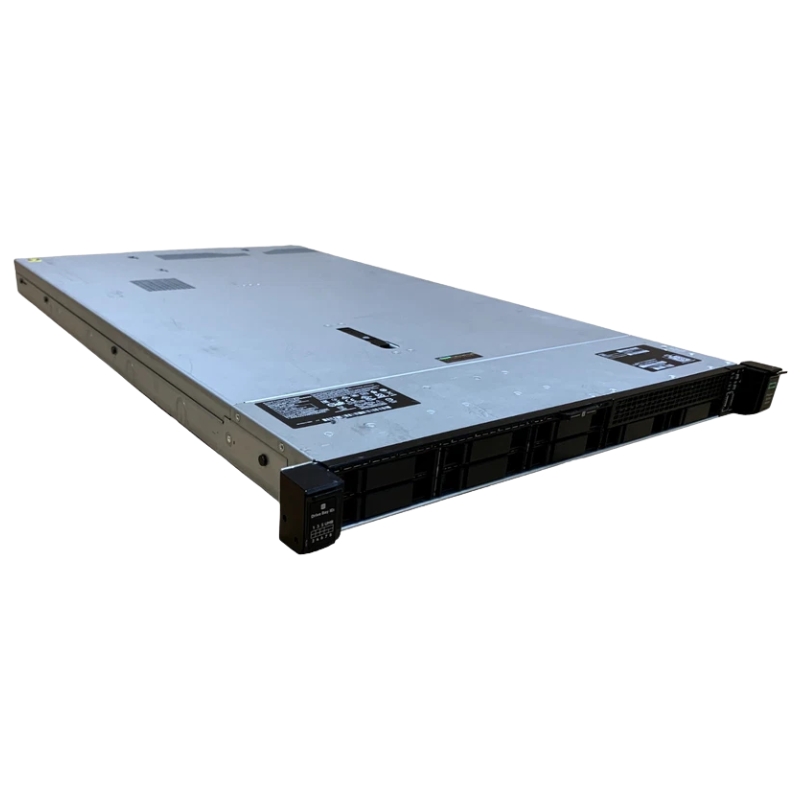

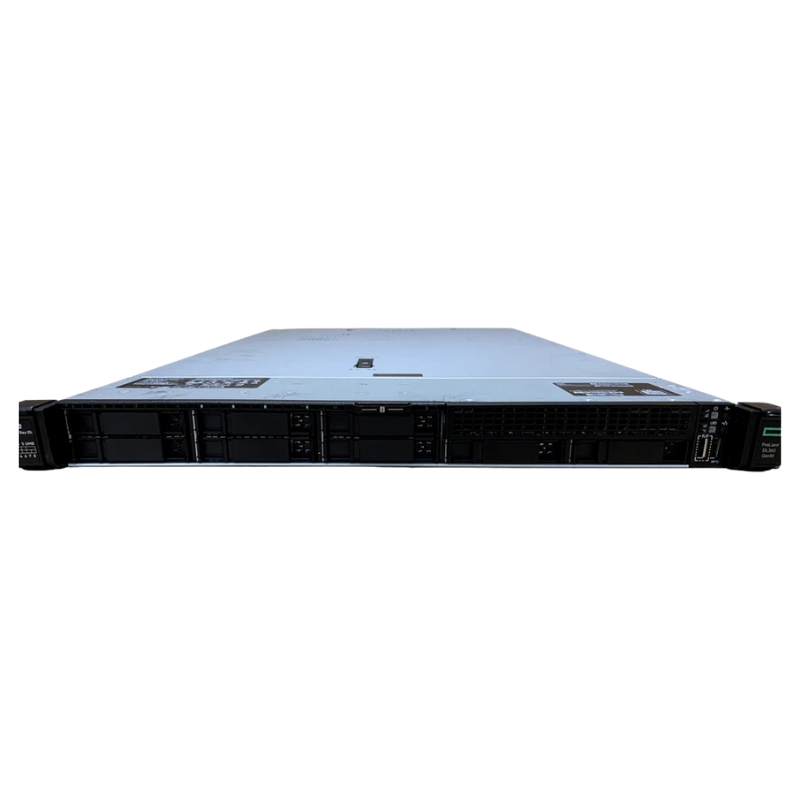

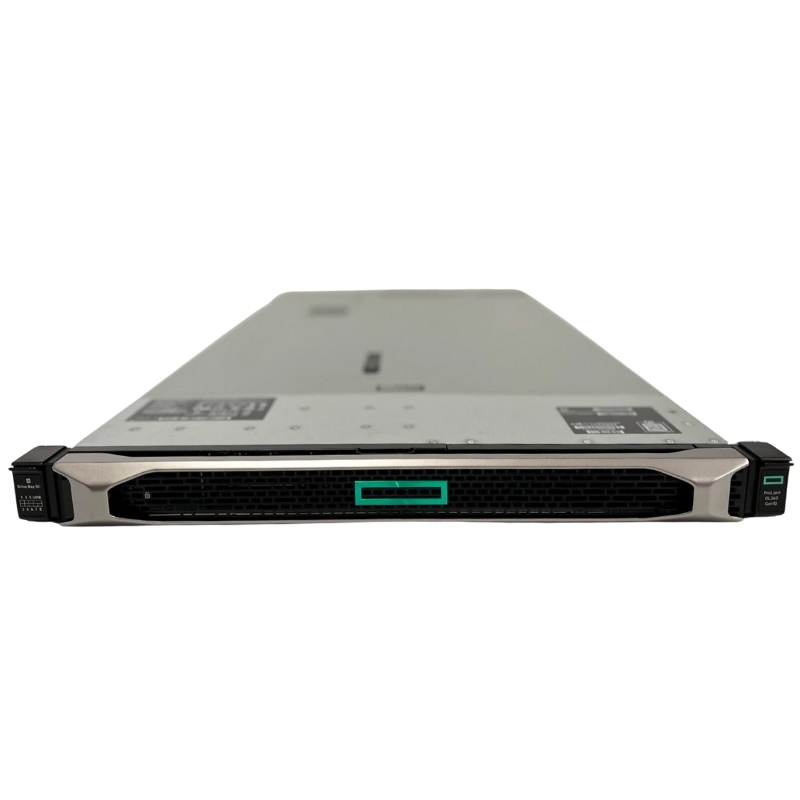

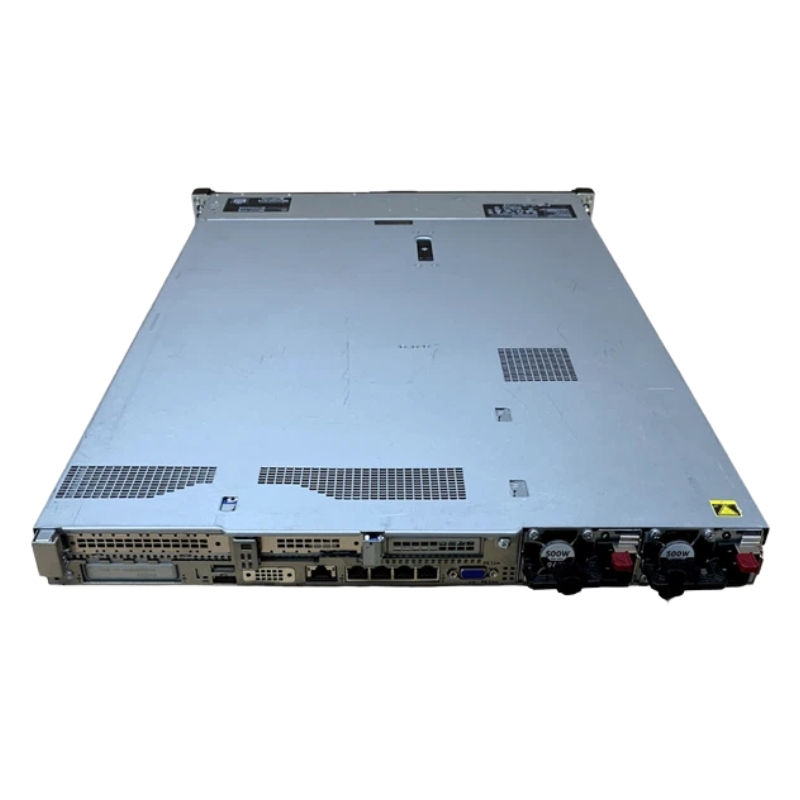

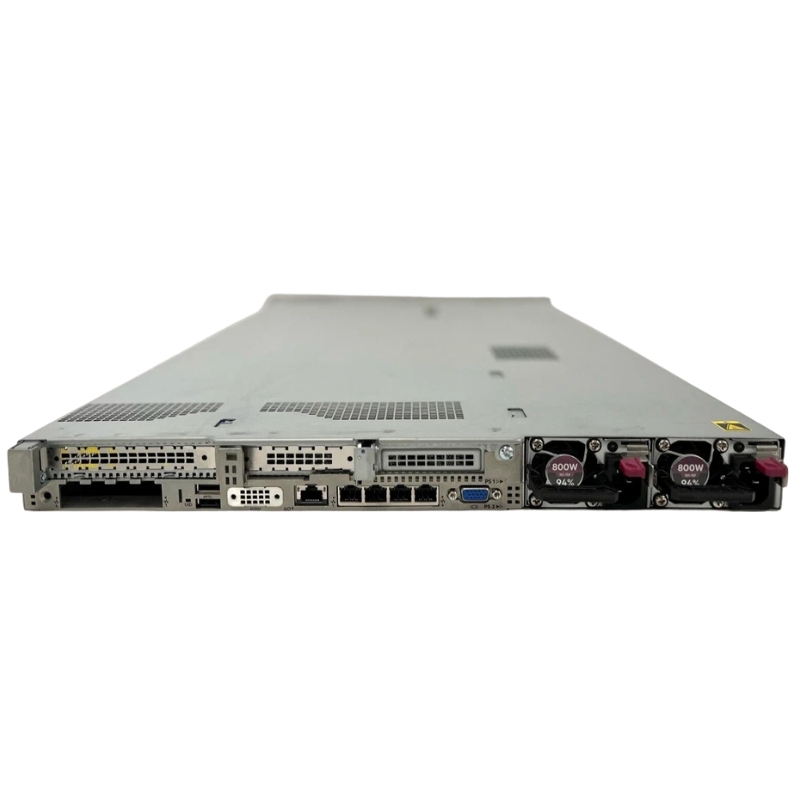

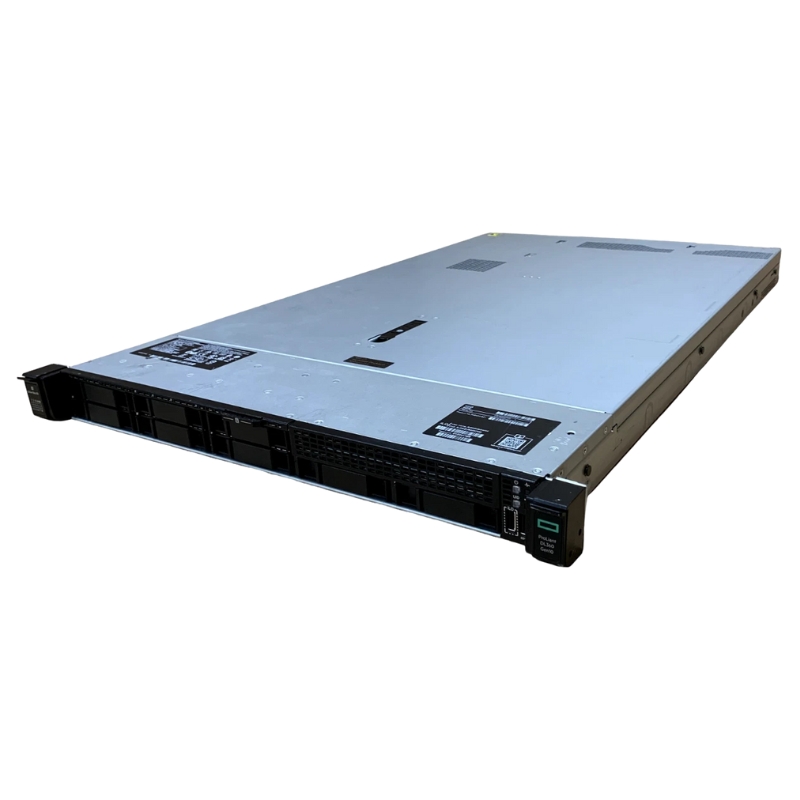

HPE DL360 Xeon 2.1 GHz 16-core Gold 6130 P408I-A 8SFF P06455-B21

Processor: Xeon 2.1 GHz 16-core Gold 6130

The HPE Proliant DL360 Server is equipped with the powerful Xeon 2.1 GHz 16-core Gold 6130 processor, making it a standout choice for businesses seeking exceptional performance and reliability. This processor is designed to handle demanding workloads and deliver outstanding results, making it an essential feature for users who require top-notch performance from their server.

Product Overview

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P06455-B21
• Product Name: ProLiant DL360 Gen10 - 1U Rack Mountable Server (Embedded LOM Model)

Processor and Chipset Specifications

CPU Details

• Processor: 1st Gen Intel Xeon Gold 6130 at 2.1 GHz
• Max Turbo Speed: 3.7 GHz
• Cores: 16-core
• CPU Quantity: 1 (upgradable to 2)

Processor Features

• Hyper-threading Technology
• Enhanced Intel SpeedStep Technology
• Intel Virtualization Technology
• Intel Turbo Boost Technology 2.0
• Intel 64 Technology

Chipset

Type: Intel C621

Cache Memory

Installed Cache

• L3 Cache: 22 MB
• Cache Per Processor: 22 MB

Memory Specifications

Installed and Supported Memory

• Installed Memory: 64 GB, expandable up to 768 GB
• Memory Technology: DDR4 SDRAM
• Effective Memory Speed: 2666 MHz
• Memory Form Factor: DIMM 288-pin
• Available Slots: 12 total (10 empty)
• Configuration: 2 x 32 GB

Memory Features

• Registered
• Dual Rank
• Slots 13-24 available only in two-processor configuration

Supported RAM Types

• PC4-20800 - 3.072 TB Load-reduced
• PC4-20800 - 768 GB Registered
• PC4-20800 - 192 GB Non-volatile

Storage Options

Hard Drive and Optical Drive

• Hard Drive: None
• Optical Drive: None

Storage Controllers

Controller Specifications

• Type: RAID Controller
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Display and Graphics

Video Specifications

• Video Memory: 16 MB
• Video Interface: VGA

Networking and Communication

Network Interfaces

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

Bays

• 1 x External Universal Media Bay (free)
• 8 x Hot-swap 2.5 SFF Bays (all free)

Slots

• 1 x FlexibleLOM - Three-quarter-length, Full-height (low-profile)
• 1 x PCIe 3.0 x16 - Three-quarter-length, Full-height
• 1 x PCIe 3.0 x8 - Low-profile
• 1 x MicroSD Card (internal)
• 1 x PCIe x16 - Full-height

Interfaces

• 1 x HP iLO - Type A (front)
• 1 x HP iLO - RJ-45 (rear)
• 4 x LAN (Gigabit Ethernet) - RJ-45 (rear)
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x VGA (rear)

Miscellaneous

Included Accessories

• HPE Easy Install Rails
• HPE Standard Heatsink
• 5 x Standard Hot Plug Fans

Cables Included

• Power Cable

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Power Specifications

Power Supply

• Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with optional power supply)
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts

Dimensions and Weight

Physical Dimensions

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Unparalleled Performance

The Xeon 2.1 GHz 16-core Gold 6130 processor is built to provide unparalleled performance for your business applications and workloads. With its impressive core count and clock speed, this processor offers the processing power needed to handle complex tasks efficiently. Whether you're running resource-intensive databases, virtualization software, or high-performance computing applications, this processor ensures smooth and responsive performance.

Increased Productivity

By harnessing the power of the Xeon 2.1 GHz 16-core Gold 6130 processor, your business can experience increased productivity and efficiency. The processor's high core count allows for parallel processing, enabling multiple tasks to be executed simultaneously. This means faster data processing, reduced downtime, and improved overall productivity for your organization.

Enhanced Scalability

The Xeon 2.1 GHz 16-core Gold 6130 processor offers enhanced scalability, allowing your server to grow with your business needs. As your workload increases, this processor can handle the additional demands without compromising performance. Its advanced architecture ensures that your server can adapt to changing requirements, providing a future-proof solution that can accommodate expanding business operations.

Improved Energy Efficiency

In addition to its impressive performance capabilities, the Xeon 2.1 GHz 16-core Gold 6130 processor also prioritizes energy efficiency. It is designed to deliver optimal performance while minimizing power consumption, helping you reduce your organization's carbon footprint and lower energy costs. With this processor, you can achieve a perfect balance between performance and sustainability.

Reliability and Security

When it comes to server solutions, reliability and security are paramount. The Xeon 2.1 GHz 16-core Gold 6130 processor incorporates advanced technologies to ensure the highest level of reliability and data security. Features such as Intel® Trusted Execution Technology and Intel® Platform Protection Technology safeguard your critical data and protect against potential threats, giving you peace of mind that your business-critical information is secure.

Storage: P408I-A 8SFF

The HPE Proliant DL360 Server offers impressive storage capabilities with its P408I-A 8SFF storage feature. This feature is designed to provide abundant storage capacity and exceptional performance, making it an essential component for businesses that deal with large amounts of data.

Ample Storage Capacity

The P408I-A 8SFF storage feature offers ample storage capacity to meet the demanding needs of modern businesses. With support for up to eight Small Form Factor (SFF) drives, you can easily store vast amounts of data within the server. Whether it's storing databases, multimedia files, or virtual machine images, this storage feature ensures you have sufficient space to accommodate your growing data requirements.

High-Speed Data Transfer

In addition to its generous storage capacity, the P408I-A 8SFF storage feature boasts high-speed data transfer capabilities. It supports advanced RAID configurations such as RAID 5, RAID 6, and RAID 10, allowing for enhanced data protection and faster data access. This means that your business can enjoy faster application response times and improved data retrieval, resulting in increased productivity and efficiency.

Flexibility and Scalability

The P408I-A 8SFF storage feature offers flexibility and scalability to adapt to your changing data storage needs. With its support for various RAID levels, you can customize the storage configuration based on your specific requirements. Additionally, as your business grows and demands more storage capacity, this feature allows for easy expansion by adding additional drives or upgrading to larger capacity drives.

Data Redundancy and Protection

Data redundancy and protection are critical for businesses to safeguard their valuable information. The P408I-A 8SFF storage feature provides advanced RAID functionalities that ensure data redundancy and protection against drive failures. RAID configurations such as RAID 5 and RAID 6 offer fault tolerance, allowing your server to continue operating seamlessly even in the event of a drive failure. This minimizes downtime and protects your data from potential loss or corruption.

Efficient Data Management

The P408I-A 8SFF storage feature comes with built-in features for efficient data management. It supports hot-plug functionality, allowing you to add or remove drives without interrupting server operations. Additionally, it includes management tools that enable you to monitor and manage your storage efficiently, ensuring optimal performance and reliability.

Part Number: P06455-B21

The Part Number P06455-B21 is an integral component of the HPE Proliant DL360 Server, playing a crucial role in ensuring compatibility, support, and ease of maintenance for the server system.

Compatibility Assurance

The Part Number P06455-B21 is specifically designed for the HPE Proliant DL360 Server, guaranteeing compatibility and seamless integration into the system. It ensures that all components and peripherals are fully compatible with each other, minimizing any potential compatibility issues and ensuring stable and reliable operation of the server.

Easy Maintenance and Upgrades

The Part Number P06455-B21 simplifies server maintenance and upgrades. It provides a standardized system for identifying and ordering replacement parts, making it easier to procure the right components when needed. With this part number, you can quickly identify the correct spare parts, reducing downtime during maintenance or upgrade procedures.

Enhanced Support

Using the Part Number P06455-B21 allows you to take advantage of enhanced support services from HPE. HPE provides comprehensive support for their products, including firmware updates, driver downloads, and technical assistance. By utilizing the specified part number, you ensure that your server receives the highest level of support from the manufacturer, minimizing potential issues and maximizing uptime.

Streamlined Inventory Management

The Part Number P06455-B21 simplifies inventory management for your organization. With this standardized part number, you can easily track and manage your server components, ensuring accurate inventory records. This helps streamline procurement processes, optimize resource allocation, and facilitate efficient asset management.

Warranty Coverage

By utilizing the specified Part Number P06455-B21, you can ensure that your server system is covered by the manufacturer's warranty. This provides peace of mind, knowing that any potential hardware failures or defects will be addressed promptly without incurring additional costs. The manufacturer's warranty offers protection and support, ensuring that your investment is safeguarded against unforeseen issues.
