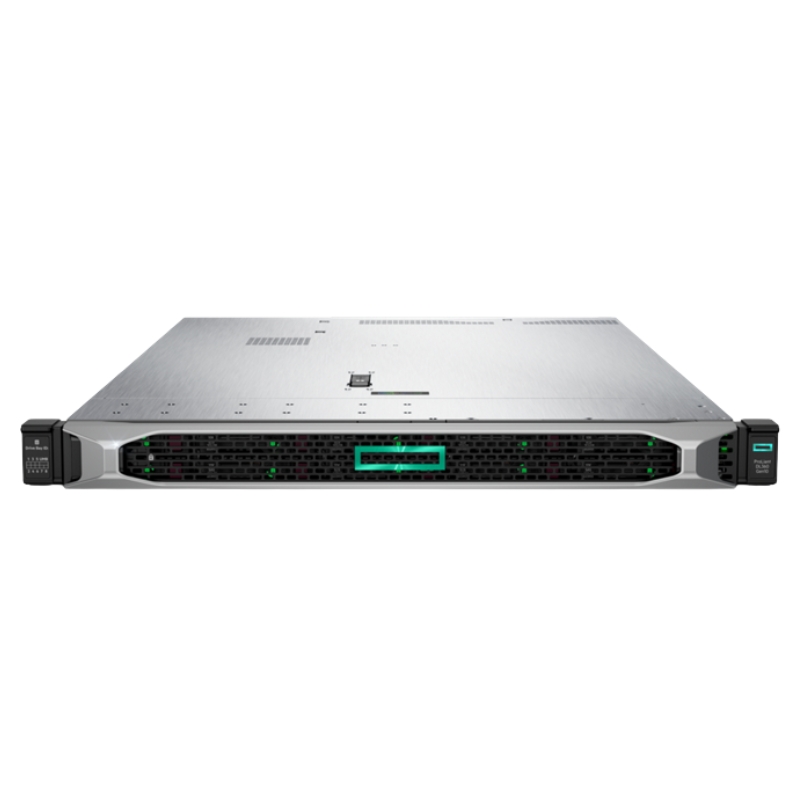

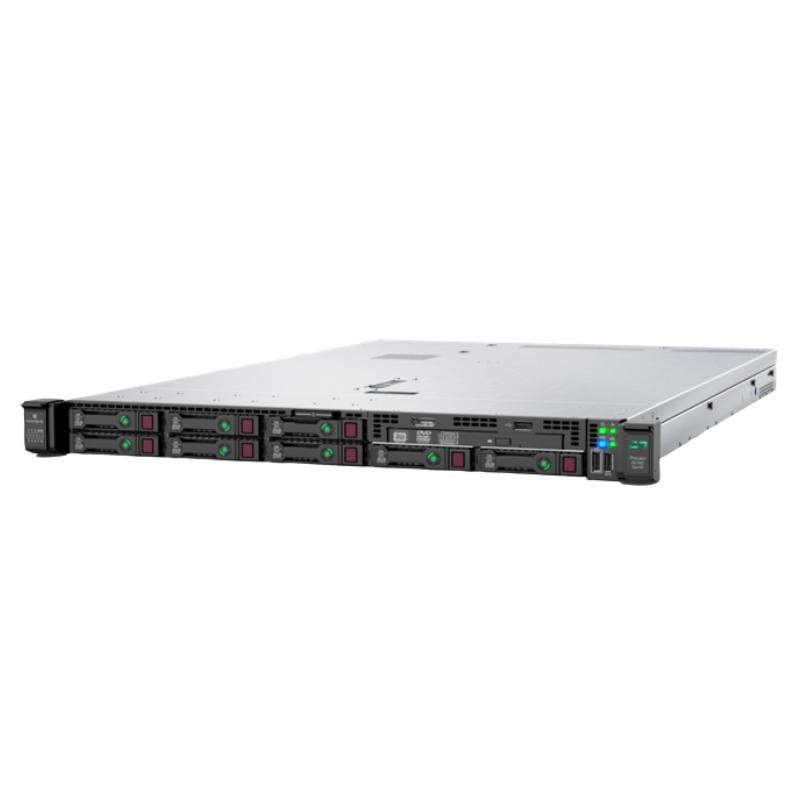

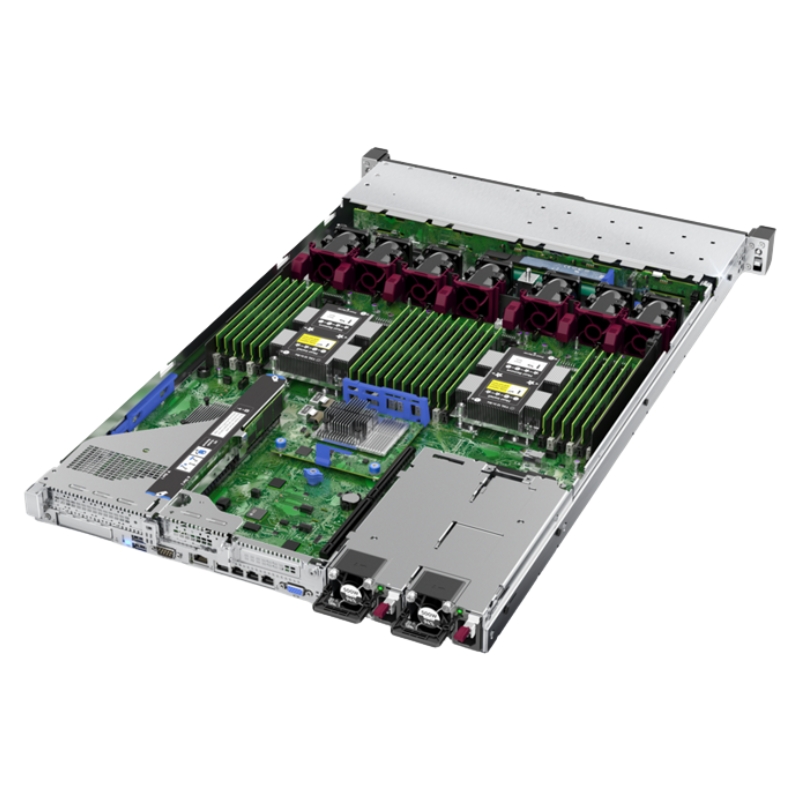

HPE DL360 Xeon 2.2GHz 18-Core 2P 64GB-R P408I-A P02722-B21 Server

Processor Speed: 2.2GHz

The processor speed is a crucial specification when it comes to selecting a server for your business needs. In the case of the HPE Proliant DL360 Server Xeon, its impressive 2.2GHz processor speed ensures optimal performance and efficiency. Let's delve deeper into the benefits and importance of this feature.

Overview of P02722-B21

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P02722-B21
• Product Name: Proliant DL380 Gen10 1U Rack-Mountable Server

Processor & Chipset Details

• Model: 2nd Gen Intel Xeon Gold 5220
• Base Clock Speed: 2.2 GHz
• Max Turbo Speed: 3.9 GHz
• Core Count: 18 cores
• Quantity: 2 processors
• Upgradability: Yes, processors are upgradable

Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2
• Intel Smart Cache

Chipset

• Type: Intel C621

Cache Memory Specifications

• Installed Cache Size: 49.5 MB L3 Cache
• Cache Per Processor: 24.75 MB

Memory Configuration

• Size: 64 GB, expandable up to 2 TB
• Type: DDR4 SDRAM
• Effective Speed: 2666 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 24 total, 22 available

Memory Features

• Registered and Online Spare Memory
• Dual Rank
• HPE SmartMemory
• 6-Channel Memory Architecture

Supported RAM Configuration

• Up to 2 TB Registered
• 6 TB Load-Reduced
• 192 GB Non-Volatile

Storage Controllers

• Type: RAID - PCIe 3.0 x8
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Graphics Controller

• Video Memory: 16 MB
• Interfaces: VGA

Networking & Communication

Network Interfaces

• Interface Type: FlexibleLOM
• Ethernet Ports: 4 x Gigabit Ethernet, 2 x 25 Gigabit Ethernet
• Controller: HPE 640FLR
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake-on-LAN (WOL), PXE Support

Expansion and Connectivity

Bays and Slots

• Bays:
  • 1 External (free)
  • 8 Hot-Swap 2.5 SFF (free)
• Slots:
  • 1 PCIe 3.0 x16 (Three-Quarter-Length, Full-Height, free)
  • 1 PCIe 3.0 x8 (Low-Profile, used)
  • 1 FlexibleLOM (Three-Quarter-Length, Full-Height, Low-Profile, free)
  • 1 MicroSD Card (Internal, free)

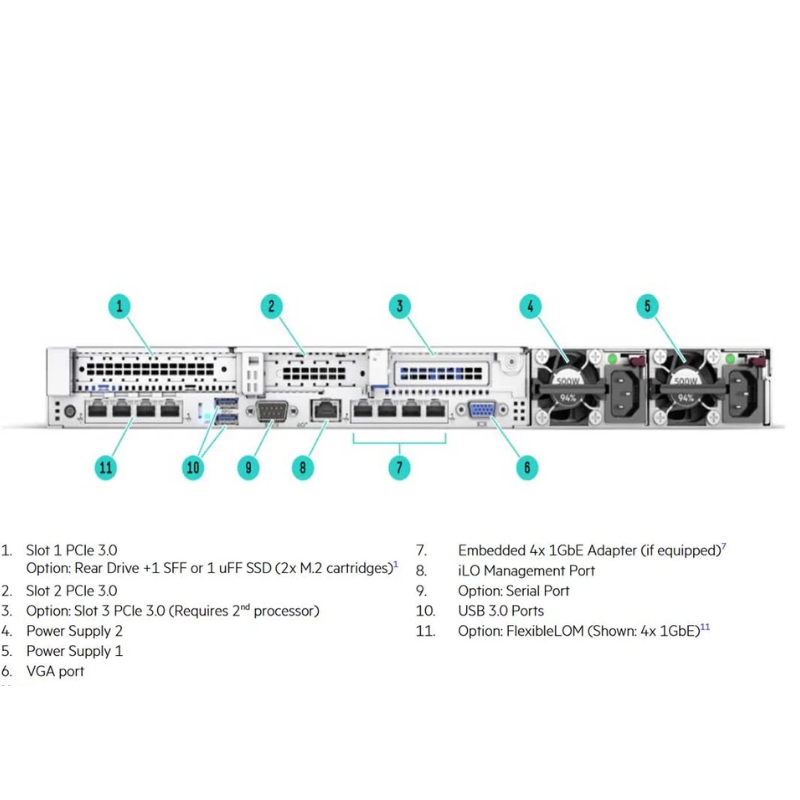

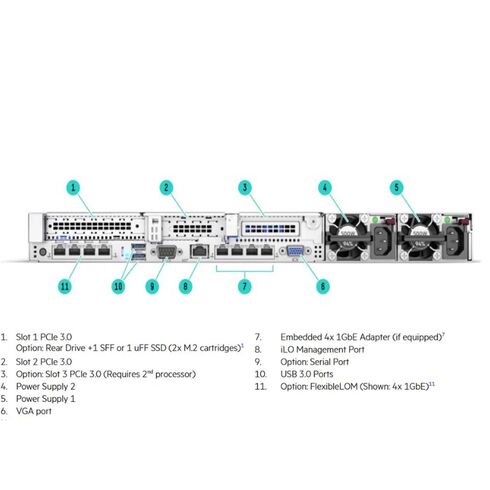

Interfaces

• 8 x SATA-600 / SAS 3.0
• 1 x HPE iLO - Type A (Front)
• 1 x HPE iLO - RJ-45 (Rear)
• 5 x USB 3.0 (Front x1, Rear x2, Internal x2)
• 1 x VGA (Rear)
• 4 x LAN (Gigabit Ethernet, RJ-45, Rear)
• 2 x LAN (25 Gigabit Ethernet, SFP28, Rear)

Power Supply and Redundancy

• Device Type: Hot-Plug Power Supply
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watts
• Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Additional Information

• Included Accessories: CPU Standard Heatsink, 7 High-Performance Fans, SFF Easy Install Rails
• Compliance Standards: AES, WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1

Enhanced Performance

With a processor speed of 2.2GHz, the HPE Proliant DL360 Server Xeon delivers exceptional computing power, allowing for faster data processing and improved overall performance. Whether you are running resource-intensive applications or handling large datasets, this server can handle the workload efficiently, ensuring smooth operations for your business.

Seamless Multitasking

The high processor speed enables the server to handle multiple tasks simultaneously without compromising performance. This means that you can run various applications and processes concurrently, enhancing productivity and efficiency in your business operations. Whether you need to run virtualization software or handle complex computations, the HPE Proliant DL360 Server Xeon with its 2.2GHz processor speed can effortlessly handle the workload.

Reduced Latency

Latency is a critical factor when it comes to server performance. The 2.2GHz processor speed significantly reduces latency, ensuring that requests and responses are processed swiftly. This is particularly important for businesses that rely on real-time data processing or require quick access to information. The decreased latency provided by this server allows for seamless interactions between applications and reduces potential bottlenecks in data transmission.

Improved Efficiency

Efficiency is key in any business environment. The HPE Proliant DL360 Server Xeon with its 2.2GHz processor speed offers remarkable efficiency gains, allowing you to maximize your investments. The higher clock speed ensures that tasks are executed more quickly, reducing the time required for processing and increasing overall productivity. This not only saves time but also enables your business to handle larger workloads and meet demanding deadlines.

Future-Proofing

Investing in a server with a high processor speed like the HPE Proliant DL360 Server Xeon ensures future-proofing for your business. As technology advances, applications become more resource-intensive, and data volumes continue to grow. By choosing a server with a 2.2GHz processor speed, you are equipping your business with the necessary power to handle future demands. This not only extends the lifespan of your server but also saves you from having to upgrade or replace it shortly.

Scalability

The HPE Proliant DL360 Server Xeon's high processor speed provides scalability options for your business. As your organization grows and your computing needs expand, this server can accommodate increased workloads without sacrificing performance. With its 2.2GHz processor speed, you have the flexibility to scale up your operations, ensuring that your server can handle the demands of your evolving business environment.

Competitive Advantage

In today's fast-paced business landscape, having a competitive edge is crucial. The HPE Proliant DL360 Server Xeon's 2.2GHz processor speed offers a significant advantage by enabling faster data processing and smoother operations. This translates into quicker response times for your customers, improved decision-making capabilities, and enhanced overall performance compared to competitors relying on slower servers. By investing in a server with a high processor speed, you position your business at the forefront of efficiency and productivity.

Number Of Cores: 18

The number of cores is another vital specification to consider when evaluating server options like the HPE Proliant DL360 Server Xeon. With an impressive 18 cores, this server provides exceptional performance and scalability. Let's explore the benefits and importance of this feature in more detail.

Increased Processing Power

The 18 cores of the HPE Proliant DL360 Server Xeon deliver immense processing power, allowing for faster and more efficient data handling. Each core acts as an individual processing unit, capable of executing instructions and performing calculations independently. With more cores at your disposal, your server can tackle complex tasks and resource-intensive applications with ease, ensuring smooth and uninterrupted operations for your business.

Parallel Processing

Parallel processing is a technique that utilizes multiple cores to execute instructions simultaneously, resulting in significant performance gains. The 18 cores of the HPE Proliant DL360 Server Xeon enable efficient parallel processing, dividing tasks into smaller parts that can be processed concurrently. This capability is particularly beneficial for applications that can be divided into independent threads, such as database management systems or scientific simulations. By leveraging parallel processing, you can enhance the speed and efficiency of your server's operations.

Improved Workload Distribution

The presence of 18 cores allows for efficient workload distribution across the server. When multiple users or applications are accessing the server simultaneously, each core can handle specific tasks independently, preventing bottlenecks and ensuring a smooth user experience. This ensures that resources are allocated optimally, reducing response times and enhancing overall performance.

Virtualization Capabilities

Virtualization has become a crucial aspect of modern business operations. The HPE Proliant DL360 Server Xeon's 18 cores offer excellent virtualization capabilities by providing sufficient resources to run multiple virtual machines simultaneously. Each core can be allocated to different virtual machines, ensuring that each operates independently without affecting others' performance. This allows for efficient resource utilization, increased flexibility, and simplified management of virtualized environments.

Scalability and Flexibility

The 18 cores of the HPE Proliant DL360 Server Xeon provide scalability and flexibility for your business. As your computing needs grow, the server can accommodate increased workloads by efficiently distributing tasks across its cores. This scalability ensures that your server can handle the demands of a growing organization without sacrificing performance. Additionally, the flexibility offered by 18 cores allows you to allocate resources based on specific requirements, ensuring optimal performance for different applications and processes.

Future-Proofing

Investing in a server with 18 cores like the HPE Proliant DL360 Server Xeon ensures future-proofing for your business. As technology advances and your computing needs evolve, having additional processing power becomes increasingly important. By choosing a server with 18 cores, you equip your business with the necessary resources to handle future demands. This not only extends the lifespan of your server but also saves you from having to upgrade or replace it shortly.

Innovation and Competitiveness

Having a server with 18 cores provides your business with a competitive advantage in innovation and performance. The ability to handle resource-intensive applications and complex workloads sets you apart from competitors relying on servers with fewer cores. By investing in a server that can deliver exceptional processing power, you position your business at the forefront of technological advancements and ensure that you can meet the demands of emerging trends and industry standards.

Number Of Processors: 2

The number of processors is a crucial factor when it comes to server performance and scalability. The HPE Proliant DL360 Server Xeon boasts 2 processors, providing exceptional power and flexibility. Let's explore the benefits and importance of this feature in more detail.

Increased Processing Power

The presence of 2 processors in the HPE Proliant DL360 Server Xeon significantly enhances processing power. Each processor consists of multiple cores, allowing for parallel processing and efficient execution of instructions. With 2 processors working in tandem, your server can handle resource-intensive applications, complex computations, and large datasets with ease. This ensures smooth and uninterrupted operations, even during peak usage periods.

Redundancy and Fault Tolerance

Having multiple processors offers redundancy and fault tolerance. In the event of a processor failure, the server can seamlessly switch to the remaining processor, ensuring uninterrupted service availability. This redundancy minimizes downtime and protects against data loss or service disruptions. By investing in a server with 2 processors, you enhance the reliability and resilience of your infrastructure, mitigating the risks associated with hardware failures.

Improved Workload Distribution

The presence of 2 processors allows for efficient workload distribution across the server. When multiple users or applications are accessing the server simultaneously, each processor can handle specific tasks independently, preventing bottlenecks and ensuring a smooth user experience. This ensures that resources are allocated optimally, reducing response times and enhancing overall performance.

Scalability and Flexibility

The HPE Proliant DL360 Server Xeon's 2 processors provide scalability and flexibility for your business. As your computing needs grow, the server can accommodate increased workloads by efficiently distributing tasks across its processors. This scalability ensures that your server can handle the demands of a growing organization without sacrificing performance. Additionally, the flexibility offered by 2 processors allows you to allocate resources based on specific requirements, ensuring optimal performance for different applications and processes.

Virtualization Capabilities

Virtualization has become an integral part of modern business operations. The HPE Proliant DL360 Server Xeon's 2 processors offer excellent virtualization capabilities by providing sufficient resources to run multiple virtual machines simultaneously. Each processor can be allocated to different virtual machines, ensuring that each operates independently without affecting others' performance. This allows for efficient resource utilization, increased flexibility, and simplified management of virtualized environments.

Enhanced Security

Virtualization on a server with 2 processors enables enhanced security measures. By isolating different applications or services on separate virtual machines, you can minimize the risk of unauthorized access or data breaches. Each virtual machine operates independently, creating a secure and isolated environment. This segregation ensures that even if one virtual machine is compromised, the others remain unaffected, safeguarding critical business data and applications.

Optimized Resource Utilization

With 2 processors, the HPE Proliant DL360 Server Xeon can optimize resource utilization. By distributing workloads across multiple processors, each core can handle specific tasks more efficiently. This ensures that resources are allocated effectively, reducing idle time and maximizing processing power. Optimized resource utilization leads to improved efficiency and cost-effectiveness in your business operations.

Ram Size: 64GB

The RAM size is a crucial consideration when selecting a server for your business needs. The HPE Proliant DL360 Server Xeon offers an impressive RAM size of 64GB, providing ample memory capacity for resource-intensive applications and multitasking. Let's explore the benefits and importance of this feature in more detail.

Enhanced Performance

The 64GB RAM size of the HPE Proliant DL360 Server Xeon significantly enhances its performance by allowing for efficient data processing and multitasking. With ample memory capacity, the server can store and access frequently used data quickly, reducing latency and enhancing overall responsiveness. This ensures that your applications and processes can run smoothly, even when handling large datasets or complex calculations.

Faster Data Access

Having a larger RAM size enables faster data access, as the server can store more data in its memory instead of relying on slower storage devices. This reduces the need for frequent read/write operations to disk, resulting in significant performance gains. Whether you are running database applications or handling real-time analytics, the 64GB RAM size ensures that data is readily available, minimizing processing delays and improving the user experience.

Efficient Multitasking

The 64GB RAM size allows for efficient multitasking on the HPE Proliant DL360 Server Xeon. With ample memory capacity, the server can accommodate multiple applications or processes running simultaneously without experiencing performance degradation. This is particularly important for businesses that rely on running various software concurrently or handling multiple user requests. The larger RAM size ensures that each application or process has sufficient memory to operate smoothly, enhancing productivity and efficiency.

Scalability and Future-Proofing

Investing in a server with a 64GB RAM size ensures scalability and future-proofing for your business. As your computing needs grow, the server can handle increased workloads without running out of memory. The ample memory capacity allows for seamless expansion, ensuring that your server can accommodate evolving demands and new applications. By choosing a server with a large RAM size, you eliminate the need for frequent upgrades or replacements, saving time and resources in the long run.

Virtualization Capabilities

Virtualization is a critical aspect of modern IT infrastructure. The HPE Proliant DL360 Server Xeon's 64GB RAM size offers excellent virtualization capabilities by providing sufficient memory to run multiple virtual machines simultaneously. Each virtual machine can be allocated a portion of the available RAM, allowing it to operate independently without affecting others' performance. This efficient resource allocation enhances flexibility, simplifies management, and maximizes the utilization of your server's memory capacity.

Improved Consolidation Ratio

With ample RAM size, virtualization on the HPE Proliant DL360 Server Xeon can achieve a higher consolidation ratio. The consolidation ratio represents the number of virtual machines that can be hosted on a single physical server. By providing a larger memory capacity, the server can support more virtual machines without sacrificing performance. This results in cost savings by reducing the need for additional physical servers and optimizing resource utilization.

Enhanced Security and Isolation

Virtualization on a server with a 64GB RAM size enables enhanced security and isolation of virtual machines. By allocating dedicated memory to each virtual machine, you can ensure that data remains isolated and secure. This segregation prevents unauthorized access or data breaches, as each virtual machine operates independently. With increased security and isolation, your business can confidently run critical applications or handle sensitive data on the HPE Proliant DL360 Server Xeon.

RAID Controller: P408I-A

The RAID controller plays a crucial role in data storage and protection in a server environment. The HPE Proliant DL360 Server Xeon is equipped with the P408I-A RAID controller, offering advanced features and benefits. Let's explore the importance and advantages of this feature in more detail.

Data Redundancy and Protection

The P408I-A RAID controller provides advanced data redundancy and protection mechanisms for your server's storage. RAID (Redundant Array of Independent Disks) technology allows multiple hard drives to be combined into an array, providing increased reliability and fault tolerance. With the P408I-A controller, you can configure various RAID levels to suit your specific needs, such as RAID 0, RAID 1, RAID 5, RAID 6, or RAID 10.

Improved Data Availability

By utilizing RAID configurations, the P408I-A RAID controller ensures improved data availability. In the event of a hard drive failure, the RAID controller can seamlessly switch to a redundant drive, ensuring uninterrupted access to data. This fault tolerance minimizes downtime and prevents data loss, protecting critical business information and ensuring continuous operations. The P408I-A's advanced features, such as hot-swappable drives and automatic drive rebuild, further enhance data availability and ease of maintenance.

Enhanced Performance

The P408I-A RAID controller enhances storage performance by utilizing multiple drives in parallel. RAID configurations distribute data across multiple drives, allowing for simultaneous read and write operations. This parallelism results in improved storage performance and faster data access times. Whether you are running database applications or handling high-volume transactions, the P408I-A RAID controller ensures that your storage infrastructure can keep up with demanding workloads.

Scalability and Flexibility

The P408I-A RAID controller offers scalability and flexibility for your storage needs. With support for a large number of drives, you can easily expand your storage capacity as your business grows. The controller's flexibility allows you to configure different RAID levels based on your requirements, balancing performance, capacity, and redundancy. This scalability and flexibility ensure that your server's storage can accommodate evolving demands and adapt to changing business needs.

Data Integrity and Error Recovery

Maintaining data integrity is crucial in any server environment. The P408I-A RAID controller implements various mechanisms to ensure data consistency and error recovery.

Data Striping and Parity

RAID configurations supported by the P408I-A controller, such as RAID 5 or RAID 6, utilize data striping and parity techniques. Data striping distributes data across multiple drives, while parity information is calculated and stored on additional drives. This combination enables the recovery of data in the event of a drive failure. The P408I-A controller's ability to calculate and verify parity information ensures data integrity and minimizes the risk of data corruption.

Online Capacity Expansion
