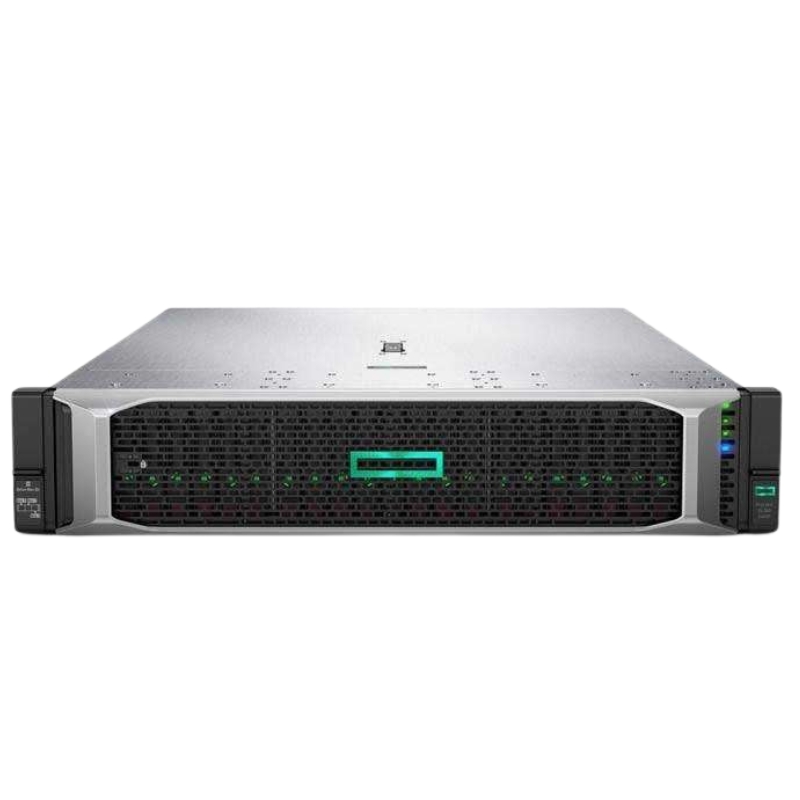

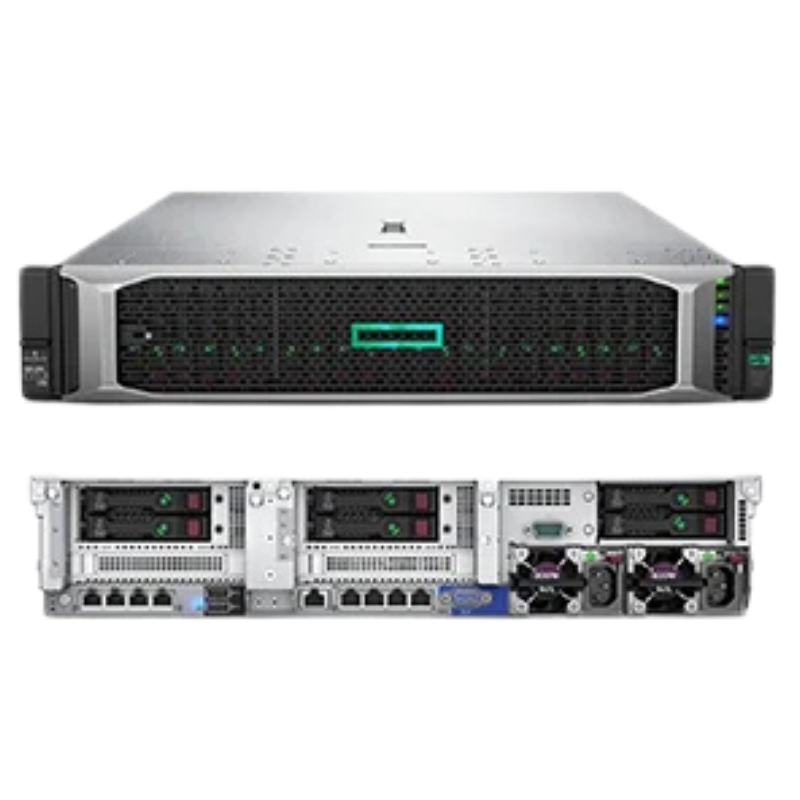

HPE DL380 875762-S01 Xeon Gold 14-core 5120 2.2GHz Server 2X500W

Processor

The HPE Proliant DL380 Server 875762-S01 has an impressive Intel Xeon Gold 14-core 5120 processor, running at a base frequency of 2.2 GHz. This powerful processor is specifically designed for data-intensive tasks and provides exceptional performance for demanding workloads. In this section, we will explore the benefits and importance of this feature for users.

Main Specification of Xeon Gold 14-core

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 875762-S01
• Product Name: Proliant DL380 Gen10 - 2U Rack Mountable Server (Smart Buy Model)

Processor Specifications

• CPU Model: Intel Xeon Gold 5120
• Base Clock Speed: 2.2 GHz
• Max Turbo Frequency: 3.2 GHz
• Core Count: 14 Cores
• CPU Quantity: 1 (upgradable to 2)
• CPU Socket Type: FCLGA3647
• Chipset: Intel C621
• Processor Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Total Cache Size: 19.25 MB L3 Cache
• Cache Per Processor: 19.25 MB

Memory Details

• Installed Memory: 32 GB (expandable to 1.5 TB)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-21333
• Form Factor: DIMM 288-pin
• Total Slots: 24 (22 available)
• Memory Configuration: 2 x 16 GB
• Supported RAM Types: 3 TB Load-Reduced ECC, 1.5 TB Registered ECC, 192 GB Non-Volatile ECC

Storage Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: 1 x RAID
• Controller Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channel Count: 8
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Networking & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• External Bays: 1 (free)
• Hot-Swap Bays: 8 x 2.5” SFF

Expansion Slots

• CPU Slots: 2 (1 free)
• DIMM Slots: 24 (22 free)
• FlexibleLOM Slot: 1 (free)
• PCIe 3.0 x16 Slot: 1 (free)
• PCIe 3.0 x8 Slots: 2 (free)
• MicroSD Card Slot: 1 (free)

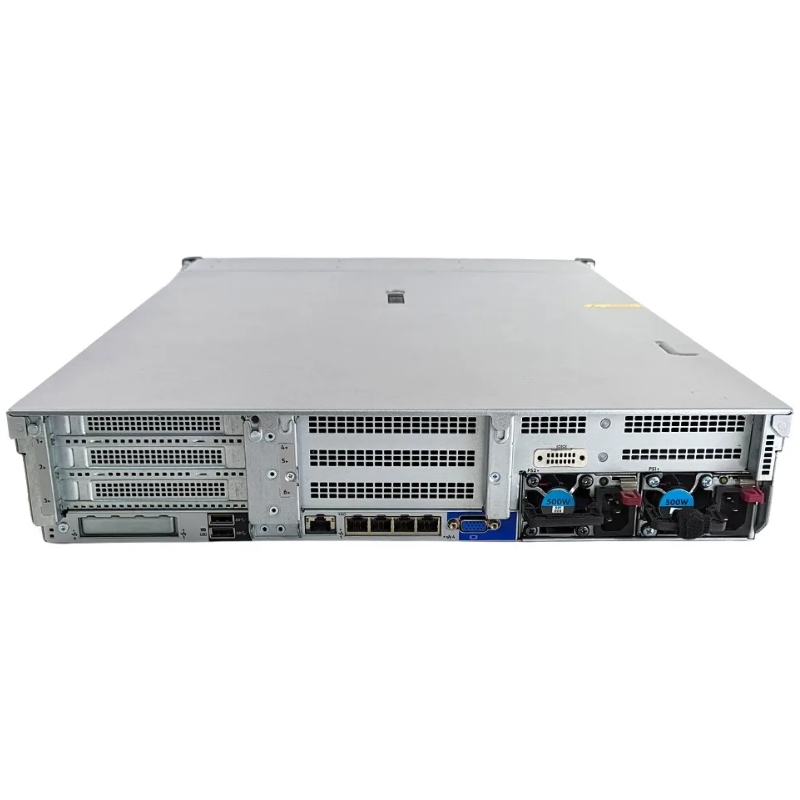

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet (RJ-45)
• HP iLO Ports: 1 x RJ-45 (rear), 1 x Type A (front)
• VGA Port: 1 (rear)
• SATA/SAS Ports: 8
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)

Miscellaneous Features

• Included Accessories: HP Easy Install Rail Kit, 4 x Standard Hot Plug Fans, CPU Standard Heatsink
• Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
• Manufacturer Selling Program: HPE Smart Buy

Power Specifications

• Device Type: Hot-plug / Redundant Power Supply
• Redundancy: 1+1
• Installed Power Supply: 1
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watt
• 80 Plus Certification: Platinum
• Efficiency: 94%

Physical Dimensions

• Width: 17.5 inches
• Depth: 28.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Enhanced Performance

The Intel Xeon Gold 14-core 5120 processor is built on the latest architecture, incorporating advanced technologies to deliver unparalleled performance. With a higher number of cores, it enables the server to handle multiple tasks simultaneously, resulting in faster and more efficient processing. This is particularly beneficial for businesses that rely on complex computations, virtualization, or resource-intensive applications.

Improved Speed and Responsiveness

Thanks to its 2.2 GHz base frequency, the processor ensures a rapid response time and quick execution of commands. Whether you are running a database server, hosting websites, or deploying virtual machines, the increased clock speed enables seamless multitasking and reduces latency. This translates into improved user experience, as users can access data and applications without any noticeable delays.

Optimized Workloads

The Intel Xeon Gold 14-core 5120 processor is specifically optimized for a wide range of workloads, including virtualization, cloud computing, and data analytics. Its advanced instruction set architecture (ISA) allows for efficient handling of complex instructions, resulting in faster data processing and analysis. This enables businesses to make data-driven decisions more quickly and gain a competitive edge in today's fast-paced market.

Scalability and Future-Proofing

Another advantage of the Intel Xeon Gold 14-core 5120 processor is its scalability. As your business grows and workloads become more demanding, the server can easily accommodate increased processing needs. With the ability to support multiple processors, you can scale up your server's performance without the need for a complete hardware replacement. This scalability ensures that your investment remains future-proof and provides long-term value.

Energy Efficiency

Despite its powerful performance capabilities, the Intel Xeon Gold 14-core 5120 processor is designed to be energy-efficient. It incorporates Intel's advanced power management technologies, such as Intel Turbo Boost Technology and Enhanced SpeedStep Technology, which dynamically adjust power consumption based on workload demands. This not only reduces energy costs but also minimizes environmental impact by lowering carbon emissions.

Power Supply

The HPE Proliant DL380 Server 875762-S01 is equipped with a reliable power supply unit delivering 2X500W of power. In this section, we will delve into the benefits and importance of this feature for users.

Redundancy and Reliability

The server's dual 500W power supply units offer redundancy, ensuring uninterrupted operation even in the event of a power supply failure. This redundancy is crucial for businesses that cannot afford downtime due to power disruptions. With two power supplies working in parallel, if one fails, the other automatically takes over without any interruption to the server's operation. This enhances the reliability and availability of critical applications and data.

Load Balancing

The dual power supplies also enable load balancing, distributing the power load evenly between them. This prevents any single power supply from being overloaded, reducing the risk of overheating or premature failure. By evenly distributing the workload, the power supplies operate more efficiently and ensure stable power delivery to all components of the server.

Easy Maintenance and Upgrades

Having two separate power supplies allows for easier maintenance and upgrades. In case one of the power supplies needs to be replaced or upgraded, the server can continue to operate with the remaining power supply. This eliminates the need to shut down the entire system, minimizing downtime and disruptions to business operations. Easy maintenance and upgrades result in cost savings and improved overall system availability.

Flexibility and Scalability

The 2X500W power supply configuration provides flexibility and scalability for future expansion. As your business grows and additional components are added to the server, the dual power supplies can accommodate increased power requirements without overloading a single unit. This ensures that your server remains efficient and reliable even as your infrastructure expands.

Efficiency and Cost Savings

The power supplies in the HPE Proliant DL380 Server 875762-S01 are designed to operate with high energy efficiency. They comply with industry standards such as 80 PLUS Platinum certification, which guarantees a minimum efficiency of 90% at various load levels. This translates into lower energy consumption and reduced electricity costs over time. Additionally, efficient power supplies generate less heat, contributing to a cooler operating environment and further reducing cooling costs.

In conclusion, the Intel Xeon Gold 14-core 5120 processor and the 2X500W power supply are essential features of the HPE Proliant DL380 Server 875762-S01. The processor's enhanced performance, speed, optimized workloads, scalability, and energy efficiency make it an ideal choice for businesses with demanding computing needs. Similarly, the redundant and reliable power supply ensures uninterrupted operation, load balancing, easy maintenance, flexibility, scalability, energy efficiency, and cost savings. Together, these features provide a robust and efficient server solution that meets the needs of modern businesses.
