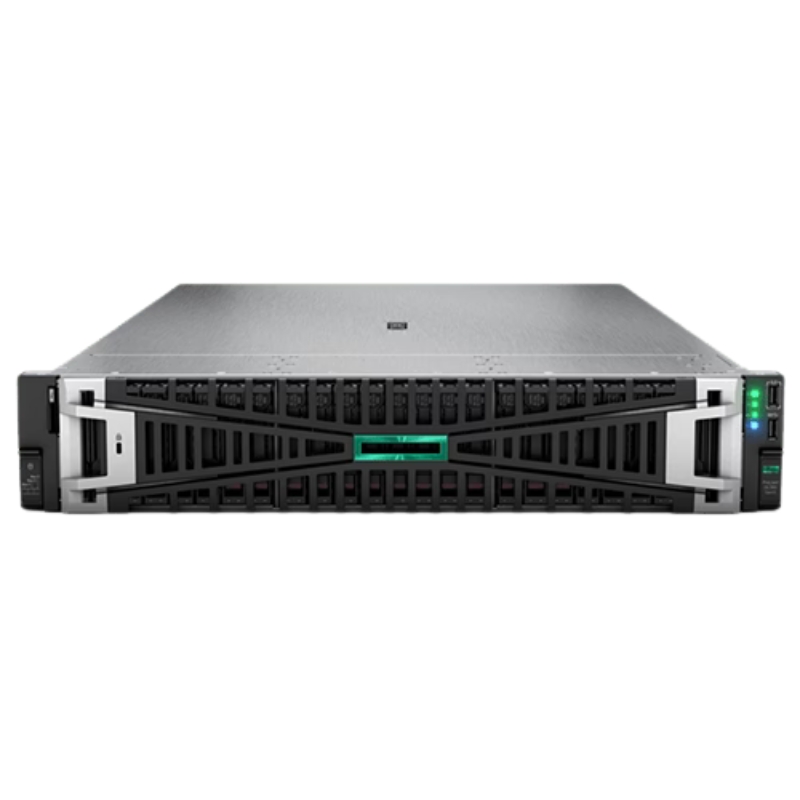

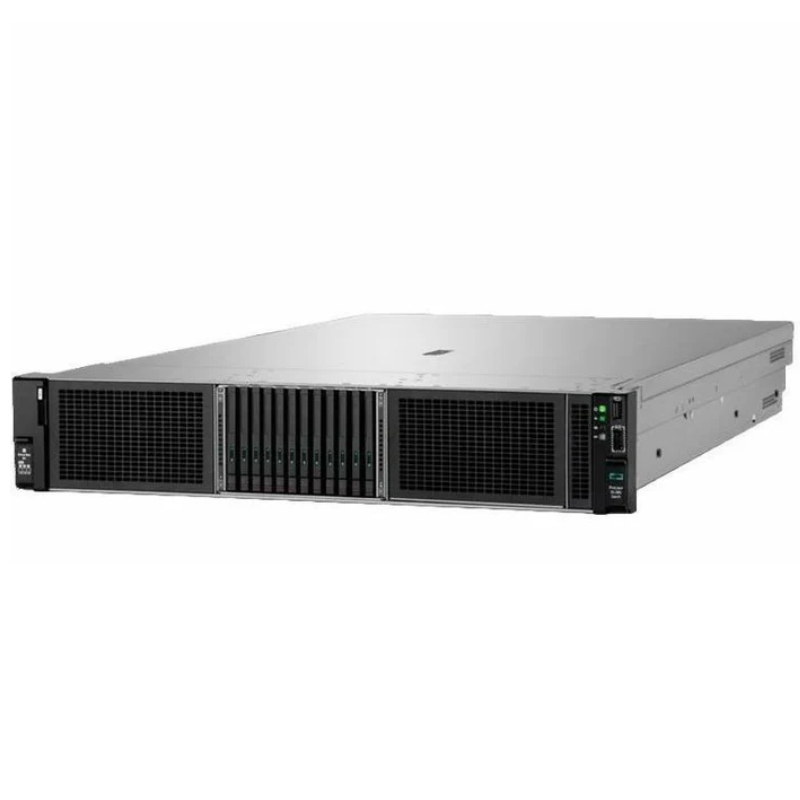

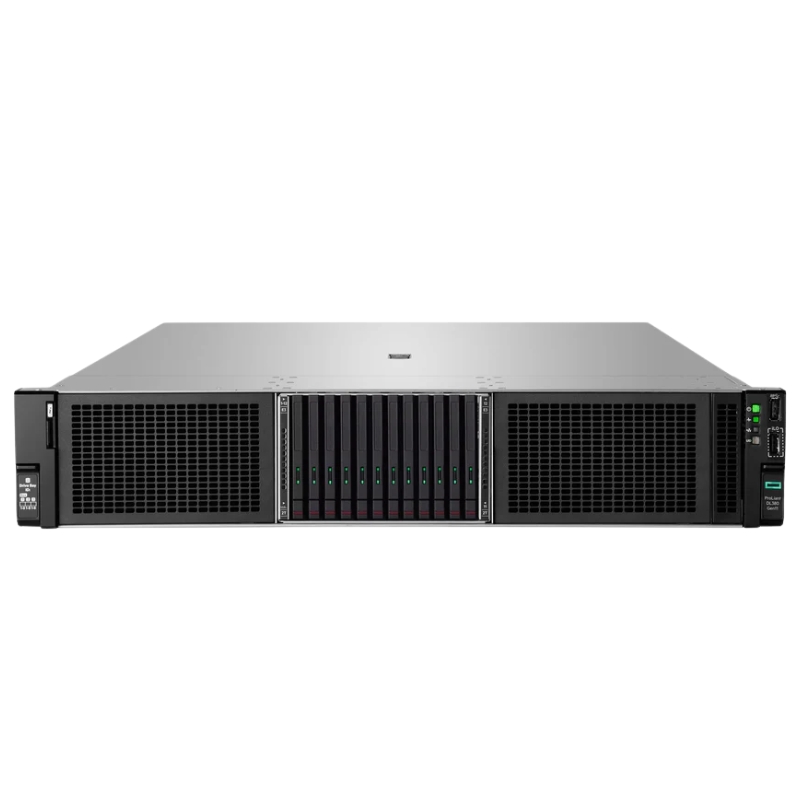

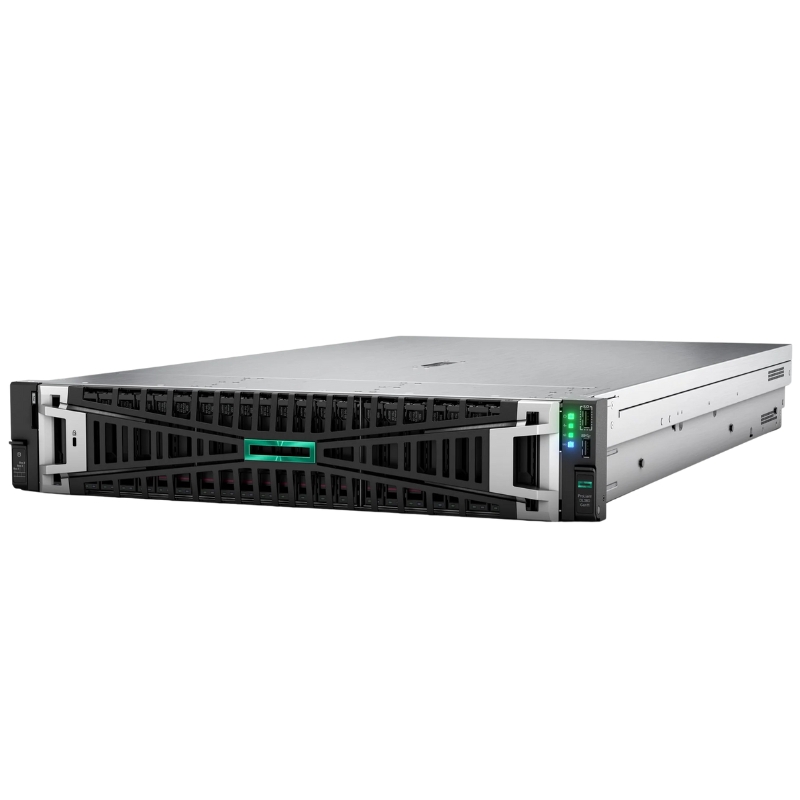

HPE DL380 Gen11 Server 1P P58417-B21 Xeon Gold 6430 64GB DDR5 RAM 2u Rack

Processor: Xeon Gold 6430

The HPE DL380 Server 1P Gen11 2u Rack is equipped with the powerful Xeon Gold 6430 processor, which offers exceptional performance and reliability for users. This processor is designed to handle heavy workloads and demanding applications, making it an ideal choice for businesses and organizations that require robust computing capabilities.

Product Overview of P58417-B21

Explore the Hewlett Packard Enterprise ProLiant DL380 Gen11 Server, designed to deliver exceptional performance and reliability. Ideal for data-intensive environments, this rack-mountable server boasts cutting-edge technology to meet diverse business needs.

General Details

• Product Type: Server
• Manufacturer Part Number: P58417-B21
• Manufacturer: Hewlett Packard Enterprise (HPE)
• Product Name: ProLiant DL380 Gen11 Server
• Product Series: DL380 Gen11
• Form Factor: Rack-mountable - 2U

Processor and Chipset

• CPU Model: Intel Xeon Gold 6430
• Base Clock Speed: 2.1 GHz
• Max Turbo Speed: 3.4 GHz
• Number of Cores: 32-core
• Installed CPUs: 1
• Max CPUs: 2
• Upgradeability: Upgradable
• Main Features: Intel Turbo Boost Technology
• Chipset Type: Intel C741

Cache Memory

• Installed L3 Cache Size: 60 MB
• Cache per Processor: 45 MB

Memory Specifications

• Installed Memory: 64 GB (2 x 32 GB)
• Maximum Memory: 8 TB
• Memory Technology: DDR5 SDRAM
• Effective Memory Speed: 4400 MHz
• Rated Memory Speed: 4800 MHz
• Form Factor: DIMM 288-pin
• Total Slots: 32
• Empty Slots: 30
• Memory Features: Registered, HPE SmartMemory
• Configuration: 2 x 32 GB

Storage and Drives

• Hard Drive: No HDD Installed
• Storage Controller: HPE Smart Array MR408i-O
• Controller Interface: SATA 6 Gb/s, SAS 12 Gb/s, PCIe
• RAID Levels Supported: RAID 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 4 GB

Optical and Monitor

• Optical Drive: None
• Monitor: None

Graphics and Networking

• Graphics Controller: 16 MB Video Memory
• Video Interfaces: VGA
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57416
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 6
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: OCP 3.0

Expansion and Connectivity

• External Bays: 1 Universal Media Bay (free)
• Hot-swap Bays: 8 x 2.5” SFF (free)
• PCIe Slots:
  • 1 x PCIe 5.0 x16 - Full-length, Full-height
  • 1 x PCIe 5.0 x16 - Full-length, Full-height (x8 Mode)
  • 1 x PCIe 5.0 x16 - Half-length, Full-height (x8 Mode)
• Interfaces:
  • 1 x USB 3.0 (Front, HPE iLO Service Port)
  • 4 x USB 3.0 (2 Rear, 2 Internal)
  • 1 x HPE iLO - RJ-45 (Rear)
  • 1 x VGA (Rear)
  • 2 x LAN (Gigabit Ethernet) - RJ-45

Power and Cooling

• Power Supply Type: Hot-plug
• Power Redundancy: Optional (1+1 with optional power supply)
• Installed Power Supply: 1
• Maximum Power Supplies: 2
• Voltage Required: AC 100/240 V
• Power Output: 1000 Watt
• 80 Plus Certification: 80 Plus Titanium

Operating System and Software

• Operating System Provided: None
• OS Certification: Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi, Oracle Linux, Canonical Ubuntu, Citrix
• Software Included: HPE Server UEFI

Sustainability Features

• Energy Star Certified: Yes
• Energy Star Version: 3.0

Dimensions and Weight

• Width: 17.6 in
• Depth: 28.6 in
• Height: 3.4 in
• Weight: 35.27 lbs

Included Accessories

• Cable Management Arm
• HPE Easy Install Rails
• 6 Standard Fans

Compliance and Standards

• AES
• FIPS 140-2
• TLS V1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.3
• ERP Lot 9

Superior Performance

The Xeon Gold 6430 processor delivers exceptional performance, thanks to its 32 cores and 64 threads. With a base clock speed of 2.5GHz and a maximum turbo frequency of 3.5GHz, it can handle complex tasks with ease. Whether you are running multiple virtual machines, conducting data analysis, or performing intensive calculations, this processor ensures smooth and efficient operations.

Increased Productivity

One of the key benefits of the Xeon Gold 6430 processor is its ability to enhance productivity. With its high core count and thread count, it can handle multiple tasks simultaneously, allowing users to multitask without experiencing any slowdowns. This is particularly useful for businesses that rely on resource-intensive applications or run multiple applications concurrently.

Improved Scalability

Scalability is crucial for businesses as their computing needs grow over time. The Xeon Gold 6430 processor offers excellent scalability, allowing users to easily upgrade and expand their server capabilities as their requirements evolve. This means that businesses can invest in this server with confidence, knowing that they can scale up their operations without the need for a complete infrastructure overhaul.

Enhanced Security

Security is a top priority for any business or organization. The Xeon Gold 6430 processor incorporates advanced security features to protect sensitive data and mitigate potential threats. It supports Intel® Software Guard Extensions (Intel® SGX), which provides hardware-based security for application code and data. This ensures that critical information is safeguarded against unauthorized access, bolstering overall system security.

Energy Efficiency

In today's environmentally conscious world, energy efficiency is a crucial consideration. The Xeon Gold 6430 processor is designed with power-saving features that help reduce energy consumption without compromising performance. By optimizing power usage, businesses can minimize their carbon footprint and lower their operating costs.

Importance of Xeon Gold 6430 for Users

The Xeon Gold 6430 processor is a game-changer for users who require exceptional performance, scalability, and security. Its powerful capabilities enable businesses to handle complex workloads efficiently, improving productivity and reducing downtime. With its advanced security features, it provides peace of mind by protecting critical data from potential threats. Moreover, its energy-efficient design helps businesses save on operational costs while contributing to a greener environment.

Ram: 64GB DDR5

The HPE DL380 Server 1P Gen11 2u Rack comes equipped with an impressive 64GB DDR5 RAM, providing users with ample memory capacity to handle demanding tasks and applications. This high-performance RAM offers numerous benefits and is essential for businesses that require fast and efficient data processing.

Improved Performance

The 64GB DDR5 RAM significantly enhances the server's overall performance. With its increased bandwidth and faster data transfer rates compared to previous generations of RAM, it ensures smoother and more responsive operations. This is particularly beneficial for businesses that rely on data-intensive applications such as virtualization, database management, and content delivery, as it reduces latency and improves system responsiveness.

Enhanced Multitasking

Multitasking is a common requirement for many businesses. The 64GB DDR5 RAM enables users to run multiple applications concurrently without experiencing performance bottlenecks. This means that employees can seamlessly switch between different programs and tasks, improving productivity and efficiency in the workplace.

Scalability and Future-Proofing

As businesses grow, their computing needs evolve, requiring additional memory capacity. The 64GB DDR5 RAM provides excellent scalability, allowing users to expand their server's memory as their requirements increase. This future-proofs the server, ensuring that it can adapt to changing demands without the need for a complete hardware upgrade.

Reliability and Data Integrity

Data integrity is paramount for businesses, especially when handling sensitive information or critical operations. The 64GB DDR5 RAM incorporates error-correcting code (ECC) technology, which detects and corrects data errors in real-time. This ensures that data remains accurate and reliable, minimizing the risk of data corruption or system crashes.

Efficient Virtualization

Virtualization has become increasingly prevalent in modern IT environments. The 64GB DDR5 RAM allows businesses to create and manage multiple virtual machines effectively. With ample memory capacity, users can allocate sufficient resources to each virtual machine, ensuring optimal performance and preventing resource contention issues.

Importance of 64GB DDR5 for Users

The 64GB DDR5 RAM is a critical component for users who require high-performance computing and efficient multitasking capabilities. Its improved performance and faster data transfer rates enable businesses to handle data-intensive applications with ease, resulting in enhanced productivity. The ability to scale up memory capacity ensures that businesses can accommodate expanding requirements without significant hardware investments. Additionally, the reliability and data integrity provided by ECC technology offer peace of mind, safeguarding critical information from potential errors. Lastly, efficient virtualization allows businesses to maximize their server's potential by running multiple virtual machines simultaneously.
