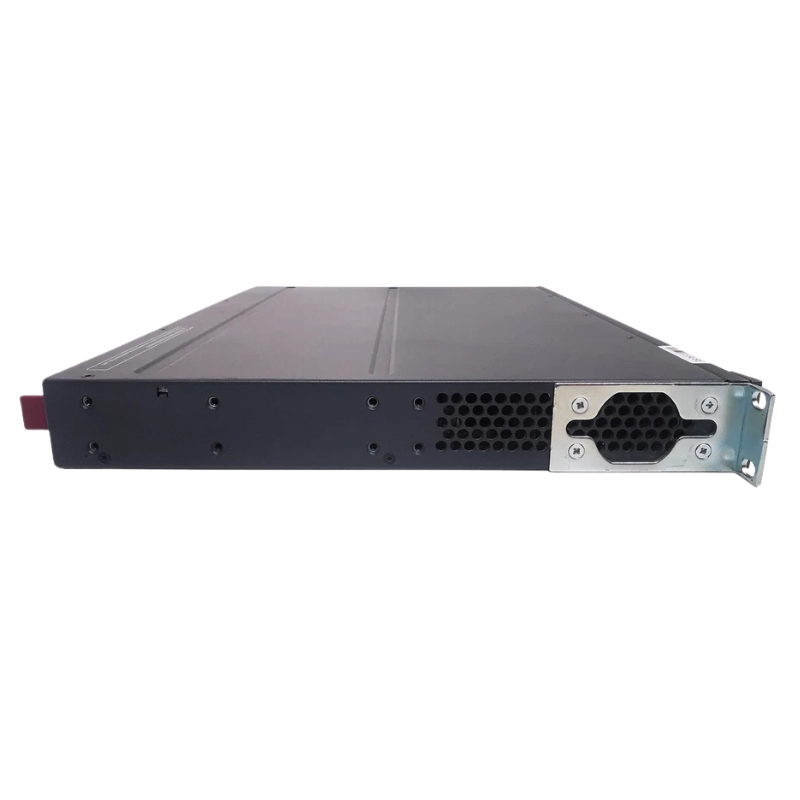

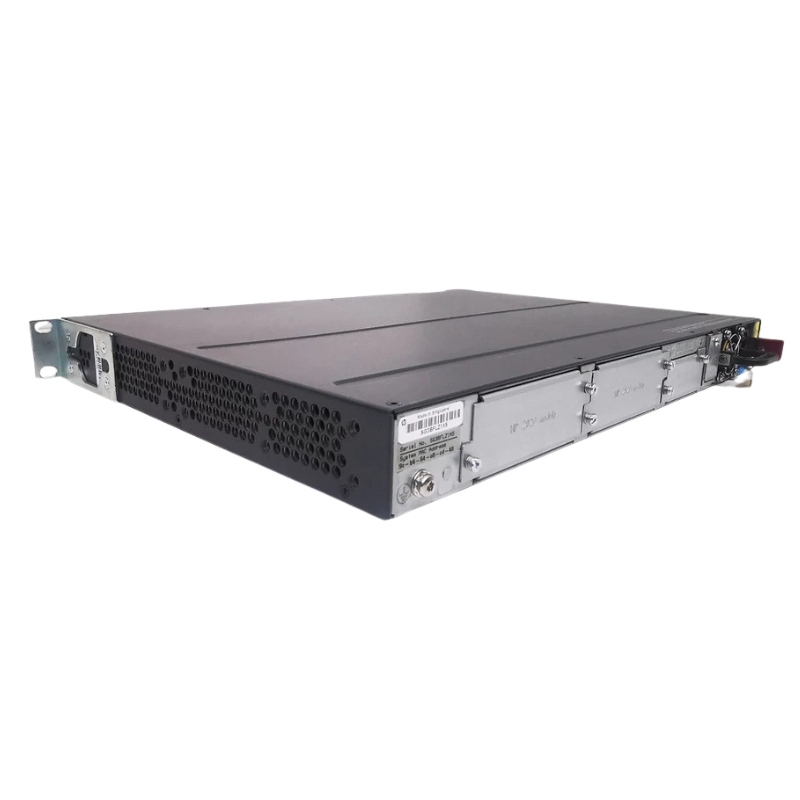

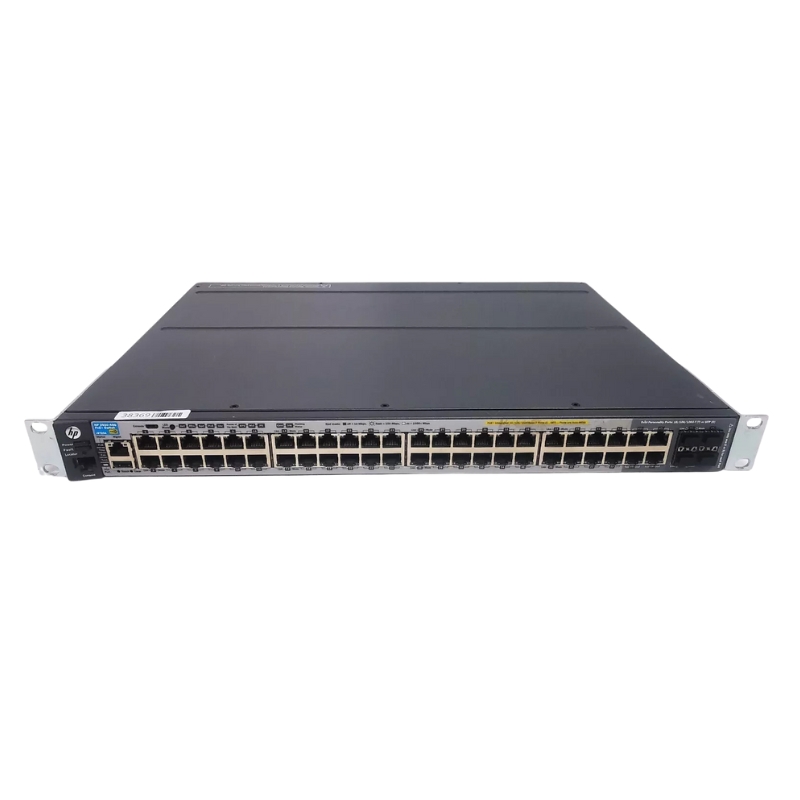

HPE J9574A E3800-48G 4SFP+ 48-Ports POE+ Manageable Switch

Ports

The HPE E3800-48G Manageable Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high-density network switch. With this impressive number of ports, users can connect multiple devices to the switch, allowing for seamless communication and data transfer.

Product Overview

Manufacturer and Model

Brand: Hewlett Packard Enterprise (HPE)

Model: J9574A

Product Classification

Type: Ethernet Switch

Category: Networking Device

Technical Specifications

Port Configuration

• Device Type: Managed Switch with 48 Ports
• Form Factor: Rack-mountable, 1U Height
• Port Count: 48 x 10/100/1000 Ethernet Ports
• Additional Ports: 4 x 10 Gigabit Ethernet Ports, 1 x Gigabit Ethernet SFP+
• Power over Ethernet (PoE): Supported

Performance Metrics

• Throughput: 130.9 Million Packets Per Second (MPPS)
• Switching Capacity: 176 Gigabits Per Second (Gbps)
• Routing Table Entries: 10,000
• MAC Address Table Size: 65,500 Entries
• Jumbo Frame Support: Available

Routing and Management

• Routing Protocols: OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, Static IP Routing, PIM-DM, IGMPv3, OSPFv3, MLDv2, MLD
• Remote Management: SNMP (v1, v2c, v3), RMON (v1, v2, v3, v9), Telnet, HTTP, HTTPS, CLI

Advanced Features

Key Capabilities

• Flow Control
• Full Duplex Operation
• DHCP and BootP Support
• ARP and VLAN Support
• Auto-uplink (Auto MDI/MDI-X)
• IGMP Snooping
• DiffServ and IPv6 Support
• sFlow and Virtual Route Redundancy Protocol (VRRP)
• Multiple Spanning Tree Protocol (MSTP)
• Access Control List (ACL) Support
• Quality of Service (QoS)
• MLD Snooping
• PoE+ and STP Root Guard
• Uni-directional Link Detection (UDLD)
• Fan Tray for Cooling

Compliance and Standards

• IEEE 802.3 Series
• IEEE 802.3u, 802.1D, 802.1Q
• IEEE 802.3ab, 802.3 4901p, 802.3x
• IEEE 802.3ad (LACP), 802.1w, 802.1x, 802.1s
• IEEE 802.1ad, 802.1v, 802.3at

Power Specifications

Power Supply: AC 120/230 V (50/60 Hz)

Increased Connectivity

One of the key benefits of the 48 ports on the HPE E3800-48G Manageable Switch is the increased connectivity it offers. Whether you have a small office or a large enterprise, having 48 ports ensures that you have enough capacity to connect all your devices without the need for additional switches or complicated network setups.

Scalability

The HPE E3800-48G Manageable Switch's 48 ports also provide scalability for your network infrastructure. As your business grows and more devices need to be connected, having additional ports readily available eliminates the need to invest in new switches or perform complex network reconfigurations. This scalability saves both time and money while ensuring efficient connectivity.

Flexibility

Having 48 ports on the HPE E3800-48G Manageable Switch gives users the flexibility to connect a wide range of devices. Whether it's computers, printers, IP phones, or any other Ethernet-enabled device, this switch can handle them all. The flexibility offered by the numerous ports allows businesses to adapt their network infrastructure to meet their specific needs without limitations.

Improved Data Transfer Speed

With 48 ports, the HPE E3800-48G Manageable Switch enables high-speed data transfer between connected devices. This is particularly important for businesses that rely heavily on data-intensive applications or require fast communication between different departments or locations. The switch's ability to handle large data volumes ensures smooth operations and enhances overall productivity.

Reduced Network Congestion

By providing 48 ports, the HPE E3800-48G Manageable Switch helps distribute network traffic evenly across connected devices. This reduces network congestion and prevents bottlenecks that can slow down data transfer and affect overall network performance. Users can enjoy a stable and efficient network, even during peak usage periods.

Enhanced Network Management

The HPE E3800-48G Manageable Switch's 48 ports also contribute to enhanced network management capabilities. With a large number of ports, administrators can easily organize and segment devices based on their needs or departmental requirements. This allows for efficient monitoring, troubleshooting, and management of the network infrastructure, ensuring optimal performance and security.

POE

The HPE E3800-48G Manageable Switch features Power over Ethernet (PoE) capability on one of its ports. This PoE functionality provides numerous benefits for users, especially in scenarios where power outlets may be limited or inaccessible.

Simplified Installation

With PoE capability on the HPE E3800-48G Manageable Switch, users can eliminate the need for separate power cables for their PoE-enabled devices. This simplifies installation and reduces clutter by powering devices such as IP phones, wireless access points, and security cameras directly through the Ethernet cable. It also eliminates the need for additional power outlets near these devices, making installations more flexible and cost-effective.

Cost Savings

By utilizing the PoE feature of the HPE E3800-48G Manageable Switch, businesses can save on infrastructure costs. Instead of installing dedicated electrical wiring for each device, they can leverage existing Ethernet cables to provide both data connectivity and power. This not only reduces the overall cost of deployment but also minimizes ongoing maintenance expenses associated with managing multiple power sources.

Increased Mobility

The PoE capability of the HPE E3800-48G Manageable Switch enables greater mobility for devices. With power being delivered over the Ethernet cable, PoE-enabled devices can be installed in locations where access to power outlets is limited or inconvenient. This flexibility allows businesses to deploy devices in optimal locations without compromising on their functionality or performance.

Centralized Power Management

The HPE E3800-48G Manageable Switch's PoE feature also allows for centralized power management. Administrators can control and monitor the power usage of individual PoE devices through the switch's management interface. This provides enhanced visibility and control over power consumption, allowing businesses to optimize energy usage and reduce their environmental footprint.

Improved Reliability

By utilizing the PoE capability of the HPE E3800-48G Manageable Switch, businesses can improve the reliability of their network infrastructure. With power being delivered through Ethernet cables, users no longer have to worry about power outages affecting their critical devices. The switch's built-in power redundancy further enhances reliability by ensuring uninterrupted power supply to connected devices.

SFP+

The HPE E3800-48G Manageable Switch is equipped with four SFP+ (Small Form-Factor Pluggable Plus) ports. These ports offer numerous benefits and play a crucial role in expanding the capabilities and flexibility of the switch.

High-Speed Connectivity

The four SFP+ ports on the HPE E3800-48G Manageable Switch provide high-speed connectivity options for users. SFP+ modules support data transfer rates of up to 10 Gigabits per second (Gbps), allowing for rapid data exchange and seamless communication between devices. This high-speed connectivity is particularly beneficial for businesses that deal with large data volumes or require quick access to shared resources.

Flexibility and Interoperability

The SFP+ ports on the HPE E3800-48G Manageable Switch offer flexibility and interoperability, as they can support a variety of transceiver modules. Users can choose the appropriate SFP+ transceiver based on their specific needs, such as optical or copper modules, to connect to different types of devices or extend the network over longer distances. This flexibility allows businesses to adapt their network infrastructure to meet evolving requirements without replacing the entire switch.

Scalability

The presence of four SFP+ ports on the HPE E3800-48G Manageable Switch enhances the scalability of the network infrastructure. Users can easily expand their network by connecting additional switches or devices using the SFP+ ports. This scalability ensures that businesses can accommodate future growth and increasing demands for high-speed connectivity without disrupting their existing network setup.

Improved Performance and Uptime

The use of SFP+ ports on the HPE E3800-48G Manageable Switch improves overall network performance and uptime. The high-speed capabilities of SFP+ modules enable faster data transfer, reducing latency and ensuring smooth operations for bandwidth-intensive applications. Additionally, the ability to utilize fiber-optic connections through SFP+ ports enhances reliability by minimizing electromagnetic interference and providing long-distance communication capabilities.

Aggregation and Link Aggregation

The four SFP+ ports on the HPE E3800-48G Manageable Switch can be used for aggregation or link aggregation purposes. Aggregation allows multiple connections to be combined into a single logical connection, increasing bandwidth and providing redundancy in case of link failure. This feature is particularly useful in high-demand environments where uninterrupted connectivity is critical.

In conclusion, the HPE E3800-48G Manageable Switch's 48 ports, POE capability, and SFP+ ports offer users significant benefits in terms of connectivity, scalability, flexibility, and performance. Whether it's expanding network infrastructure, simplifying installations, or ensuring reliable and high-speed connectivity, this switch is designed to meet the diverse needs of modern businesses.
