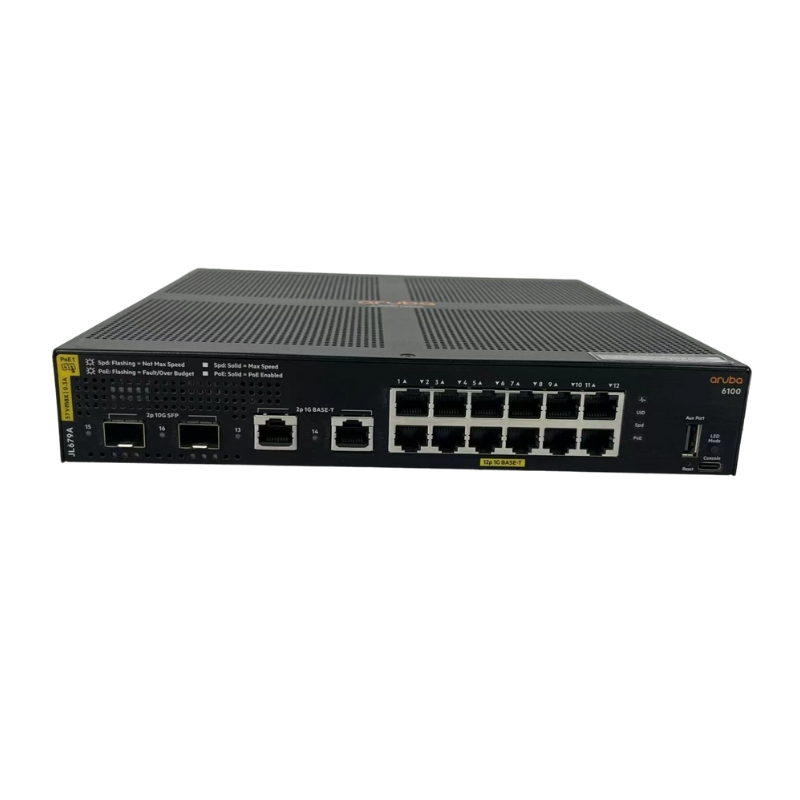

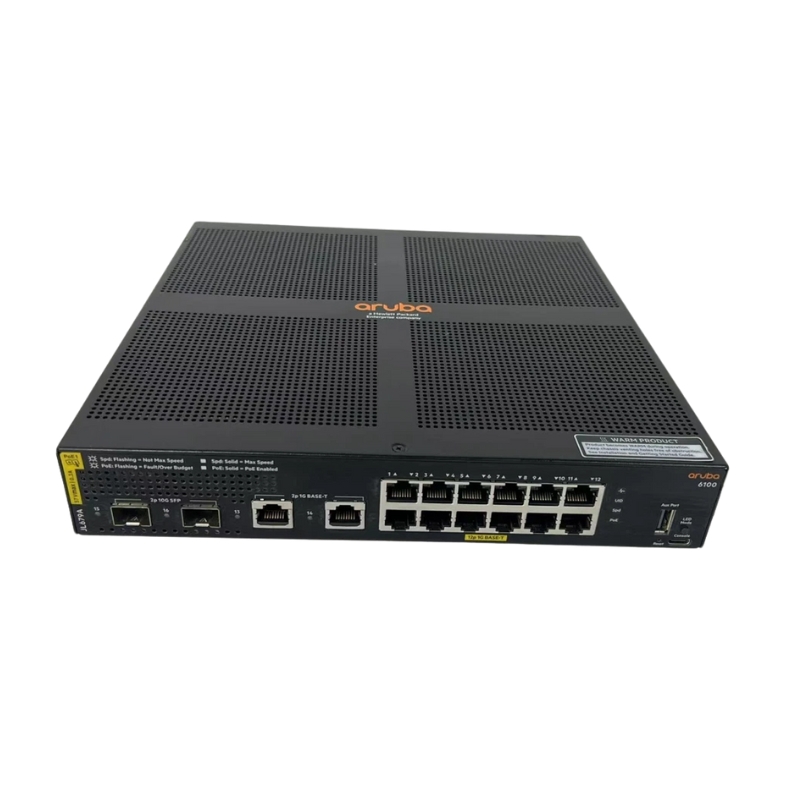

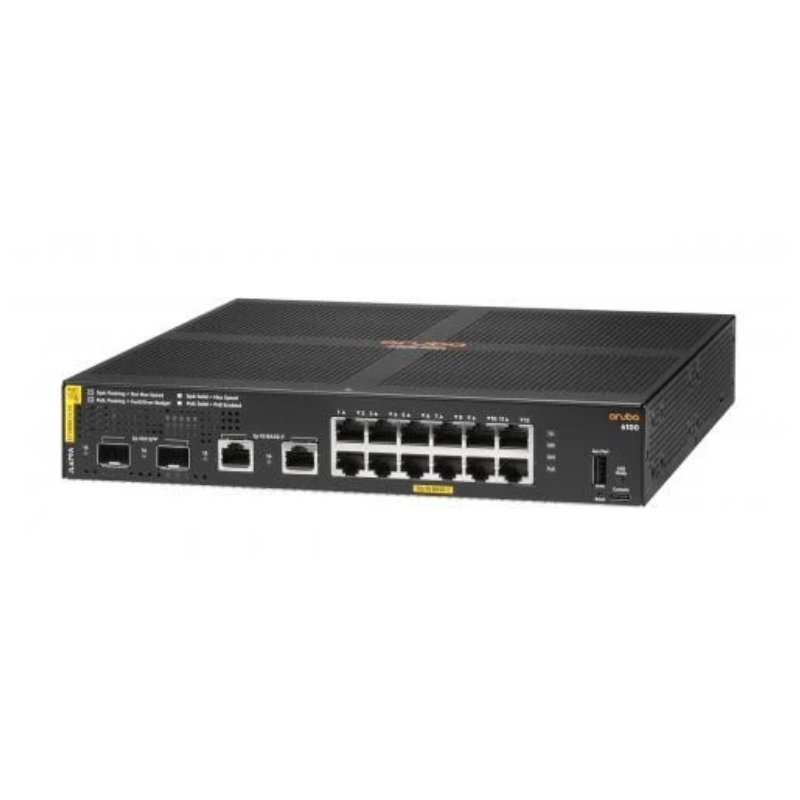

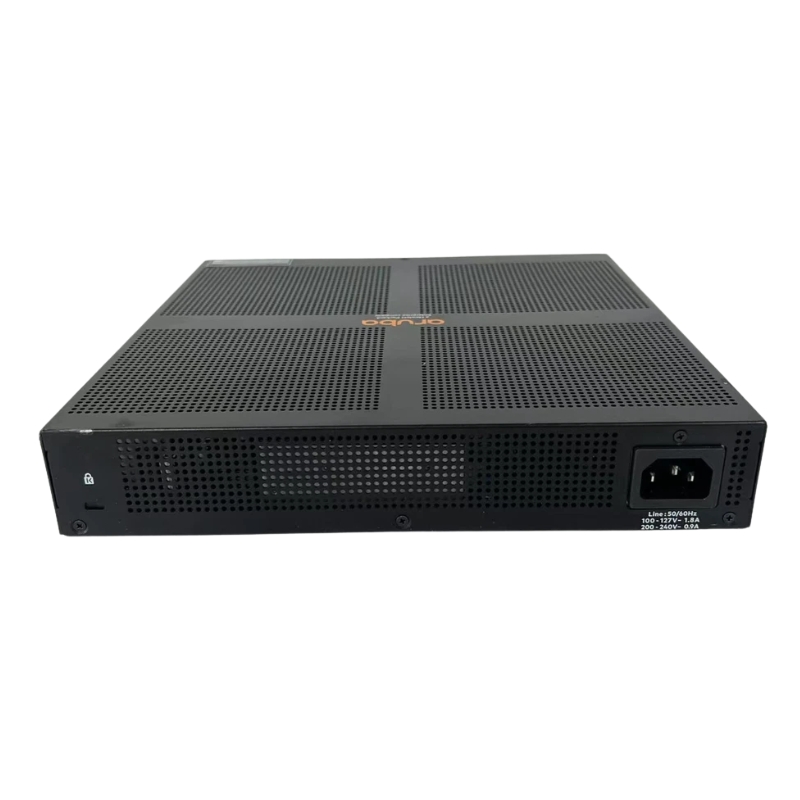

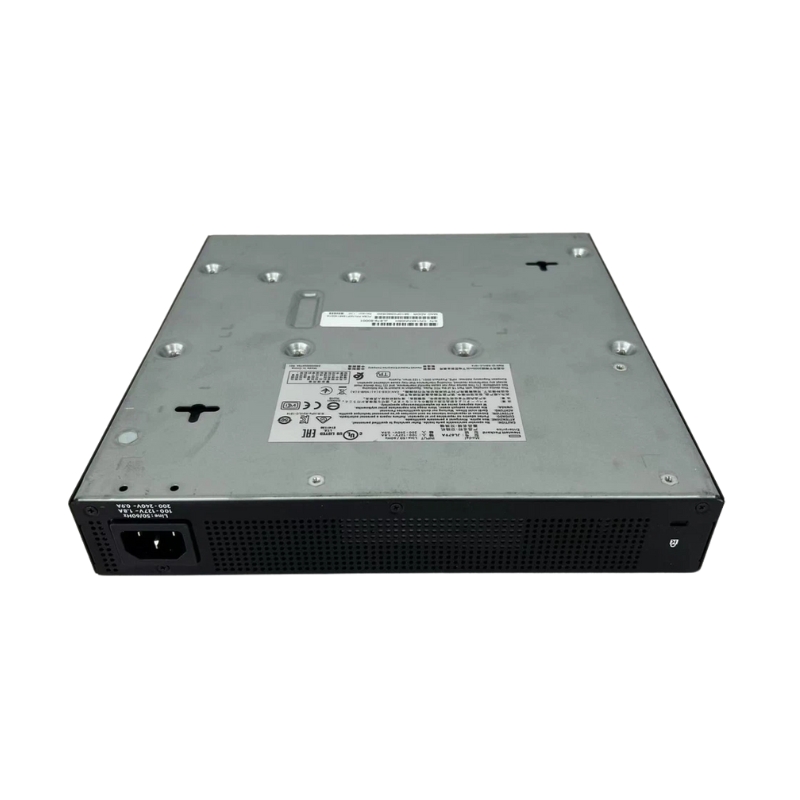

HPE JL679-61001 Aruba 6100 12-Port Managed Switch

JL679-61001
Hover on image to enlarge

Brief Overview of JL679-61001

Aruba 12 Ports Managed Switch 6100 HPE JL679-61001 12G Class4 PoE 2G 2sfp+ 139w. Factory-Sealed New in Original Box (FSB)

with 3-Year Replacement Warranty
QR Code of HPE JL679-61001 Aruba 6100 12-Port Managed Switch
$1,044.90
$638.00
You save: $406.90 (39%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL679-61001Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

HPE JL679-61001 Aruba 6100 Switch Overview

Specifications

  • Brand Name: HPE
  • Part Number: JL679-61001
  • Device Type: Managed 16-Port Switch
  • Form Factor: Rack-mountable (1U)
  • Enclosure: Compact and efficient design
  • Power Over Ethernet: Poe+ support with a total budget of 139W

Port Configuration

  • 12 x 10/100/1000 Mbps Ethernet Ports (PoE+)
  • 2 x 1/10 Gbps SFP+ Ports
  • 2 x Gigabit Ethernet Ports
Performance and Switching Capacity
  • Switching Capacity: 68 Gbps
  • Throughput: 45.1 million packets per second (Mpps)
  • Latency: 2.3 microseconds (1 Gbps), 2.6 microseconds (10 Gbps)

Advanced Routing and Security Features

  • Routing Protocols: Supports IGMPv2 and IGMPv3
  • Security: SSL Encryption, SSH v2, Radius, TACACS+
  • MAC Address Table: 8192 entries
  • IPv4 & IPv6 Routing: 512 unicast routes per protocol

Network Management & Monitoring

  • Flow Control: Automatic control of traffic flow
  • Spanning Tree Protocol: Supports Rapid STP (RSTP) and MSTP
  • Management Features: SNMP, MIB, DHCP Client, SNTP
  • Network Access Control: Supports NAC and LLDP
Environmental & Compliance Standards
  • Energy-Efficiency: Incorporates Energy Efficient Ethernet
  • Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.1d
  • IPv6 Support: Full IPv6 addressing and configuration

System Hardware Details

  • Processor: ARM A9, 1.016 GHz
  • Memory: 4 GB DDR3 SDRAM
  • Flash Storage: 16 GB

Connectivity and Expansion Options

  • 12 x 10/100/1000 Base-T RJ-45 Ports
  • 2 x 1/10 Gbps SFP+ Ports
  • 1 x USB-C Console Port
  • 1 x USB Type A Port
  • 2 x Gigabit LAN Ports
Power Specifications
  • Power Supply: Internal, 165W (0.9 A)
  • Voltage Requirements: 230V AC (50/60Hz)
  • Operational Power Consumption: 16W

Ports

The HPE JL679-61001 Managed Switch is equipped with 12 ports, making it an ideal choice for small to medium-sized businesses or home offices. These ports offer users the flexibility to connect multiple devices simultaneously, such as computers, printers, servers, and more.

Increased Connectivity

With 12 ports at your disposal, you can easily expand your network infrastructure and connect various devices without the need for additional switches or hubs. This helps in reducing clutter and simplifying cable management. Whether you need to connect multiple workstations or create separate VLANs for different departments, the HPE JL679-61001 Managed Switch provides the necessary connectivity.

Enhanced Performance

Having 12 ports means that you can distribute network traffic evenly across your devices, ensuring optimal performance for all connected devices. The switch intelligently manages data flow and prevents bottlenecks, resulting in a smooth and seamless network experience. This is particularly important for businesses that rely heavily on network-dependent applications or require high-speed data transfers.

Improved Productivity

The abundance of ports on the HPE JL679-61001 Managed Switch allows for efficient multitasking. Users can connect multiple devices simultaneously and seamlessly switch between them without any disruptions. This is especially beneficial in environments where employees require access to various resources simultaneously, such as shared printers or file servers.

Easy Expansion

As your business grows, so does your network requirements. The 12 ports on this managed switch provide room for future expansion. You can effortlessly add new devices or accommodate additional users without worrying about running out of available ports. This scalability ensures that your network infrastructure can keep up with your evolving needs.

Versatile Deployment Options

The HPE JL679-61001 Managed Switch's 12 ports offer versatility in deployment options. Whether you prefer rack mountable or desktop configurations, this switch can adapt to your preferred setup. This flexibility allows you to optimize your network layout and ensure easy accessibility to all connected devices.

Efficient Network Segmentation

With 12 ports, you can create multiple VLANs to segment your network effectively. This segmentation provides an added layer of security by isolating different departments or user groups. It prevents unauthorized access and enhances network performance by limiting broadcast traffic.

Cost Savings

The HPE JL679-61001 Managed Switch's 12 ports eliminate the need for additional networking equipment, saving you money on purchasing extra switches or hubs. Moreover, it reduces power consumption compared to running multiple smaller switches, resulting in long-term cost savings.

Power Over Ethernet

One of the standout features of the HPE JL679-61001 Managed Switch is its Class4 PoE capabilities. This feature enables the switch to provide power to compatible devices over Ethernet cables, eliminating the need for separate power adapters and simplifying installation.

Convenience and Flexibility

With Class4 PoE, you can connect devices such as IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices directly to the switch. This eliminates the hassle of finding nearby power outlets or running additional power cables. The switch supplies both data and power, making it a convenient and flexible solution for various deployment scenarios.

Reduced Installation Costs

By leveraging Class4 PoE, the HPE JL679-61001 Managed Switch helps save on installation costs. You can deploy PoE-enabled devices in locations where power outlets are not easily accessible or cost-prohibitive to install. This is particularly beneficial in environments with limited infrastructure or where retrofitting power connections is impractical.

Centralized Power Management

The switch's Class4 PoE feature allows for centralized power management. You can monitor and control the power allocation to each connected device, ensuring efficient power usage. This capability helps in optimizing power distribution and preventing power overloads, enhancing the overall stability and reliability of your network.

Improved Network Reliability

By eliminating the need for separate power adapters, Class4 PoE reduces the number of potential points of failure in your network infrastructure. This improves overall network reliability and minimizes downtime. In critical applications where uninterrupted operation is essential, such as security surveillance or VoIP communication, the HPE JL679-61001 Managed Switch's Class4 PoE ensures a reliable and robust network.

Scalability and Future-proofing

Class4 PoE offers higher power delivery compared to lower classes, making it suitable for supporting a wide range of devices, including those with higher power requirements. This future-proofs your network infrastructure, allowing you to connect and power newer devices without the need for additional equipment upgrades.

Energy Efficiency

Class4 PoE incorporates energy-efficient technologies, such as intelligent power management and low-power modes when devices are not in use. This results in reduced energy consumption and lower operating costs. The HPE JL679-61001 Managed Switch's Class4 PoE feature aligns with green initiatives, making it an environmentally friendly choice.

SFP Ports

The HPE JL679-61001 Managed Switch is equipped with 2 SFP (Small Form-factor Pluggable) ports. These ports provide users with enhanced connectivity options and flexibility when it comes to extending their network beyond the limitations of traditional Ethernet cables.

Extended Reach

SFP ports allow the use of fiber optic cables, which have significantly longer reach compared to copper cables. This enables you to connect devices that are located far away from the switch, such as remote offices or buildings. The extended reach of fiber optics ensures reliable and high-speed connectivity even over long distances.

Increased Bandwidth

Fiber optic cables used with SFP ports offer higher bandwidth capabilities compared to traditional Ethernet cables. This allows for faster data transfer rates and improved network performance. Users can benefit from increased productivity when transferring large files or streaming high-definition media across the network.

Flexibility in Network Topology

SFP ports provide flexibility in network topology by enabling various connectivity options. You can choose between different types of SFP modules, including multi-mode or single-mode fiber optics, depending on your specific requirements. This adaptability allows for easy integration into existing network infrastructures or the creation of new ones.

Resilient Network Connections

Fiber optic cables used with SFP ports offer better resistance to electromagnetic interference (EMI) and radio frequency interference (RFI) compared to copper cables. This results in more reliable and stable network connections, even in environments with high EMI/RFI, such as industrial or outdoor settings.

Scalability and Future-proofing

The inclusion of 2 SFP ports on the HPE JL679-61001 Managed Switch ensures scalability and future-proofing for your network. You can easily expand your network by connecting additional switches or devices using fiber optics. This scalability allows for seamless growth as your business requirements evolve.

Secure Data Transmission

SFP ports provide a secure means of transmitting data over fiber optic cables. Fiber optics are immune to eavesdropping and unauthorized access, making them an ideal choice for transmitting sensitive information. By utilizing SFP ports, you can ensure the confidentiality and integrity of your data transmissions.

Power Consumption

The HPE JL679-61001 Managed Switch has a power consumption rating of 139w. This power efficiency ensures cost savings and reduces environmental impact without compromising performance.

Energy Efficiency

The switch's power consumption rating of 139w reflects its energy-efficient design. It incorporates various technologies and features that minimize power usage, resulting in reduced operating costs. By consuming less power, the switch also helps in reducing the overall carbon footprint of your network infrastructure.

Cost Savings

The HPE JL679-61001 Managed Switch's power consumption rating of 139w translates into cost savings over time. Lower power consumption means reduced electricity bills, making it a financially beneficial choice for businesses aiming to optimize their operational expenses.

Reliability and Longevity

By operating at a low power consumption level, the switch generates less heat. This improves the overall reliability and longevity of the device. Excessive heat can cause performance degradation and shorten the lifespan of electronic components. The HPE JL679-61001 Managed Switch's power efficiency ensures stable operation and extended equipment life.

Environmentally Friendly

Reducing power consumption is an essential step towards creating a sustainable and environmentally friendly network infrastructure. The HPE JL679-61001 Managed Switch's power efficiency minimizes energy wastage and aligns with green initiatives. By choosing a switch with low power consumption, you contribute to a greener future while maintaining a high-performance network.

Compliance with Energy Standards

The HPE JL679-61001 Managed Switch's power consumption rating of 139w aligns with industry energy standards and regulations. It meets requirements set by organizations such as Energy Star, ensuring that you are using an energy-efficient and compliant device. Compliance with these standards also demonstrates your commitment to environmental responsibility.

In conclusion, the HPE JL679-61001 Managed Switch's standout features, including its 12 ports, Power Over Ethernet capabilities, 2 SFP ports, and power consumption rating of 139w, offer users numerous benefits and contribute to an efficient, reliable, and scalable network infrastructure. Whether you need to connect multiple devices, power PoE-enabled equipment, extend your network reach, or reduce power consumption, this managed switch delivers on all fronts. With its advanced features and user-friendly design, the HPE JL679-61001 Managed Switch is a valuable addition to any network environment.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
