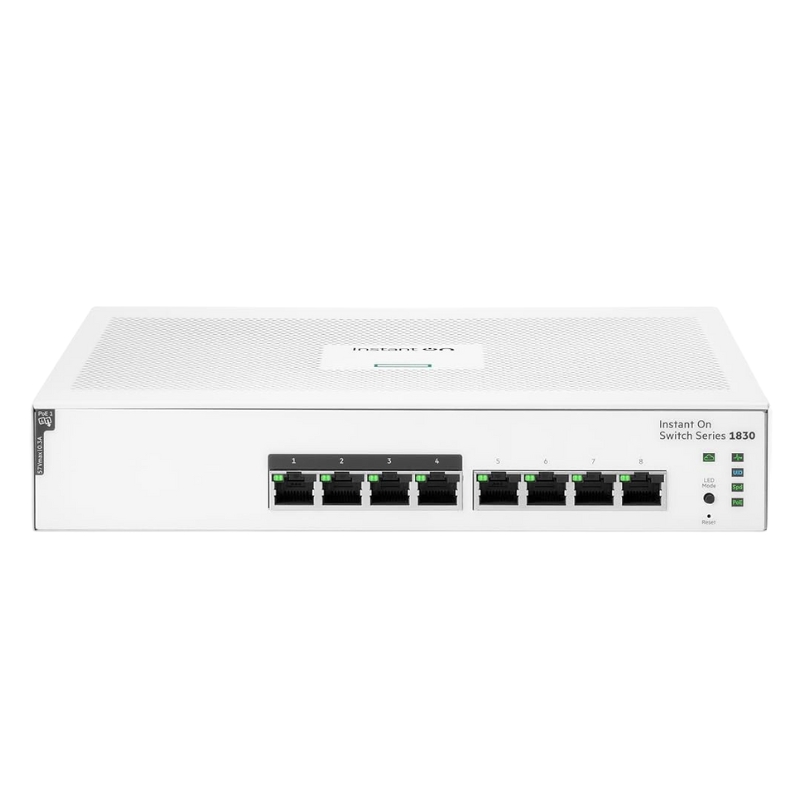

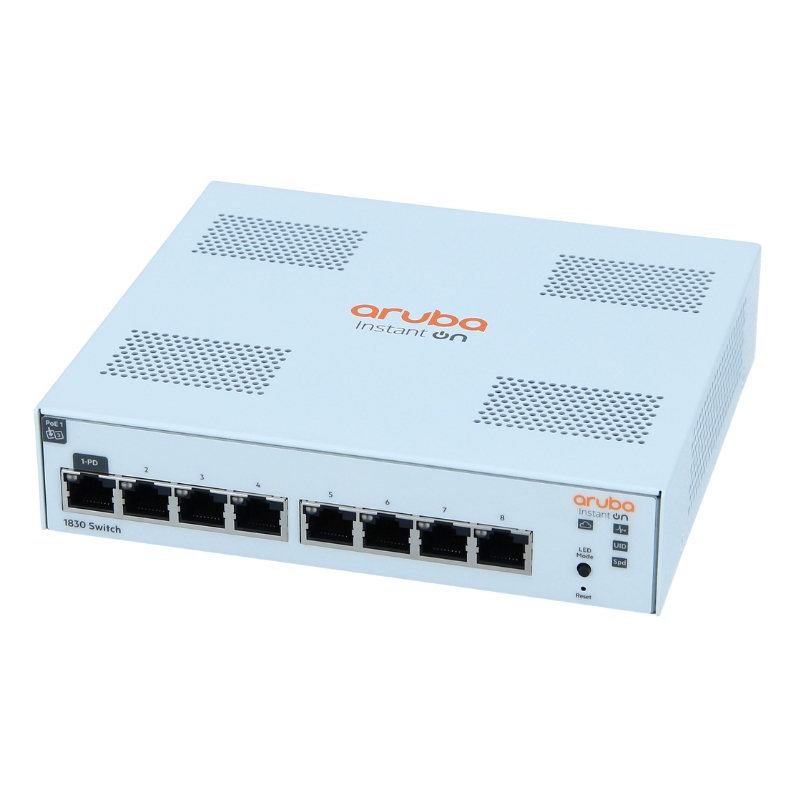

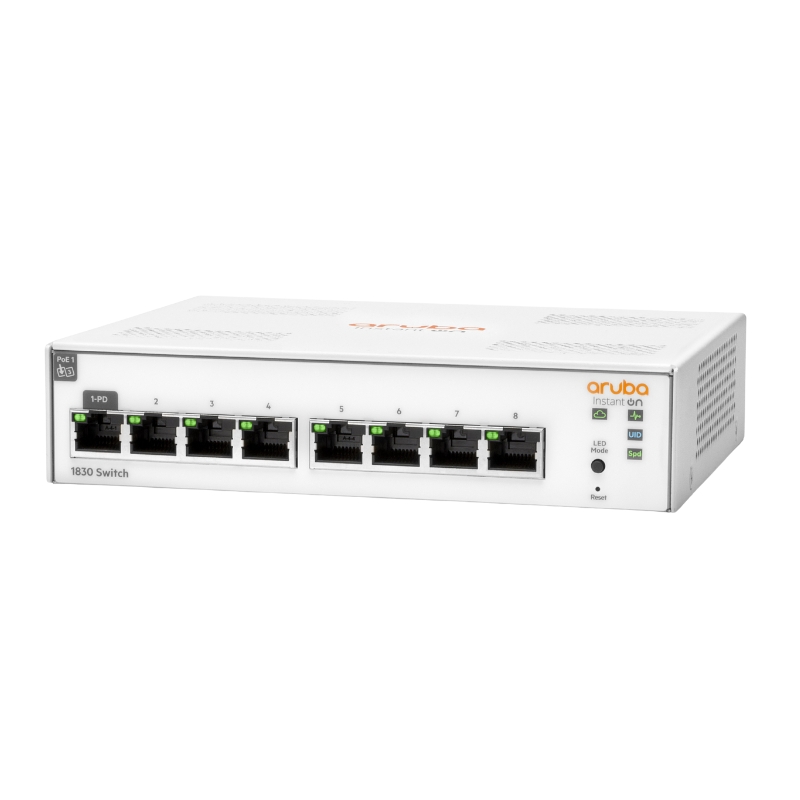

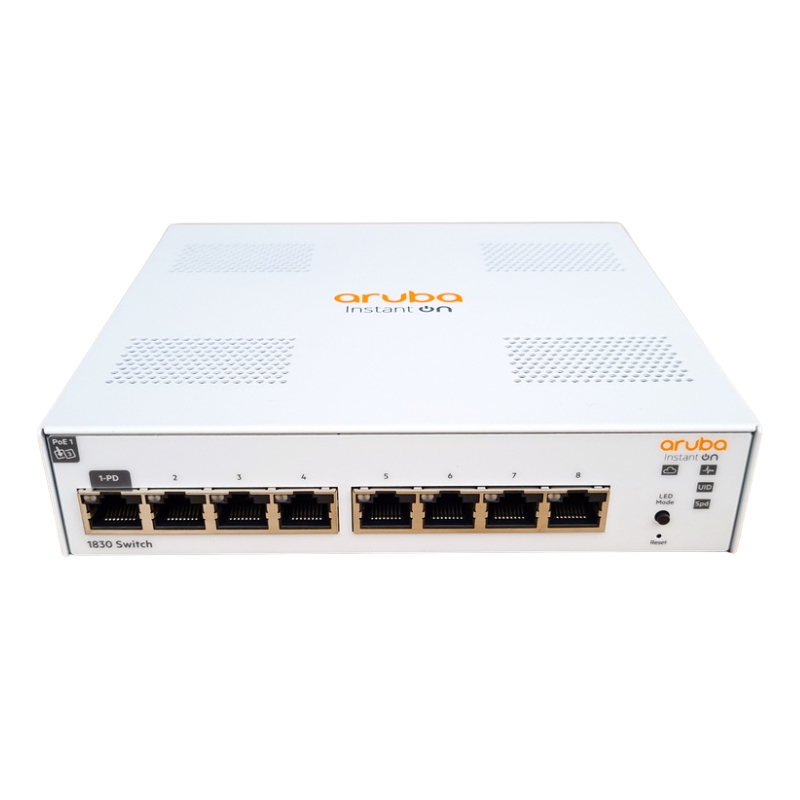

HPE JL811-61001 1830 POE 8-Port Smart Rack-Mountable Switch

HPE JL811-61001 Aruba Instant On 1830 8G 4P Class4 PoE 65W Switch Overview

Smart and Rack-Mountable Design

• Compact switch with 8 ports designed for smart management
• Rack-mountable 1U enclosure, perfect for space-saving installations
• Offers 4 standard 10/100/1000 ports and 4 Power over Ethernet (PoE+) ports for versatile connectivity

Gigabit Ethernet Performance

• Subtype: Gigabit Ethernet, delivering fast and reliable data transfer
• Performance includes a switching capacity of 16 Gbps
• Supports throughput of 11.9 Mpps for seamless data transmission
• Low latency: 5.2ms at 100 Mbps and 2.8ms at 1 Gbps

Advanced PoE+ Capabilities

• Power over Ethernet (PoE+) support for easier power management
• 65W PoE budget ensures adequate power for connected devices
• Supports high-power devices like IP cameras and wireless access points

Jumbo Frame and MAC Address Support

• Jumbo frame support up to 9216 bytes for efficient data handling
• MAC address table with capacity for 8000 entries ensures robust performance in busy networks

Remote and Cloud Management Features

• Manage remotely via SNMP, HTTP, HTTPS, TFTP, SCP, and ICMP protocols
• Cloud-managed switch offering remote accessibility and control
• Features for enhanced security: SSL encryption, denial-of-service (DoS) protection, and secure copy (SCP)

Energy Efficiency and Fanless Operation

• Energy-Efficient Ethernet (EEE) for reduced power consumption
• Fanless design ensures quiet operation, ideal for noise-sensitive environments

Comprehensive VLAN and QoS Support

• Virtual LAN (VLAN) support to create multiple networks on a single switch
• Quality of Service (QoS) for prioritizing critical network traffic
• Class of Service (CoS) ensures efficient data traffic management

Reliable and Scalable with Advanced Protocols

• Features IGMP Snooping and support for multiple routing protocols like IGMPv2
• Supports link aggregation and spanning tree protocol (STP) for enhanced network reliability
• Dual image support for firmware upgrades without downtime

Power and Connectivity Specifications

Expansion and Connectivity

• Includes 4 standard Gigabit Ethernet (1000Base-T RJ-45) ports
• Additional 4 PoE+ Gigabit Ethernet (1000Base-T RJ-45) ports

Power Supply and Consumption

• Equipped with an internal power supply, requires AC 100-240V (50/60Hz)
• Power consumption during operation: 86.07 watts

Processor and Memory

• Powered by an ARM processor running at 800 MHz
• 512MB SDRAM and 256MB flash memory for efficient processing and storage

Status Indicators and Diagnostics

• Status LEDs for port activity, speed, and duplex mode
• Features cable diagnostics and loop protection to troubleshoot connectivity issues

Standards and Compliance

Compliant Standards

• Supports a wide array of industry standards, including IEEE 802.3, IEEE 802.1q, and IEEE 802.3x
• Compliance with PoE standards like IEEE 802.3af and 802.3at for Power over Ethernet devices

Additional Features

• Flow control, auto-sensing, and auto-negotiation for optimized performance
• LLDP support and storm control for advanced network management
• Supports BPDU filtering and spanning tree for loop protection

Name: Instant On 1830 POE

The HPE JL811-61001 Smart Rack-Mountable Switch comes with the remarkable feature of Instant On 1830 POE. This cutting-edge technology has revolutionized the networking world, providing users with an enhanced experience and numerous benefits.

1. Simplicity and Speed

The Instant On 1830 POE feature offers users a simplified networking solution that is incredibly easy to set up and manage. With just a few simple steps, users can have their network up and running within minutes, eliminating the need for complex configurations and reducing the time spent on deployment.

Furthermore, this feature ensures lightning-fast connectivity, enabling users to experience seamless data transfer and better network performance. With its high-speed capabilities, the Instant On 1830 POE allows for quick and efficient communication between devices connected to the network.

2. Power over Ethernet (POE)

One of the key advantages of the Instant On 1830 POE feature is its ability to provide power to connected devices through Ethernet cables. This eliminates the need for separate power cables, reducing clutter and simplifying cable management.

The Power over Ethernet capability is particularly beneficial for devices such as IP cameras, wireless access points, and VoIP phones that require both data connectivity and power supply. By integrating power delivery into the Ethernet infrastructure, this feature streamlines installation and maintenance processes while ensuring uninterrupted power supply to critical devices.

2.1 Enhanced Flexibility

The Instant On 1830 POE feature offers enhanced flexibility by allowing devices to be installed in locations where power outlets may not be readily available. This eliminates the constraints of power source proximity and enables greater freedom in device placement, making it ideal for environments where mobility is essential.

This flexibility is particularly advantageous in scenarios such as setting up surveillance cameras in outdoor areas or deploying wireless access points in large open spaces. With the Instant On 1830 POE feature, users can easily and conveniently extend their network to reach previously inaccessible locations.

2.2 Cost Efficiency

The Power over Ethernet capability provided by the Instant On 1830 POE feature offers significant cost savings by reducing the need for additional power infrastructure. With traditional networking setups, each device requires a dedicated power source, resulting in increased installation and operational expenses.

By leveraging the power of Ethernet cables, the Instant On 1830 POE eliminates the need for separate power supplies, reducing hardware costs and simplifying network design. Additionally, this feature reduces energy consumption by optimizing power usage, resulting in long-term cost savings.

2.3 Centralized Power Management

The Instant On 1830 POE feature allows for centralized power management, offering users greater control over their network devices. Through an intuitive interface, users can monitor and adjust the power settings of individual devices remotely.

This centralized power management not only enables efficient resource allocation but also facilitates troubleshooting and maintenance processes. Users can easily identify and address power-related issues without physically accessing each device, saving time and effort.

2.3.1 Power Scheduling

Another advantage of the Instant On 1830 POE feature is the ability to schedule power cycles for connected devices. This functionality allows users to automatically turn devices on or off at predefined times, optimizing energy usage and reducing costs.

Power scheduling is particularly useful for businesses operating during specific hours or organizations that require devices to be powered down during non-operational periods. By automating power cycles, users can ensure devices are only consuming power when necessary, improving energy efficiency.

2.3.2 Power Monitoring

The Instant On 1830 POE feature also provides real-time power monitoring capabilities. Users can easily track and analyze power consumption data for each connected device, enabling them to identify power-hungry devices or potential anomalies.

This power monitoring functionality not only aids in optimizing power usage but also contributes to overall network performance. By identifying devices with abnormal power consumption patterns, users can proactively address potential issues, ensuring the network operates at peak efficiency.

Ports: 8

In addition to the Instant On 1830 POE feature, the HPE JL811-61001 Smart Rack-Mountable Switch boasts 8 ports. This feature provides users with a versatile and scalable networking solution that caters to their connectivity needs.

1. Expanded Connectivity

With 8 ports available, users can connect a variety of devices to their network simultaneously. This expanded connectivity is particularly beneficial for small to medium-sized businesses or home offices that require multiple devices to be connected.

The availability of multiple ports allows for seamless integration of devices such as computers, printers, IP cameras, and network storage devices. Users can effortlessly establish a reliable and efficient network infrastructure that supports their diverse connectivity requirements.

2. Network Expansion

The 8-port feature of the HPE JL811-61001 Smart Rack-Mountable Switch offers users the ability to expand their network as their needs evolve. This scalability ensures that the switch can accommodate future growth and changing connectivity demands without requiring additional hardware investments.

As businesses expand or home networks evolve, having additional ports readily available eliminates the need to purchase new switches or invest in complex network infrastructure redesign. The 8-port feature provides a cost-effective solution that adapts to users' evolving networking requirements.

2.1 Segmented Network Support

The availability of multiple ports enables users to segment their network, separating devices based on their roles or security requirements. This segmentation enhances network performance and security by minimizing interference between devices and isolating potential threats.

For example, users can allocate specific ports for guest networks, ensuring that guest devices are isolated from the main network for added security. Similarly, devices with high bandwidth requirements can be assigned dedicated ports, preventing congestion and ensuring optimal performance.

2.2 Improved Network Reliability

The 8-port feature also enhances network reliability by providing redundancy options. Users can establish link aggregation groups (LAGs) or configure redundant connections to ensure uninterrupted connectivity even in the event of a port or cable failure.

Link aggregation allows multiple ports to be combined into a single logical connection, increasing bandwidth and providing failover capabilities. In the event of a port failure, traffic seamlessly reroutes through the remaining active ports, ensuring continuous network operation.

2.2.1 Link Aggregation Groups (LAGs)

The 8-port feature of the HPE JL811-61001 Smart Rack-Mountable Switch supports the creation of Link Aggregation Groups (LAGs). LAGs enable users to combine multiple ports into a high-bandwidth connection, improving network performance and providing redundancy.

By bundling multiple ports together, LAGs distribute traffic across the available connections, preventing bottlenecks and ensuring efficient data transfer. LAGs also offer failover capabilities, automatically rerouting traffic in the event of a link failure, enhancing network reliability.

2.2.2 Redundant Connections

In addition to LAGs, the 8-port feature allows users to configure redundant connections, providing backup options in case of port or cable failures. By establishing redundant connections between devices, users can ensure uninterrupted network connectivity even during hardware failures.

Redundant connections operate as backups to primary connections, automatically taking over in case of failure. This redundancy reduces downtime and increases overall network reliability, critical for businesses and organizations that rely heavily on their network infrastructure.

In conclusion, the HPE JL811-61001 Smart Rack-Mountable Switch, with its Instant On 1830 POE feature and 8-port capability, offers users a powerful networking solution. The Instant On 1830 POE feature simplifies network setup, enhances flexibility, and reduces costs through Power over Ethernet capabilities. Additionally, the 8-port feature provides expanded connectivity options and scalability for evolving networking needs. With the combination of these features, users can enjoy a reliable, efficient, and future-proof network infrastructure that caters to their specific requirements.
