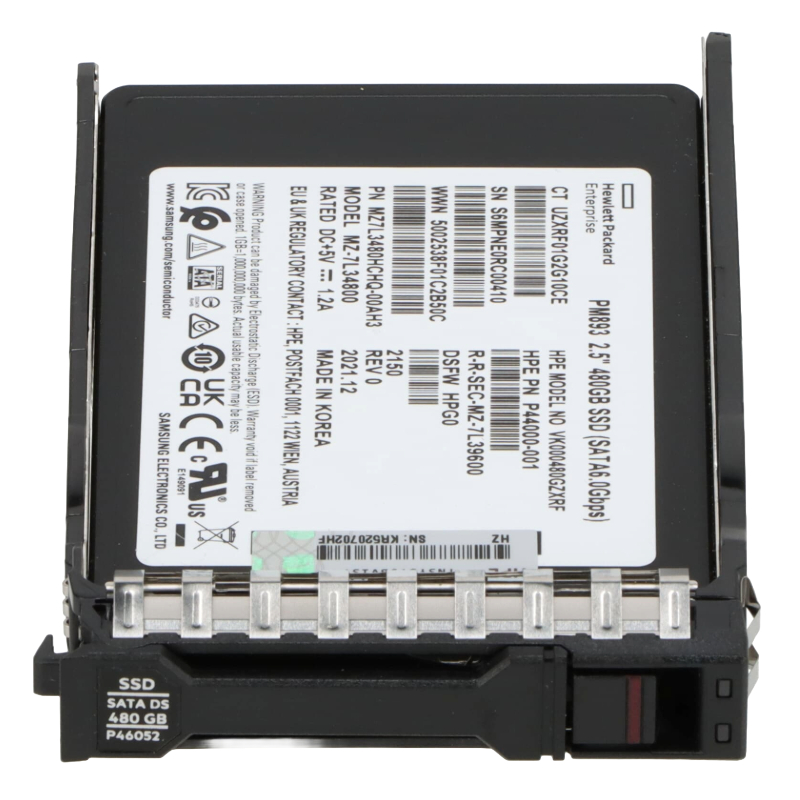

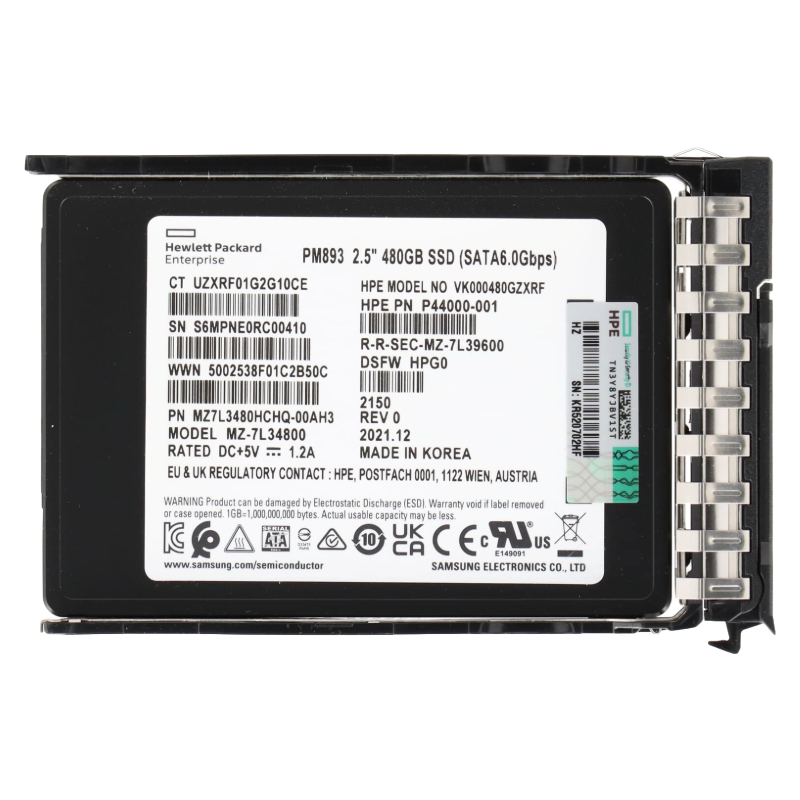

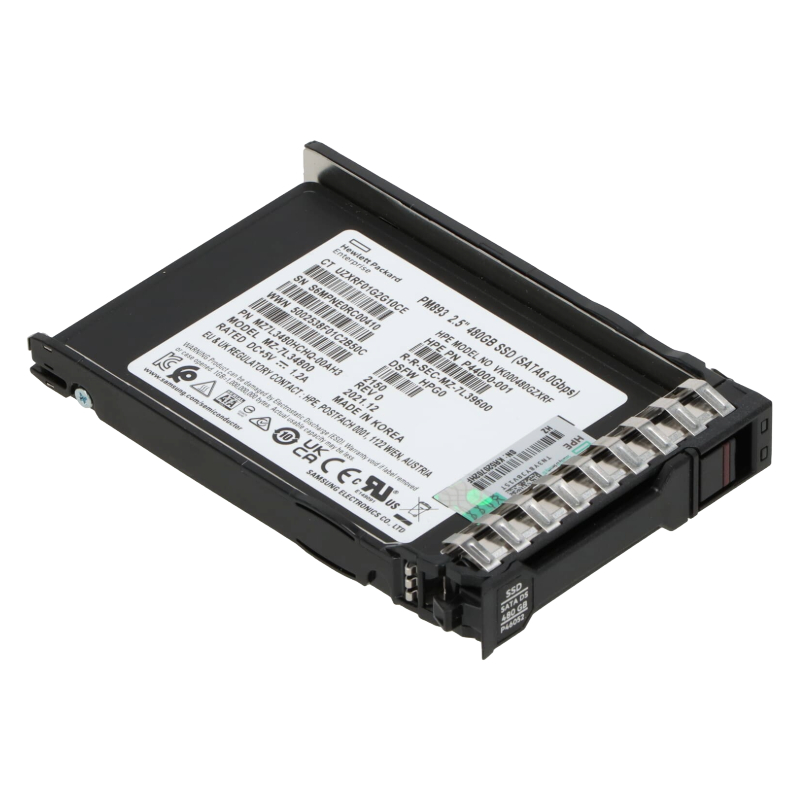

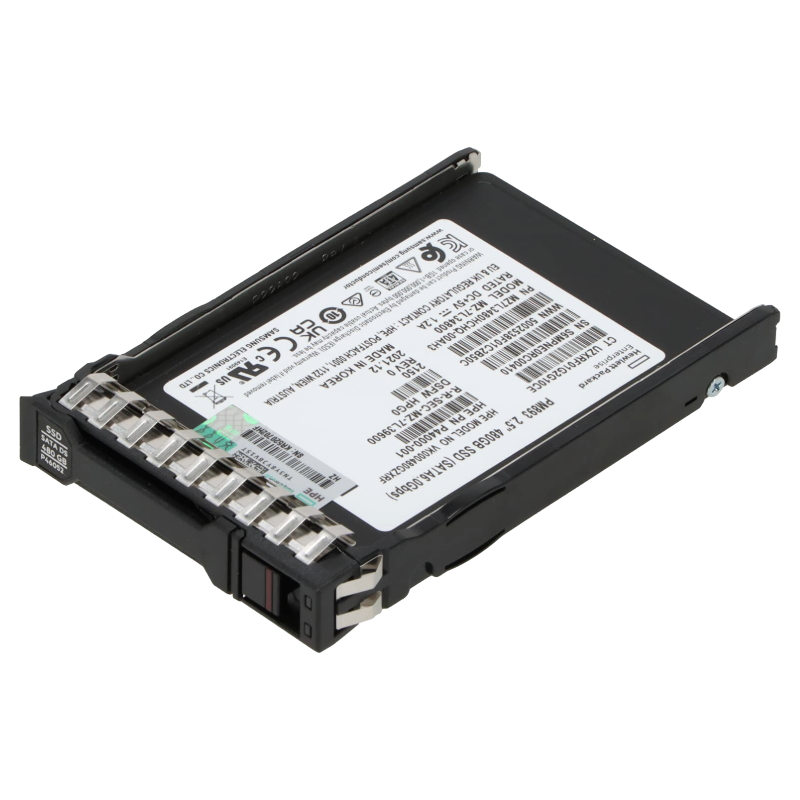

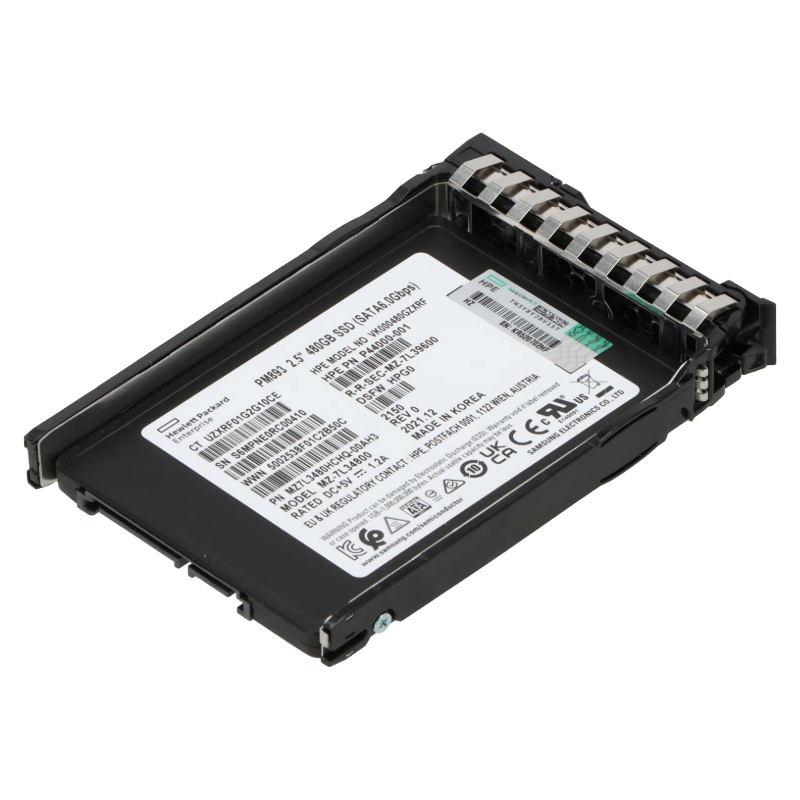

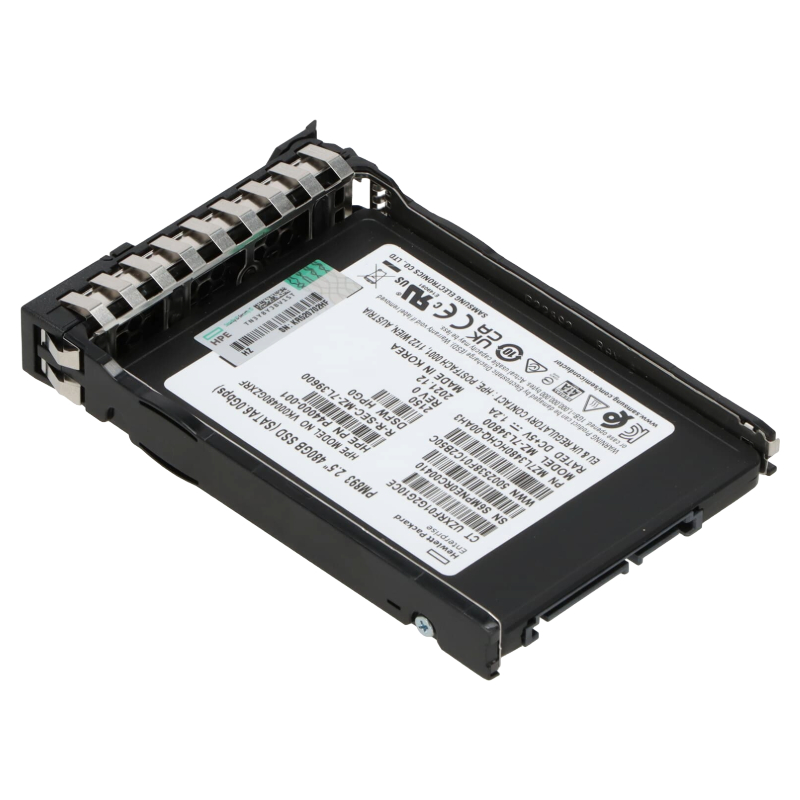

HPE P02760-002 480GB SSD SATA-6GBPS SFF MLC SC Read Intensive

Product Overview

The HPE P02760-002 is a 480GB solid-state drive designed for high-performance read-intensive workloads. This 2.5-inch Small Form Factor (SFF) drive features a SATA 6Gbps interface and is equipped with Digitally Signed Firmware, ensuring reliable data integrity and system performance.

Key Specifications

• Brand: HPE
• MPN: P02760-002-SC
• Option Part Number: P04560-B21
• Spare Part Number: P05320-001
• Model Number: VK000480GWSRR
• Assembly Number: P02760-002

General Features

• Device Type: Hot-Swap Solid State Drive
• Capacity: 480 GB
• Form Factor: 2.5 inch SFF
• Interface: SATA 6Gbps
• Workload Type: Read Intensive
• Carrier Type: Smart Carrier (SC)
• NAND Flash Memory Type: Triple-Level Cell (TLC)
• Connection Type: Single Port
• Plug Type: Hot Plug
• Features: Digitally Signed Firmware
• Bundled With: HPE Smart Drive Carrier
• Height: 7 mm

Performance Metrics

• 30 Days Writes: 700
• Endurance DWPD: 0.80 (Drive Writes Per Day)
• Drive Transfer Rate: 600 MBps (external)
• Max Sequential Reads Throughput: 535 MiB/s
• Max Sequential Writes Throughput: 495 MiB/s
• Random Read Average Latency (4KiB, Q1): 105 µs
• Random Write Average Latency (4KiB, Q1): 36 µs
• Random Read IOPS (4KiB, Q=16): 68,000
• Random Write IOPS (4KiB, Q=16): 25,000
• Max Random Read IOPS (4KiB): 77,000 @ Q32
• Max Random Write IOPS (4KiB): 25,000 @ Q1

Connectivity and Expansion

• Interfaces: 1 x SATA 6 Gb/s
• Compatible Bay: 2.5" SFF

Power Consumption

• Idle Time: 1.12 Watts
• Random Read: 2.29 Watts
• Random Write: 2.29 Watts
• Sequential Read: 1.89 Watts
• Sequential Write: 2.50 Watts
• Random R/W: 2.29 Watts
• Max Power Requirement: 3.00 Watts

Physical Dimensions & Weight

• Height: 5.00 inches (12.70 cm)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility

Designed for the Following Systems:

• HPE Apollo Series: 4200 Gen9 for Google (2.5 inch)
• HPE ProLiant BL Series: BL660c Gen9 (2.5 inch), DL180 Gen10 (2.5 inch)
• HPE ProLiant DL Series:
  • DL180 Gen10 Entry (2.5 inch)
  • DL20 Gen10 Series (2.5 inch)
  • DL360 Gen9 Series (2.5 inch)
  • DL380 Gen10 Series (2.5 inch)
  • DL580 Gen9 Series (2.5 inch)
• HPE ProLiant ML Series: ML30 Gen10 (2.5 inch), ML350 Gen10 (2.5 inch)
• HPE Synergy Series: 680 Gen9 4S-EX Base Compute Module (2.5 inch)

Interface: SATA-6GBPS

Improved Data Transfer Speed

The HPE P02760-002 Solid State Drive boasts a SATA-6GBPS interface, which offers users a significant advantage in terms of data transfer speed. With this high-speed interface, users can experience faster and more efficient data transfers compared to traditional hard disk drives. Whether you are transferring large files or running resource-intensive applications, the SATA-6GBPS interface ensures that data is transferred swiftly, reducing waiting times and improving overall system performance.

Enhanced Productivity

With the HPE P02760-002 Solid State Drive's SATA-6GBPS interface, users can enjoy enhanced productivity. The faster data transfer speeds allow for quicker file access and retrieval, enabling users to work on projects more efficiently. Whether you are a professional who relies on quick access to large files or a gamer looking for reduced loading times in your favorite games, the SATA-6GBPS interface ensures that you can accomplish tasks swiftly and seamlessly.

Smooth Multitasking

In today's fast-paced digital world, multitasking has become a necessity. The SATA-6GBPS interface of the HPE P02760-002 Solid State Drive enables smooth multitasking by facilitating faster data transfers between the drive and other components of your system. Users can run multiple applications simultaneously without experiencing lag or delays in performance. This feature is particularly beneficial for professionals who need to run resource-intensive software or individuals who enjoy running multiple applications at once.

Seamless Gaming Experience

For gamers, the SATA-6GBPS interface is crucial for achieving a seamless gaming experience. With faster data transfer speeds, games load quickly, reducing waiting times and allowing players to jump right into the action. Additionally, the interface ensures smooth gameplay with minimal lag or stuttering, enabling gamers to fully immerse themselves in their favorite virtual worlds without any interruptions.

Efficient Media Editing

Media professionals, such as photographers and videographers, can greatly benefit from the SATA-6GBPS interface of the HPE P02760-002 Solid State Drive. With faster data transfer speeds, editing large media files becomes a breeze. Whether you are editing high-resolution photos or 4K videos, the interface ensures smooth and efficient editing processes, saving you valuable time and increasing your productivity.

Form Factor: SFF

Space-Saving Design

The HPE P02760-002 Solid State Drive features a Small Form Factor (SFF) design that offers users a space-saving solution. The compact size of the drive allows for efficient utilization of limited space in modern computing systems. Whether you have a small form factor PC or a server with limited drive bays, the SFF design of this drive ensures that it can fit seamlessly into your system without occupying excessive space.

Increased System Flexibility

The SFF form factor provides increased system flexibility, allowing users to easily integrate the HPE P02760-002 Solid State Drive into various computing setups. Whether you need to install the drive in a desktop PC, laptop, or server, its compact size ensures compatibility with a wide range of systems. This flexibility is particularly useful for organizations that manage diverse IT infrastructure and need a storage solution that can be easily deployed across different systems.

Improved Airflow and Cooling

The SFF form factor also contributes to improved airflow and cooling within your system. The smaller size of the drive allows for better airflow around other components, preventing overheating and ensuring optimal system performance. By maintaining lower operating temperatures, the SFF design helps to prolong the lifespan of your system and reduces the risk of component failure due to excessive heat.

Efficient Rack Space Utilization

For organizations that manage data centers with multiple rack-mounted servers, the SFF form factor of the HPE P02760-002 Solid State Drive is highly advantageous. The compact size of the drive allows for efficient utilization of rack space, enabling more drives to be installed in a single rack unit. This not only maximizes storage capacity but also improves overall data center efficiency by reducing the physical footprint required for storage.

Easy Drive Installation and Maintenance

The SFF form factor facilitates easy drive installation and maintenance. The compact size of the drive makes it easy to handle and install, even in tight spaces. Additionally, the smaller form factor simplifies drive replacement and upgrades, minimizing downtime during maintenance operations. This feature is particularly valuable for IT professionals who need to manage a large number of drives in enterprise environments.

Technology: MLC

Enhanced Endurance

The HPE P02760-002 Solid State Drive utilizes Multi-Level Cell (MLC) technology, which offers enhanced endurance compared to other types of NAND flash memory. MLC technology allows each memory cell to store multiple bits of data, resulting in higher storage density. This increased density translates into improved endurance as the drive can handle a higher number of program/erase cycles before experiencing performance degradation. With MLC technology, users can rely on the HPE P02760-002 Solid State Drive for demanding workloads that involve frequent read and write operations.

Reliable Performance

MLC technology ensures reliable performance even under heavy workloads. The HPE P02760-002 Solid State Drive's MLC-based architecture provides consistent read and write speeds, making it an ideal choice for applications that require sustained performance. Whether you are running databases, virtual machines, or multimedia editing software, the drive's MLC technology ensures that your system operates smoothly without any performance bottlenecks.

Cost-Effective Storage Solution

MLC technology offers a cost-effective storage solution for users who require high-capacity drives. By utilizing multiple bits per cell, MLC drives can provide larger storage capacities at a lower cost compared to Single-Level Cell (SLC) drives. This makes the HPE P02760-002 Solid State Drive an attractive option for individuals and organizations that need ample storage space without breaking the bank.

Optimized for Mixed Workloads

The MLC technology employed by the HPE P02760-002 Solid State Drive makes it well-suited for mixed workloads. Whether you are running a combination of read-intensive and write-intensive applications or dealing with a diverse range of data types, the drive's MLC architecture ensures optimal performance and endurance. This versatility makes it an excellent choice for professionals in fields such as data analytics, virtualization, and content creation.

Increased Data Security

The MLC technology in the HPE P02760-002 Solid State Drive also enhances data security. With MLC-based storage, data is stored more securely as each memory cell can store multiple bits of data. This allows for more efficient error correction and data recovery algorithms, reducing the risk of data corruption or loss. Additionally, MLC technology supports advanced features like hardware encryption, ensuring that your sensitive data remains protected from unauthorized access.

Use Case: Read Intensive

Optimized for Read-Intensive Applications

The HPE P02760-002 Solid State Drive is specifically designed for read-intensive workloads. Whether you are using the drive in a server environment or a personal computer, its read-intensive nature ensures optimal performance for applications that primarily involve reading data. This makes the drive ideal for tasks such as booting up the operating system, launching applications, accessing frequently used files, and browsing the internet.

Faster Data Access

With its focus on read-intensive operations, the HPE P02760-002 Solid State Drive offers faster data access compared to drives optimized for write-intensive workloads. When it comes to reading data, the drive excels in providing quick response times and reduced latency. This translates into a smoother user experience, enabling you to access your files and applications promptly without any noticeable delays.

Extended Lifespan

The read-intensive nature of the HPE P02760-002 Solid State Drive contributes to an extended lifespan. Since read operations typically have less impact on drive endurance compared to write operations, the drive can handle a higher workload without experiencing performance degradation. This extended lifespan ensures that the drive remains reliable and efficient for an extended period, making it a cost-effective investment for users who primarily require fast data access.

Ideal for Boot Drives

The HPE P02760-002 Solid State Drive's read-intensive nature makes it an excellent choice for use as a boot drive. As the primary drive that contains the operating system, a boot drive heavily relies on fast data access to ensure quick system startup times. The drive's read-intensive optimization ensures that your system boots up swiftly, allowing you to start working or gaming without any unnecessary delays.

Improved Application Performance

Applications that heavily depend on reading data, such as web browsers or media players, can greatly benefit from the HPE P02760-002 Solid State Drive's read-intensive design. The drive's optimized performance for read operations ensures that these applications load quickly and operate smoothly. Whether you are streaming high-definition videos or browsing resource-intensive websites, the drive's read-intensive capabilities guarantee a seamless user experience.

Capacity: 480GB

Ample Storage Space

With a capacity of 480GB, the HPE P02760-002 Solid State Drive offers users ample storage space for their data and applications. Whether you are a casual user with a growing collection of multimedia files or an enterprise with extensive data storage requirements, the drive's capacity ensures that you have enough room to store your files without worrying about running out of space.

Optimal Balance of Performance and Capacity

The 480GB capacity strikes an optimal balance between performance and capacity. It provides enough storage space for most users while ensuring that the drive maintains high performance levels. With this capacity, users can store their operating system, applications, and frequently accessed files on the drive, benefiting from fast data access speeds without compromising on storage capacity.

Efficient Data Organization

The 480GB capacity of the HPE P02760-002 Solid State Drive allows for efficient organization of data. Users can allocate specific sections of the drive for different types of data or applications, enabling streamlined access and management. This efficient organization enhances overall system performance and productivity, as users can quickly locate and retrieve the data they need.

Optimized for Multimedia Storage

For multimedia enthusiasts and professionals who work with large media files, the 480GB capacity of the HPE P02760-002 Solid State Drive is particularly advantageous. The drive offers sufficient space to store high-resolution photos, videos, and audio files without compromising on performance. Whether you are a photographer, videographer, or music producer, the drive's capacity ensures that you can store and access your multimedia assets conveniently.

Scalable Storage Solution

The 480GB capacity also provides scalability for future storage needs. As data requirements grow, users can easily add additional drives or upgrade to higher capacity models to accommodate their expanding storage needs. This scalability ensures that the HPE P02760-002 Solid State Drive can adapt to changing storage demands, making it a versatile and future-proof choice for users who anticipate increasing their data storage in the future.
